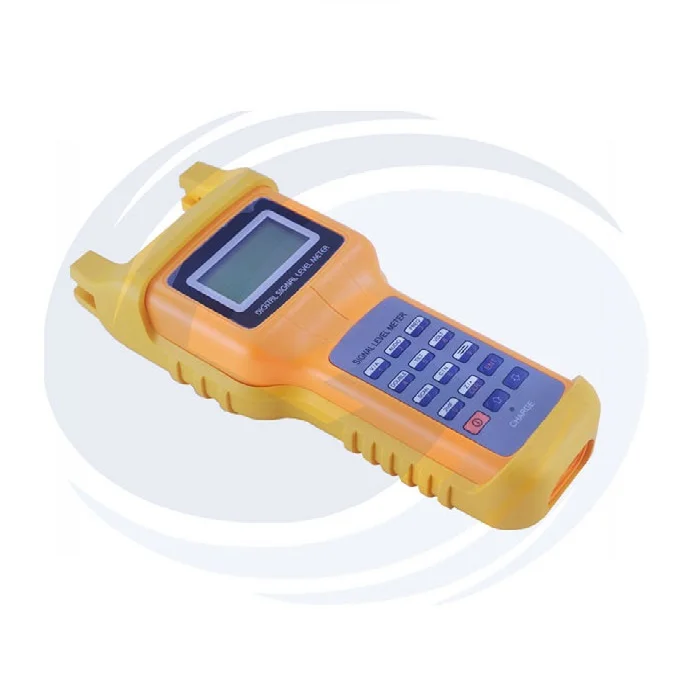

HD4125A Analog TV RF signal level meter NTSC /PAL



HD4125A/B Signal Analyzer is specially designed and manufactured for CATV system installation and testing. It's a portable instrument, easy to carry with many functions. At TILT mode it can be set 7 channels and this instrument can store 24 groups (100 channels per group ). It can connect with the power software that made by our company and the software can running in the Windows9X or Windows NT. It has lots of setup menus. The menu include: Auto off time setup; level unit setup; frequency step; TILT channel setup; channel amend; channel plan selection; channel edit; channel sort; operator, etc.


Feature
* Channel and spectrum testing.
* Scan mode, spectrum mode and TILT mode.
* Testing level, voltage, C/N etc.
* TN big character LCD display or 128*64 matrix LCD display


Specification


Product name
HD4125A Analog TV RF signal level meter NTSC /PAL
Model
HD4125A
Brand
HONDAO
Frequency Range
5-870MH
Resolution Bandwidth
280KHz±50KHz
Channels
All user designate Channels
Level Range
30dBuV~120dBuV
Accuracy
±1.5dBuV(under room temperature±2.5dBuV(-10~+40)
Input impedance
75Ω(BNC or F connector)
Wave detection
Peak value
Max Channel Scan
125 Channels
Scan Range
All Channelswithin5/46~870MHz
Scan Speed
30 Channels/Min
Memory Groups
14 Groups, each group store Max 100 Channels.
Voltage Range
0~100VAC
Accuracy
±1.5V
Resolution
O.IV


Certifications
