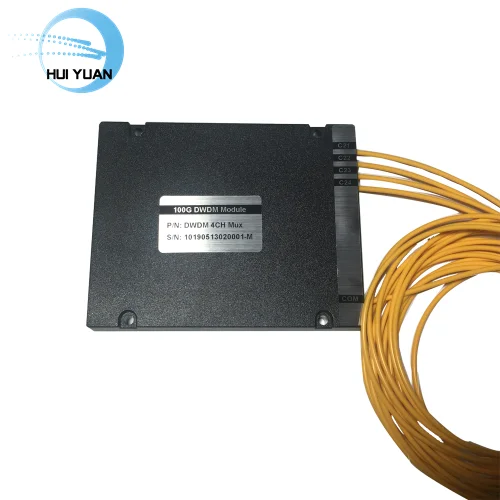

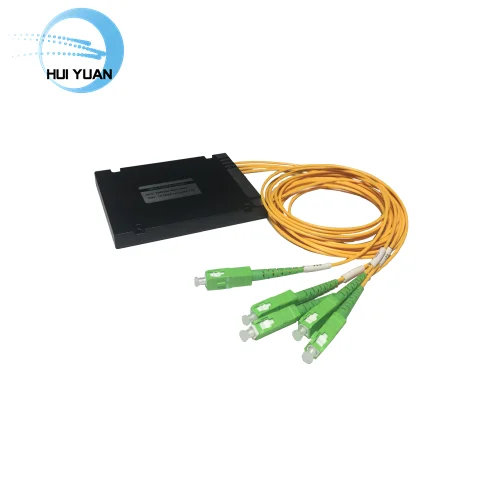

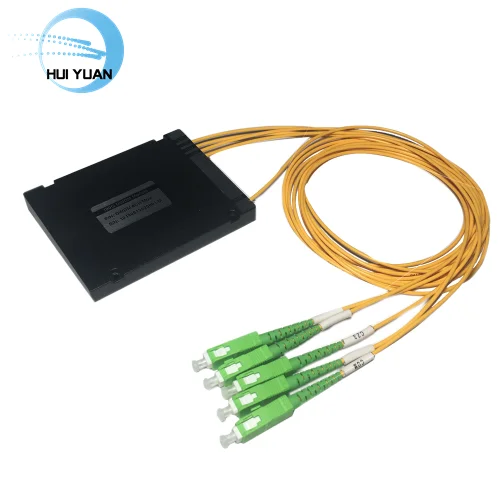

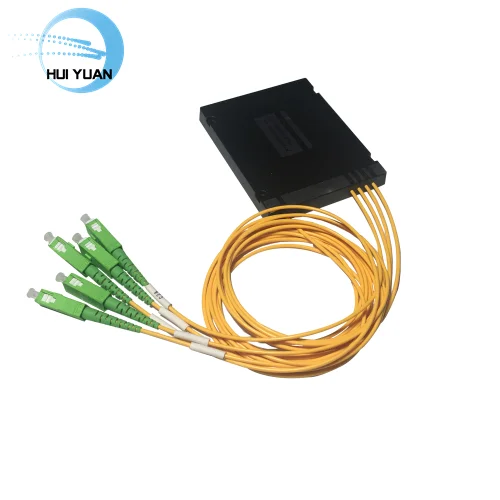

4 Channel C Band CWDM Multiplexer Module 1260 1650nm With SC/FC/LC/ST Connector
- Category: >>>
- Supplier: Fuzhou Huiyuan Communication Equipment Co. Ltd.
Share on (1600554618452):
Product Overview
Description
Product Description
Huiyuan’s Coarse wavelength division multiplexer (CWDM) utilizes thin film coating technology and proprietary design of non-flux metal bonding micro optics packaging.
Main features
Low Insertion Loss
Wide pass band
High Channel Isolation
High Stability and reliability
Applications
Line Monitoring
WDM Network
Fiber Optical amplifier
WDM Network
Fiber Optical amplifier
Specification
Parameter | 18 Channel | ||||||
Mux | Demux | ||||||
Channel Wavelength/通道波长(nm) | 1270~1610 | ||||||
Center wavelength Accuracy/中心波长精度(nm) | ±0.5 | ||||||
Channel Spacing /信道间距(nm) | 20 | ||||||
Channel Passband信道通频带宽(@-0.5dB bandwidth (nm) | >13 | ||||||
Insertion Loss/插入损耗(dB) | ≤3.8 | ||||||
Channel Uniformity/信道均匀性(dB) | ≤1.5 | ||||||
Channel Ripple/信道平坦度(dB) | 0.3 | ||||||
Isolation信道隔离度(dB) | Adjacent/相邻 | N/A | >30 | ||||
Non-adjacent/非相邻 | N/A | >40 | |||||
Insertion Loss Temperature Sensitivity/插入损耗温 | <0.005 | ||||||
度稳定性(dB/℃) | |||||||
Wavelength Temperature Shifting/波长稳定性(nm/℃) | <0.002 | ||||||
Polarization Dependent Loss/偏振相关损耗(dB) | <0.1 | ||||||
Polarization Mode Dispersion/偏振模式色散(PS) | <0.1 | ||||||
Directivity/方向性(dB) | >50 | ||||||
Return Loss/回损（dB） | >45 | ||||||
Maximum Power Handling/最大工作功率(mW) | 500 | ||||||
Operating Temperature/工作温度(℃) | -5~+75 | ||||||
Storage Temperature /储藏温度(℃) | -40~85 | ||||||
Package dimension/封装尺寸(mm) | L140xW114xH18 | ||||||
Above specification are for device without connector
