HDMI video capture,USB3.0 HDMI video recorder grabber Hdmi to usb video capture device for OBS capturing,Video capture card 4K
- Category: Cables & Commonly Used Accessories >>>
- Supplier: Shenzhen,Just,Link,Tech,Co.,Ltd.
Share on:
Product Overview
Description
Features
1. It can capture single-channel high-definition HDMI video signal;
2. The recording video signal can reach 1080P/60Hz, HDMI input supports 4K/60Hz; loop-out output 4K60HZ
3. Compatible with UVC video capture and YUV422 video output;
4.Support UAC & UVC protocol, support 48 KHz PCM audio sampling rate;
5. No need to install drivers, it is truly plug and play;
6. Compatible with Windows 7, 8, 8.1, 10 or later, Linux OS, Mac OS;
7.USB3.0, 300~350MB/s bandwidth, compatible with USB 2.0;
8. With MIC microphone audio input; with headphone output
9. It can automatically detect the input video format, and automatically adjust to the set output size and frame rate;
10. It can automatically detect the input audio format and convert it to 48KHz PCM audio;
11. Multiple acquisition sticks can be used on one PC;
12. The picture quality is clearer, the RGB color range is 0~255, and the delay is better;
13. Support all third-party player software compatible with UVC and UAC protocols;
2. The recording video signal can reach 1080P/60Hz, HDMI input supports 4K/60Hz; loop-out output 4K60HZ
3. Compatible with UVC video capture and YUV422 video output;
4.Support UAC & UVC protocol, support 48 KHz PCM audio sampling rate;
5. No need to install drivers, it is truly plug and play;
6. Compatible with Windows 7, 8, 8.1, 10 or later, Linux OS, Mac OS;
7.USB3.0, 300~350MB/s bandwidth, compatible with USB 2.0;
8. With MIC microphone audio input; with headphone output
9. It can automatically detect the input video format, and automatically adjust to the set output size and frame rate;
10. It can automatically detect the input audio format and convert it to 48KHz PCM audio;
11. Multiple acquisition sticks can be used on one PC;
12. The picture quality is clearer, the RGB color range is 0~255, and the delay is better;
13. Support all third-party player software compatible with UVC and UAC protocols;
Package

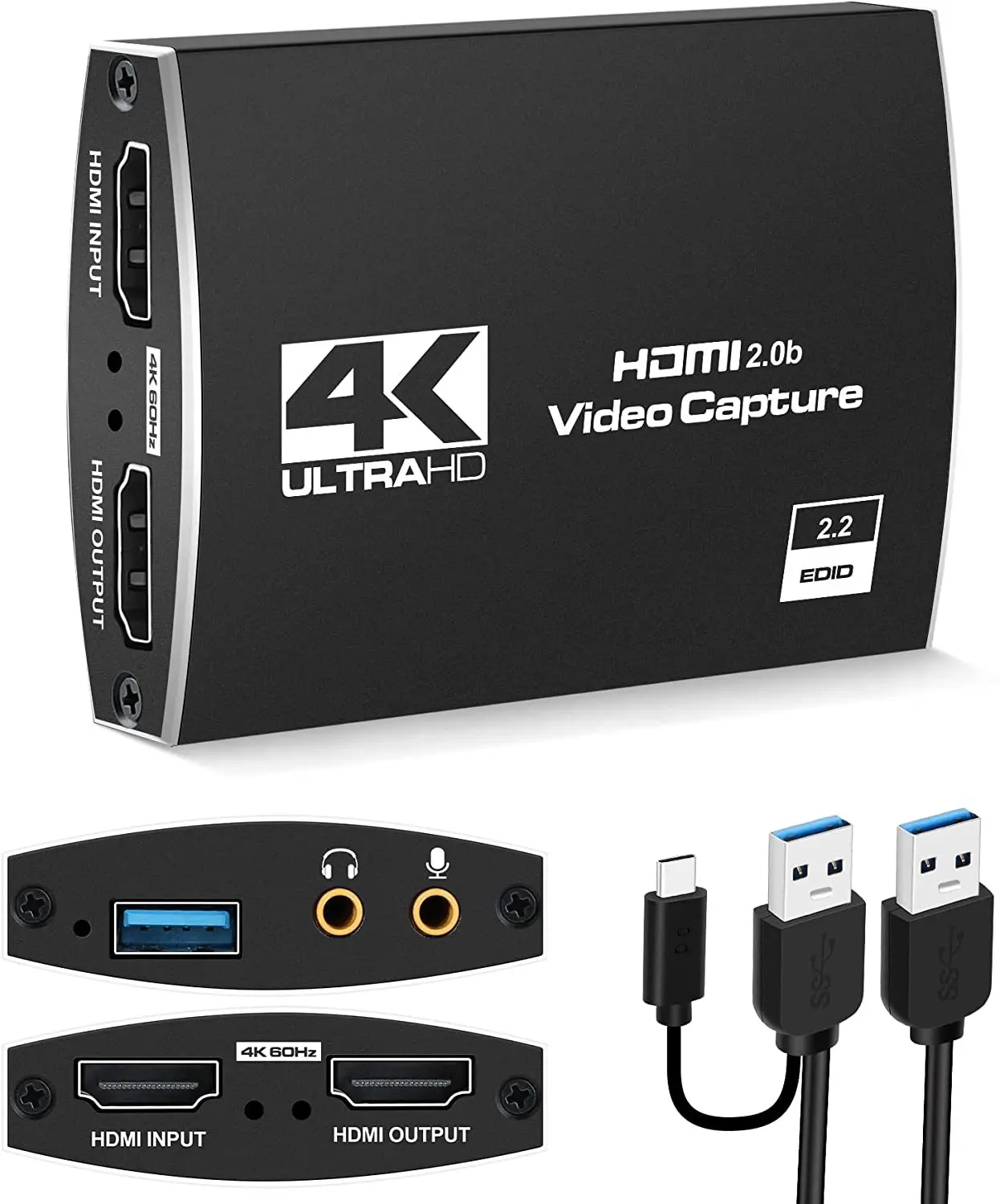

* 1 x 4K HDMI Video Capture Card
* 1 x USB3.0 to USB3.0&Type-c Cable
* 1 x User manual
* 1 x USB3.0 to USB3.0&Type-c Cable
* 1 x User manual
Specification
HDMI Resolution | Max input can be 4K/60Hz, capture up to 1080/60Hz |
Support Video Format | 8/10/12 bit deep color |
Support Audio Format | L-PCM |
Video output format | YUV/JPEG |
Video output resolution | Max output can be 1080P |
Material | Aluminum Alloy |
Color | Black |
