Factory Price High Efficiency Waterproof Mono 85W Thin Film Narrow Light Weight Flexible Solar Panel
- Category: >>>
- Supplier: Shenzhen Yifang Technology Co. Limited
Share on (1600554644148):
Product Overview
Description
Product Description
High Efficiency Waterproof Mono Half Cell 85w Light Weight Solar Flexible Solar Panels
Product Parameters
Product Paremeters | ||||||||||
Mechanical Data Standard Test Conditions AM=1.5, E=1000W/m2, TC=25℃ | ||||||||||
Nominal Power | 35W | 50W | 85W | 100W | 130W | |||||
Cell Type | Monocrystalline | |||||||||
Cell Efficiency | 21% | |||||||||
Maximum Power Current (Impp) | 5.07A | 5.34A | 5.18A | 4.96A | 9.78A | |||||
Maximum Power Voltage (Vmpp) | 6.9V | 10.3V | 16.4V | 20.23V | 13.3V | |||||
Open-circuit Voltage (Voc) | 8.3V | 12.4V | 20.1V | 24.31V | 16.2V | |||||
Short-circuit Current (Isc) | 5.43A | 5.69A | 5.42A | 5.22A | 10.22A | |||||
Output Tolerance | 0~+5 | |||||||||

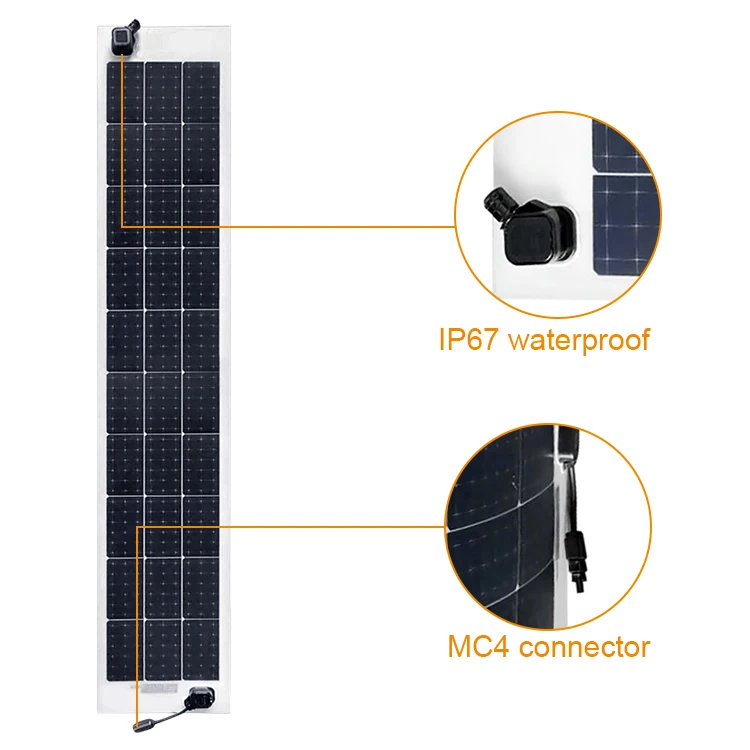

Connector Type | MC4 / MC4 Compatible | |||||||||
Module Structure | ETFE / EVA / Cell/EVA/TPT | |||||||||
Junction box rating | ≥IP68 | |||||||||
Working Temperature | -40℃~+85℃ | |||||||||
Module Dimensions | 544*356*1.4mm | 544*520*1.4mm | 1810*290*1.4mm | 1065*520*1.4mm | 2010*368*2mm | |||||
Module Weight | 0.48kg | 0.7kg | 1.3kg | 1.4kg | 2.0kg | |||||
Mechanical Data Standard Test Conditions AM=1.5, E=1000W/m2, TC=25℃ | ||||||
Nominal Power | 240W | 355W | 385W | |||
Cell Type | Monocrystalline | |||||
Cell Efficiency | 21% | |||||
Maximum Power Current (Impp) | 12A | 10.27A | 10.78A | |||
Maximum Power Voltage (Vmpp) | 20V | 34.6V | 35.7V | |||
Open-circuit Voltage (Voc) | 24.3V | 42.5V | 43.2V | |||
Short-circuit Current (Isc) | 13A | 10.76A | 11.35A | |||
Output Tolerance | 0~+5 | |||||
Connector Type | MC4 / MC4 Compatible | |||||
Module Structure | ETFE / EVA / Cell/EVA/TPT | |||||
Junction box rating | ≥IP68 | |||||
Working Temperature | -40℃~+85℃ | |||||
Module Dimensions | 1639*699*1.4mm | 1840*1040*1.7mm | 1840*1040*1.7mm | |||
Module Weight | 1.4kg | 6.3kg | 6.3kg | |||
