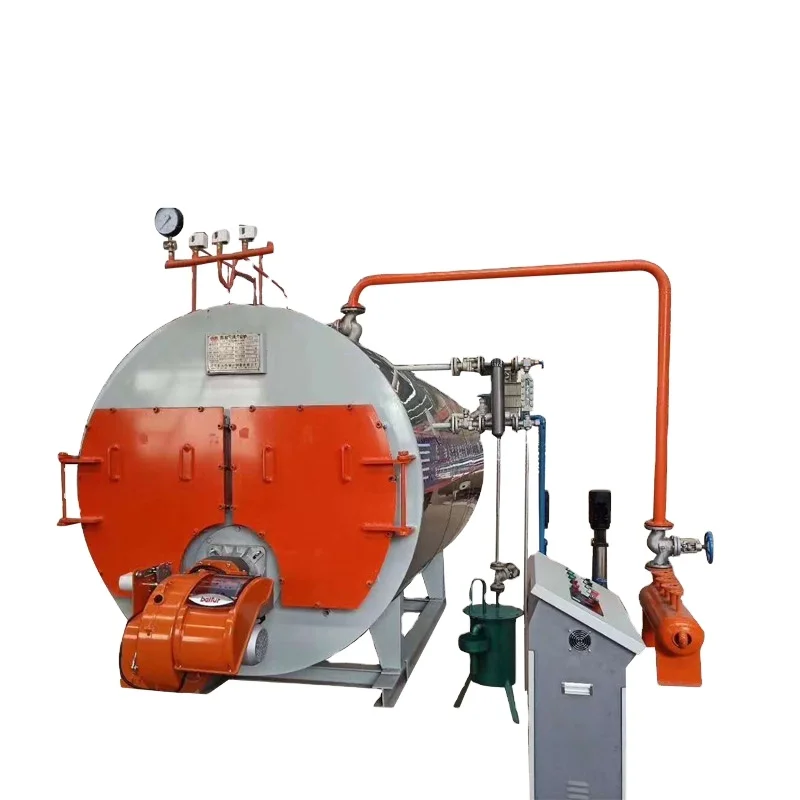

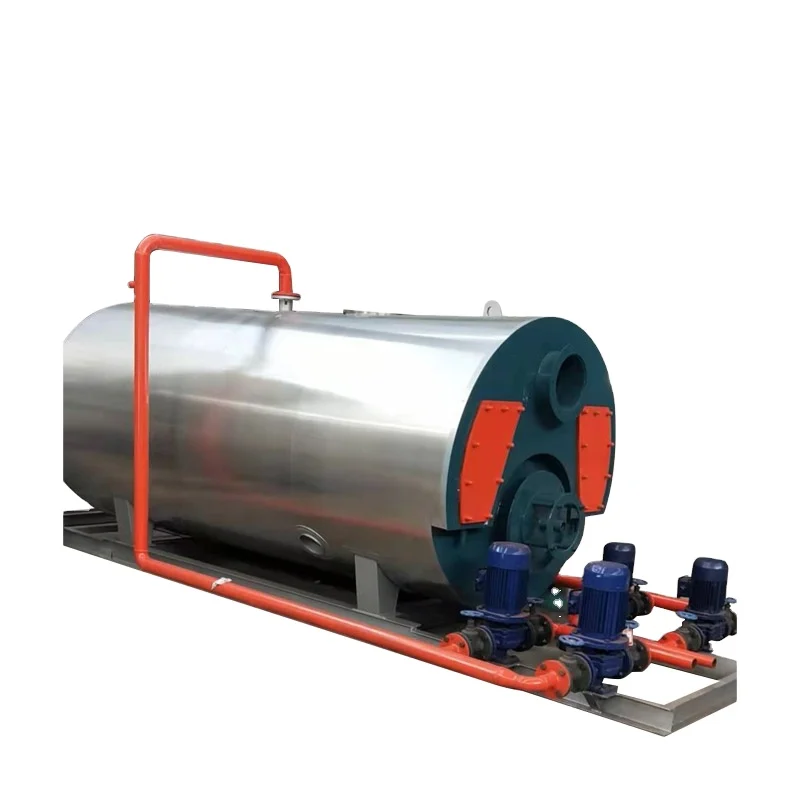

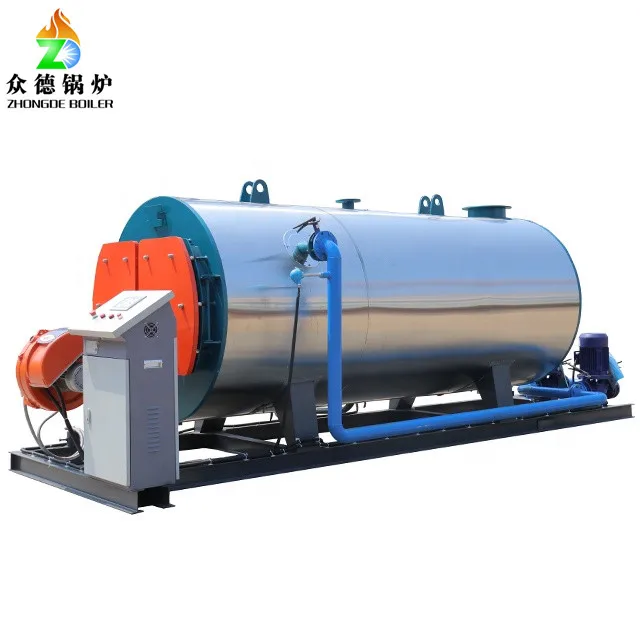

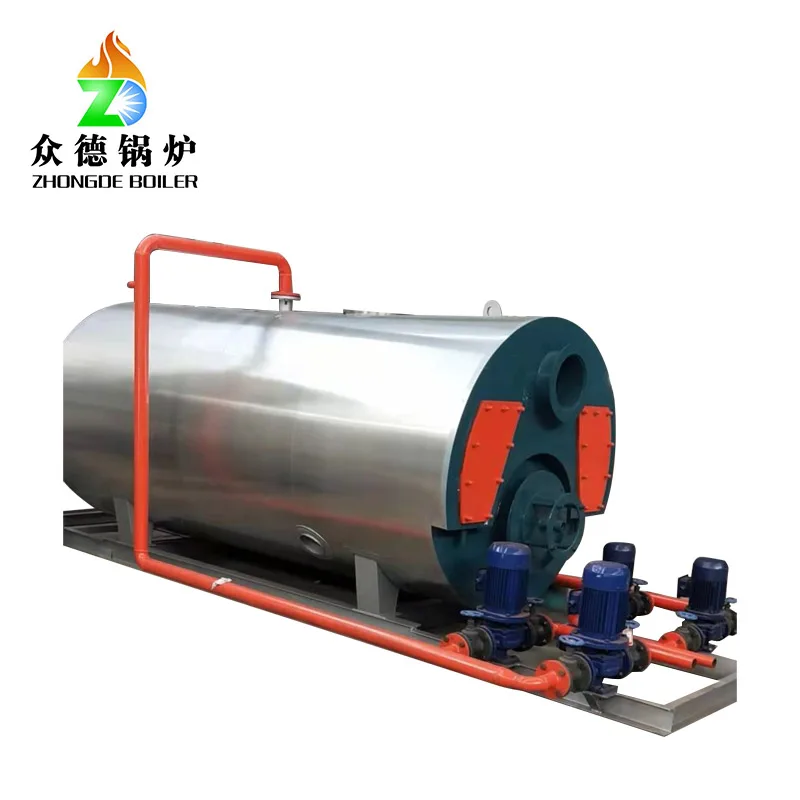

Horizontal Type Fire Tube Industrial Oil/Natural Gas Fired Wns Steam Boiler
- Category: >>>
- Supplier: Henan Zhongde Environmental Protection Technology Co. Ltd.
Share on (1600554665806):
Product Overview
Description
WNS series oil/gas fired boiler adopts horizontal three-pass wet-back structure,large corrugated furnace and patentedthread pipe technology,equipped with international first-level brand burners and valve groups,and independently developed high-matching PLC control system to realize muitiple linkages.The lock protection function protects the equipment running safely.Applicable fuel:natural gas, diesel,heavy fuel oil, lpg,lng,cng,biogas,etc;

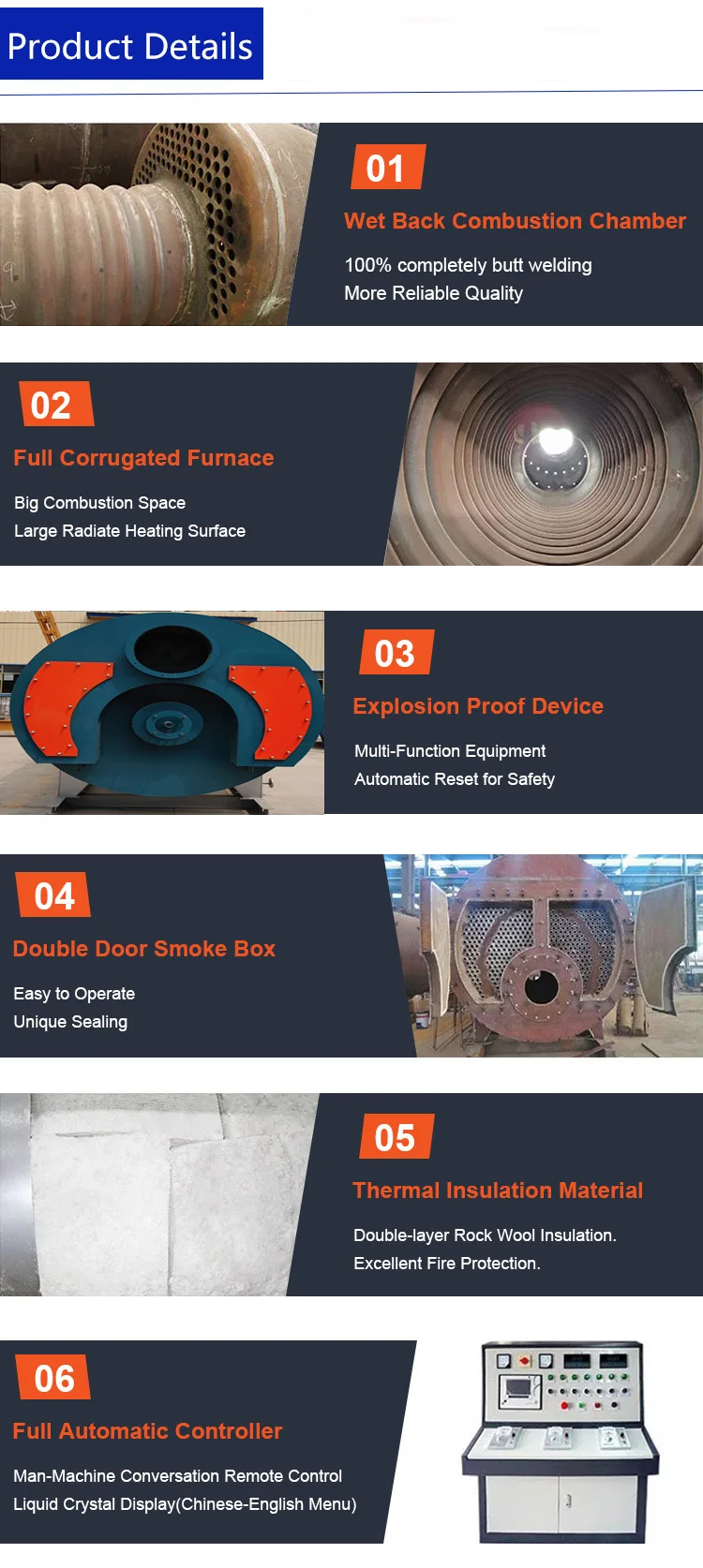

Product Details
Product specification
Model | WNS0.5 | WNS1 | WNS2 | WNS3 | WNS4 | WNS5 |
Rated evaporation(t/h) | 0.5 | 1 | 2 | 3 | 4 | 5 |
Rated working pressure(MPa) | 1 | 1.25 | 1.25 | 1.25 | 1.25 | 1.25 |
Rated steam temperature(℃) | 184 | 194 | 194 | 194 | 194 | 194 |
Boiler weight(kg) | 2860 | 4820 | 7650 | 8600 | 9600 | 10200 |
Width(mm) | 1760 | 1950 | 2230 | 2300 | 2350 | 2500 |
Length(mm) | 2230 | 2920 | 3460 | 4076 | 4600 | 5000 |
Height(mm) | 2120 | 2000 | 2380 | 2500 | 2800 | 2900 |
Model | WNS6 | WNS8 | WNS10 | WNS12 | WNS15 | WNS20 |
Rated evaporation(t/h) | 6 | 8 | 10 | 12 | 15 | 20 |
Rated working pressure(MPa) | 1.25 | 1.25 | 1.25 | 1.25 | 1.25 | 1.25 |
Rated steam temperature(℃) | 194 | 194 | 194 | 194 | 194 | 194 |
Boiler weight(kg) | 13200 | 16800 | 19500 | 22000 | 26800 | 35000 |
Width(mm) | 2600 | 2700 | 2780 | 3240 | 3300 | 3640 |
Length(mm) | 5200 | 5840 | 6130 | 6600 | 6900 | 7960 |
Height(mm) | 3000 | 3125 | 3280 | 3300 | 3670 | 3960 |

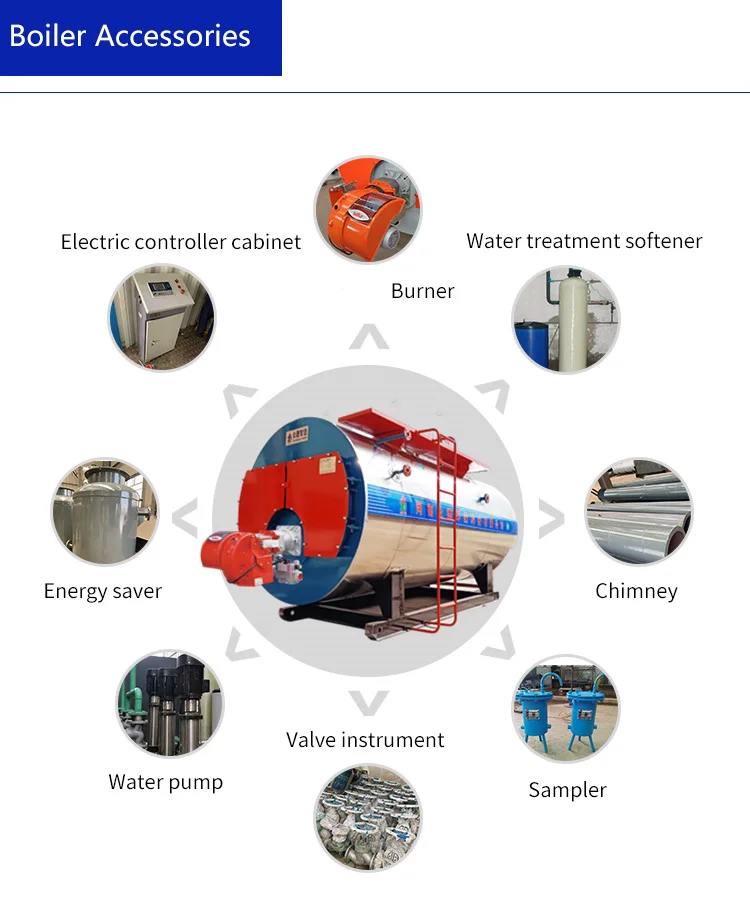

Boiler Accessories
Boiler case
Packing and shipping
Selling Units:Single item
Single package size: Depends on the capacity
Single gross weight:Depends on the capacity
Package Type:customized
Single package size: Depends on the capacity
Single gross weight:Depends on the capacity
Package Type:customized
Our survice
Pre-sale service:
1.Provide the most suitable and cost-effective boiler solution according to different requirements of various industry. 2.Provide drawings for building your boiler room,such as foundation drawing, layout drawing, boiler room layout, etc.
On-sale service:
24 hours online and keep close contacts during the production process to ensure on time delivery with perfect finished product. We send pictures and videos to let customers know the production schedule.
After-sales service:
1.Provide full range of original spare parts.
2.Provide engineers abroad installation and commissioning service.
3.Held online or site training for boiler workers to ensure the safe operation.
4.Free maintenance and repair for one year and lifelong service.
1.Provide the most suitable and cost-effective boiler solution according to different requirements of various industry. 2.Provide drawings for building your boiler room,such as foundation drawing, layout drawing, boiler room layout, etc.
On-sale service:
24 hours online and keep close contacts during the production process to ensure on time delivery with perfect finished product. We send pictures and videos to let customers know the production schedule.
After-sales service:
1.Provide full range of original spare parts.
2.Provide engineers abroad installation and commissioning service.
3.Held online or site training for boiler workers to ensure the safe operation.
4.Free maintenance and repair for one year and lifelong service.
Company Profile
Henan Zhongde Environmental Protection Technology Co., Ltd. is located in the beautiful Fu Cao Lou Industrial Park, Taikang County, on the Eastern Henan Plain. The company has a plant area of 80,000 square meters and more than 100 employees. It mainly engages in the R&D, manufacturing and sales of hot water boilers, steam generators, electric heating boilers, oil-fired gas steam boilers, and high and medium temperature hot blast stoves. Based on the manufacture of hot water boilers and steam generators, the company has established an industrial system integrating product development, engineering project design, equipment manufacturing, engineering installation, system commissioning, pre-sales, in-sales, and after-sales services. The company's products are not only sold in the domestic market, but also exported to more than 10 countries and regions including South Korea, Vietnam, Myanmar, Mongolia, the Philippines, and Indonesia. Excellent employees, advanced technology, sophisticated equipment, and strict management are the foundation for the company's continuous development and expansion and the products that can win the dependence of users.
1. Whether the boiler can burn dual fuel or multi-fuel?
Zhongde boiler have oil burner, gas burner, and oil&gas dual fuel burner, we can offer the specific burner based on customers’ requirement.
2. What is the texture of spirally corrugated tube?
The texture of spirally corrugated tube is cast iron.
3. The brand of burner?
The brands of burner are Italy Baltur, Rellio, Elco, etc.
4. What is the thickness of combustion chamber?
the thickness of corrugated furnace is different based on working pressure and furnace diameter, generally, the thickness is between 10~18mm, large combustion space, and combustion sufficient.
5. What is the advantages of fire tube boiler?
This fire tube boiler has compact structure and convenient operation, strong load adaptability, lower water quality requirement, and the failure rate of it is lower than 0.1.
6. What is the details of electric control cabinet?
Electric control cabinet adopts PLC touch screen, display in English. It shows working condition details of boiler, such as water temperature, water pressure, exhaust gas temperature, and over-pressure alarm, etc. In addition, the cabinet is used for set up the parameter, record and analyze the operation data, etc.
7. What is the inlet pressure of gas burner?
The inlet gas pressure is different for different capacity boiler, for example, the pressure for 2 ton steam capacity boiler is about 8~10KPa, while for 4 ton steam capacity boiler is about 18~20KPa.
Zhongde boiler have oil burner, gas burner, and oil&gas dual fuel burner, we can offer the specific burner based on customers’ requirement.
2. What is the texture of spirally corrugated tube?
The texture of spirally corrugated tube is cast iron.
3. The brand of burner?
The brands of burner are Italy Baltur, Rellio, Elco, etc.
4. What is the thickness of combustion chamber?
the thickness of corrugated furnace is different based on working pressure and furnace diameter, generally, the thickness is between 10~18mm, large combustion space, and combustion sufficient.
5. What is the advantages of fire tube boiler?
This fire tube boiler has compact structure and convenient operation, strong load adaptability, lower water quality requirement, and the failure rate of it is lower than 0.1.
6. What is the details of electric control cabinet?
Electric control cabinet adopts PLC touch screen, display in English. It shows working condition details of boiler, such as water temperature, water pressure, exhaust gas temperature, and over-pressure alarm, etc. In addition, the cabinet is used for set up the parameter, record and analyze the operation data, etc.
7. What is the inlet pressure of gas burner?
The inlet gas pressure is different for different capacity boiler, for example, the pressure for 2 ton steam capacity boiler is about 8~10KPa, while for 4 ton steam capacity boiler is about 18~20KPa.
