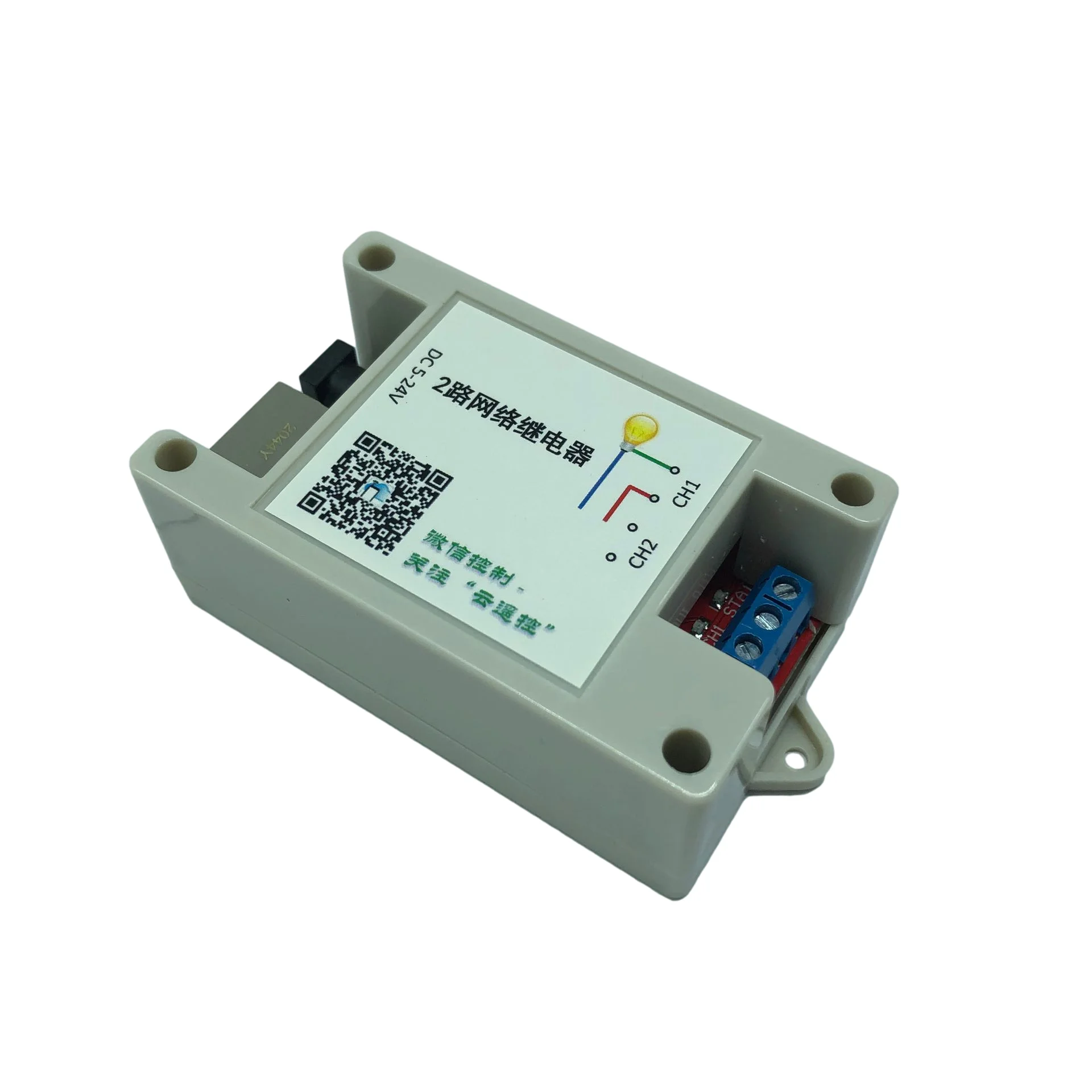

WeChat cloud remote control 2 Ethernet relay with case 2 normally open contact network switch network switch delay TCPUDP

2 way Ethernet relay network switch delay TCPUDP module controller

Module features:

Industrial STC microcontroller as the main control chip

Board 2 high quality relay, relay with absorption diode circuit

With 1 channel power indicator, each relay has status indicator, and the lamp illuminates relay suction

The relay module can be extended to reach 8 channels of output. Note: the relay module should be effective at high level

Module parameters, such as module IP address, default gateway, etc., can be configured through the network

Maintain relay state before power failure (configurable)

Through the Internet control, cloud remote control by local password protection, safe and reliable

Support 5-24V input voltage, 2 kinds of power terminals choose one

1.6mm thick PCB is made of military-grade fr-4 plate, with PCB size of 70mm X 50mm and reserved mounting hole

Operation method:

The factory setting of the module is:

IP address 192.168.1.100 network parameters can be configured through the network

Default gateway 192.168.1.1

Subnet mask 255.255.255.0

The TCP port 6722 module's service port cannot be configured

UDP port 6723.

Parameters of the module can be configured through the network. The configuration interface is as follows. When the configuration tool cannot connect the module due to incorrect network parameters, short connect the CLR jumper and power up the module to resume factory Settings.

Pictures:
