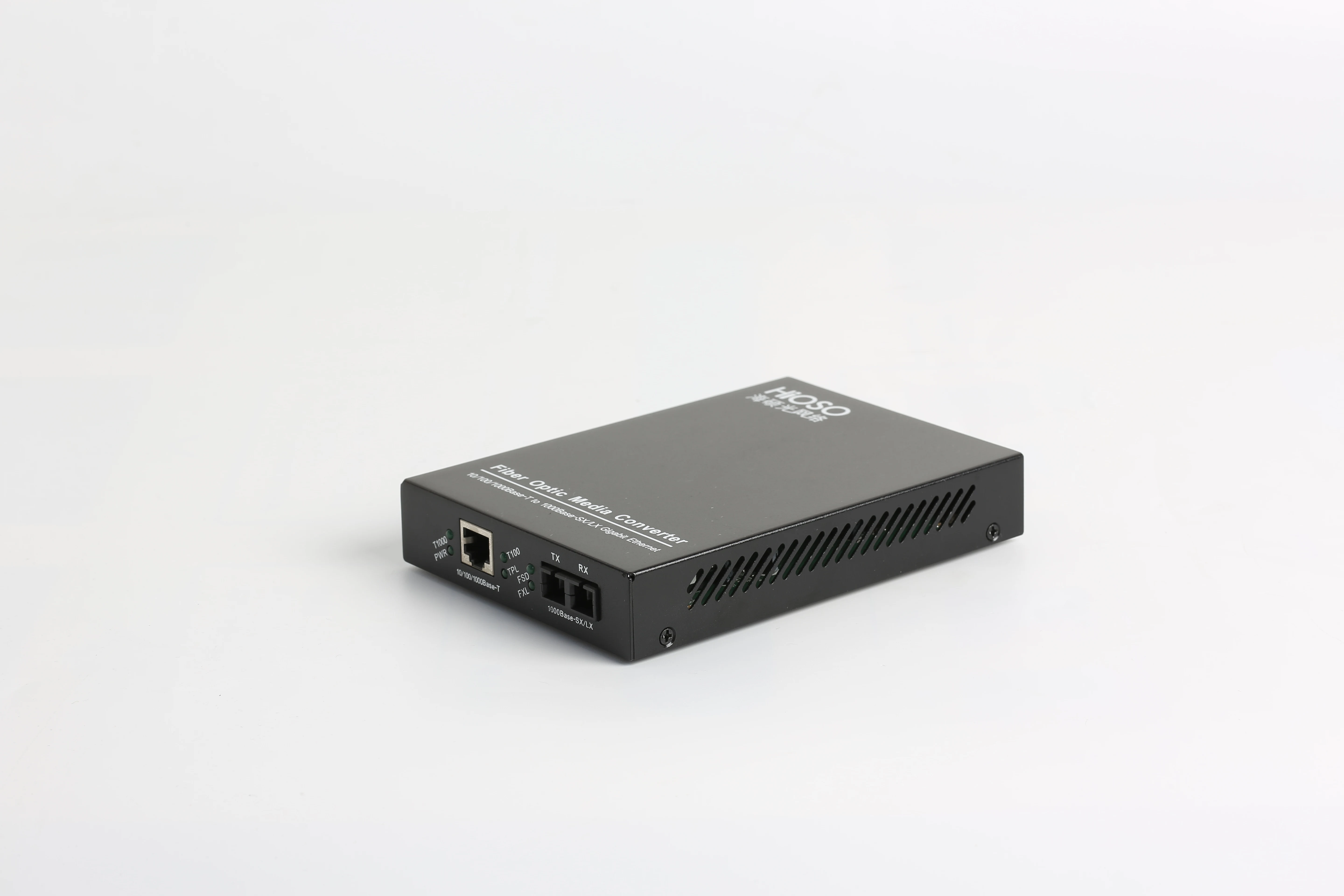

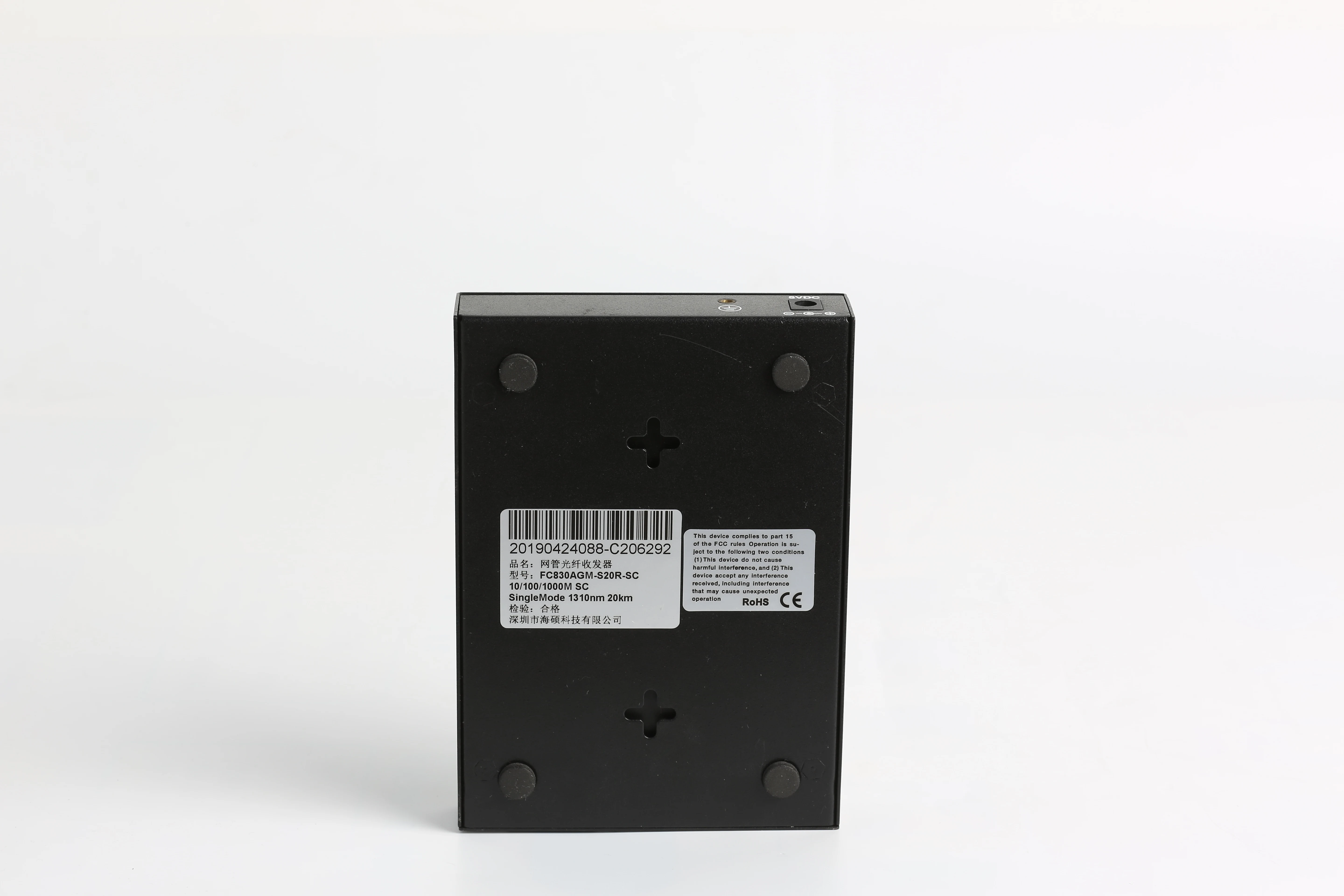

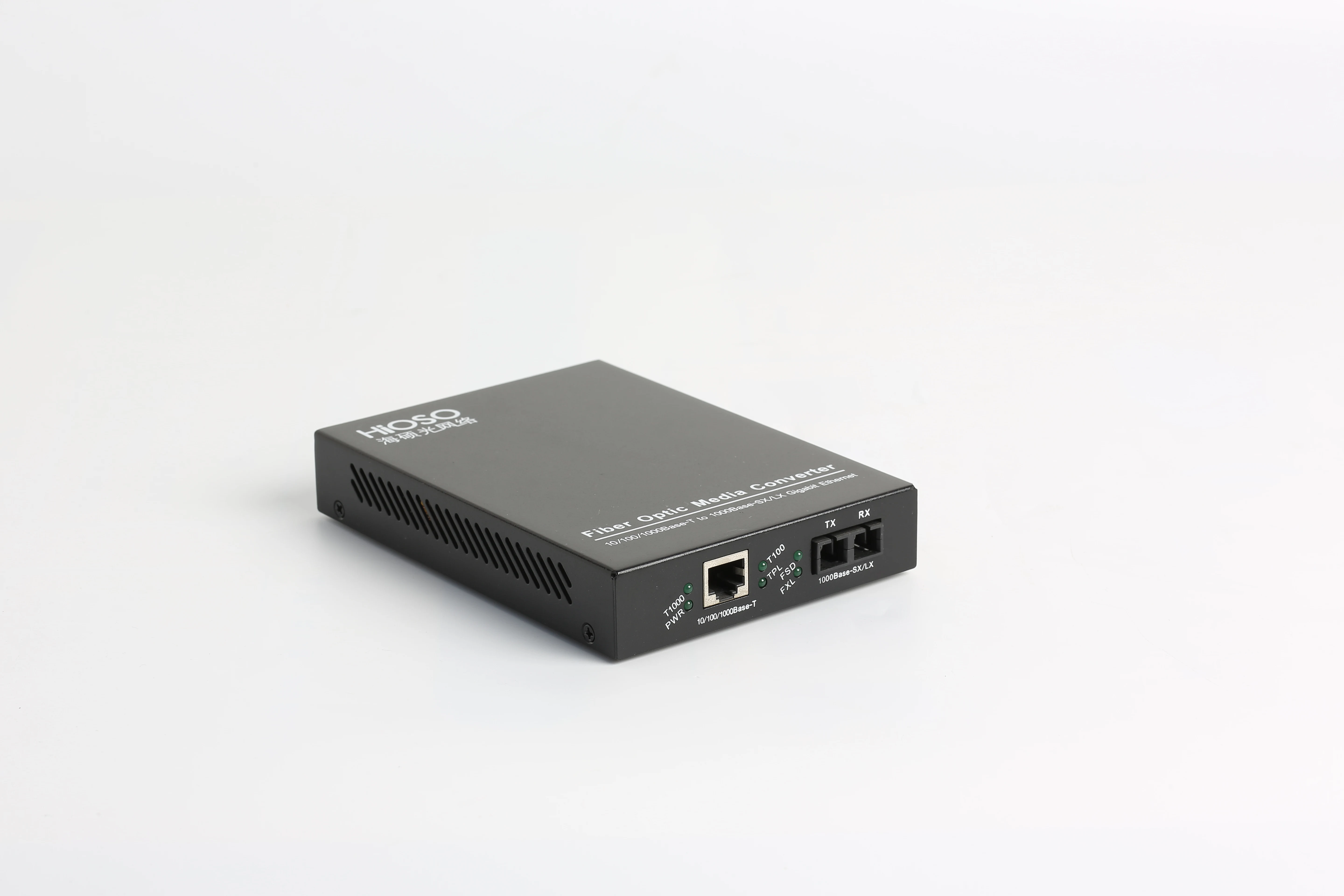

HiOSO FC830AGM with management function 10/100/1000M auto adapted Fiber Media Converter 20KM 2 ports media converter

item

value

Model Number

FC830AGM

Type

Fiber optic media converter

Place of Origin

guangdong

Brand Name

HiOSO

Use

FTTX

Warranty Time

3 year

Access mode

10/100/1000Mbps

Wavelength

850nm/1310nm/1490nm/1550nm

Conversion mode

Medium conversion, storing and forwarding mode

Delay

<1μs

Bit error rate

<1/1000000000

MTBF

100,000 hours

Power

DC5V 1A (external), AC220/DC-48 (built-in)

Power consumption

3W

Standard

IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX/FX Fast Ethernet, IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-SX/LX Gigabit
Ethernet, IEEE802.1qVLAN, IEEE802.1p QoS, IEEE802.1d Spanning Tree

Transmission distance

Dual-fiber multi-mode: 220m(62.5/125μm)/550m(50/125μm); dual-fiber single-mode: 10/20/40/60/80/100/120Km;single-fiber single-mode:
10/20/40/60/80/100/120Km
Category-5 twisted pairs: 100m

Port

One RJ45 port: Connected to STP/UTP category-5 twisted pairs
One fiber port: Multi-mode – SC or ST (fiber size: 50,62.5/125μm)
Single mode – SC/FC fiber port (fiber size: 9/125μm)
Single-fiber single-mode – SC/FC fiber port (fiber size: 9/125 μ m)

LED

FC830AM: PWR (power), T1000 (twisted pair: transmission rate of 1000M), T100 (twisted pair: transmission rate of 100M), TPL
(twisted pair: link/action), FSD(FX full-duplex mode), FXL (fiber link/action), RTL 1000(remote twisted pair: transmission rate of
1000M)(Module card), RTL (remote twisted pair link/action)(Module card),

Operating temperature

-10~55°C

Operating humidity

5%~90%

Storage temperature

-40~80°C

Storage humidity

5%~90% (non-condensing)
