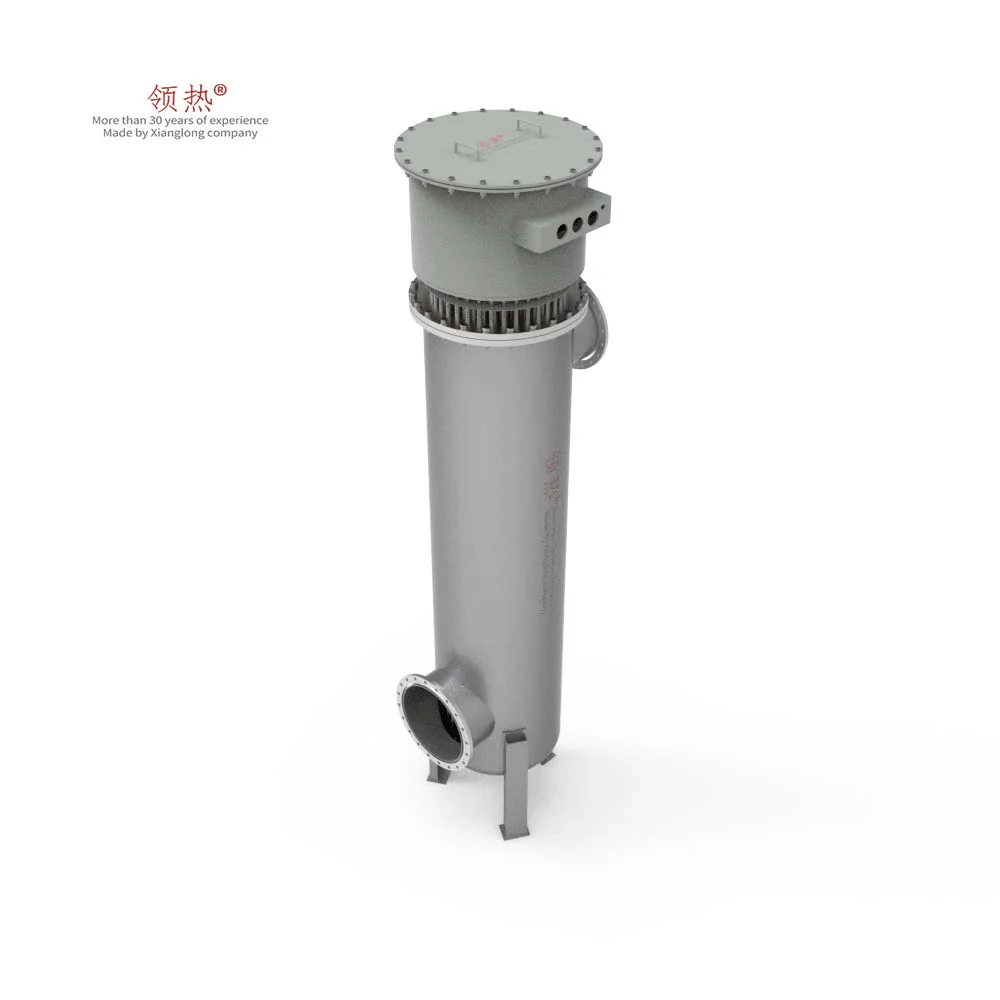

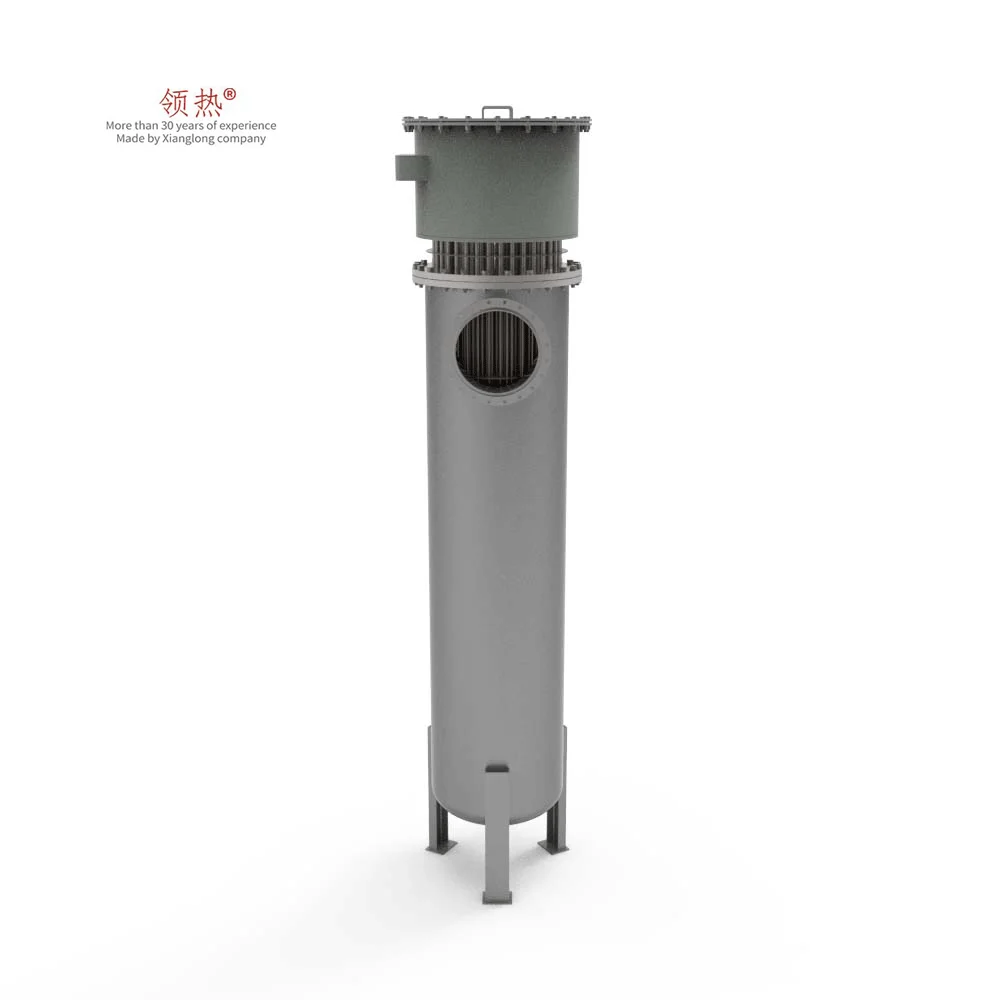

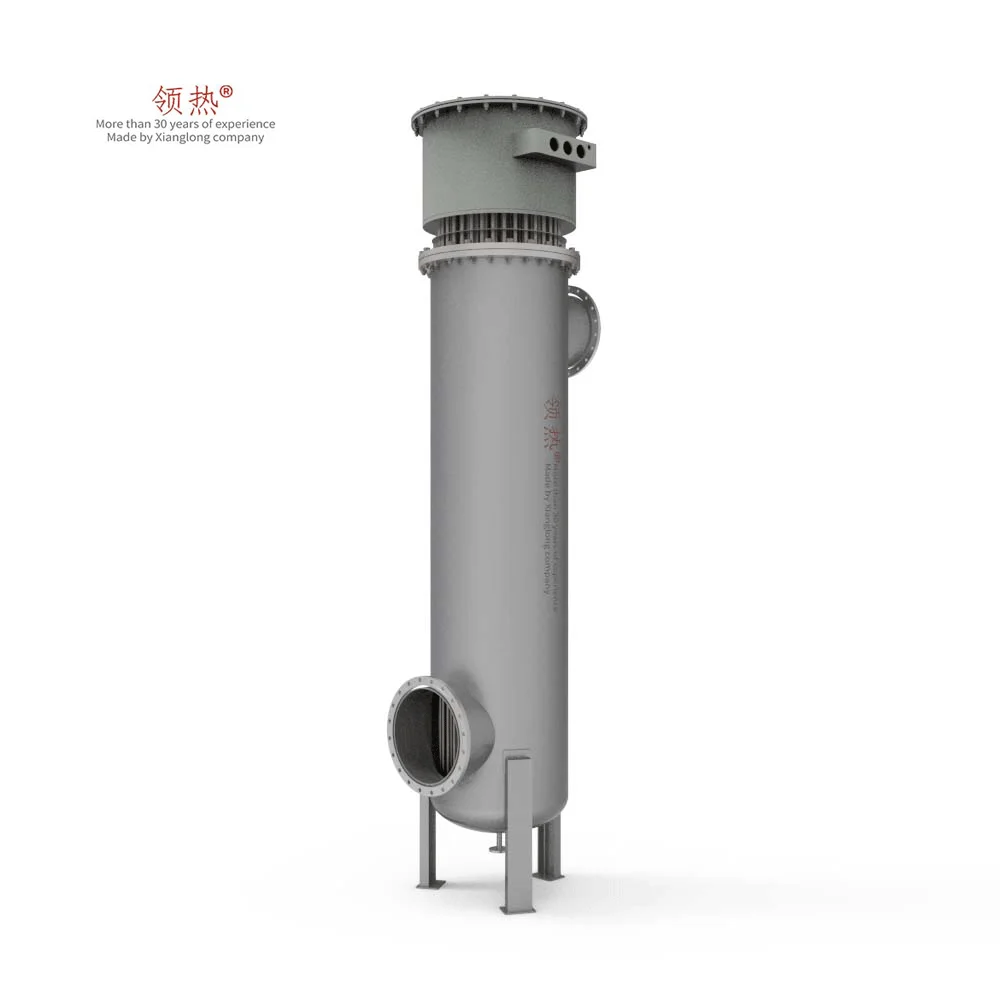

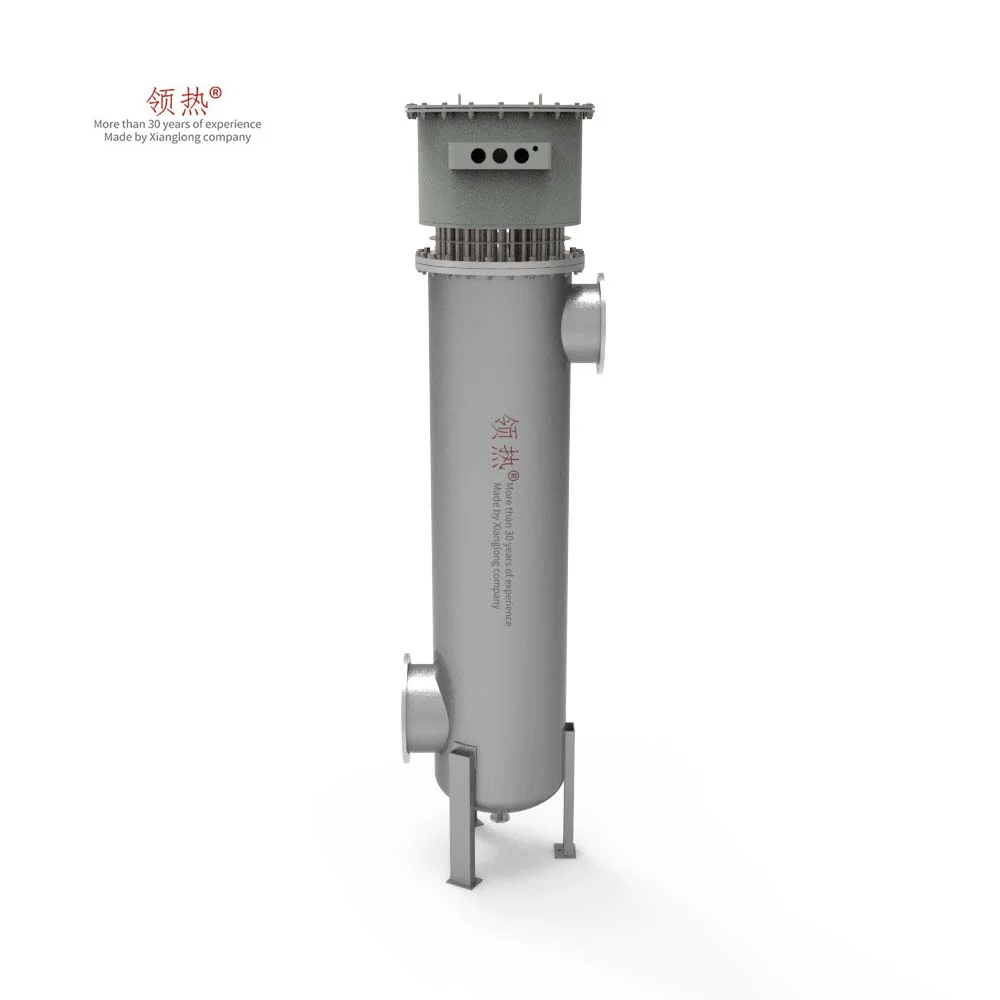

Factory Direct Fast delivery DN900 860KW or Custom circulating Electric air pipe heater with CE and RoHS
- Category: >>>
- Supplier: Yangzhong Xianglong Electrical Equipment Co. Ltd.
Share on (1600554774155):
Product Overview
Description
Product Overviews

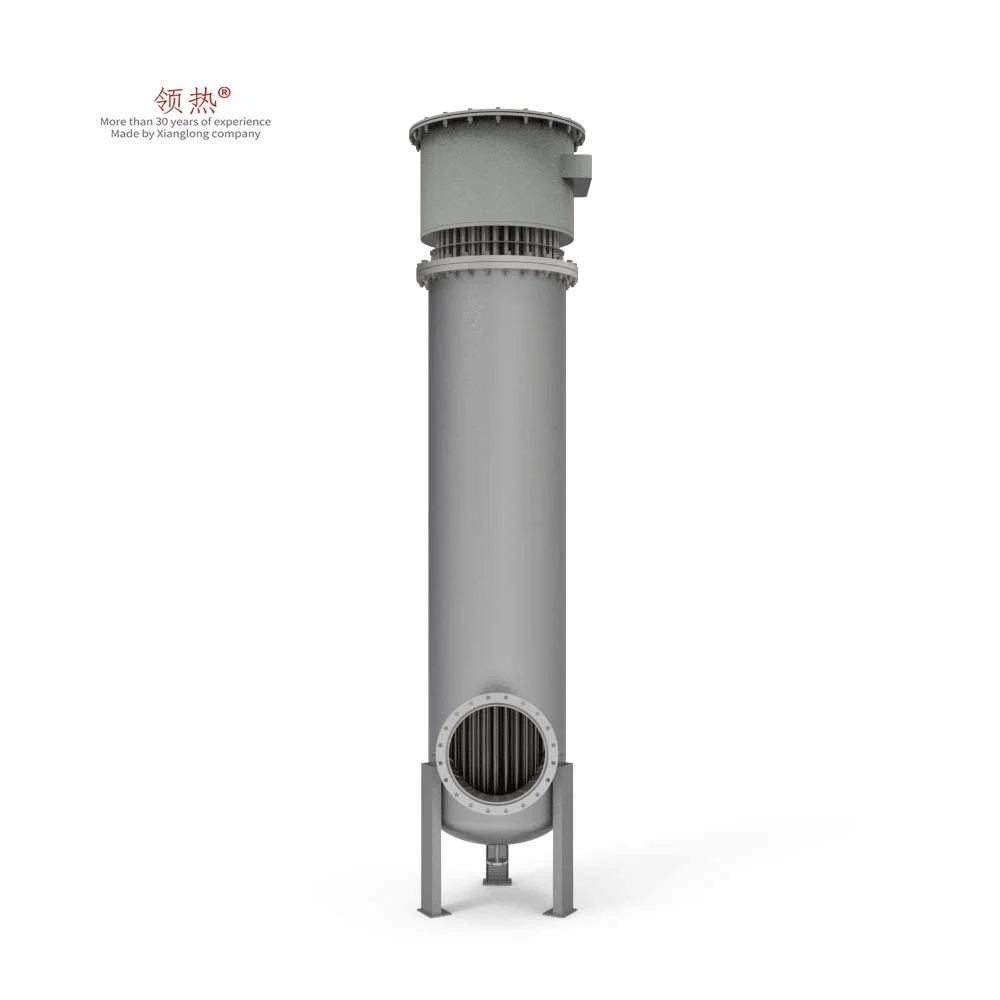

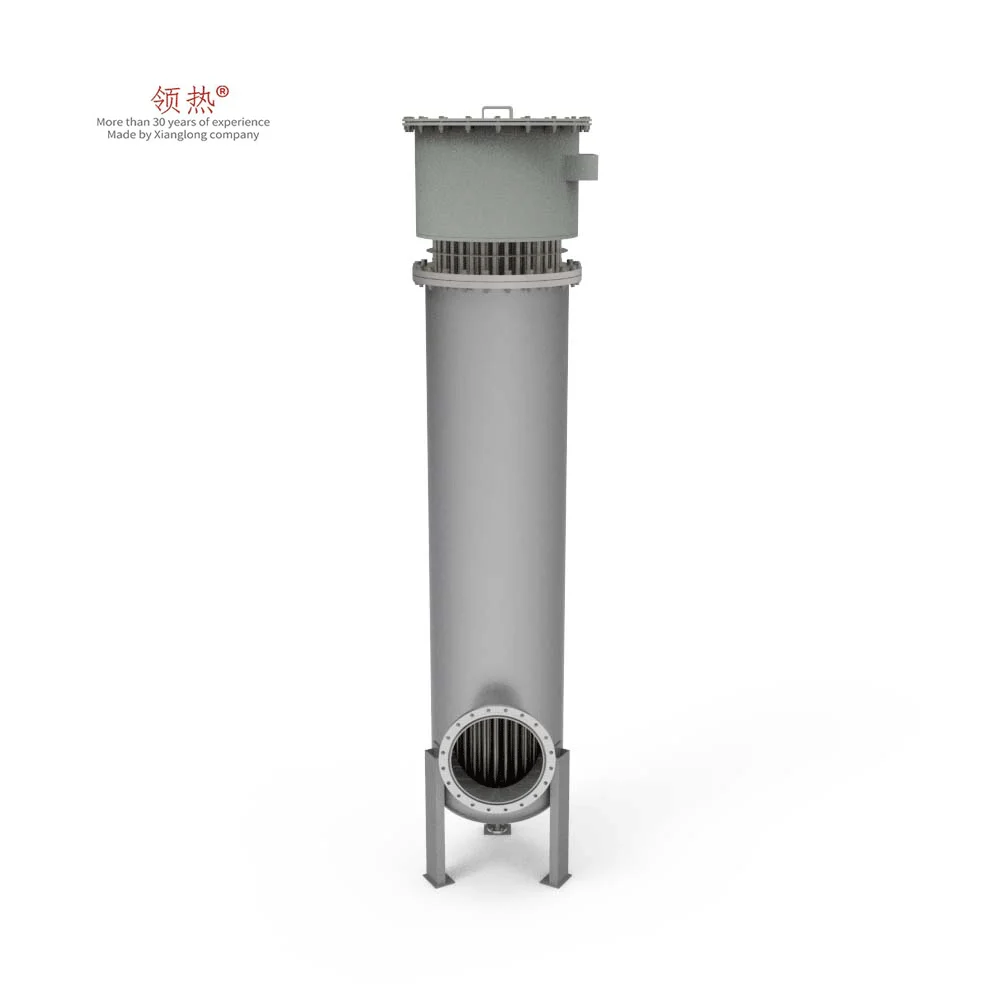

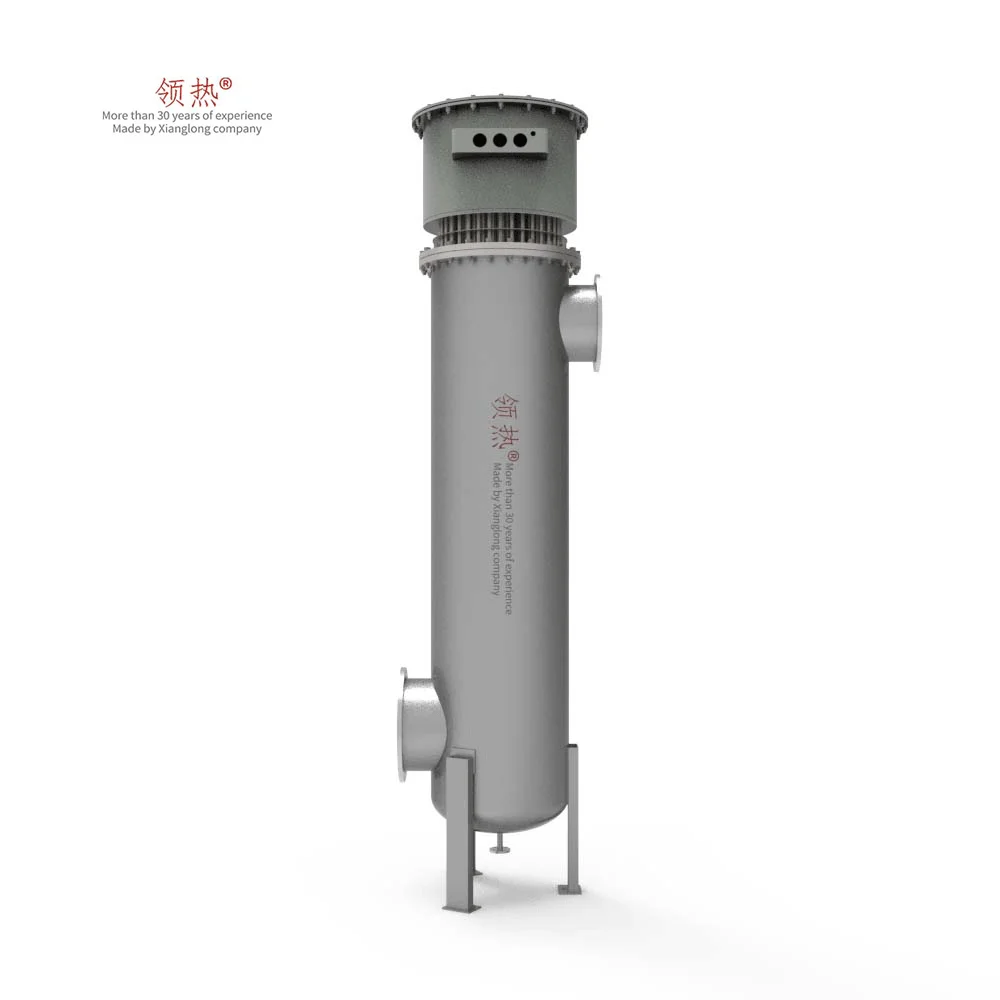

Factory Direct Fast delivery DN900 860KW or Custom circulating Electric air pipe heater with CE and RoHS
| PRODUCT DETAILS |
| Model | XL-900-380/860 | Power(KW) | 860 |
| Voltage(V) | 380 | Wiring Form | 0 |
| Frequency(Hz) | 50/60 | Cold Insulation Resistance(Ω) | ≥5 |
| Wiring Group | 8 | Over-temperature Protection Switch (yes/no) | thermocouple |
| Total Current(A) | 1306.67 | Per Group Current(A) | 163.33 |
| Interphase Resistance(Ω) | 2.69 | Surface Load(W/cm²) | 3.17 |
| Heating Medium | air | Material of Heating Tube | S304 |
| Standard of Flange | HG/T 20592-2009 DN900 PN2.5 | Material of Flange | Q345 |
| Design Pressure(Mpa) | 0.09 | Operating Pressure(Mpa) | 0.25 |
| Design Tempreture(℃) | 200 | Operating temperature(℃) | 250 |
| Protection Grade | IP55 | Explosion-proof Grade | / |
| Design Standards | JB/T 2379-2016 | Heating Tube Diameter(mm) | 16 |
| Length of Heating Tubes Under The Flange(mm) | 3520 | Cold Zone Length of Heating Tubes Under The Flange(mm) | 200 |
| Center Distance of Heating Tube(mm) | 50 | Quantity of Heating Tubes(piece) | 81 |
| Product Dimensions For Reference(mm) | 5100*1400*1400 | Weight For Reference(KG) | 1900 |
|
 |  |
ADVANTAGES-1 | ADVANTAGES-2 |

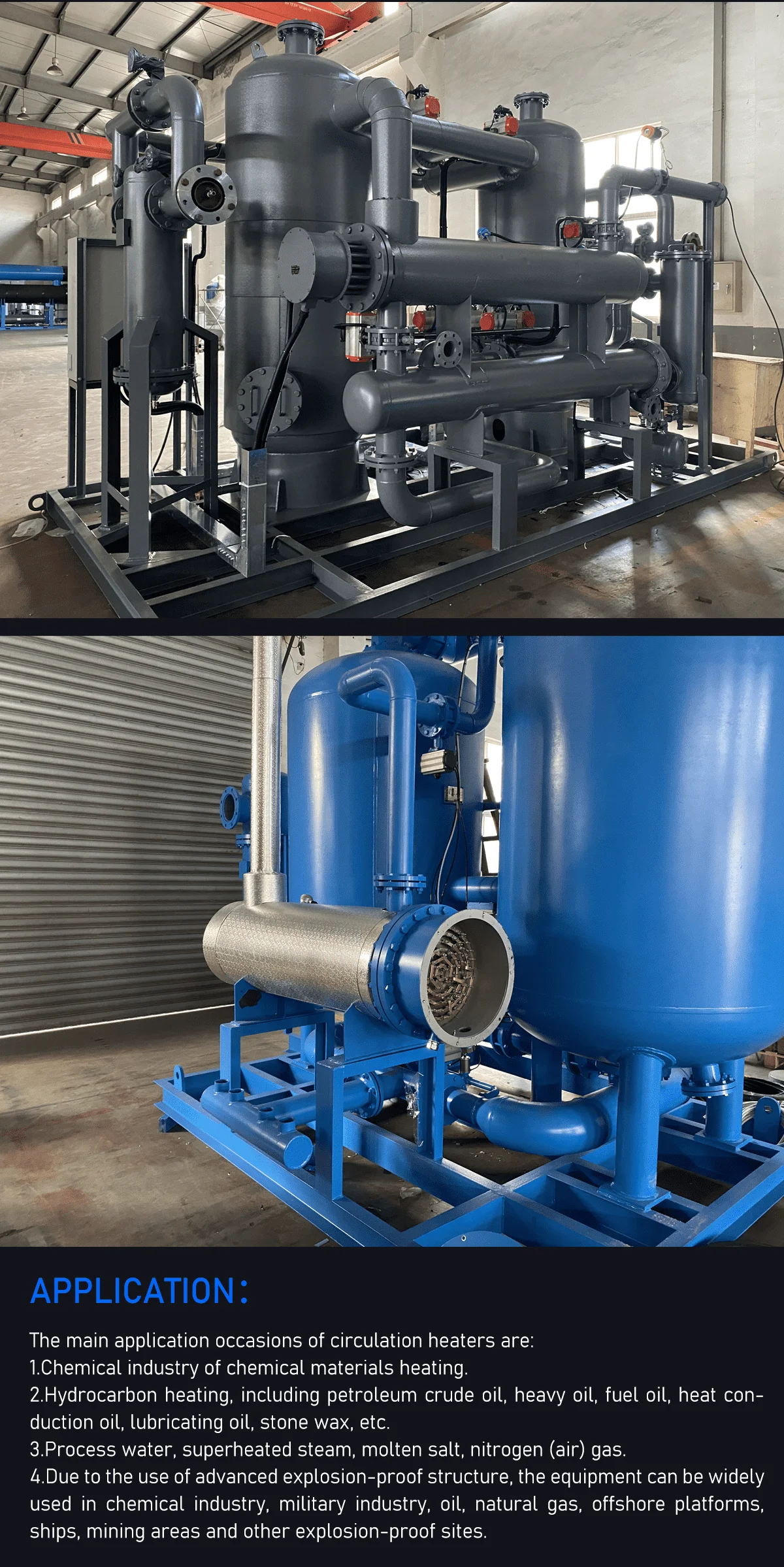

Circulation heaters are the perfect solution for generating heat and enhancing normal immersion heaters performance. They are designed to heat pressurized circulating fluids to provide effective, controlled heating to water, oil, steam and other gases. | Smaller size, same power rating, faster heating rate,long service life and high efficiency compared to conventional heaters. |
 |  |
ADVANTAGES-3 | ADVANTAGES-4 |
There are many options for the electrical protection device of the heater, they are respectively ( outdoor, explosion-proof area, Acidic and basic capacity environment, etc.). | Tacity environment, etc.).Special sizes, power and materials are available upon request. |
