Product Name | Biological Microscope | ||||||
Optical system | Infinity optical correction system, the parfocal distance must be the international standard 45mm. | ||||||
Stage | steel wire drive, no rack structure Dimensions are: 120 x 132mm; Travel is: 76mm(X) x 30mm(Y) | ||||||
Focusing mechanism | There is a coarse adjustment limit, which can adjust the tension to avoid damage to the specimen or the objective lens. | ||||||
Condenser | Abbe condenser with aperture stop, N.A. 1.25, with blue filter | ||||||
Lighting system | 20000 hours life LED light source | ||||||

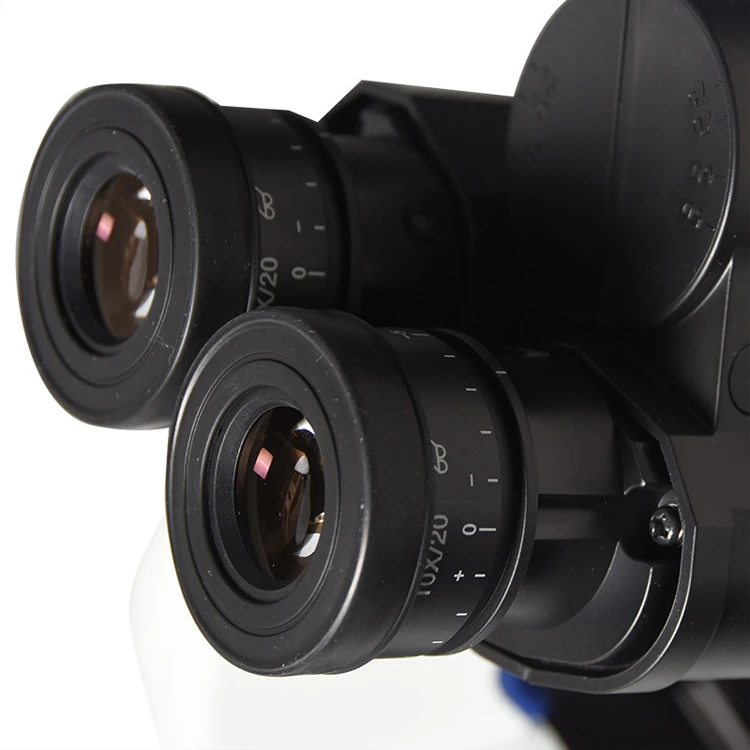

Binocular observation tube: | interpupillary distance adjustment range 48-75mm, tilt angle 30°, with diopter adjustment, 360° rotatable, hinged, eye point height ≥ 432.9 mm, number of fields of view ≥ 20 | ||||||
Eyepiece | 10X, with eyecup, field of view ≥20 | ||||||

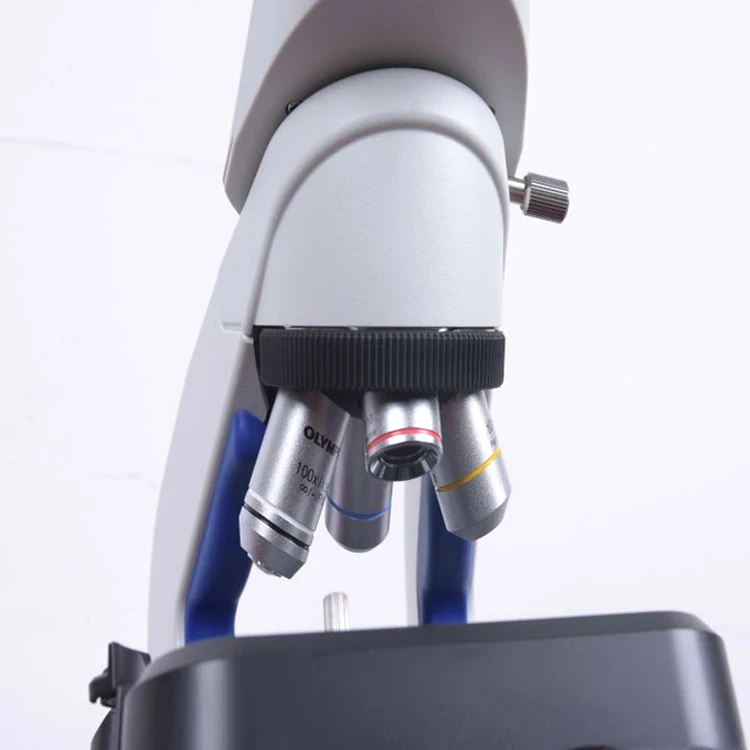

Objective lens turret | an internal rotating 4-hole objective lens turret fixed with the microscope body, which is convenient for placing specimens and other operations. | ||||||
Objective lens | plan achromatic objective lens 4X (N.A.≥0.1 W.D≥27), 10X (N.A.≥0.25 W.D≥8), 40X (N.A.≥0.65 W.D≥0.6), 100X (N.A.≥1.25 W.D≥0.12) | ||||||
Anti-mildew device | Anti-mildew treatment has been done on the binocular observation tube, eyepiece and objective lens | ||||||
feature | The optical components used are environmentally friendly lead-free glass | ||||||
