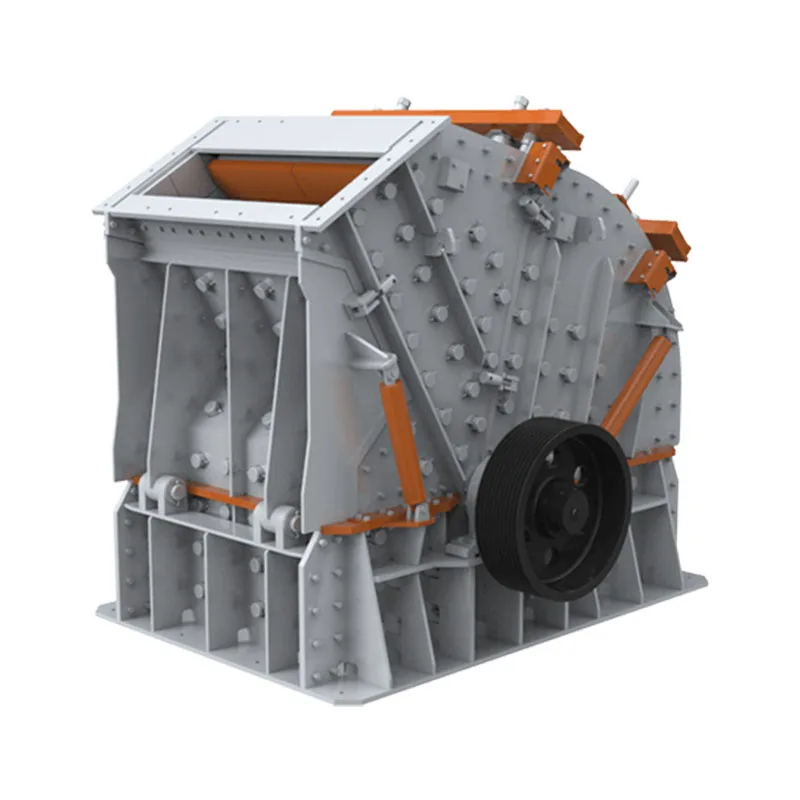

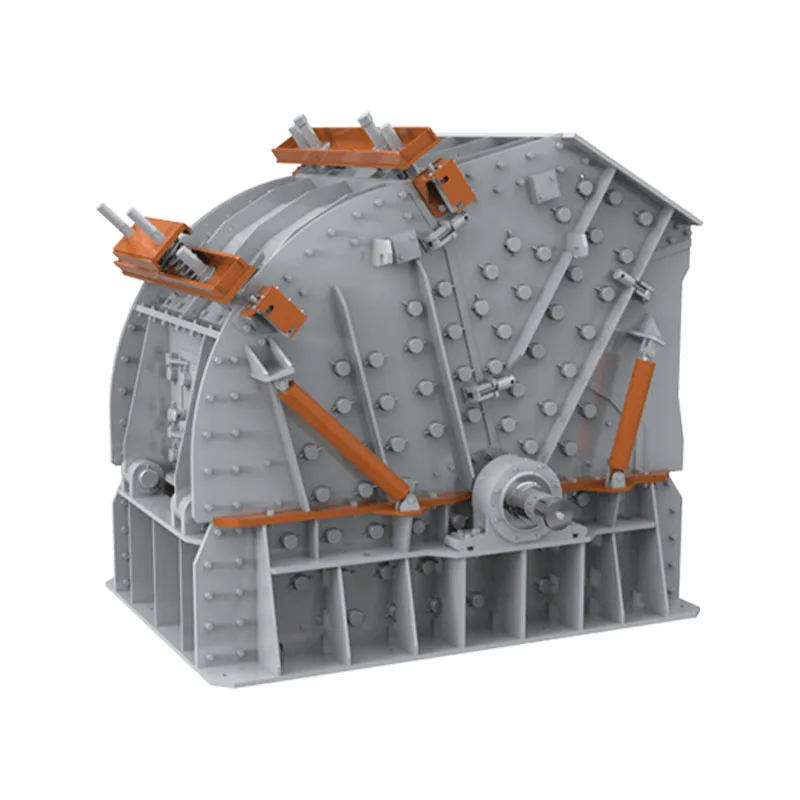

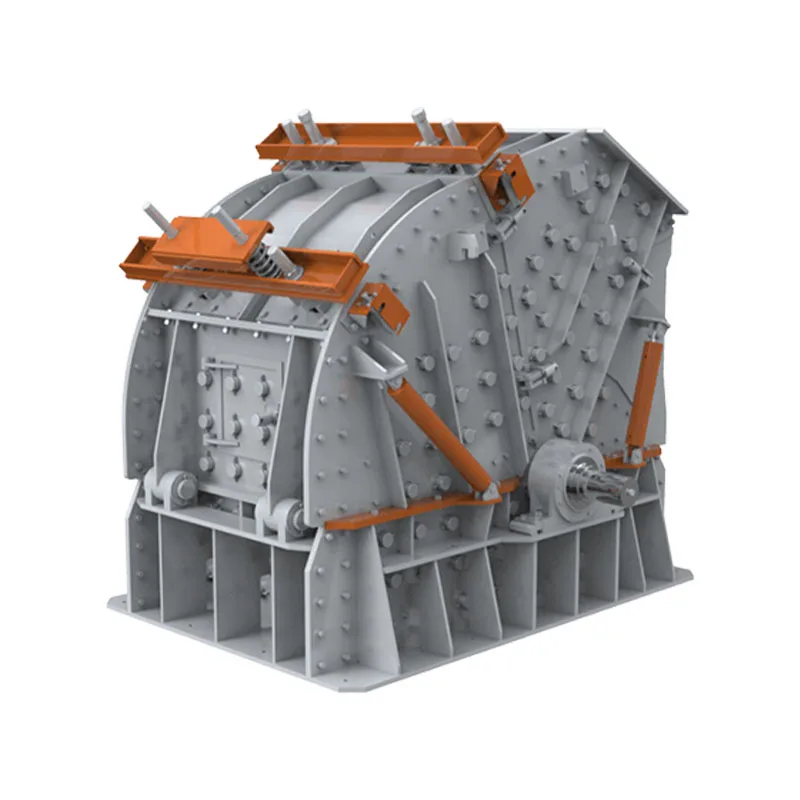

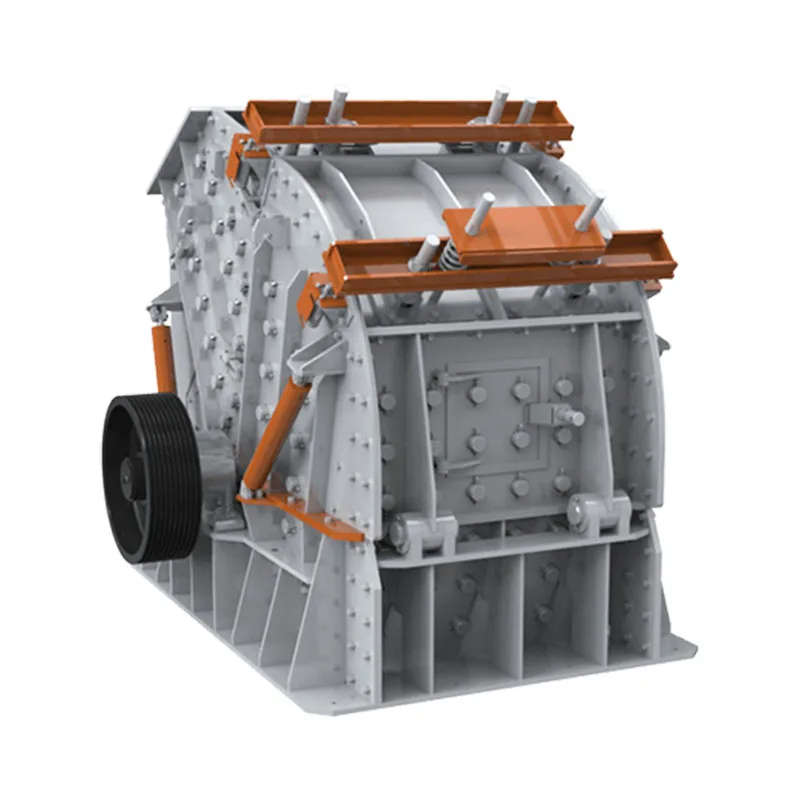

Secondary Horizontal Shaft Impact Crusher Aggregate granite pf1515 impact stone crusher development impact crusher for quarry

Product Overview

Description

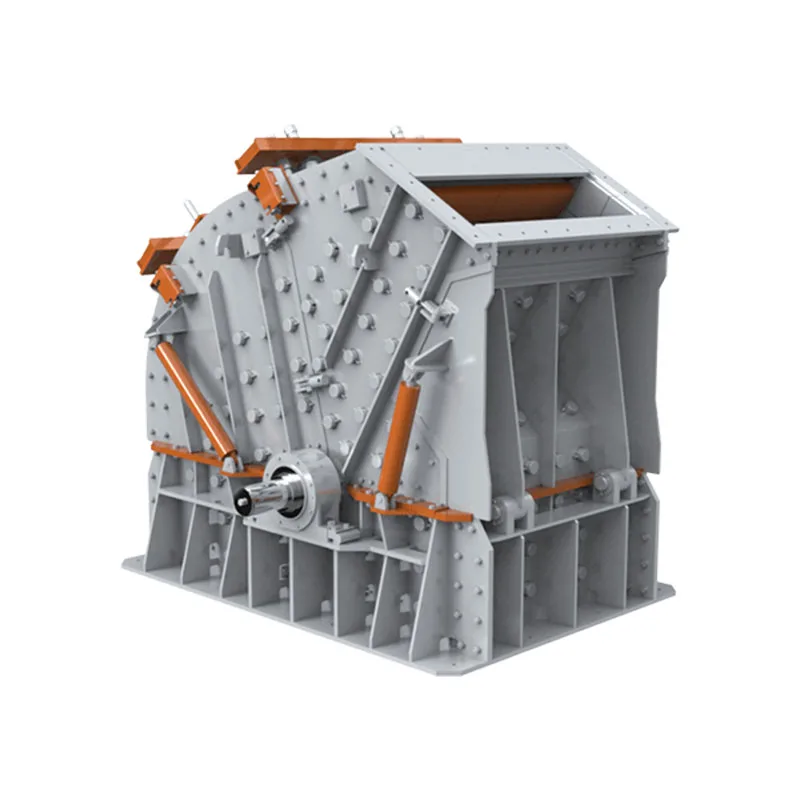

Aggregate granite pf1515 impact stone crusher development impact crusher for stone

PF Impact Crushers generally form a cubical shaped product, and are an efficient machine in producing aggregates, and generating fines. Featuring a 4 rows blow bar balanced rotor assembly, these machines offer smooth operation. Access to blow bar and impact plates is made easy by the hinged opening of the main frame. A hydiraulic opening facility is included on the larger machines. The blow bars are reversible, and the product size can be controlled by adjusting the clearance between the blow bars and the impact racks.

How Impact Crushers Work?

Impact crusher is a kind of stone crusher using impact energy. After turn on,the motor drives the rotor rotate at a high speed.When the material get into the blow bar working area,they will be stroke by the blow bar and thrown to the impact devices around the rotor.The material will come out from the discharge hole until they are crushed to the required size. The clearance between the impact rack and the rotor can adjust the size and shape of the end product.

Model	Size of feed opening(mm)	Max.feed size (mm)	Capacity(t/h)	Moror power(kw)	Weight(t)	Dimension(mm)
PF-1007	820×700	300	24-45	55	9.5	2400×1558×2660
PF-1010	1170×720	350	50-80	75	10	2532×1985×2196
PF-1210	1090×465	350	80-130	110	14	2638×2037×2713
PF-1214	1440×465	350	100-160	132	18	2580×2400×2810
PF-1315	1532×560	500	140-200	200	19.3	2840×2748×2556
PF-1316	1690×859	500	150-220	200	19.5	3096×2850×2667
PF-1515	1580×696	500	220-280	280	28.5	3553×2835×3277
PF-1620	1240×2000	500	300-500	280×2	50	4000×3750×3950
PF-1820	1500×2050	500	550-860	630	90	4260×3550×3640

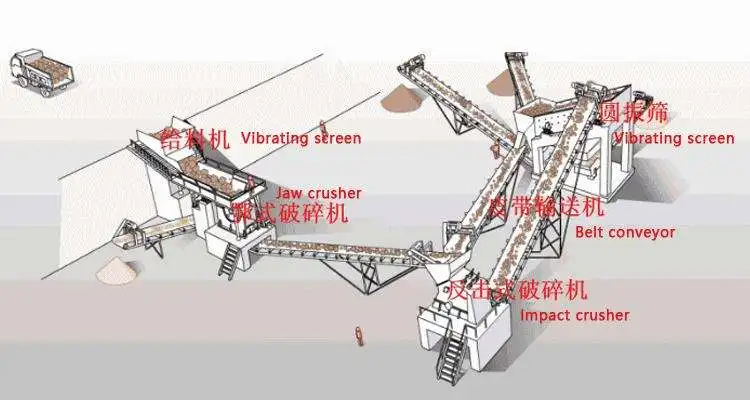

Here is a complete production line we show you, you can see the whole process in action clearly; Of course, different requirements will have different configurations, if you also have such requirements, we can provide you with free process design.



Wide Range of Applications, suitable for more than 200 kinds of Stones:





Shanghai Dongmeng Road&Bridge Machinery Co., Ltd.

Which is a high technology company specializing in R&D and manufacturing large crusher, screen and crawler mobile crushing and screening plants for more than ten years.We have more than 200 employees, 30 technical staff, with factory area of more than 20,000 square meters.

Q1:Installation?
Answer:At the client’s request, DongMeng can provide installation Technicians to supervise and assist in the assembly and commissioning of the equipment. Travel and accommodation costs.
Q2:Payment?
Answer:30% by TT as deposit on signing the contract, 70% by as final payment of balance after the client’s satisfactory inspection of the equipment prior to the goods leaving the DongMeng factory.
Q3:What about Warranty? what will we do if the machine is broken down?
Answer:The warranty period for all of DongMeng’s structural and mechanical equipment is one year. The warranty period for all electric motors is half one year. Wear parts are not covered by warranty unless the component part is found to be flawed.
Q4:What should we need to do for if we want to get a best quotation?
Answer:Hi, if you want us recommend a suitable type for you ,please let us know as follows:
1).the capacity (tons per hour )?
2).output size?
3).Max.Input Size?
4).stone type?
Q5:What could you help me to do for the business?
Answer:Many thanks for your trust , we can provide you with proposal chart for complete production lines ,
spot inspection and operator traning according to your demands and the conditions of applied spot , we can help you
choose the right equipments ,drilling rig ,loader ,trucks ,excavators and so on .
Q6:What's your After sales Service?
Answer:All equipment manufactured by DongMeng is of the highest standard and very rarely have our clients experienced any mechanical problems. Should any problems occur, our team of Engineers and Technicians will respond within12 hours of notice by the client.
Q7:Delivery time?
Answer:Standard delivery time for stationary crusher plant is 30 days from receipt of deposit,the mobile crusher plant is 45 days.
