Product Overview
Description
Product Description
Option
Option 1：Login CORS Account which is provided by local CORS station.
Option 2：R23+D10、1-2km、RTK radio station.
Option 3：R23+D30+D10、10-20km、RTK radio station+external radio.
Option 4：R30+A10、50km、4G fixed network station if 4G available on farm.
Option 5：R30+A10+D30+D10、20km、Radio station or 50km network station.
Option 2：R23+D10、1-2km、RTK radio station.
Option 3：R23+D30+D10、10-20km、RTK radio station+external radio.
Option 4：R30+A10、50km、4G fixed network station if 4G available on farm.
Option 5：R30+A10+D30+D10、20km、Radio station or 50km network station.

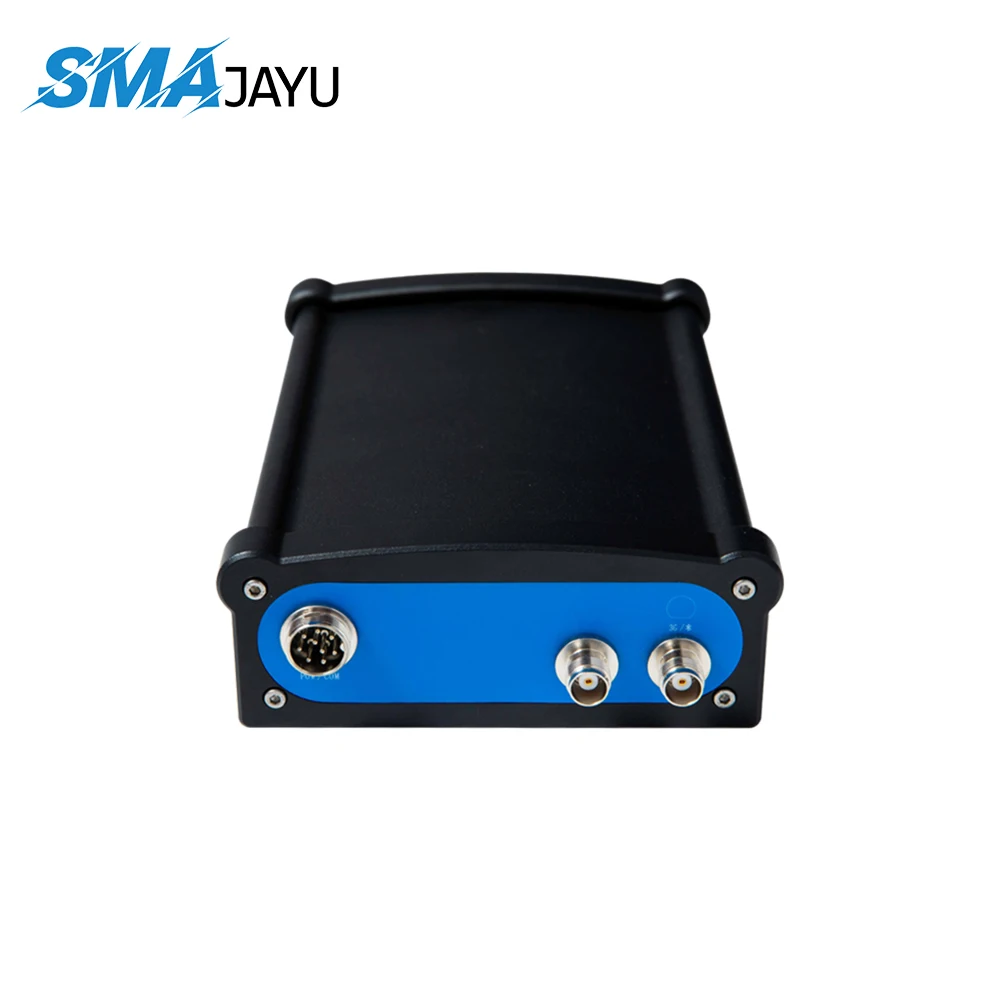

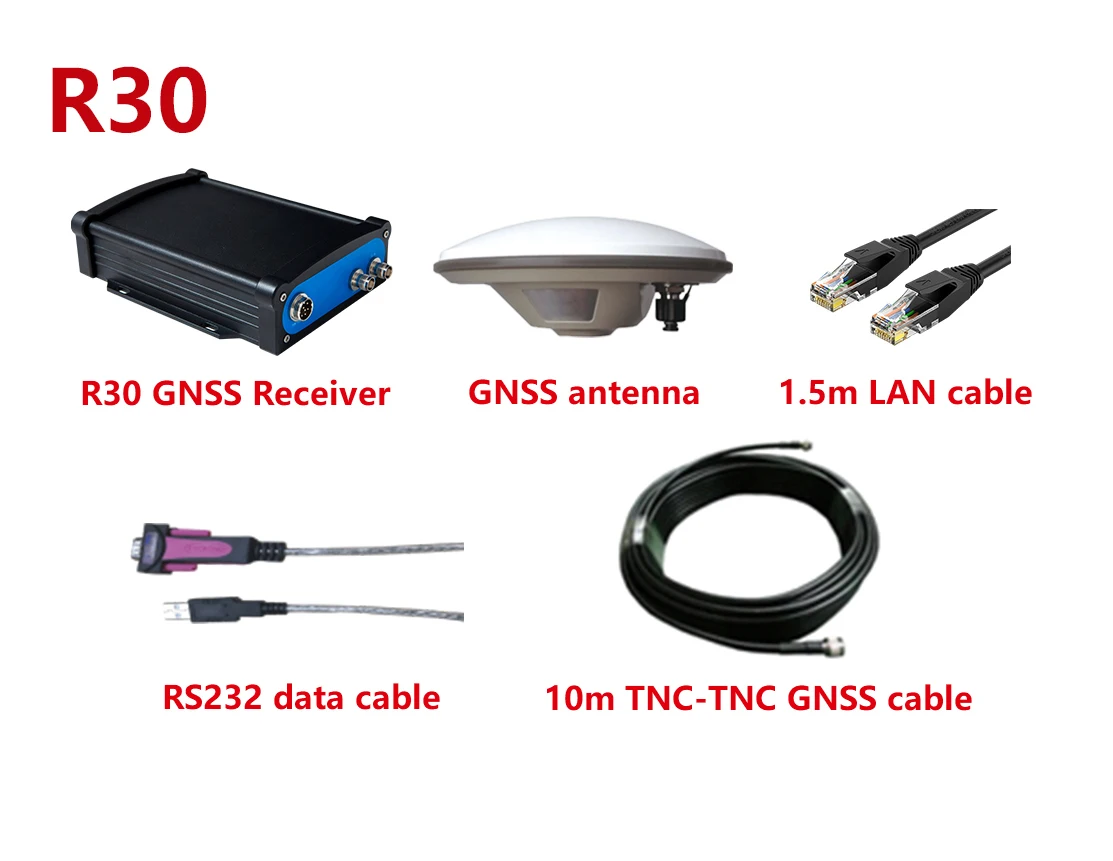

R30
The R30 receiver is a GNSS receiver designed to provide Ag and MC professionals with maximum features and flexibility. The receiver’s compact form factor, powerful feature set make for an ideal combination supporting a wide range of high-accuracy positioning applications, including: RTK rover；mobile field base station；post processed data collection.

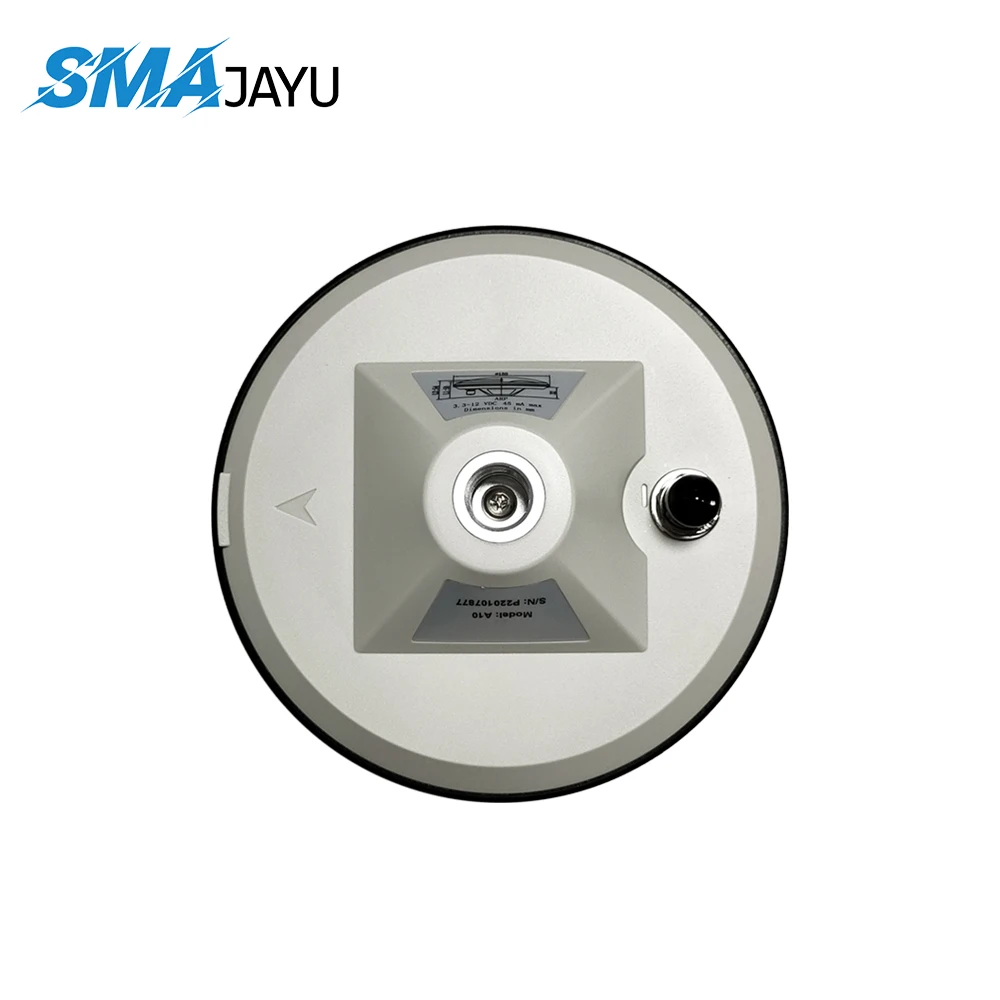

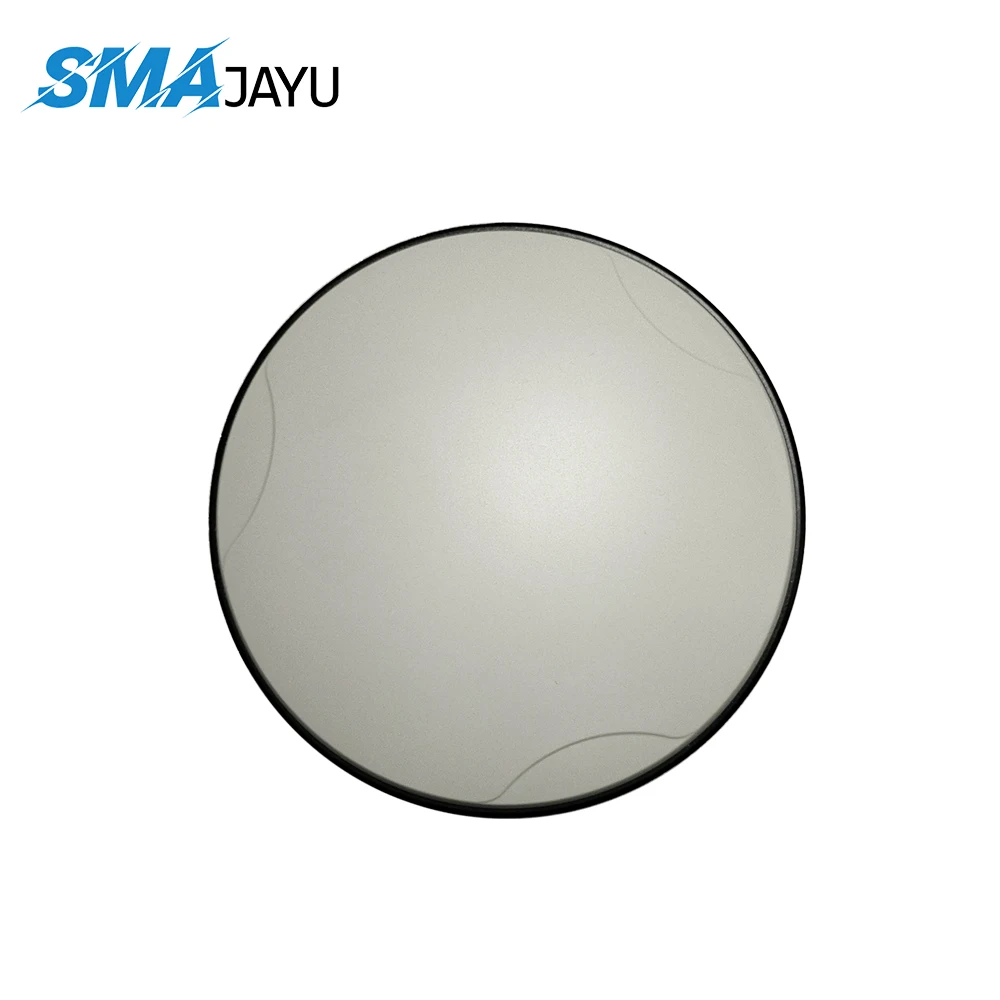

A10 is a four-system full-frequency external measurement antenna covering GPS, GLONASS, BDS, and GALILEO, which meets the multi-system compatibility requirements of current measurement equipment. It can be widely used in geodetic surveying, ocean surveying, channel surveying, dredging surveying, seismic monitoring, bridge deformation monitoring, landslide monitoring, terminal container operation and other occasions.
A10 is a four-system full-frequency external measurement antenna covering GPS, GLONASS, BDS, and GALILEO, which meets the multi-system compatibility requirements of current measurement equipment. It can be widely used in geodetic surveying, ocean surveying, channel surveying, dredging surveying, seismic monitoring, bridge deformation monitoring, landslide monitoring, terminal container operation and other occasions.

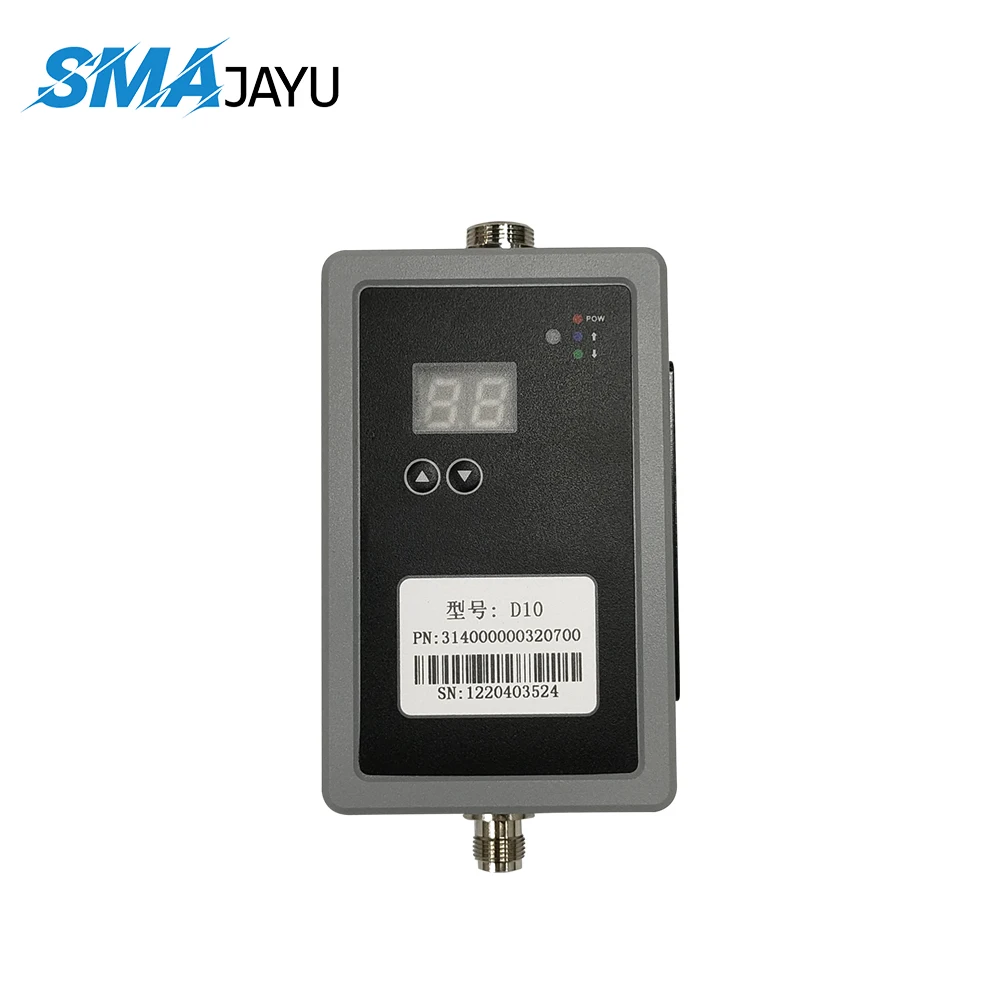

D10
D10 protocol support transparent transmission, TRIMTALK, South protocol and compatible with PDL Radio, Watson Radio and Radio South. D10 radio feature greater receiver sensitivity and highperformance external radio antennas to help you achieve a greater range. It could use for the field of smart transportation, precision agriculture, surveying, geographic information and Drone RTK communication.

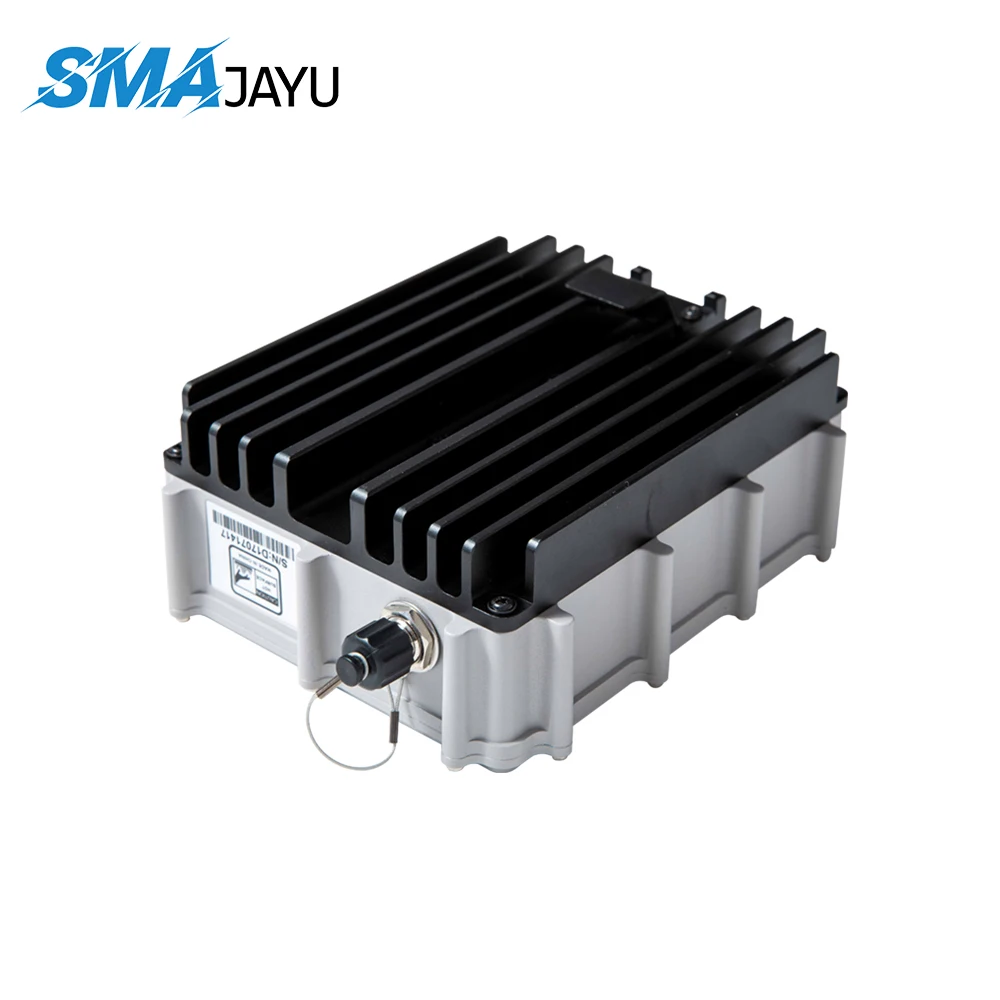

D30
D30 Radio station
Specification
R30 | value | |
PERFORMANCE | ||
Channel Configuration | 384 channels | |
GPS： L1,L2,L2C,L2P,L5 | ||
GLONASS： L1,L2 | ||
BDS： B1,B2,B3 | ||
SBAS | ||
Measurements： 1Hz, 2Hz, 5Hz, 10Hz, 20 Hz | ||
Position：1Hz, 2Hz, 5Hz, 10Hz, 20 Hz | ||
Horizontal Position Accuracy (RMS) | Single Point L1：1.5m | |
Single Point L1/L2： 1.2m | ||
Code differential GNSS positioning | SBAS： 0.6m DGPS： 0.4m | |
Static GNSS surveying | Horizontal： 5mm+1ppm Vertical：10mm+1ppm | |
Real Time Kinematic surveying | Horizontal： 10mm+1ppm Vertical： 20mm+1ppm | |
Time to First Fix | Cold start： <50 seconds Hot start： <35 seconds | |
Signal Reacquisition | L1： <0.5 seconds (typical) L2： <1.0 seconds (typical) | |
Time Accuracy | 20 ns RMS | |
Velocity Accuracy | 0.03 m/s RMS | |
PHYSICAL AND ELECTRICAL | ||
Dimensions | 182mm×52mm×134mm | |
Weight | 1.1Kg | |
Power | Input voltage： DC8V ~ 32V, with polarity reverse protection | |
Power consumption | ≤ 3.0W, in RTK base mode with internal radio in use | |
COMMUNICATION PORTS | ||
Full RS-232 serial (Dsub 9 pin) on Port 1 and Port 2 Ethernet | ||
Radio modem | frequency range from 410 MHz to 470 MHz | |
Cellular | GPRS and 3G | |
Bluetooth | fully integrated, fully sealed 2.4 GHz communications port | |
Data storage | 8 GB external memory. | |
Data Formats | Data output； NMEA-0183, raw data | |
Differential data；RTCM2.3 / 3.0 / 3.1 / 3.2, CMR | ||
ENVIRONMENTAL | ||
Temperature | Operating -40 ℃ ~ +70 ℃ | |
Storage -45 ℃ ~ +80 ℃ | ||
Humidity 95% non-condensing | ||
Environment protection IP65 | ||
Shock | Designed to survive a 2 m (6.6 ft) pole drop onto concrete. | |
A10 | value | |
PERFORMANCE | ||
GPS L1/L2/L5/L-band GLONASS L1/L2/L3 BDS B1/B2/B3 Galileo E1/ E5a/E5b/E6 SBAS L1/L5 QZSS L1/L2/L5/L6 IRNSS L5 | ||
Nominal Impedance | 50Ω | |
Polarization | RHCP | |
Axial Ratio | ≤3dB | |
Horizontal Plane Coverage Angle | 360° | |
Output VSWR | ≤2.0 | |
Highest Gain | 5.5dBi | |
Phase center error | ±2mm | |
Low Noise Amplifier Specifications | ||
Gain Noise Figure | L1 band：38±2dB L2 band：40±2dB ≤2dB | |
Output VSWR | ≤2.0 | |
In-band flatness | ±2dB | |
Operation Voltage | +3.3 to + 12VDC | |
Operation Current | 45mA | |
Group Delay Ripple | ＜5ns | |
MECHANICAL | ||
Dimensions | Φ152*62.2mm | |
Connector | TNC female | |
Weight | ≤400g | |
Mounting | BSW5/8''-11 screw, 12-14mm | |
ENVIRONMENTAL | ||
Operating | -40℃ to +85℃ | |
Storage | -55℃ to +85℃ | |
Humidity | 95% non-condensing | |
D10 | value | |
Frequency Range | 410~470MHz | |
Work Module | Half duplex | |
Channel Gap | 25KHz | |
Channel quantity | 10 channels | |
Modulation | GMSK、4FSK | |
Operating Voltage | 8-32VDC | |
Indicator light | Power、 Receive、 Send | |
Button | Channel Switch | |
Power consumption (typical) | Transmit high power：3.3W Transmit low power：2.7W receive：0.5W | |
Frequency stability | ≤±1.0ppm | |
Dimension | 126×71×30mm | |
Weight | 300g | |
Protect | IP67，100% Non-condensing, 2M fall | |
Storage Temperature | -40~+85 ℃ | |
Operating Temperature | -40~+70 ℃ | |
Antenna Port | TNC | |
Antenna Port Impedance | 50ohm | |
Data Port | Air plug connector-RS232 | |
Serial baud rate | 9600bps，115200bps，38400bps | |
Protocol | Transparent transmission、TRIMTALK、South protocol | |
Transmitter performance specifications: | ||
RF output power | High power（1W）: 30±1dBm Low power（0.5W）: 27±1dBm | |
RF power stability | ±1dB | |
Adjacent channel power | >52dB | |
Receiver performance specifications: | ||
Sensitivity | Better-115dBm@BER 10-3，9600bps | |
Co-channel rejection | Co-channel rejection | |
Block | >-12dB | |
Adjacent channel selectivity | >52dB@25KHz | |
Spurious immunity | >55dB | |
