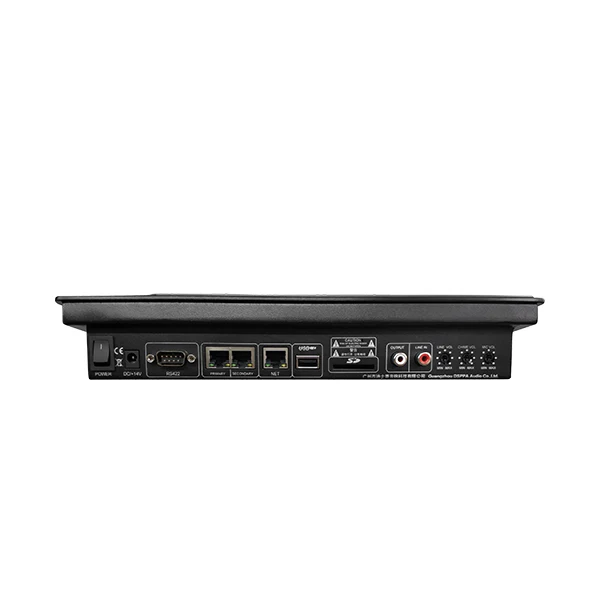

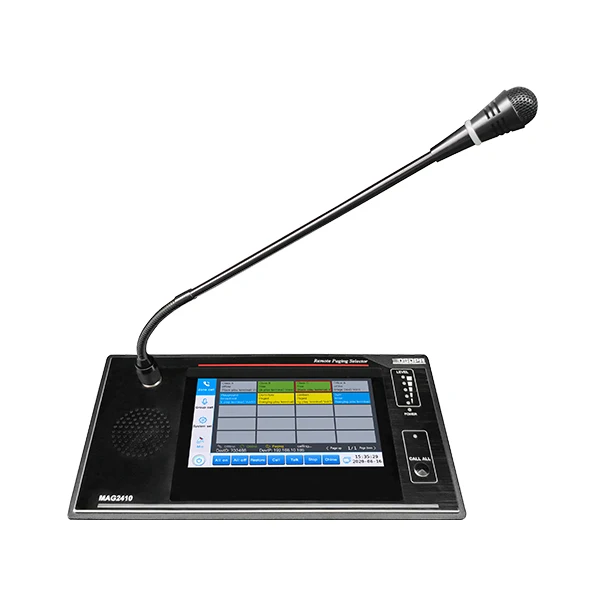

7inch Touch screen Desktop Dante IP Zone Paging Microphone for Announce and Intercom
- Category: >>>
- Supplier: Guangzhou DSPPA Audio Co. Ltd.
Share on (1600555345232):
Product Overview
Description
Get Price
Details Images
Feature
● Based on Dante protocol
● Desktop design,7-inch touch screen
● With one AUX input and one AUX output
● Support intercom with other terminal
● Built-in chime sound
● With password and authority management
● With manual shortcut keys for emergency paging for all zone
● Power supply AC220V/50Hz
● Desktop design,7-inch touch screen
● With one AUX input and one AUX output
● Support intercom with other terminal
● Built-in chime sound
● With password and authority management
● With manual shortcut keys for emergency paging for all zone
● Power supply AC220V/50Hz
Product Paramenters
Specification | Parameters |
AUX OUTRated Output Voltage | 1V±0.1 |
MICIN Sensitivity (Output1V) | 50mV±5 |
MIC Distortion (1KHz/1V) | ≦0.1% |
Effective Frequency of Gain Limit of MIC (±3dB) | 100Hz-18KHz |
MIC SNR (30K low pass) | ≧65dB |
AUX IN Sensitivity (Output1V) | 1V±0.1 |
AUX IN Distortion (1KHz/1V) | ≦0.3% |
Effective Frequency of Gain Limit ofAUX IN (±3dB) | 20Hz-20KHz |
AUX IN SNR (30K low pass) | ≧70dB |
Effective Frequency of Gain Limit of Intercom Voice (±3dB) | 100Hz-12KHz |
Intercom Voice SNR | ≧65dB |
Working Voltage | +14V |
Standby Power Consumption | 12W |
Power Supply | AC220V/50Hz |
Overall Power Consumption | 15W |
Package Dimension (L×W×H mm) | 415×280×121mm |
Machine Dimension (L×W×H mm) | 300×160×56mm |
Gross Weight | 2.5kg |
Net Weight | 1.7kg |
