1T to 50T ELECTRIC HOIST HHBB TYPE With ELECTRIC TROLLEY
US $92.00-$144.00
Custom Pa300-25 220v Fixed Mini Electric Wire Rope Hoist 300kg Small Electric Wench
- Category: Hoists >>>
- Supplier: Taizhou,Hongshuo,Hoisting,Equipment,Co.,Ltd.
Share on:
Product Overview
Description
China Strength Factory | ||
Wholesale Welcome | ||
MOQ: 1 Set | ||
Nice Price | ||
Pre-sales And After-sales Service | ||
Product Lifting Load | Product Type | |
100kg~1T 0.5T, 1.5T, 2T, 3T, 5T, 7.5T,10T,15T,20T,25T,30T | Electric Chain Hoist Electric Wire Rope Hoist Lever Hoist Chain Hoist | |
Products Description

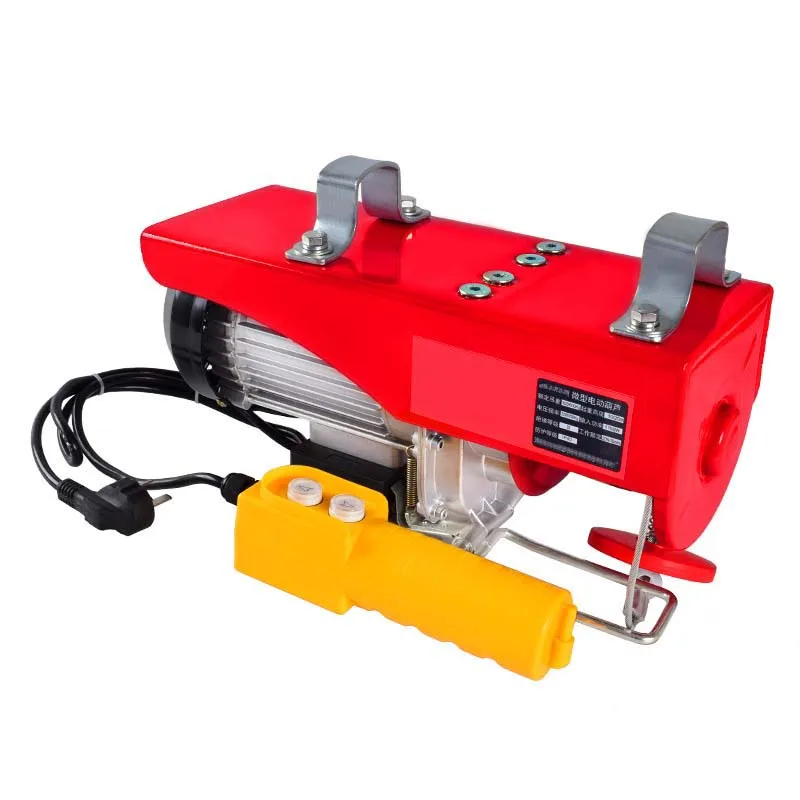

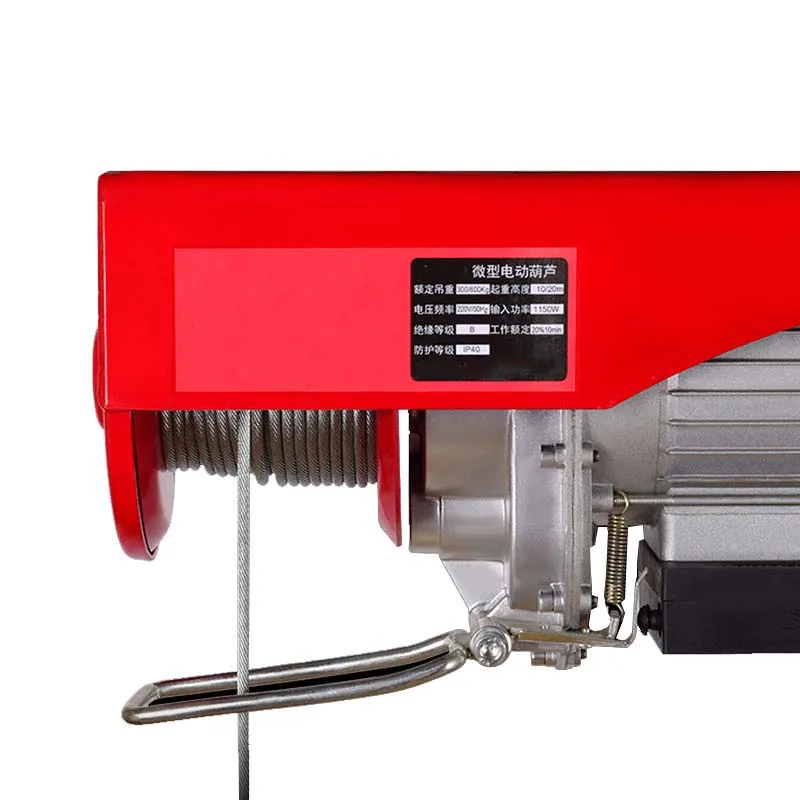

PA Mini Electric Wire rope hoist is Mini Electric Hoists have fix type and run type. They are suitable for all occasions, and can lift the cargo which is less than 1000 kgs, especially for high-rise building to lift heavy items from downstairs. This kind of hoists are simple structure, easy installation, small size and single phase power as a power source.Micro electric hoist have good appearance, reasonable structure, easy installation,low noise, safe and reliable. So they are widely used in factories, workshops, homes, warehouses, hotel, shopping malls and decoration, and other places.

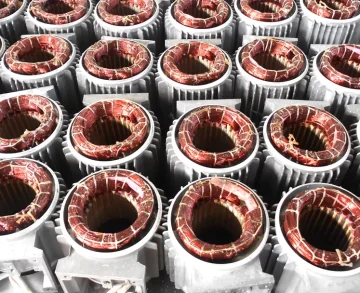

Pure copper motor
Quality assurance superh gh temperature resis ance high purity copper wire, low heat productio

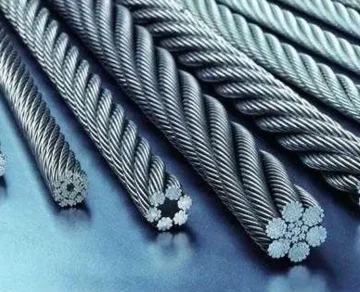

All anti-rotation wire ropes
The small strands of the anti-rotation wire rope are denser. Seen from the end of the wire rope, there is a whole strand of wire rope inside.High-speed bearing ball all-steel material.
Long service life, high motor power and low noise.
Long service life, high motor power and low noise.
Lifting hook
thickened material treatment, not easy to break.Product Specifications & Parameters

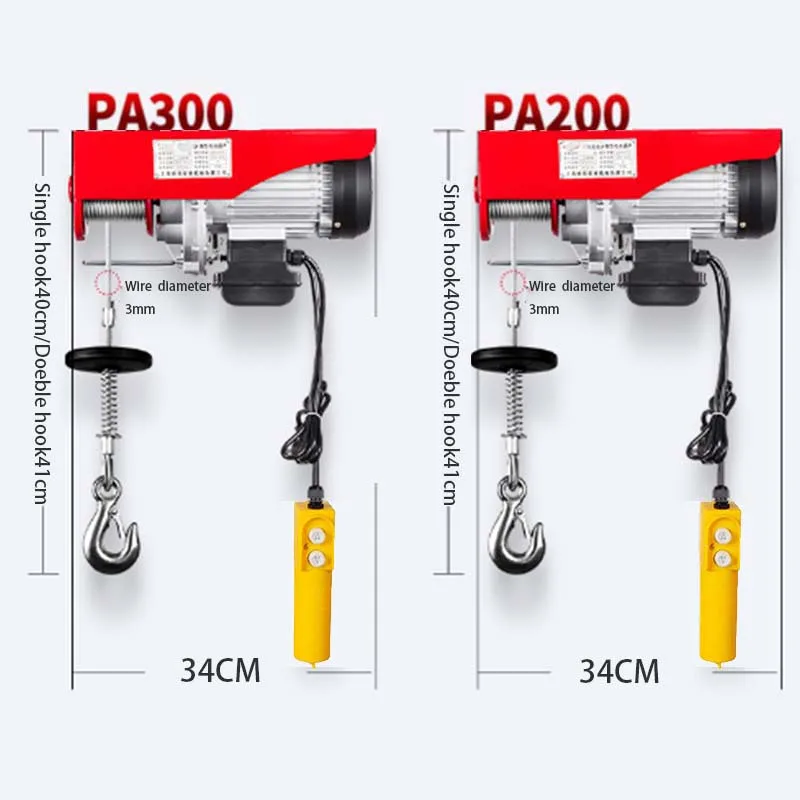

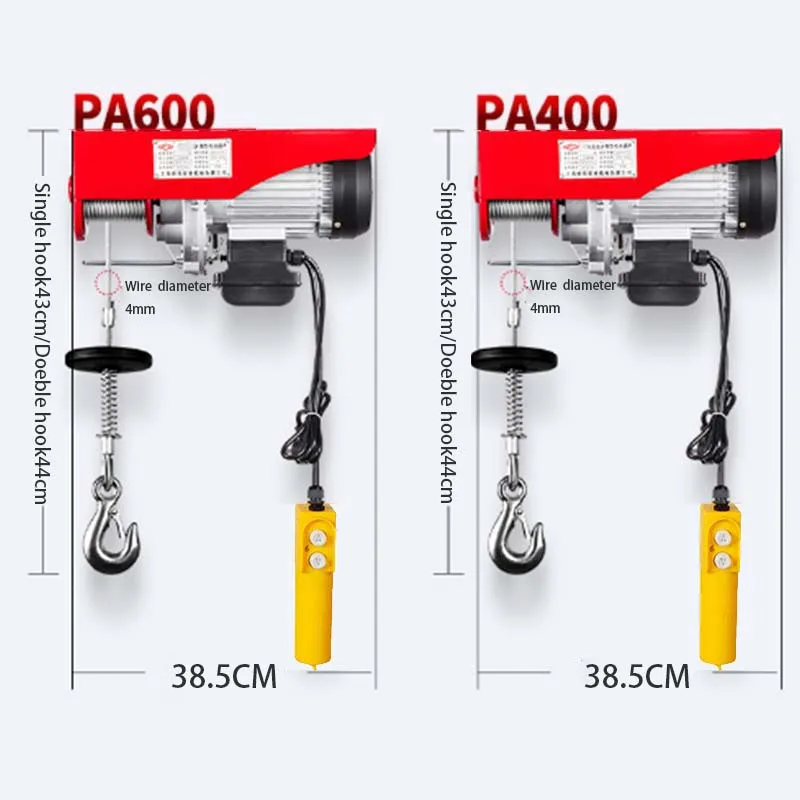

Mini PA Type | ||||||||||
Product Model | ||||||||||
25M Wire Length Type | H (mm) | A (mm) | 30M Wire Length Type | D (mm) | E (mm) | |||||
PA200-25 | 635 | 460 | PA200-30 | 288 | 165 | |||||
PA300-25 | 650 | 520 | PA300-30 | 300 | 176 | |||||
PA200-25 | 660 | 460 | PA400-30 | 288 | 165 | |||||
PA600-25 | 770 | 615 | PA600-30 | 430 | 265 | |||||
PA800-25 | 815 | 520 | PA800-30 | 300 | 236 | |||||
PA1000-25 | 830 | 615 | PA1000-30 | 430 | 265 | |||||
Mini PA Type | ||||||||||||||||
Product technical parameters-Lifting motor | ||||||||||||||||
Model | Motor Power (W) | Single Hook Lifting (KG) | Double Hook Lifting (KG) | Wire Rope Diameter (MM) | Weight (KG) | Duration Time (min/h) | Single/Double Hook Lifting Speed (m/min) | Rated Voltage（V） | ||||||||
PA200 | 510 | 100 | 200 | 3 | 12 | 30min | 12/6m/min | 220V 50HZ | ||||||||
PA300 | 600 | 150 | 300 | 3 | 12.1 | 30min | 12/6m/min | Ф7.1 | ||||||||
PA400 | 850 | 200 | 400 | 4 | 16.8 | 1-2h | 12/6m/min | Ф6.3 | ||||||||
PA600 | 1150 | 300 | 600 | 4.5 | 17 | 2-3h | 12/6m/min | Ф10.0 | ||||||||
PA800 | 1450 | 400 | 800 | 5 | 18.6 | 2-3h | 12/6m/min | Ф7.1 | ||||||||
PA1000 | 1800 | 500 | 1000 | 6 | 29.5 | 3-4h | 12/6m/min | Ф11.2 | ||||||||
Company Profile

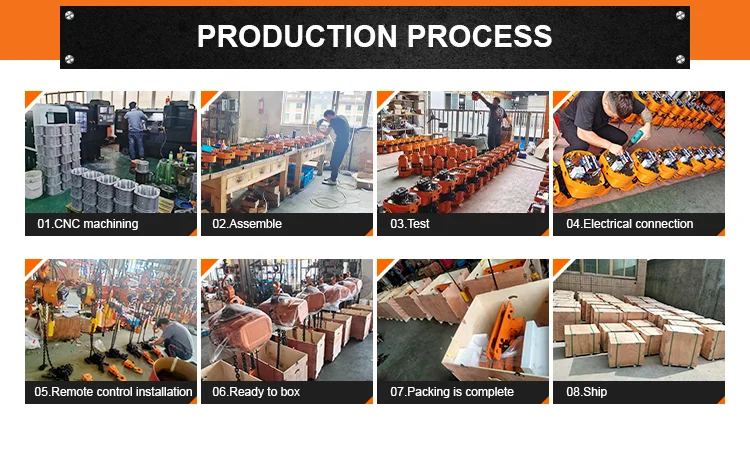

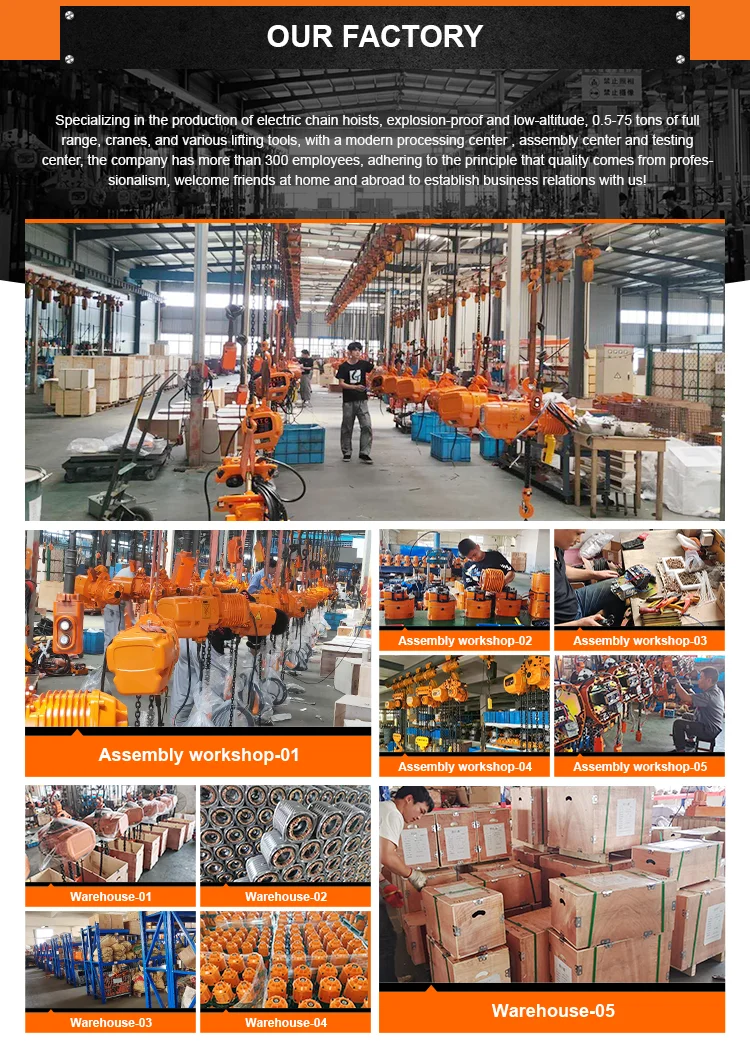

Our Factory
Packaging & Shipping
FAQ & Contact us
Frequently Asked Questions Answers
Q: The chain length of the electric hoist?
A: Generally, our factory standard is 4 meters, and we support customized length.
Q: My workshop space is relatively short, and the installation is limited. Which one is more suitable?
A: For workshops with low space height, we recommend using ultra-low type or EQ type. For other requirements, you can consult our customer service.
A: Generally, our factory standard is 4 meters, and we support customized length.
Q: My workshop space is relatively short, and the installation is limited. Which one is more suitable?
A: For workshops with low space height, we recommend using ultra-low type or EQ type. For other requirements, you can consult our customer service.
Q: Is there any limit for this electric hoist?
A: This kind of electric hoist has the upper and lower limit limit protection function in terms of performance.
A: This kind of electric hoist has the upper and lower limit limit protection function in terms of performance.
Q: Important precautions for the use of new products
A: 1st, be sure to apply lubricating oil to the chain before using the new product. The oil should not be thick and should be diluted, and the lubricity of the chain should be maintained.
A: 1st, be sure to apply lubricating oil to the chain before using the new product. The oil should not be thick and should be diluted, and the lubricity of the chain should be maintained.
2nd, loosen the screw of the oil filling hole a few times to achieve the effect of exhaust.
3rd, pay special attention: the end of the chain is placed in the chain bag and cannot be installed in any other part.
4th, Do a good job of rain protection when using it outdoors.
3rd, pay special attention: the end of the chain is placed in the chain bag and cannot be installed in any other part.
4th, Do a good job of rain protection when using it outdoors.
