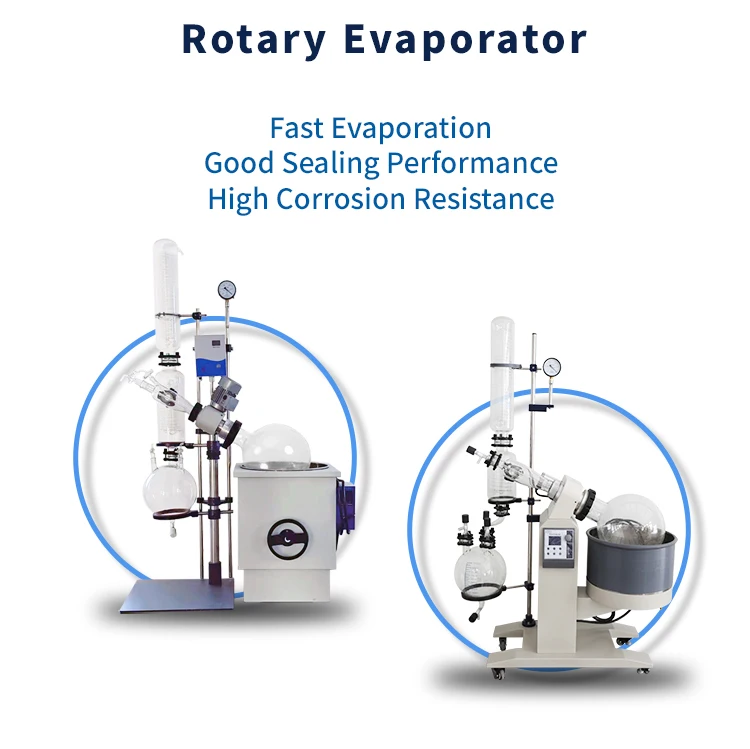

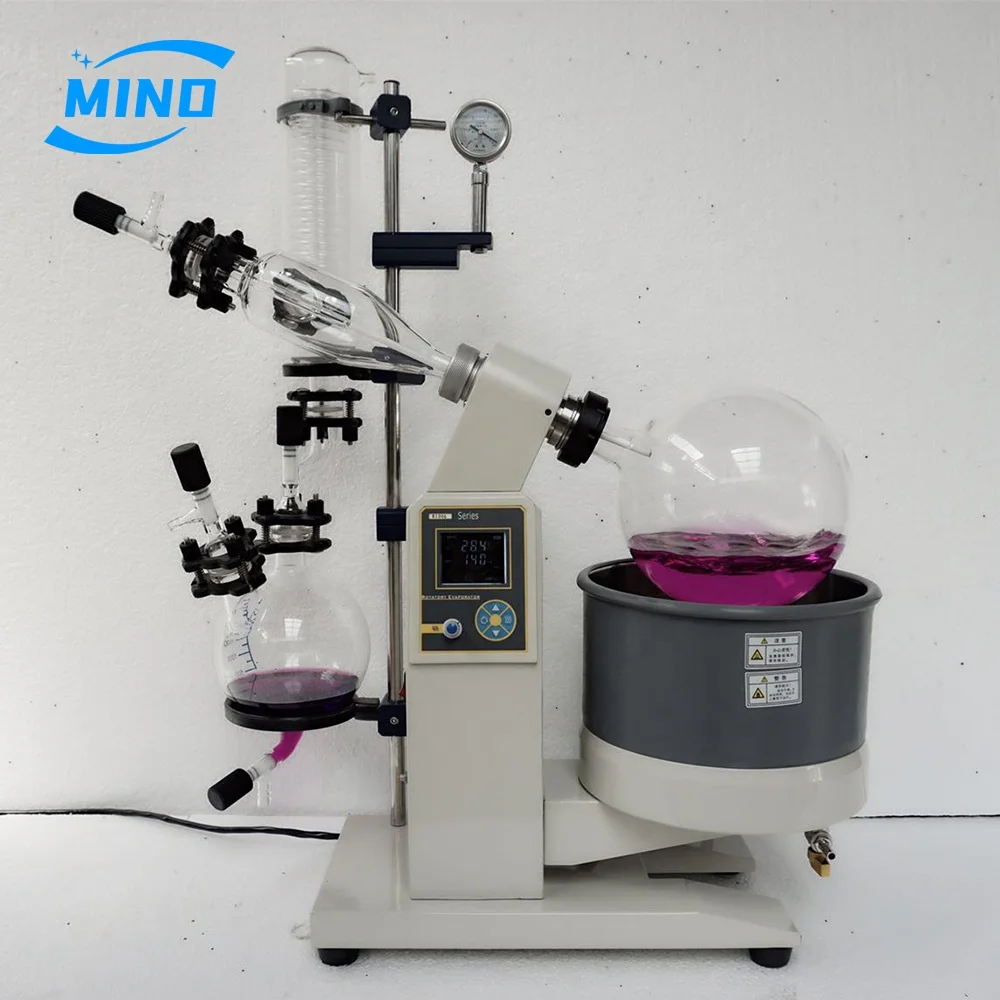

Factory Price Cheap Lab Laboratory Distillation Rotary Evaporator Instrument
Mino Rotary Evaporators series are perfectly designed for many different distilling processes, from standard evaporation without vacuum control to complex distillation processes with vacuum control. During the development of evaporators, Mino focuses on the features and functions of safety, convenience, and cost savings.
Technical Parameters
Technical Parameters of Mino Rotary Evaporator
| 0.5L~5L Rotary Evaporator With Hand/Motor Lift | |||||
| Model | RE-205 | RE-52AA | RE-2010 | RE-301 | RE-501 |
| Rotary Flask | 0.5L~2L | 3L | 5L | ||
| Collection Flask | 1L φ35mm Ball Joint | 2L Bottom Valve | 3L Bottom Valve | ||
| Evaporation Speed (Water) | 1.2L/h | 1.5L/h | 2L/h | ||
| Motor Power | 40W | 60W | |||
| Rotation Speed | 10-180rmp | 10-120rmp | |||
| Heating Power | 1.5kW | 2kW | |||
| Reachable Vacuum Rate | 399.9Pa | ||||
Static Temperature Control Range | Water Bath: RT-99℃; Oil Bath: RT-180℃±0.2℃ | ||||
| Voltage | Single Phase 110V/220V (Customizable) | ||||
| Heating Bath | Hand Lift/Motor Lift | ||||
| Lift Height | 100mm~150mm | ||||
| 10L~50L Rotary Evaporator With Hand/Motor Lift | ||||
| Model | RE-1002 | RE-2002 | RE-3002 | RE-5002 |
| Rotary Flask | 10L | 20L | 30L | 50L |
| Collection Flask | 5L | 10L | 20L | 20L |
Evaporation Speed (Water) | >3L/h | >5L/h | >7L/h | >9L/h |
| Condenser Pipe | Vertical, Main Condenser+Assistant Condenser | |||
| Motor Power | 180W | 250W | ||
| Rotation Speed | 3~110rmp, Digital Display | 3~90rmp, Digital Display | ||
| Bath Power | 3kW | 6kW | ||
| Reachable Vacuum Rate | <133Pa (1.33mbar, 1 Torr) | |||
Static Temperature Control Range | Water Bath: RT-99℃; Oil Bath: RT-180℃±0.2℃ | |||
| Voltage | Voltage: 110V/220V/380V; Phase: 1Ph/3Ph (ATEX Optional) | |||
| Glass Material | GG-17(3.3) High Borosilicate Glass | |||
| Heating Bath | Stainless Steel, Hand Lift/Motor Lift | |||
| Bath Size (L*W*H) | 95cm*85cm *90cm | 95cm*85cm *90cm | 100cm*90cm *95cm | 106cm*62cm *120cm |
| Rotary Evaporator With Motor Lift | ||||
| Model | RE-6000AT | RE-1010 | RE-1020 | RE-1050 |
| Rotary Flask | 6L | 10L | 20L | 50L |
| Collection Flask | 3L | 5L | 10L | 20L |
| Evaporation Speed | Water≥2.5L/h, Alcohol≥4L/h | Water≥5L/h, Alcohol≥11L/h | ||
| Condenser Pipe | Vertical Condenser | Main Condenser+Assistant Condenser, Efficient Reflux | ||
| Rotary Motor Power | 60W | 250W | ||
| Rotation Speed | 10~150rmp | 10~130rmp, Digital Display | ||
| Heating Power | 1.5kW | 3kW | 3kW | 6kW |
| Reachable Vacuum | <133Pa (1.33mbar, 1 Torr) | <399.9Pa (3mmHg) | ||
Static Temperature Control Range | Water Bath: RT-90℃; Oil Bath: RT-200℃ | |||
| Voltage | 220V/50HZ, 380V optional | |||
| Heating Bath Material | Stainless Steel | |||
| Lift Type | Electric Lift | |||
| Lifting Stroke | 0-150mm | 20-120mm | 20-120mm | 20-90mm |

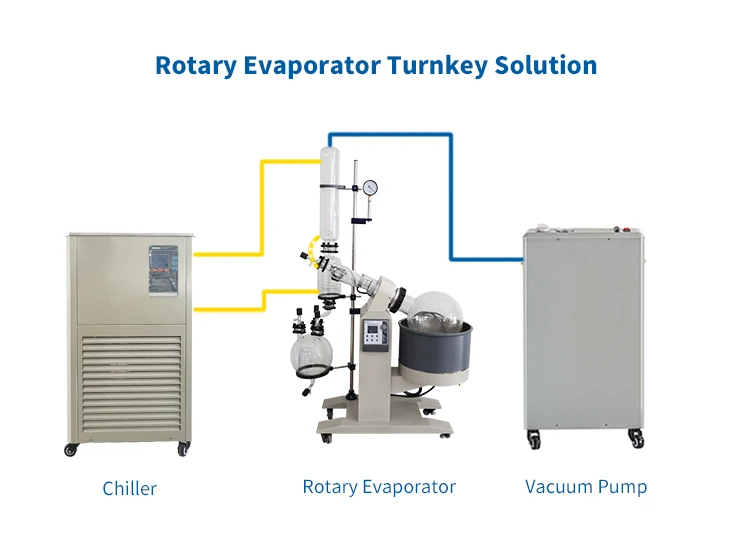

Turnkey Solution
