Automatic chain link fence making machine for sale
- Category: >>>
- Supplier: Anping County Second Barbed Wire Factory
Share on (1600555837101):
Product Overview
Description
Product Description
2 worms fully automatic chain link fence net making machine
Detailed Images

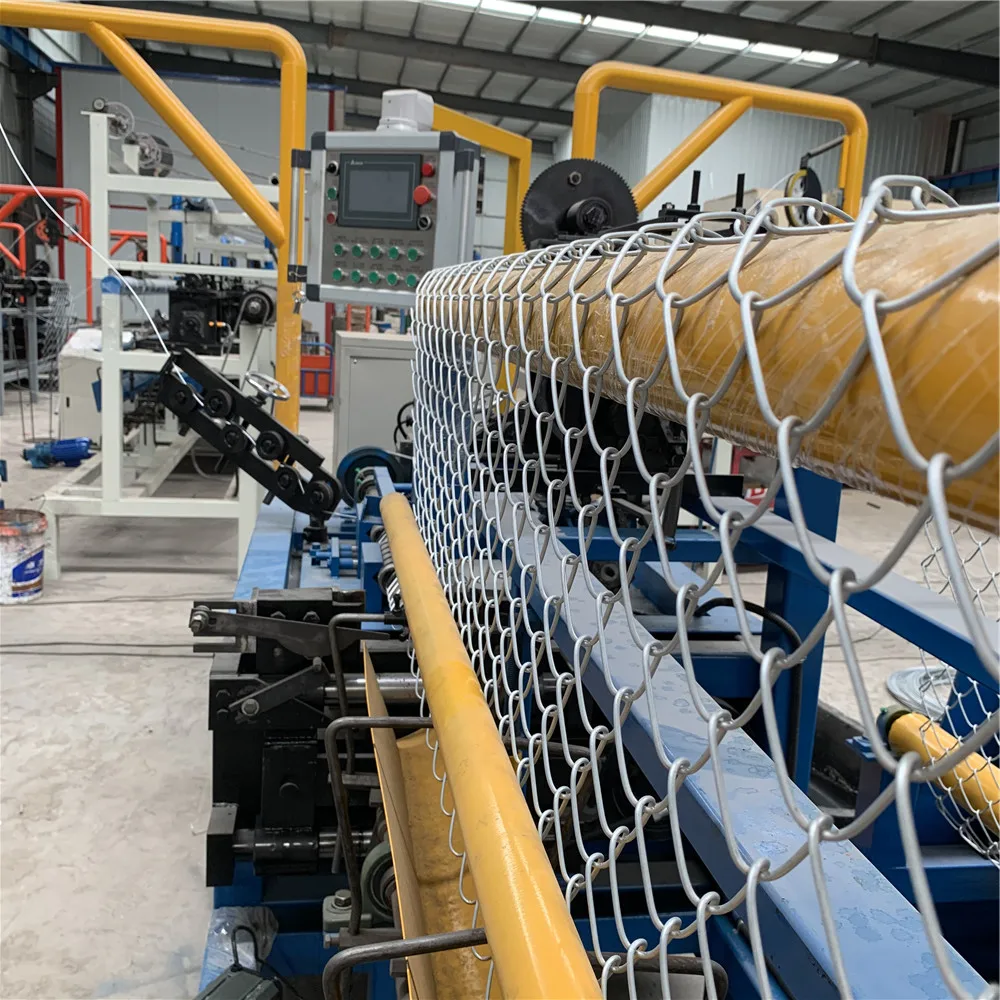

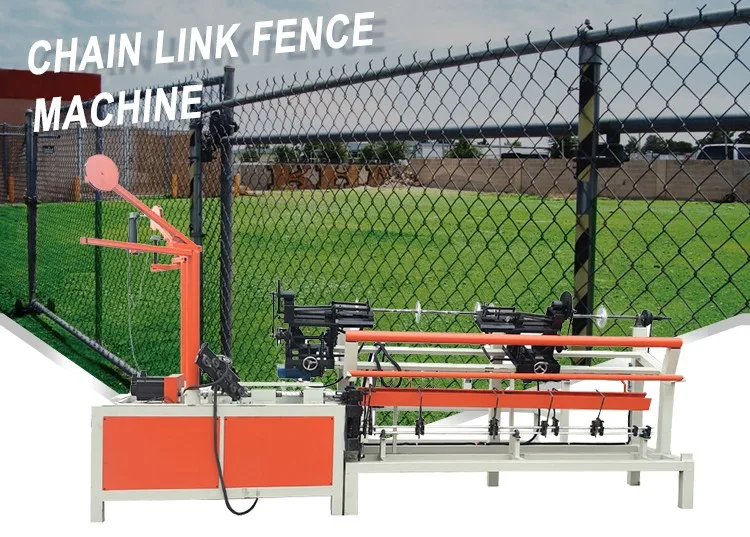

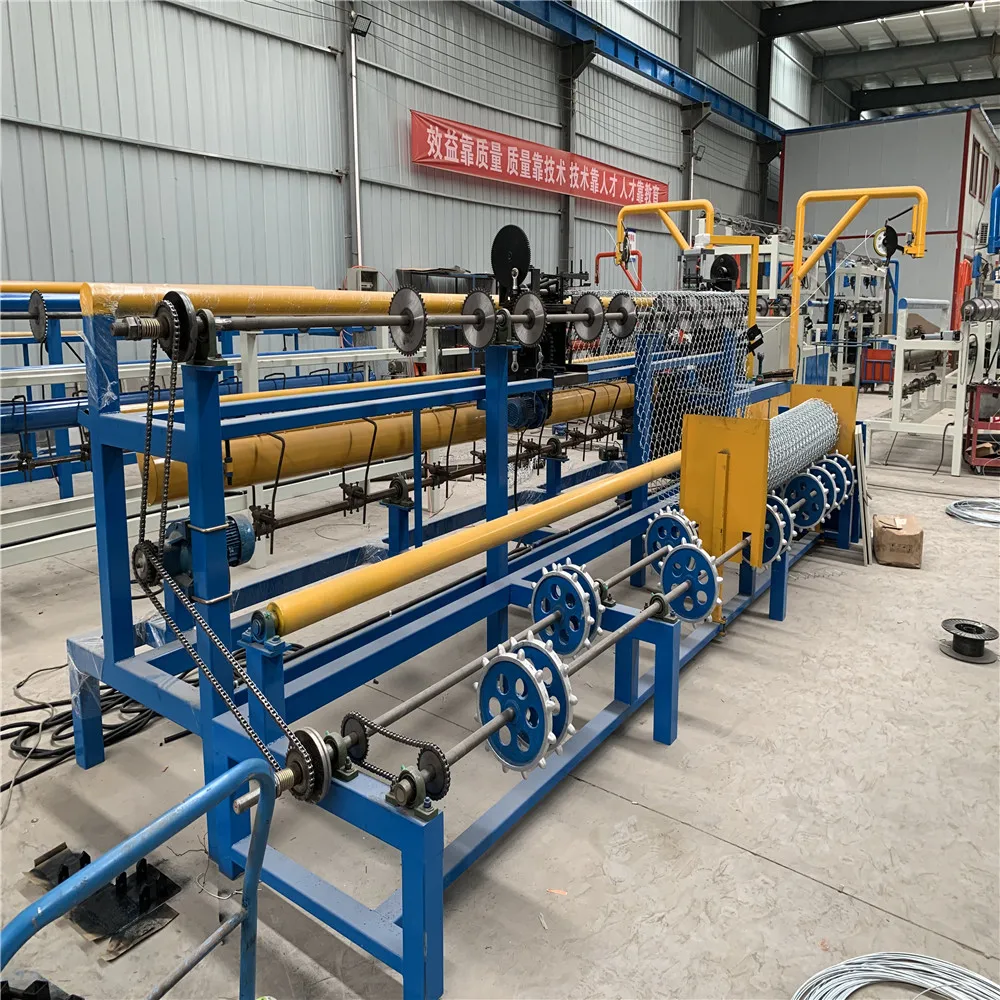

1. Fully Automatic Chain Link Fence Machine:

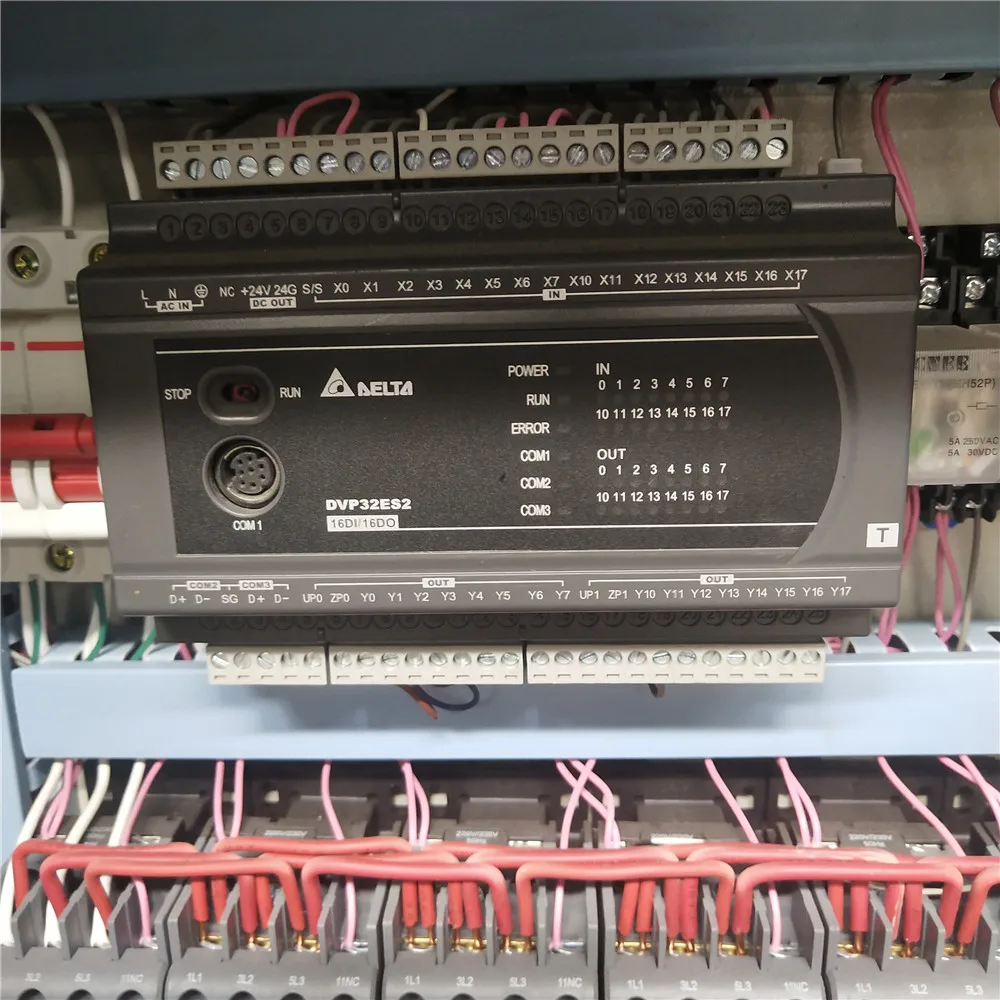

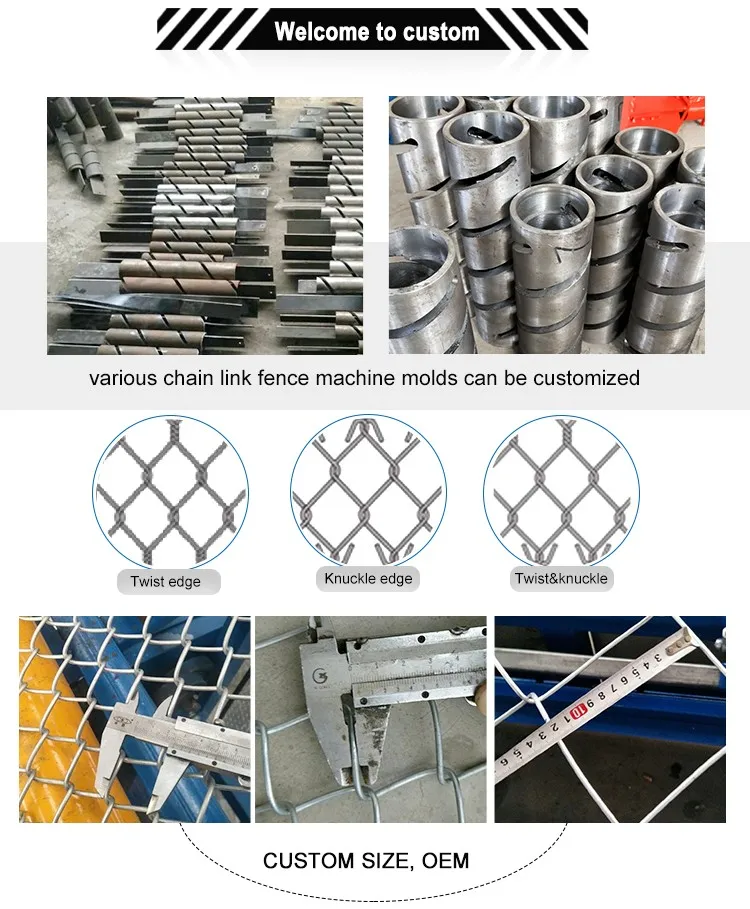

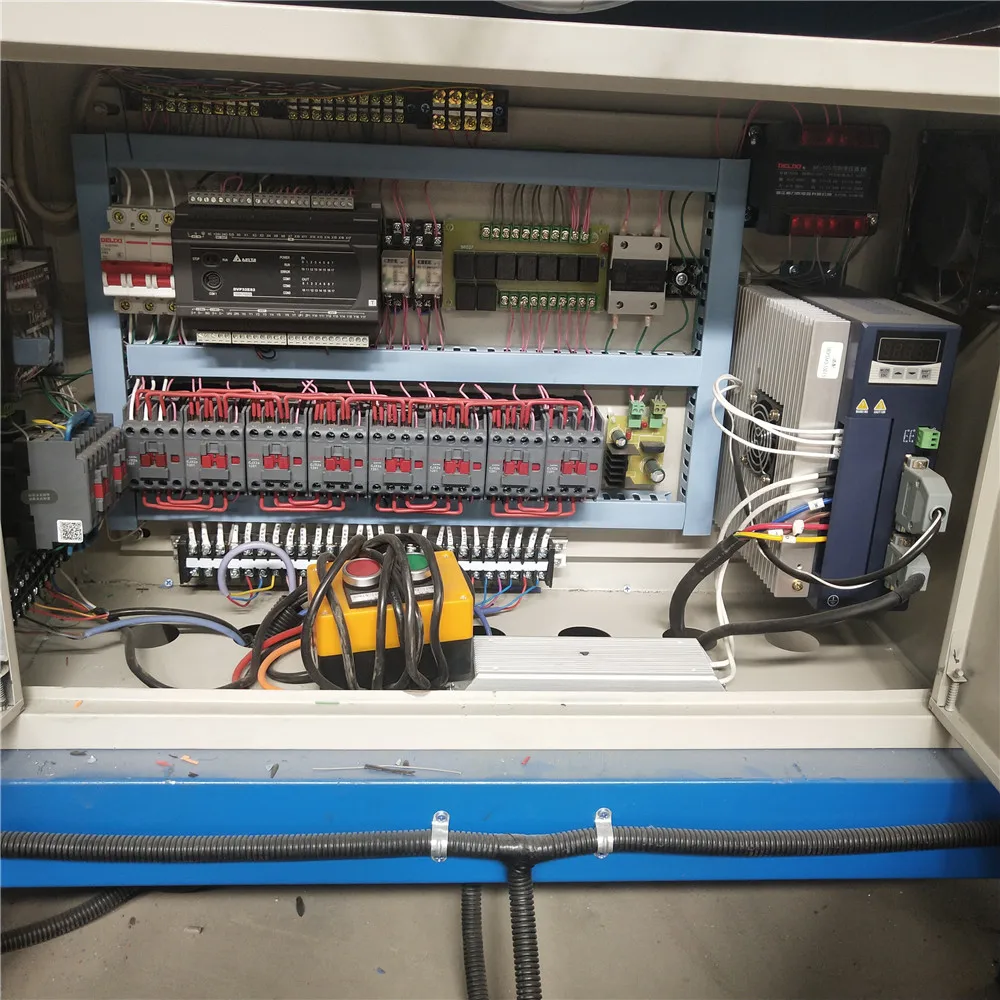

It can produce many different hole size of the mesh with different molds.The machine is controlled by PLC,we can set the length of the fence by PLC.The machine only need one worker for operating.
Chain link fence machine performance:
1.It could work both of galvanized wire and pvc coated wire.
2.With alarm system for emergency matters occure.
3.Stop automaticlly.
4.With single/double wire feeding system.
5.It could adjust the mesh width automaticlly.
6.With high working efficiency and low noise.
Item | Single wire Fully automatic chain link fence machine | Double wire Fully automatic chain link fence machine | |||||||||
Wire Dia. | 1.5-5.0mm | 1.8-4.5mm | |||||||||
Hole Size | 25*25mm-120*120mm | 30*30mm-120*120mm | |||||||||
Material | galvanized wire, pvc wire | galvanized wire, pvc wire | |||||||||
Width | 2m | 3m | 4m | 2m | 3m | 4m | |||||
Capacity | 20-130M2/h | 30-150M2/h | |||||||||
Power | 3.8kw/h | 5.5kw/h | |||||||||
Mould | 4set mould for free | 4set mould for free | |||||||||
Size (L*W*H) | 3.8*3.2*1.5M | 4.8*3.2*1.5M | 5.8*3.2*1.5M | 5*2.2*1.7M | 6*2.2*1.7M | 7*2.2*1.7M | |||||
Weight | 1.7T | 1.8T | 1.9T | 1.9T | 2.0T | 2.1T | |||||
Warranty | One year | ||||||||||
Operation | One person control 2 machine | ||||||||||

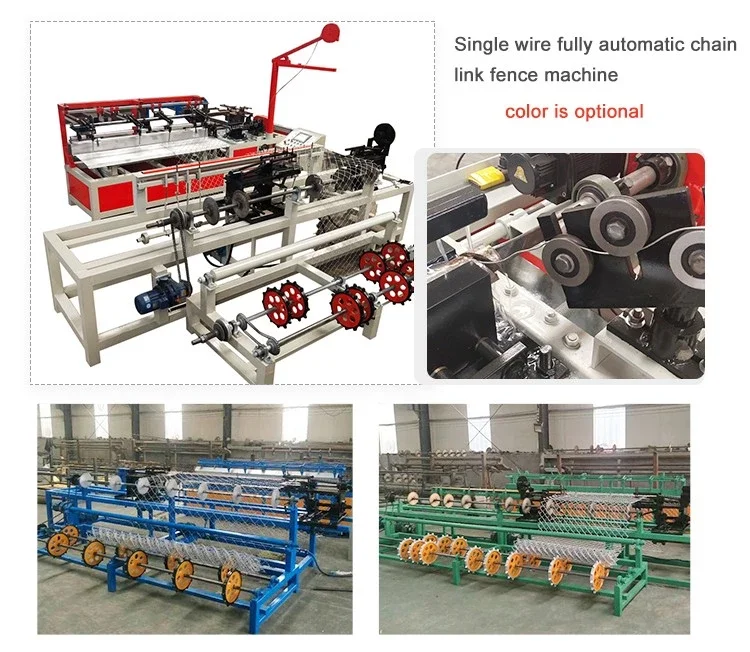

1) Single wire full automatic chain link fence machine adopts single wire feeding system.It can weave hole size from 25mm*25mm to 120mm*120mm with wire diameter from 1.5mm to 5.0mm.This type machine is popular in India market. It can work with hard wire and the working performance is very good.

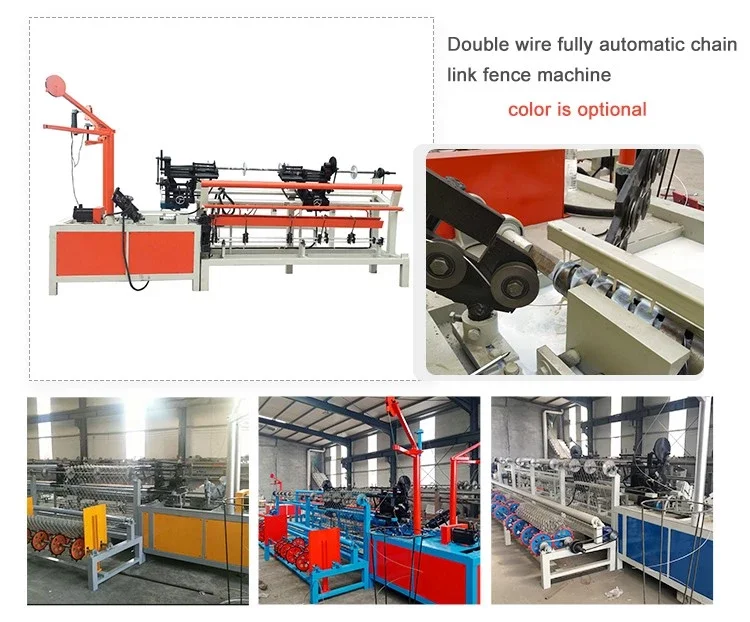

2) Double wire full automatic chain link fence machine adopts double wire feeding system,it can weave hole size from 30*30mm to 120*120mm with wire diameter from 2.0mm to max 4.5mm.The machine need to working with soft wire and has high production capacity.

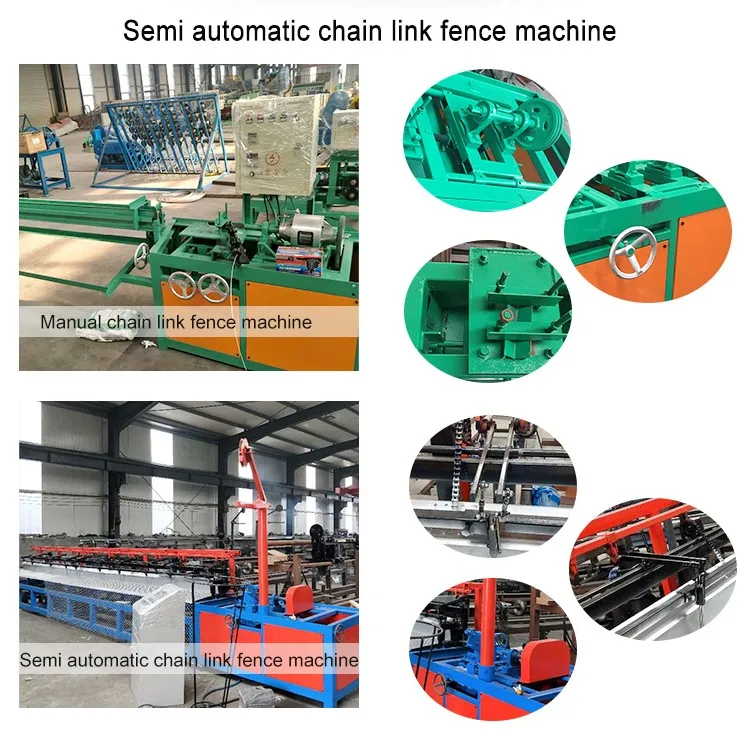

2. Semi Automatic Chain Link Fence Machine:
This machine is very easy to operate and move, you can operate it very skillfully, and the price is very cheap and low noise,It is very suitable for home - type factories and cheap labor areas.It suitable for new partner.
Item | Semi Automatic Chain Link Fence Machine: |
Wire diameter | 1.5-4.5mm |
Mesh size | 25-120mm |
Material | Galvanized wire and PVC coated wire |
Width | 0.6-4.0m |
Voltage | 380V/50HZ(customized) |
Motor | 1.5KW+0.75KW |
Mould | 4 sets moulds for free |
Weight | 300kgs |
Dimension | 1.5*0.8*1.2M(main machine) |
Waranty | One year |
Any question, contact us timely.
Chain link fence machine is used to make all kinds of chain link fence which is widely used on the sports ground , garden , airport,highway and so on.
