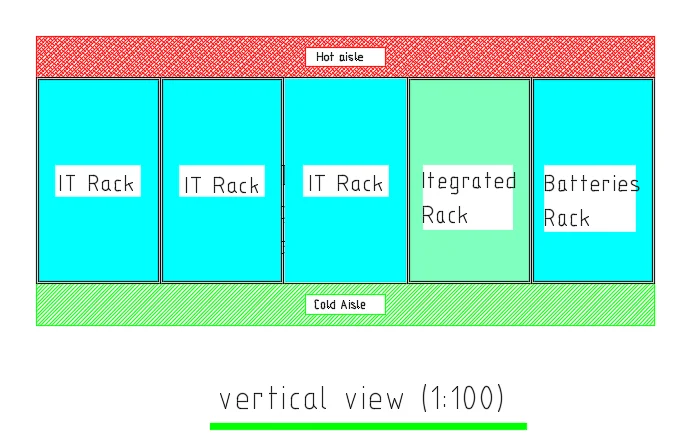

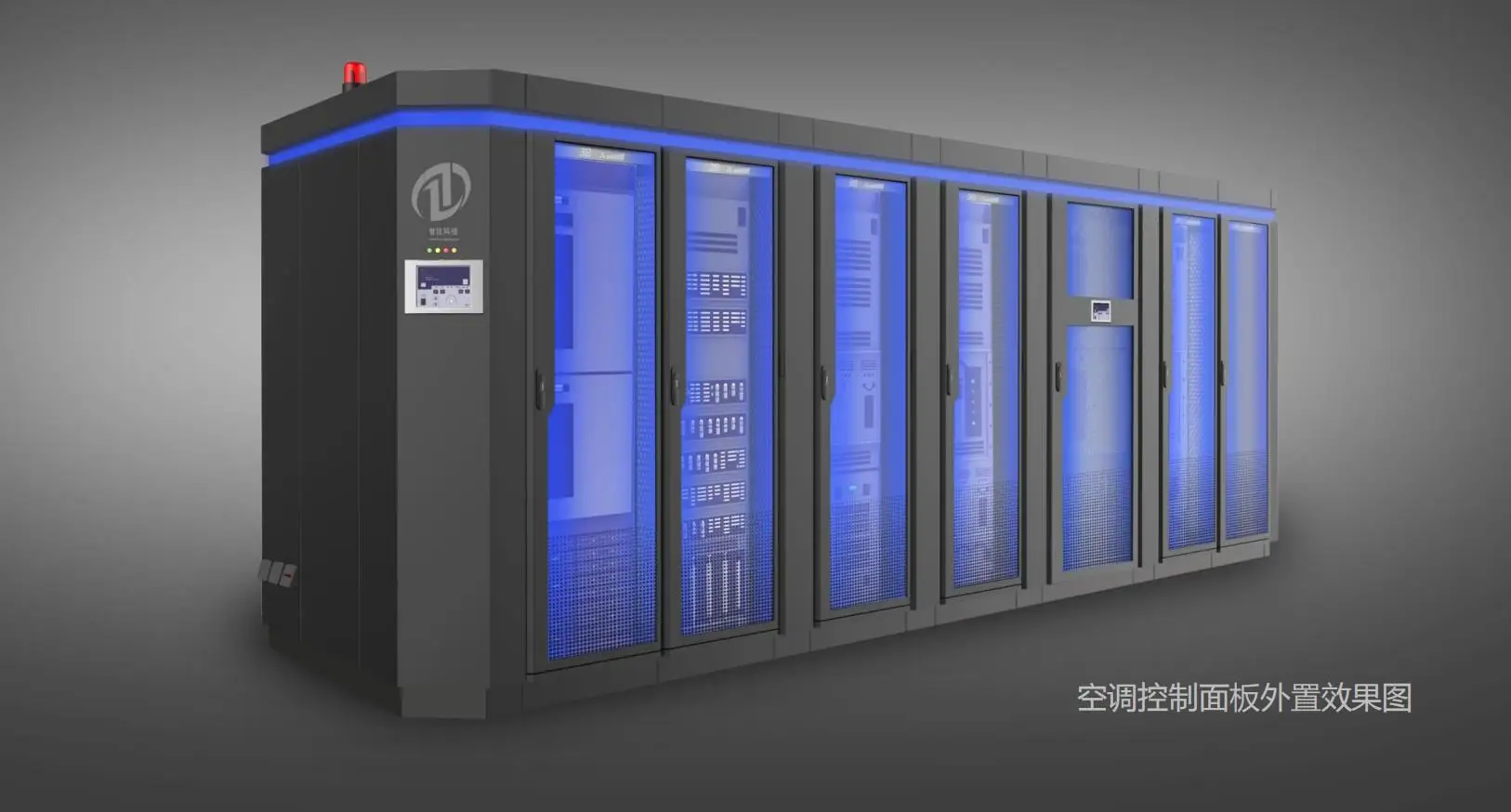

Sever стеллаж, дата-центр, холодный проход, сдерживание с охлаждающим раствором, точный кондиционер воздуха
- Category: >>>
- Supplier: Zhejiang,Zhiting,Information,Technology,Co.,Ltd.
Share on:
Product Overview
Description
Products Description
Name | Quantity ( PCS ) | Name | Quantity ( PCS ) |
Front curved door | 1 | Side door | 2 |
Front closure | 2 | Management channel | 2 |
Vertical support | 4 | Baseplate | 2 |
Item | Configuration | Specifications |
Dimensions | Standard 42 inches | 600*2000*1200mm(W*H*D) |
Cabinet door | Plexiglass door with appearance modeling | Plexiglass door：front and rear door thickness≥1.2mm，side door thickness ≥1.5mm |
Ground connection | Reserved for more than two ground points. | BVR6mm2 |
Shelves | Two pieces per cabinet | 50Kg |
Cable management | Near the rear door | Vertical cable ring |
Air conditioner | Rack-mounted or In row | Determine the air conditioning cooling capacity according to the equipment power |
Emergency exhaust | 1 draught fan every enclosure | Air volume239~288CFM |
Drainage | A water supply pipe, a drain pipe, bottom installation | PPR hot melt pipe ，Flooding:DN25，Discharge:DN40 |
UPS | 10KVA to 30KVA | Rack-mounted, single-in single-out or three-in single-out, on-line UPS, power selection according to project situation |
Power backup | Lead-acid batteries or lithium battery | 7AH, 9AH |

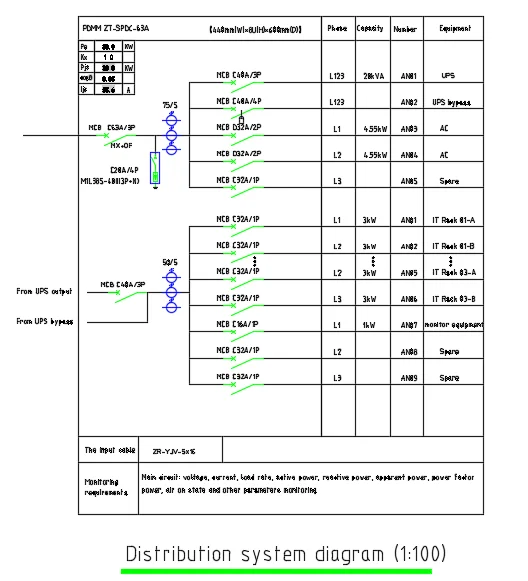

PDM | 32A or 63A input | Specification ：410mm(W)*3U(H)*600mm(D) |
Configuration: electricity circuit, UPS circuit; 19P air switch at most | ||
Function: intelligent or non-intelligent | ||
Installation: rail installation in rack | ||
PDU | IEC/GB | Vertical or horizontal(less than 8 port) installation |
Light | LED | Front and rear door installate work lighting, controled by the door or screen touch |
DC12V power supply, power ≤ 6W | ||
Fire trace tube | Gas | Optional |
Alarm system | Local and remote | Local lights sound warning, sent to the monitoring room or the control center |
Display screen | 10 inch touch screen | Optional |
Home A/C restart function | Optional | |
SMS | Optional | |
Remote mobile App | Optional | |
Liquid sensor | Optional | |
Tem&Hum sensor | Standard configuration | |
Door magnetic switch | Standard configuration | |
Smoke sensor | Standard configuration | |

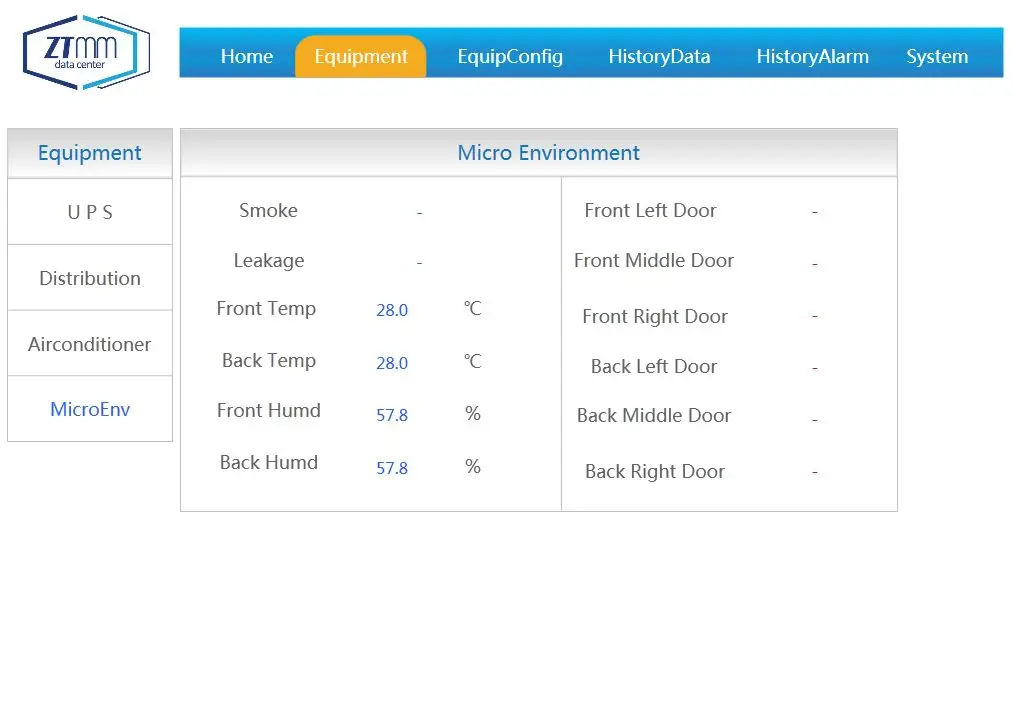

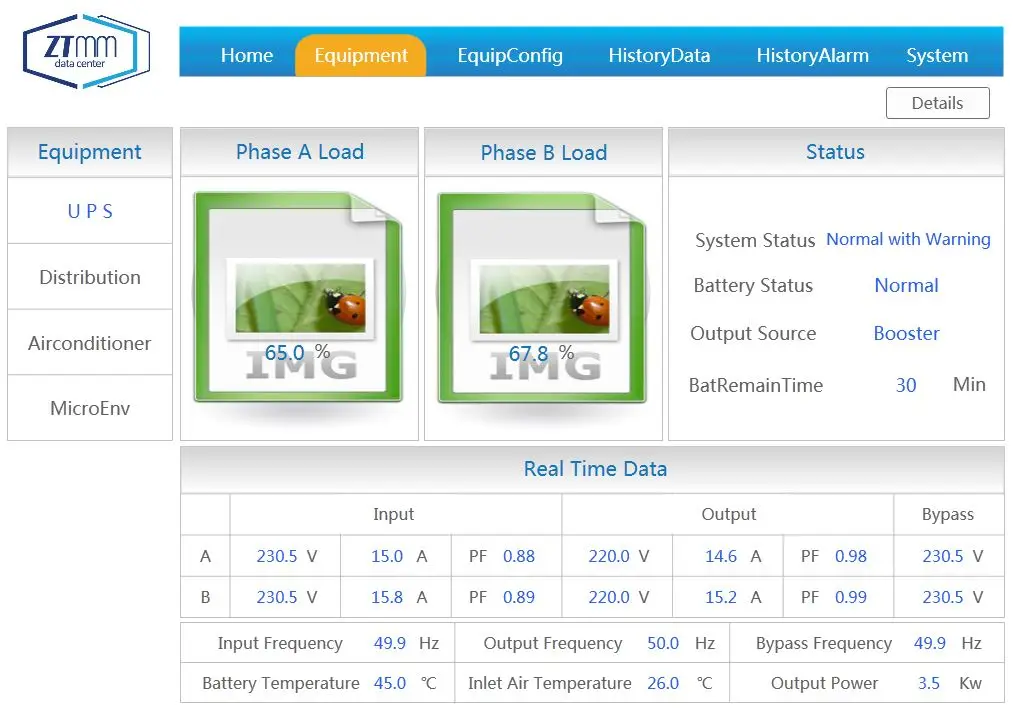

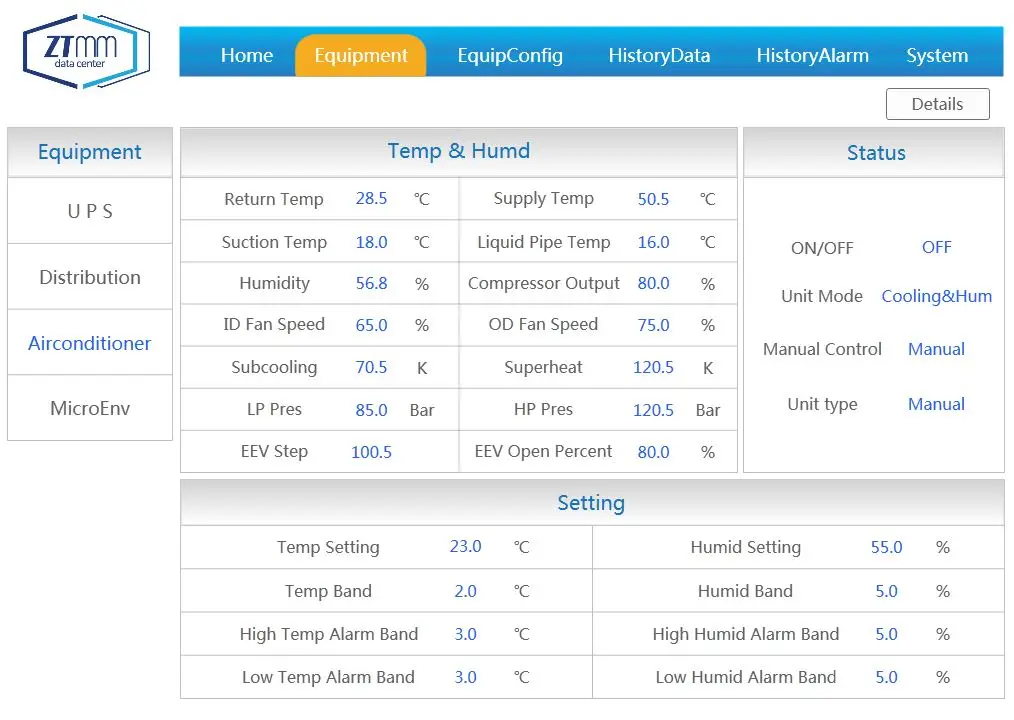

Web monitoring | Standard configuration | |
Camera | Optional | |
Access control | Fingerprint,swipe or password | Optional |
Dimensions | Per cabinet | 734*2200*1368mm(W*H*D) |
Weight | Per cabinet | 150Kg(no battery pack) |

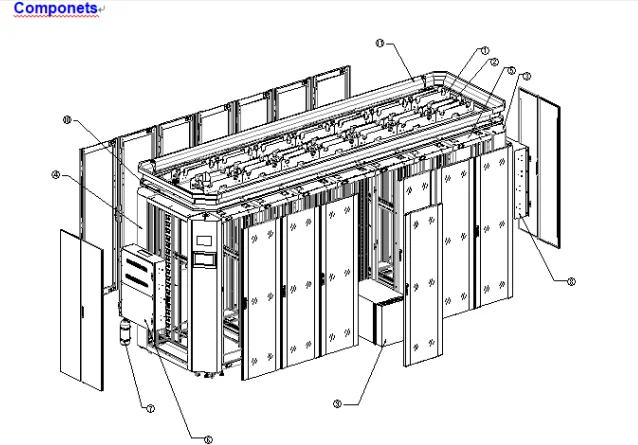

Componets
More Products
Our Advantage
About Us

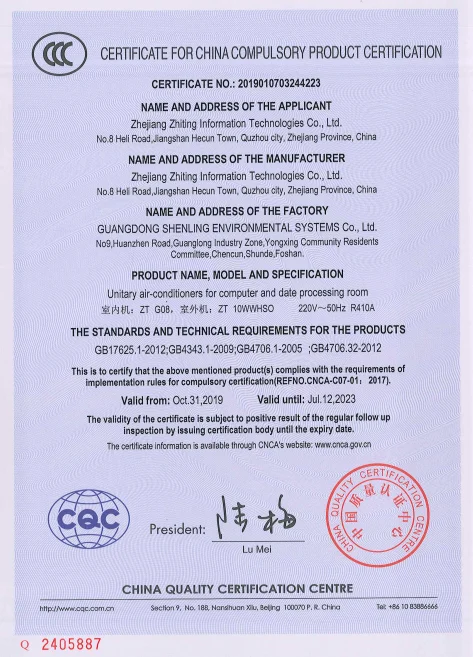

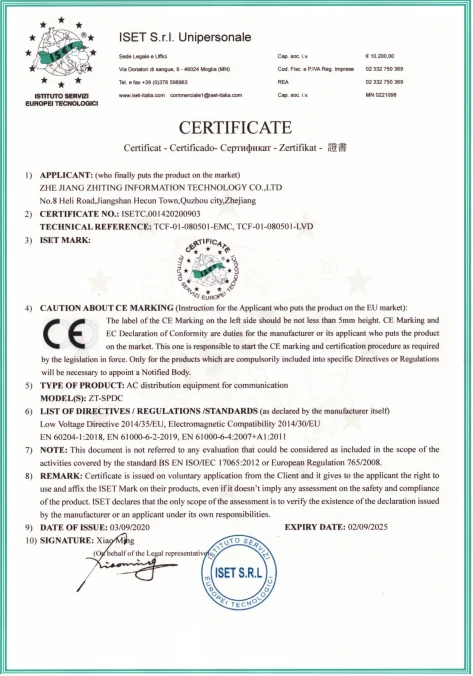

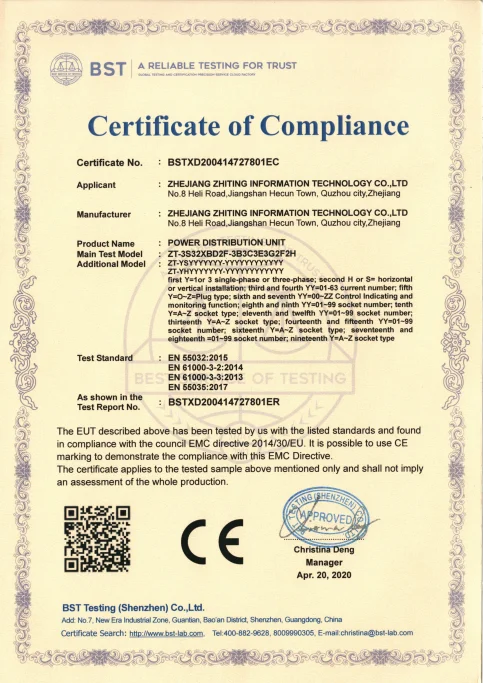

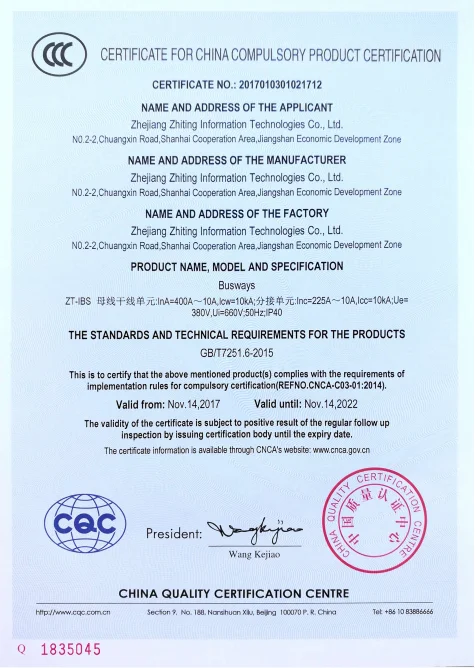

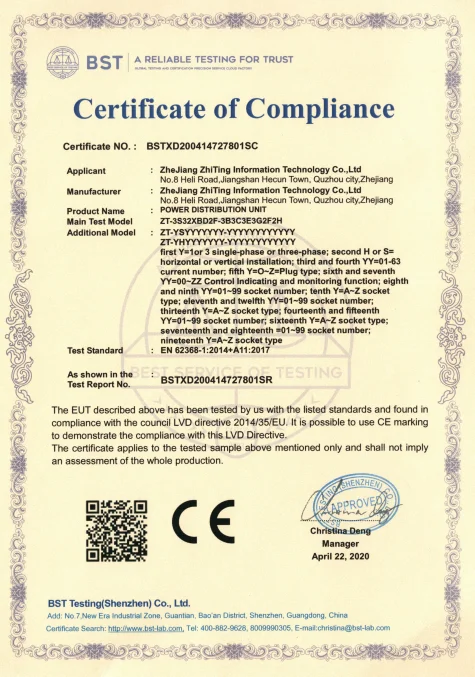

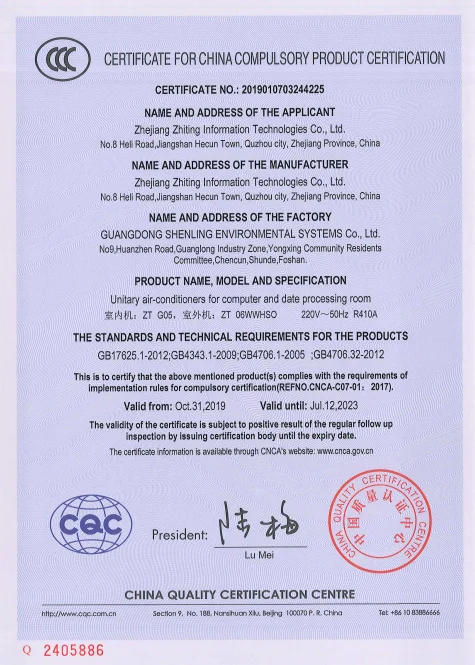

Certificate
