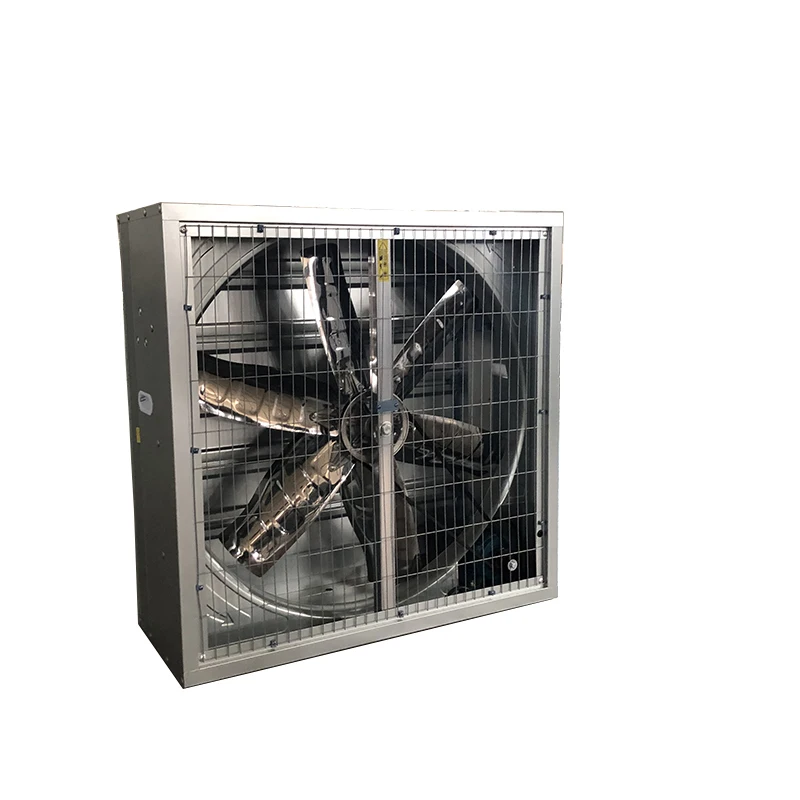

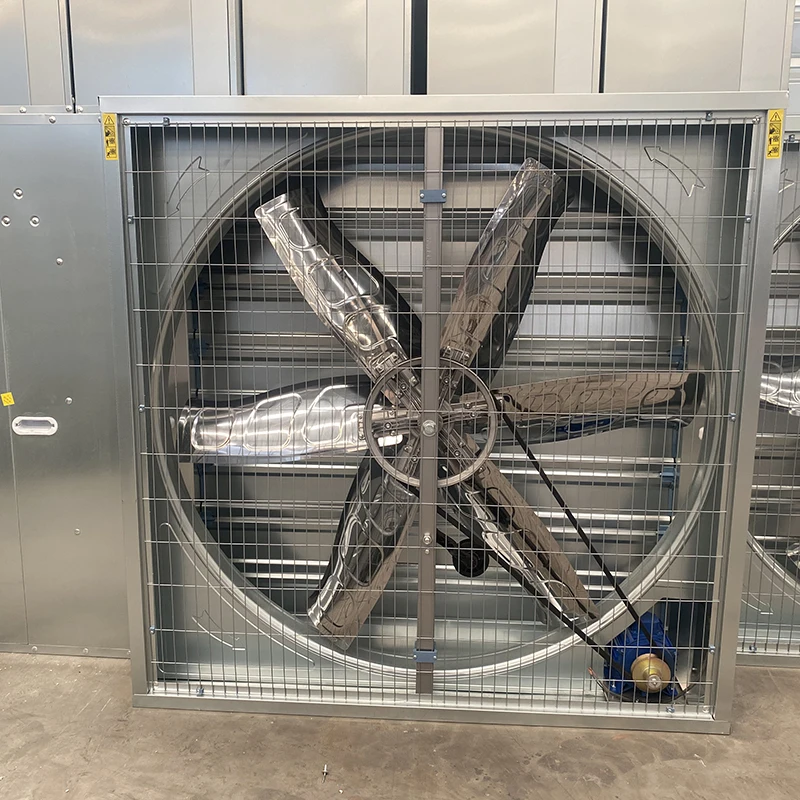

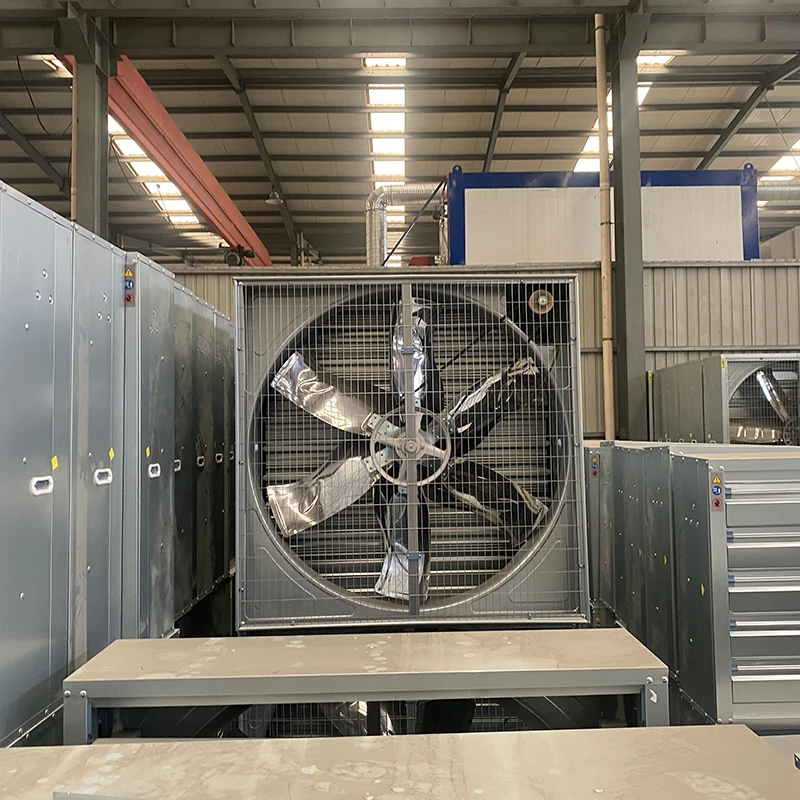

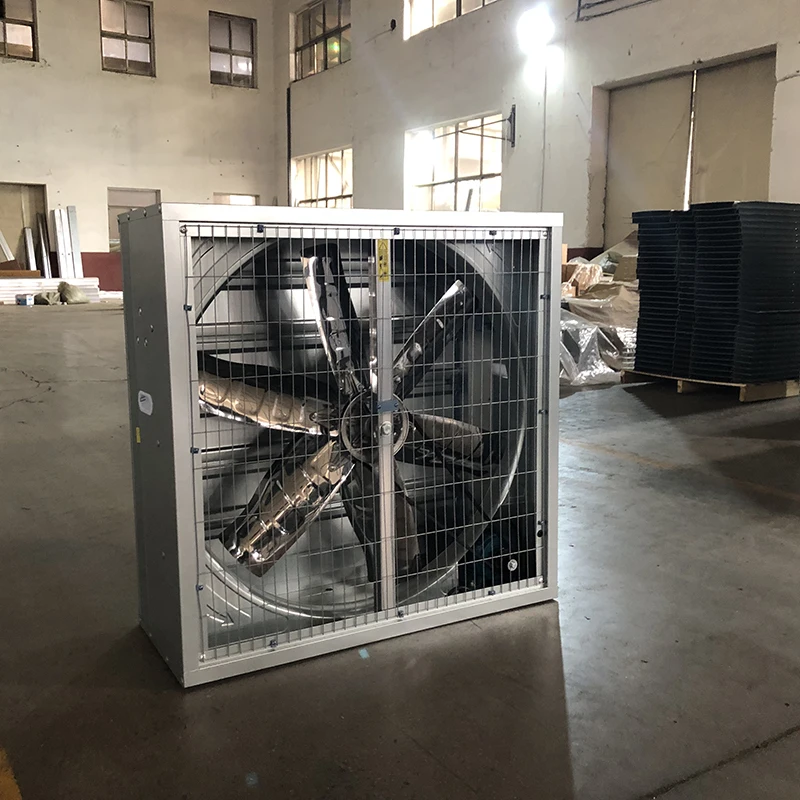

Greenhouse/poultry/chicken Farm/livestock Ventilation Exhaust Fan For Poultry Use
- Category: >>>
- Supplier: Qingzhou Dayou Temperature Control Equipment Co. Ltd.
Share on (1600556469482):
Product Overview
Description
Specification

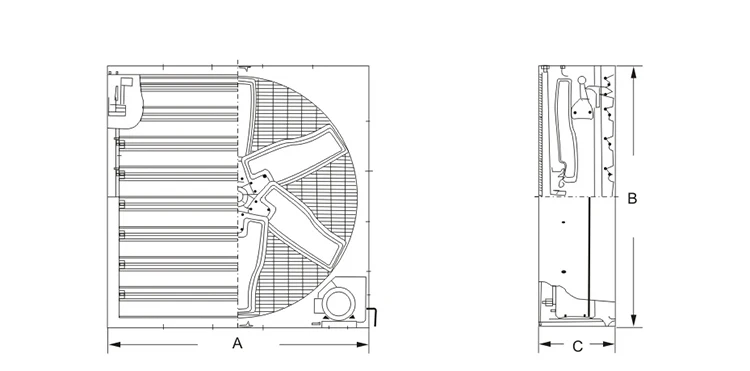

Model | Voltage (V) | Power(W) | Noise(dB) | Speed(r/min) | Air Volume(m3/h) | Blade Size(mm) | Product Size(mm) A/B/C |
1530 | 380/220 | 1500 | 65 | 325 | 55800 | 1400 | 1530*1530*400 |
1380 | 380/220 | 1100 | 65 | 480 | 44500 | 1270 | 1380/1380/400 |
1220 | 380/220 | 750 | 63 | 520 | 37000 | 1110 | 1220/1220/400 |
1060 | 380/220 | 550 | 60 | 580 | 32000 | 950 | 1060/1060/400 |
900 | 380/220 | 370 | 55 | 620 | 18000 | 750 | 900/900/400 |
800 | 380/220 | 370 | 75 | 1400 | 15000 | 740 | 800/800/350 |
740 | 380/220 | 300 | 75 | 1400 | 10000 | 680 | 740/740/350 |
680 | 380/220 | 250 | 75 | 1400 | 8500 | 580 | 680/680/320 |
580 | 380/220 | 250 | 70 | 1400 | 5600 | 480 | 580/580/320 |
480 | 380/220 | 200 | 65 | 1400 | 4300 | 380 | 480/480/320 |
380 | 380/220 | 200 | 60 | 1400 | 1800 | 300 | 380/380/320 |
300 | 380/220 | 100 | 55 | 1400 | 1000 | 220 | 300/300/320 |
Product Description

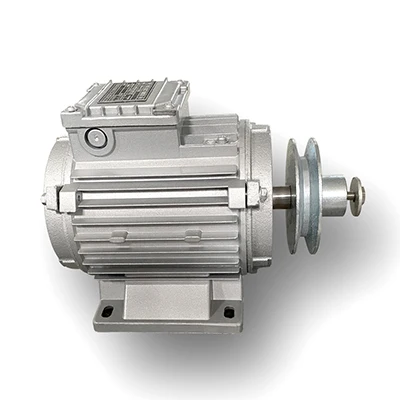

MOTOR
Motor from famous brands in China and Siemens can be accessible with the voltage and frequency of motor can be provided with
customized services.
customized services.
Chinese motor OEM by special design for fan, the first put in the phase lack protection device which would
power off when shortage of electricity. Motor protection grade IP55, insulation class F grade.
power off when shortage of electricity. Motor protection grade IP55, insulation class F grade.

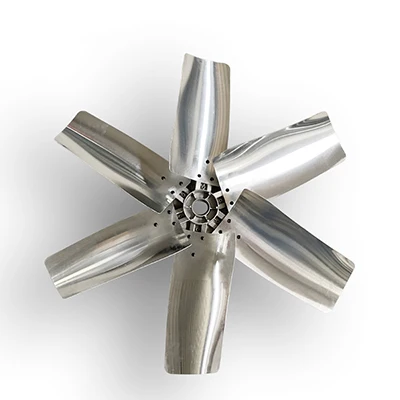

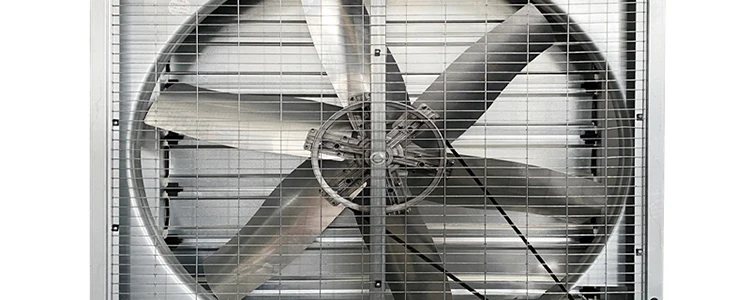

BLADE
Adopts punching high quality aluminum, and it has the advantages of light weight, beautiful and dignified in appearance ,high-class, and antirust.

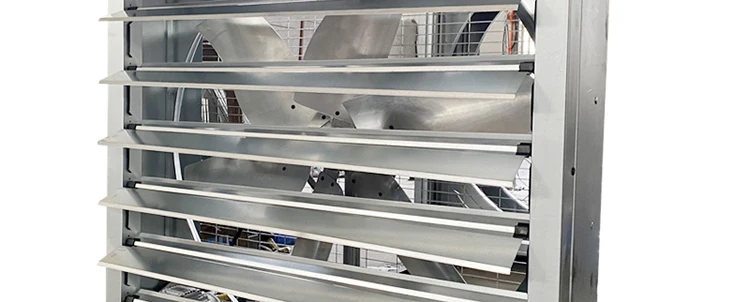

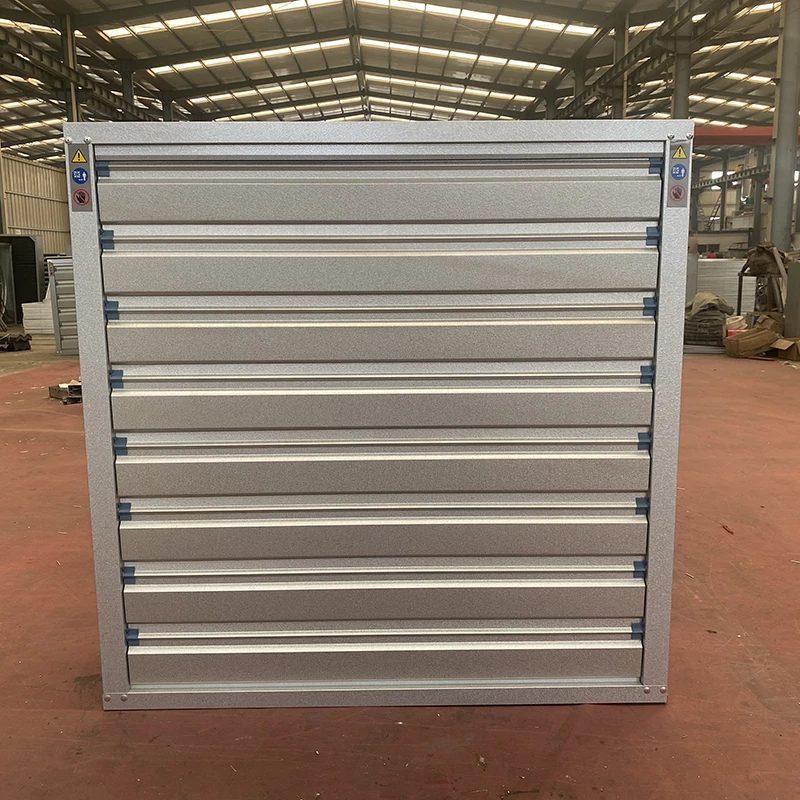

SHUTTER
Adpots high quality galvanized steel, and it has the advantages of automatically controlled in opening and closing, hurricane lamp and waterproof.
BLADE SUPPORTER
Adopts high intension and die-casting aluminum, and it has the advantages of light weight, high intensity, easy to install and antirust.

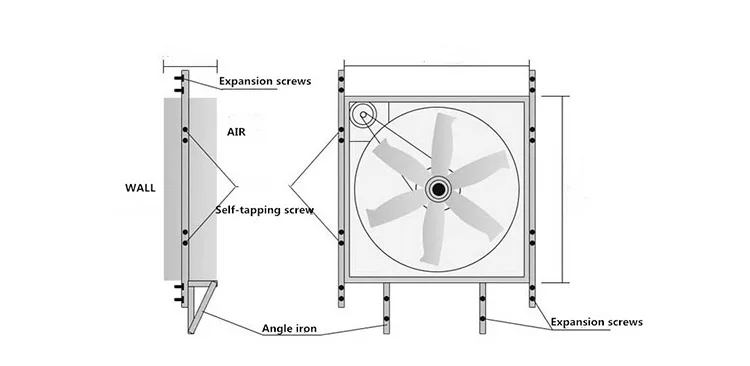

REMARKS OF INSTALLATION
1. Adjust the horizontal and vertical , keeping the fan blade running smoothly.
2. After fixing the fan, the remaining gap need to be sealed.
3. The Expansion screws and Self tapping screw can be used to fix .
3. The Expansion screws and Self tapping screw can be used to fix .
