Product Overview

Description



Product Overview


ZLG USBCAN series CAN interface cards are compatible with USB2.0 full speed specification and can support 1/2/4/8 CH CAN interface. Using this interface card, the PC can be connected to the CAN network through USB for CAN bus data acquisition and processing. It mainly has the following advantages:
* Power supply mode: USB bus power supply, non-portable, external power supply (+9V~+25V, 200mA) can be used when the power supply is insufficient;
* PC interface: USB2.0 compatible with USB3.0 and USB1.1;
* Electrical isolation: DC 2500V or AC 1700V;
* Working temperature: -40℃～+85℃;
* Physical size: 115mm*76mm (non-portable);
* Number of CAN channels: 1, 2 channel isolated CAN interface;
* CAN channel adopts electromagnetic isolation, DC/DC power isolation, isolation voltage: 2500VDC;
* Support CAN2.0A and CAN2.0B protocols at the same time, in line with ISO/DIS 11898-1/2/3 standard;
* Installation method: portable or simple fixed method;
* CAN interface EMC level: contact discharge ±8KV, group pulse ±2KV;
* Can be used in environments with safety and explosion-proof requirements;
* Maximum frame flow: single channel can be up to 14000 frames per second (1M baud rate, standard remote frame);
* CAN baud rate: programmable and set arbitrarily, the range is between 5Kbps ~ 1Mbps;
* There are 2 forms of CAN interface.

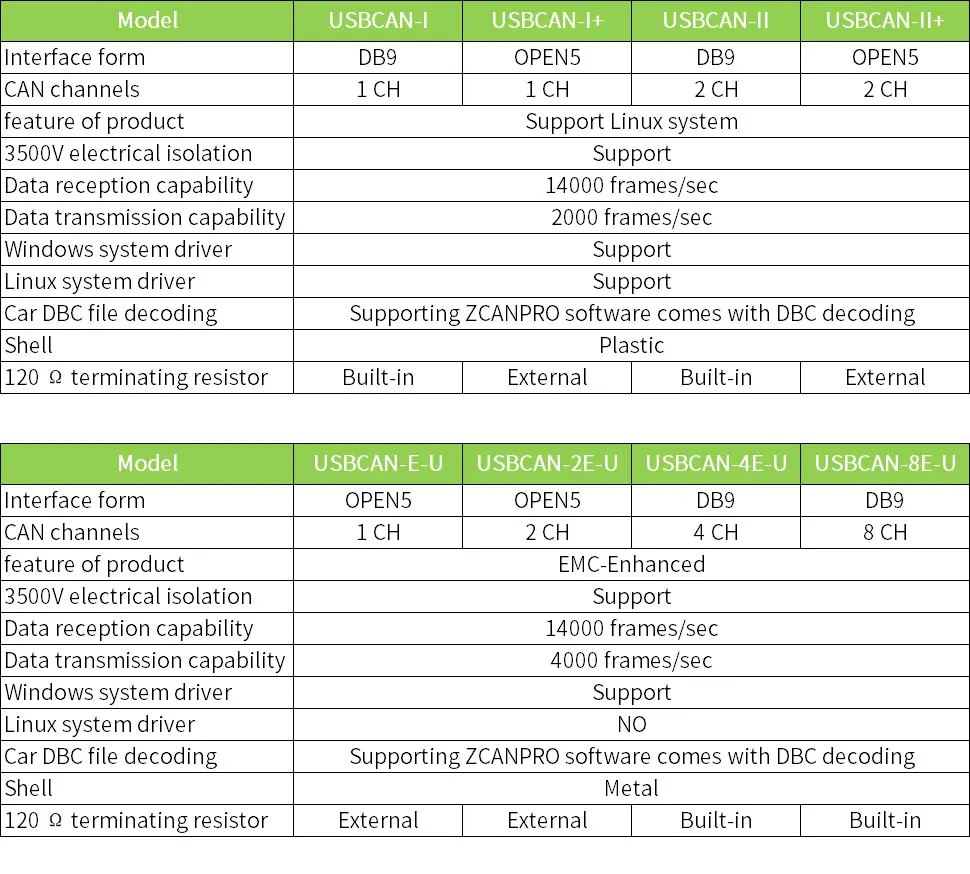

Product Parameter






Product Picture

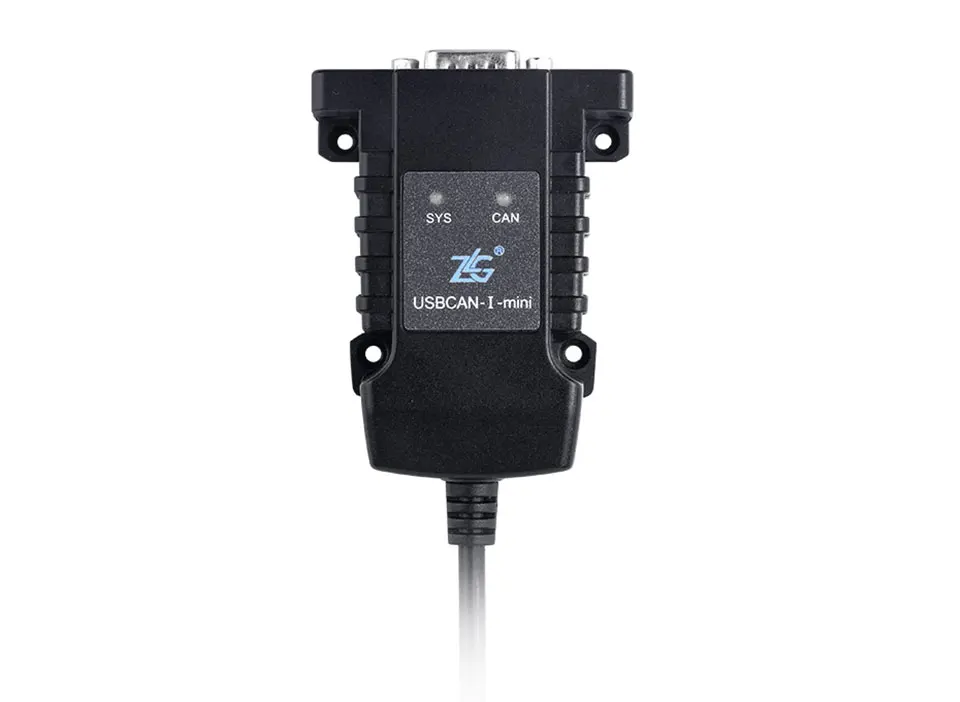

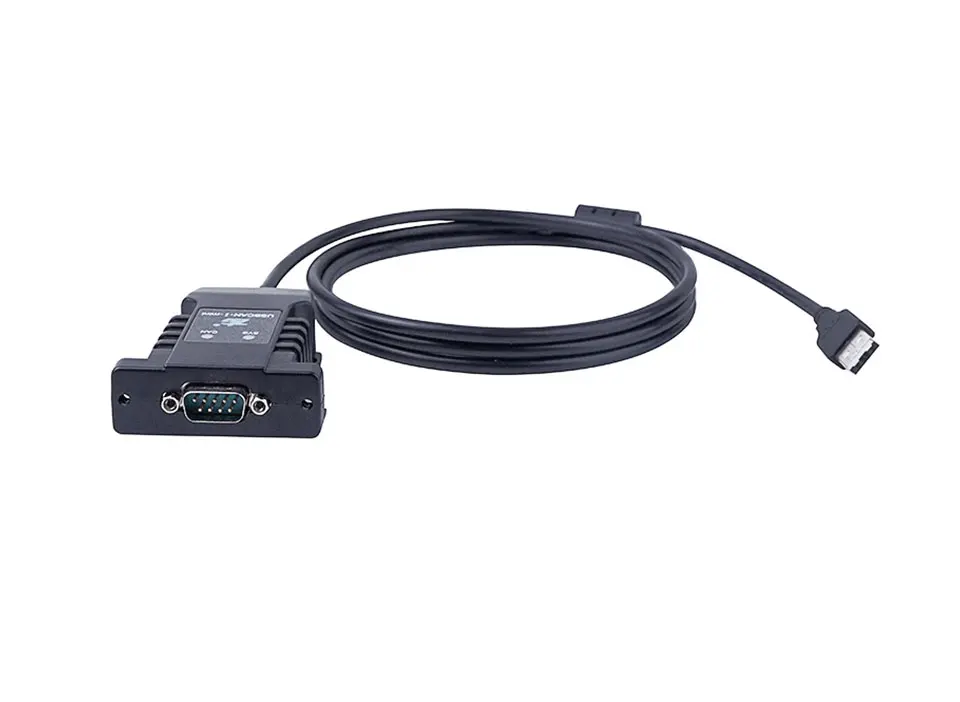

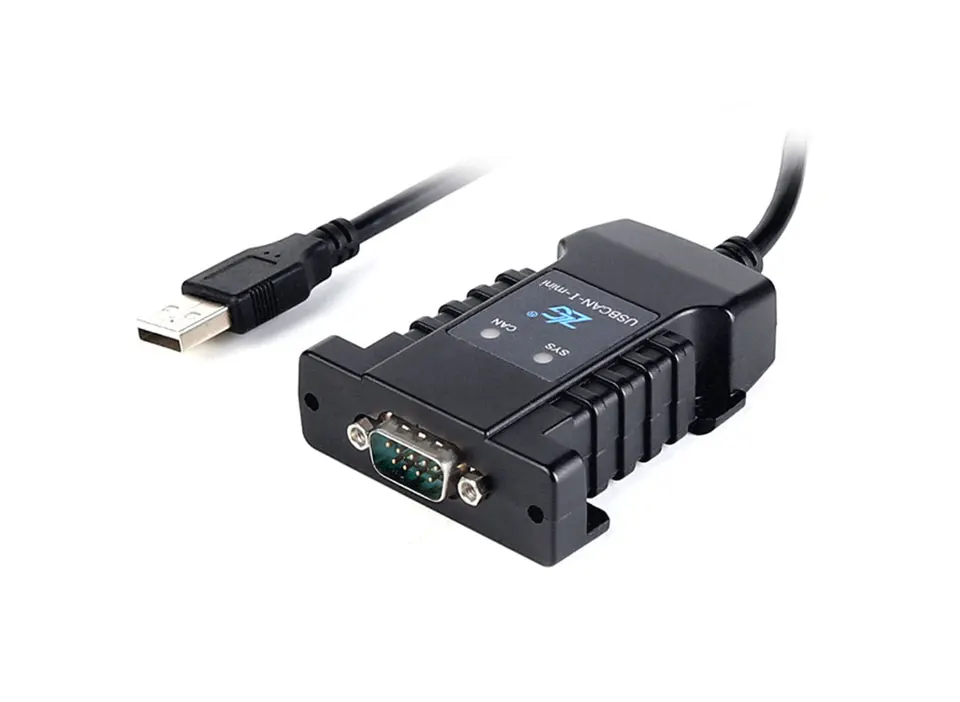

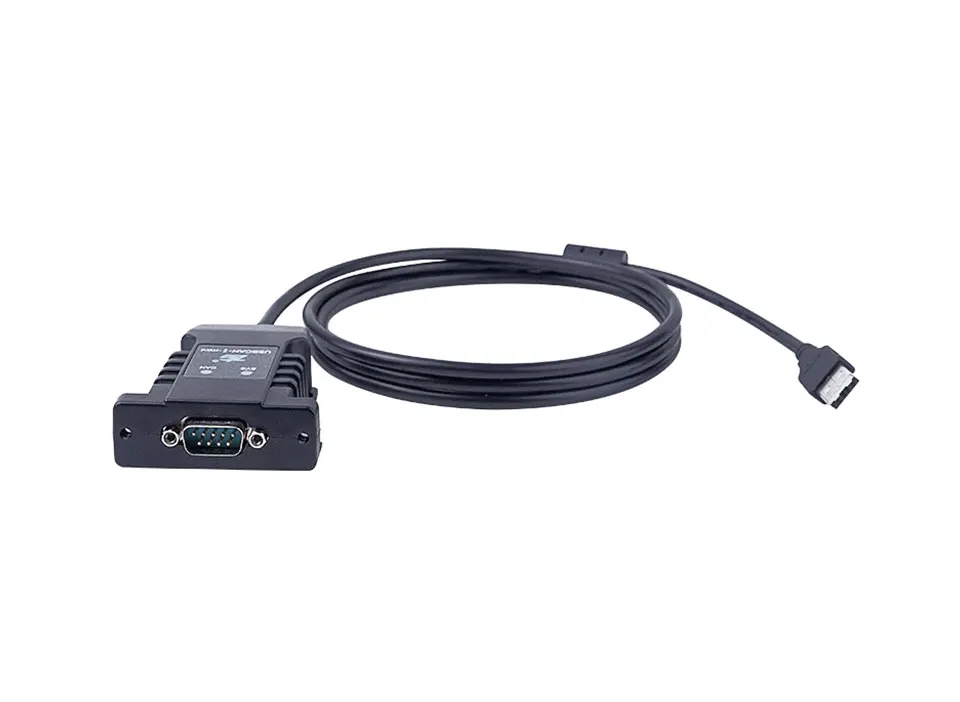

USBCAN-I-mini

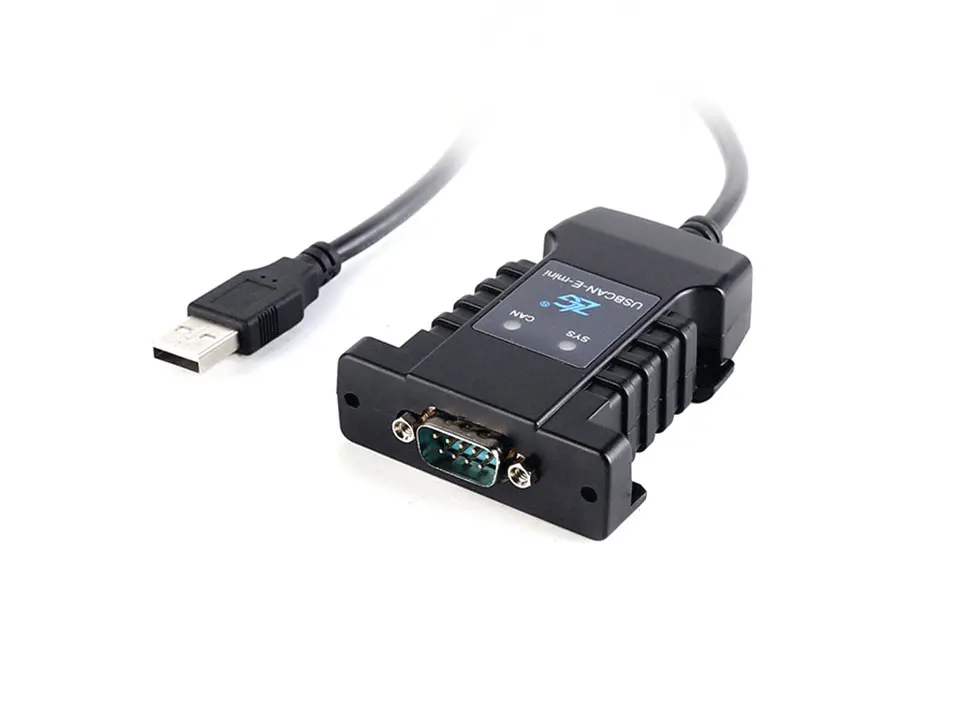

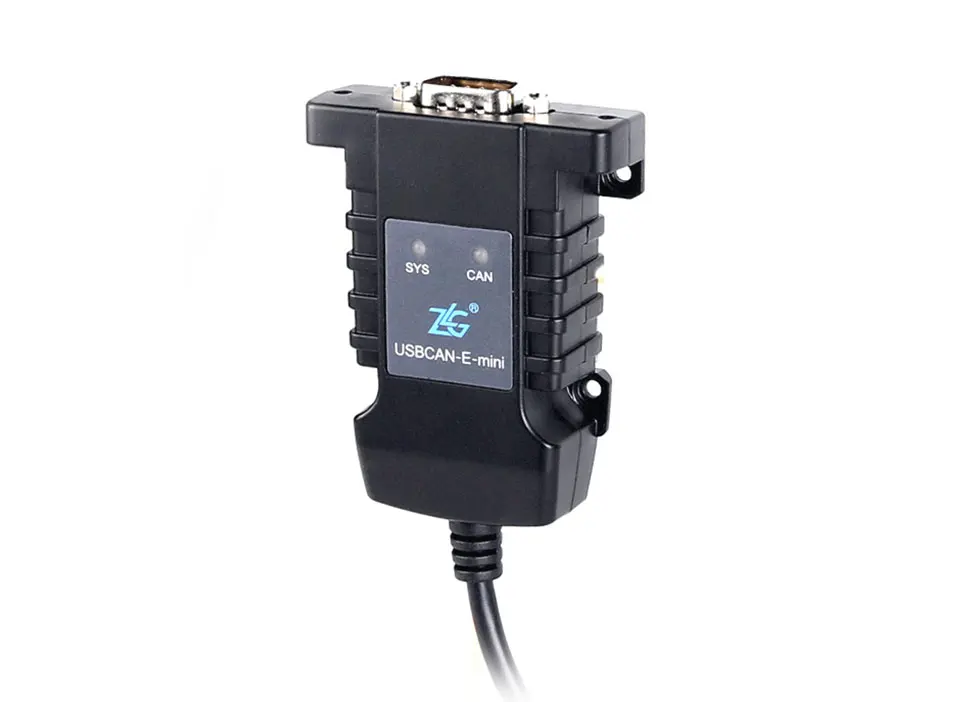

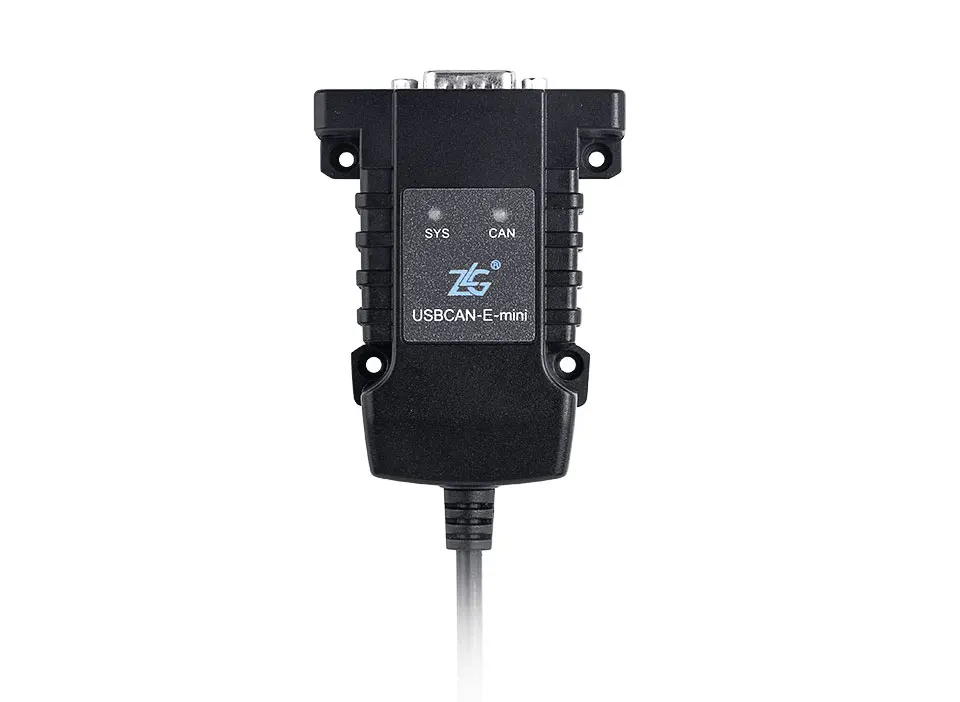

USBCAN-E-mini

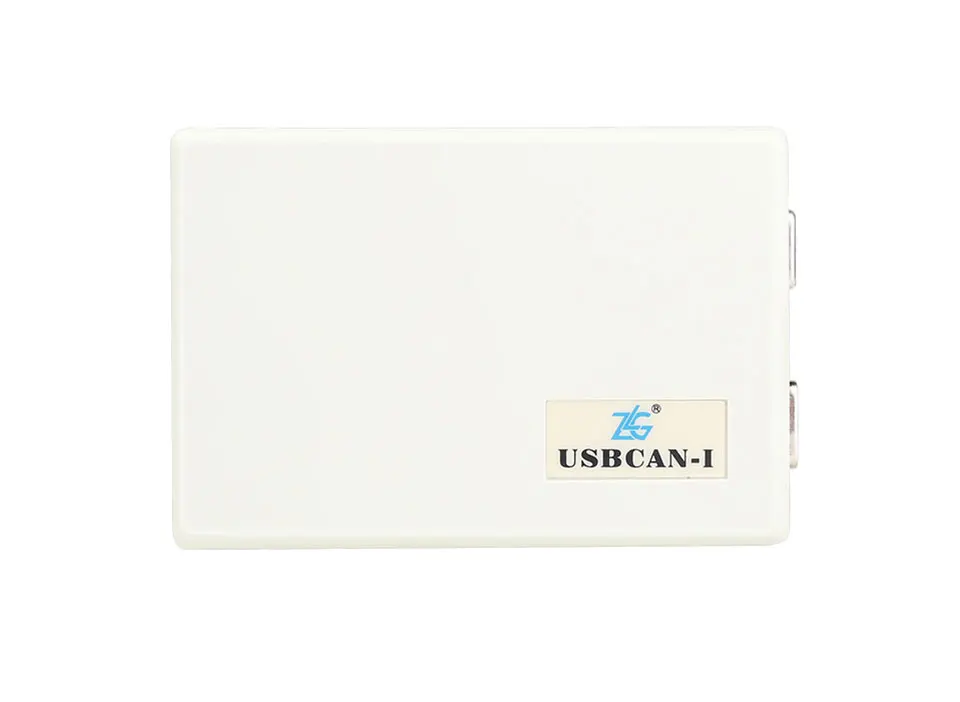

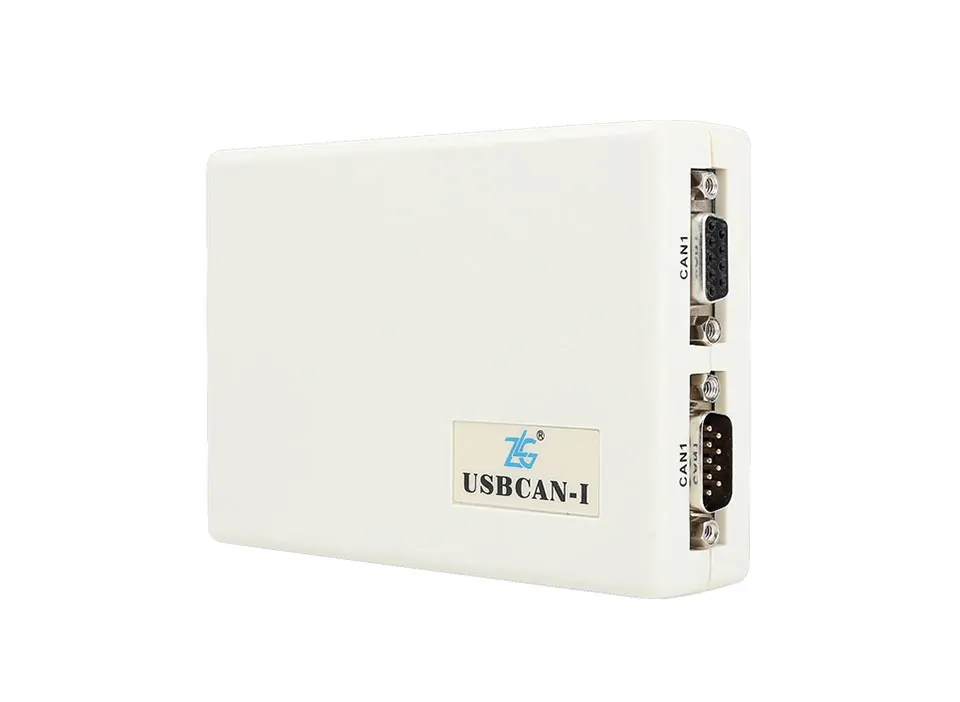

USBCAN-I

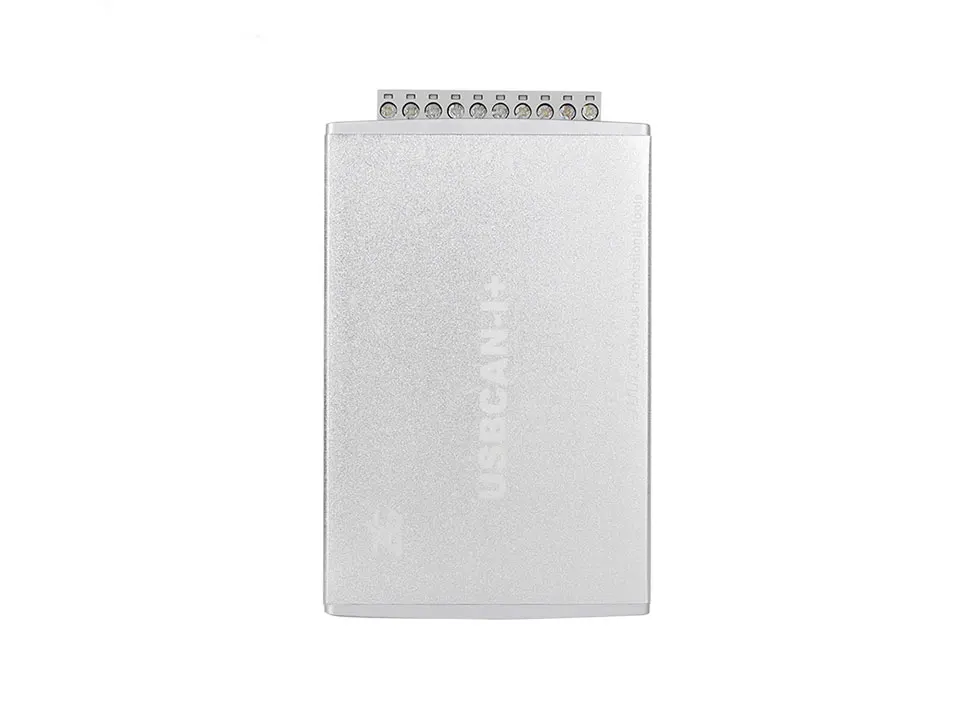

USBCAN-I+

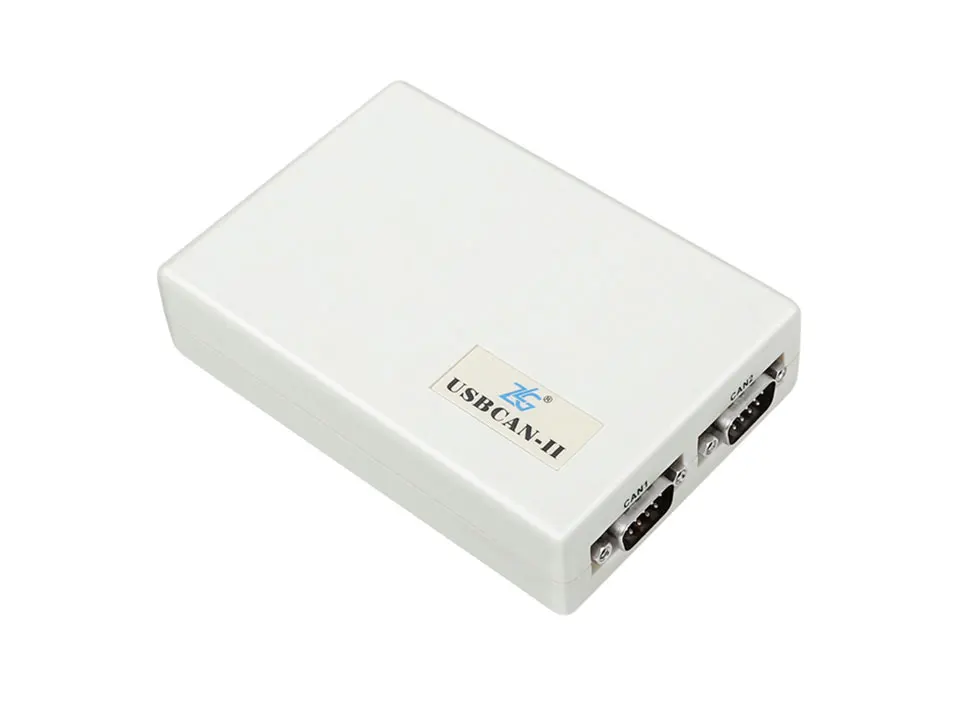

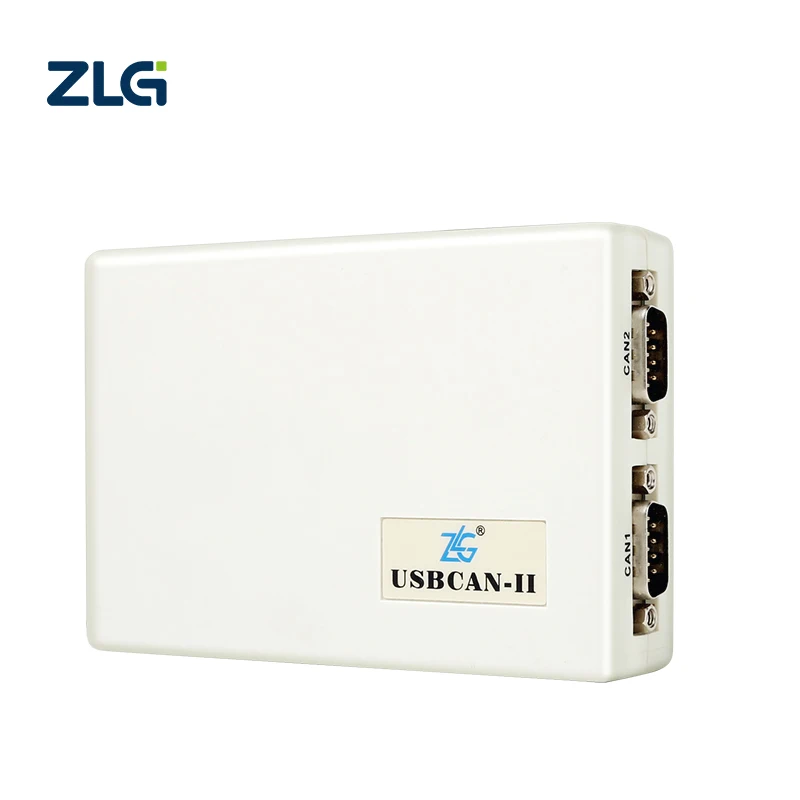

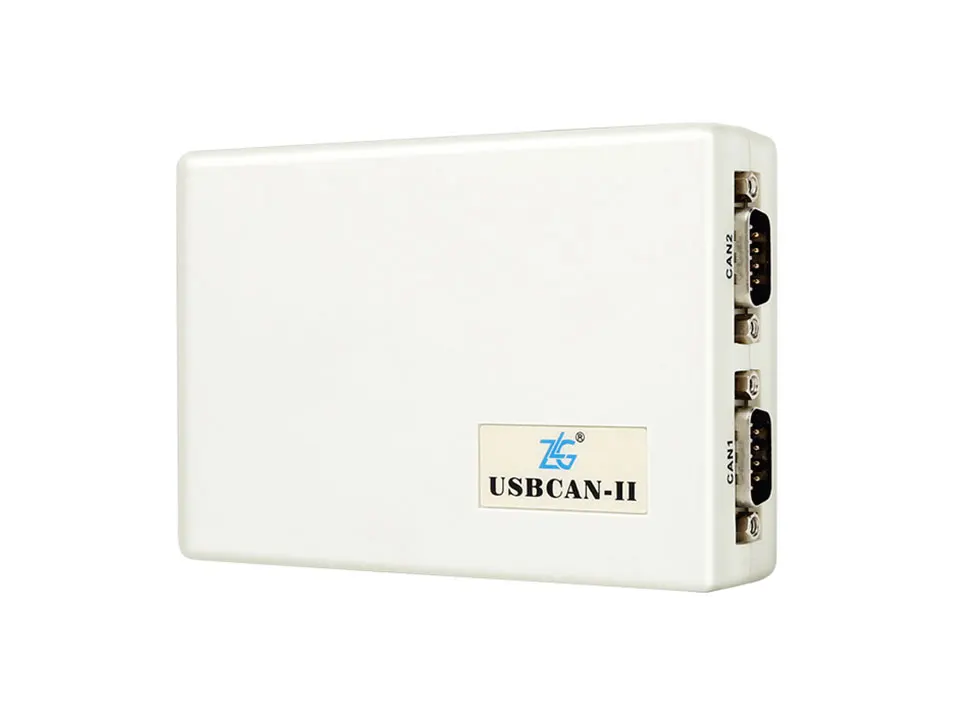

USBCAN-II

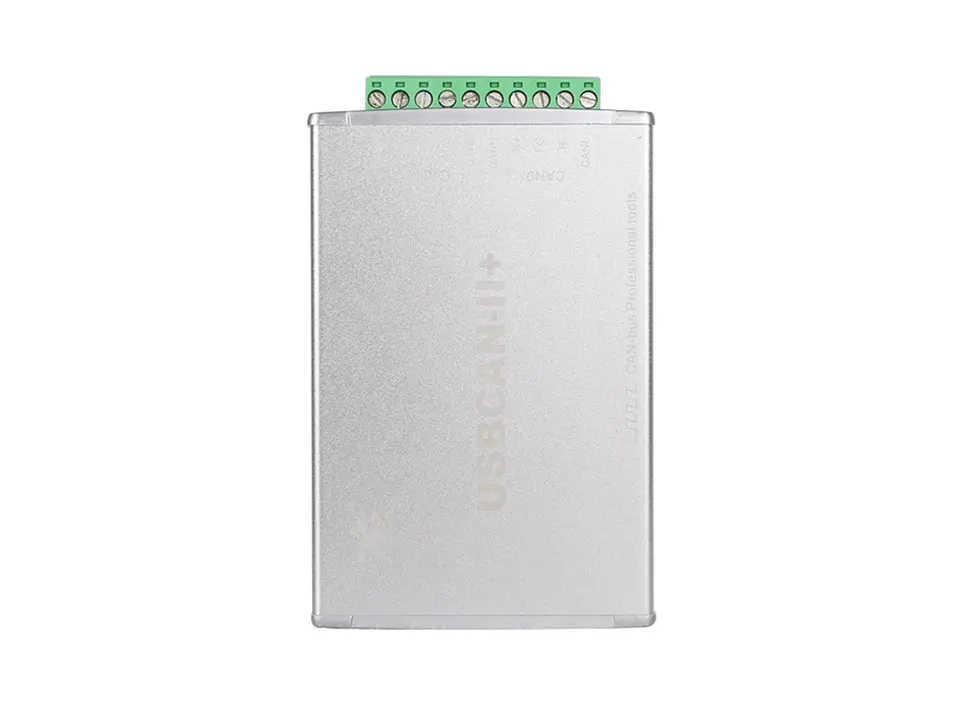

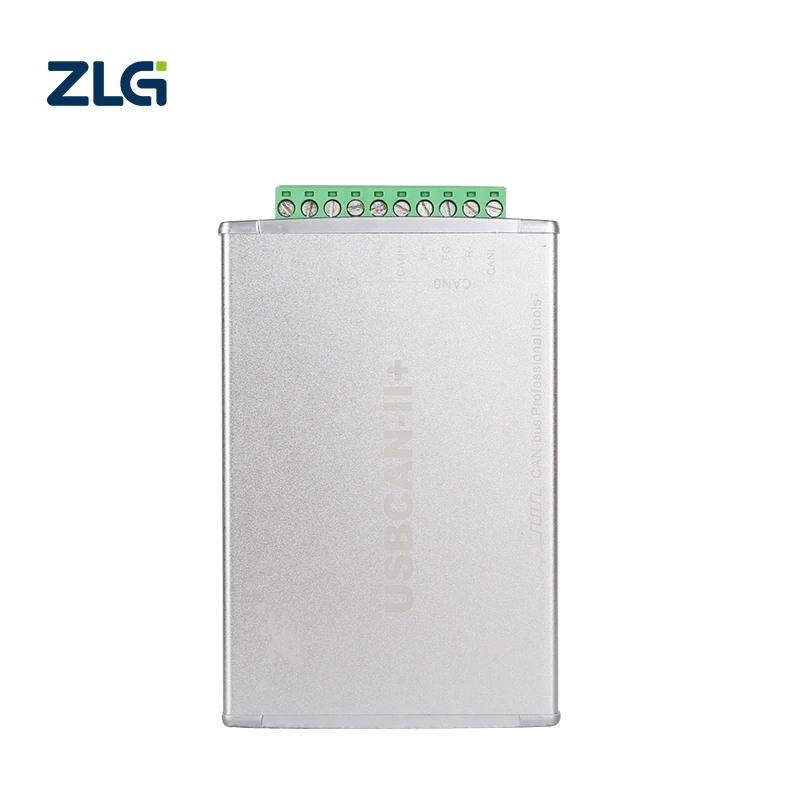

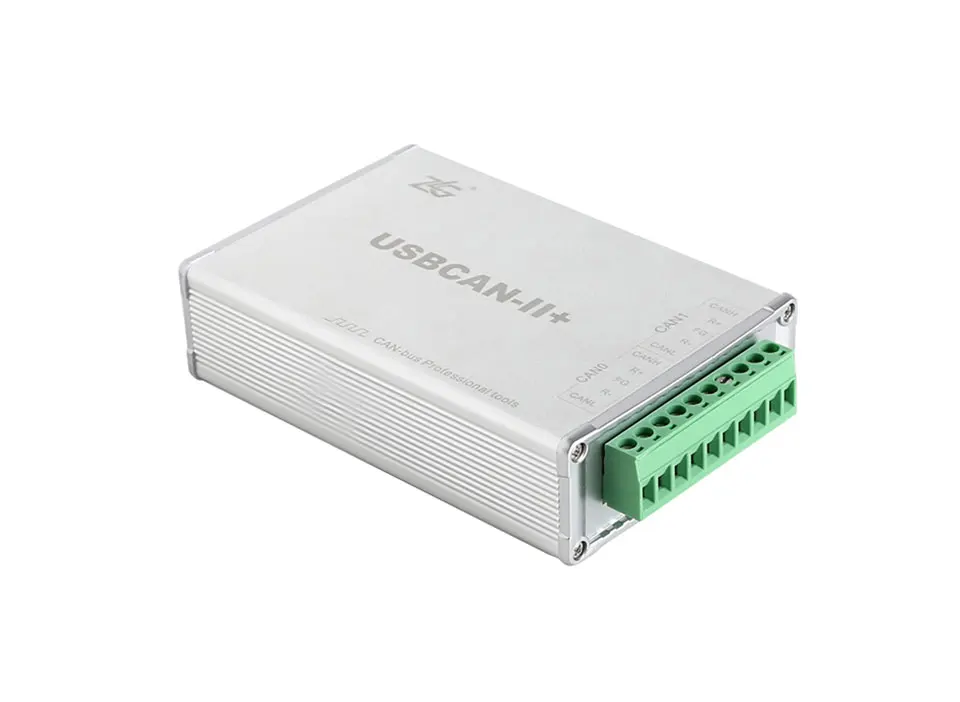

USBCAN-II+

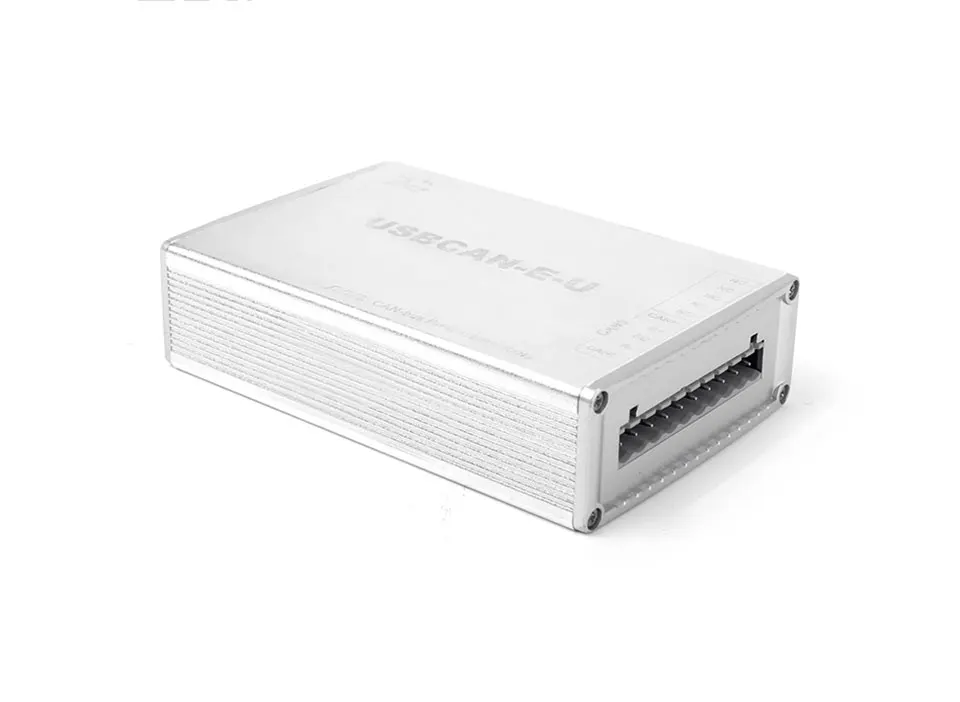

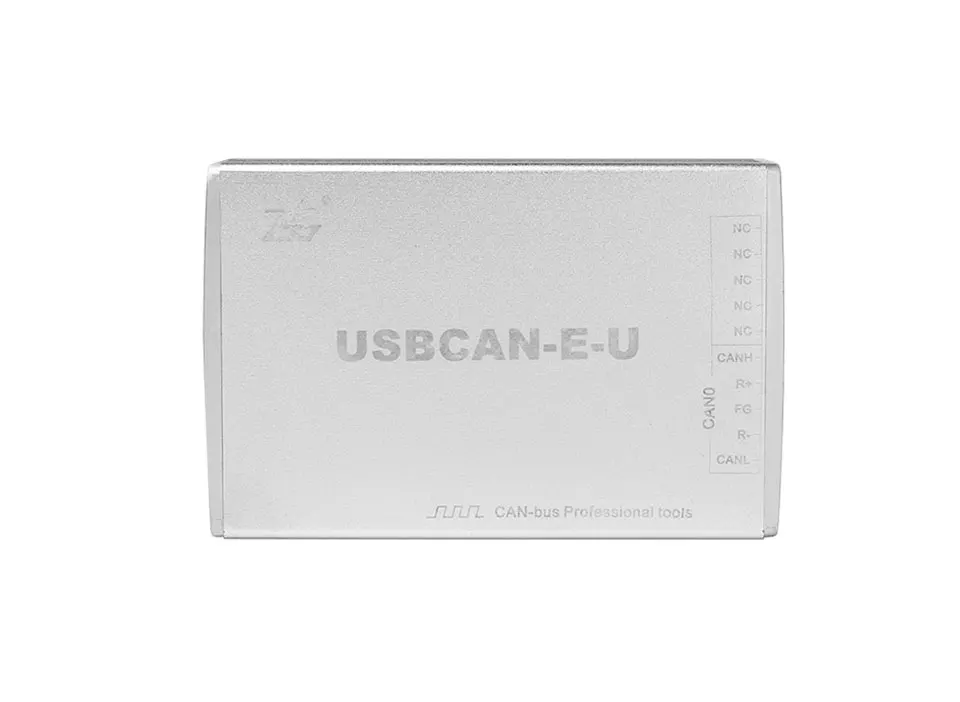

USBCAN-E-U

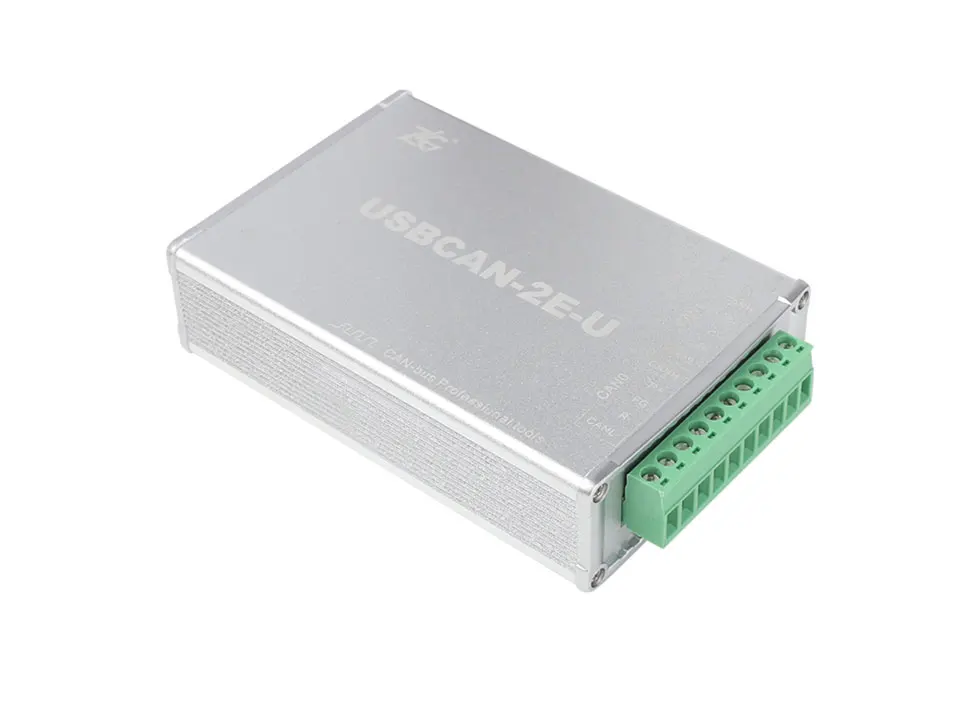

USBCAN-2E-U

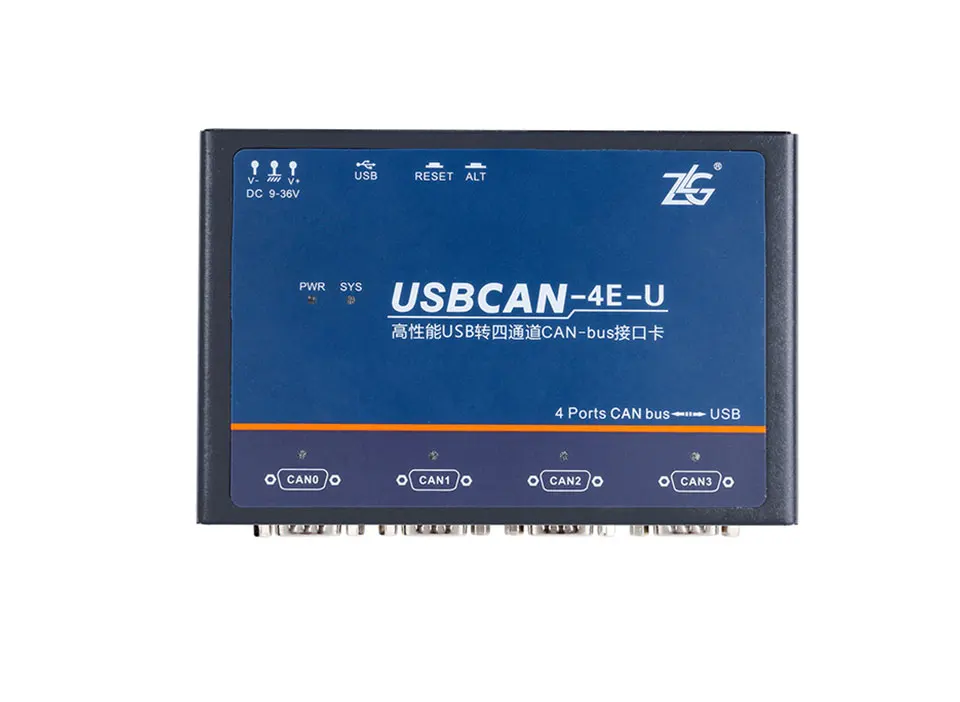

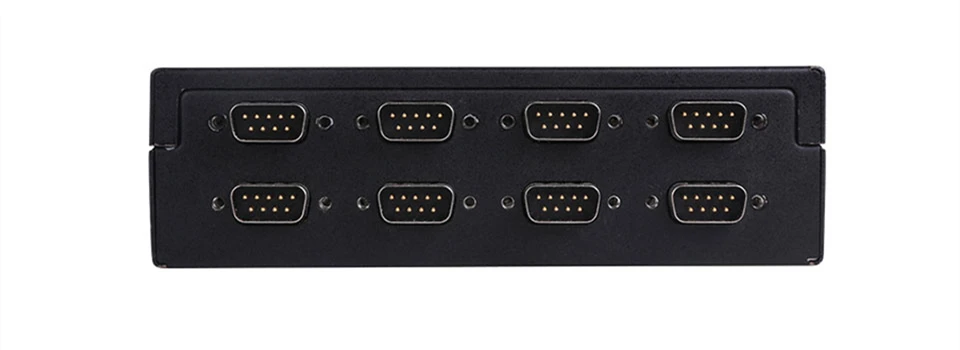

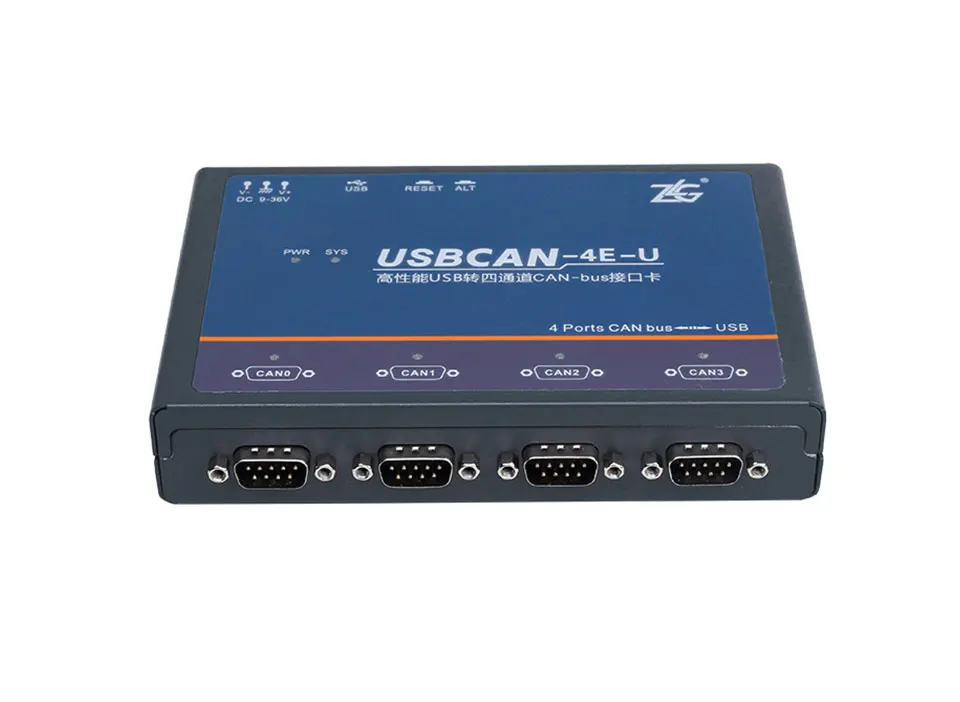

USBCAN-4E-U






Specification


item
value
Place of Origin
China
Guangdong
Brand Name
ZLG
Model Number
USBCAN Series
Product name
USBCAN Series
CAN channels
1/2/4/8 CH
Electrical isolation
3500 VDC
Data receiving capability
27000 fps
Data sending capability
19000 fps
Windows system driver
Support
Linux system driver
Support(USBCAN-E-mini,USBCAN-E/2E-U Not)
In-vehicle DBC file decoding
Equipped with ZCANPRO software with DBC decoding
120 Ω termination resistor
Built-in/External

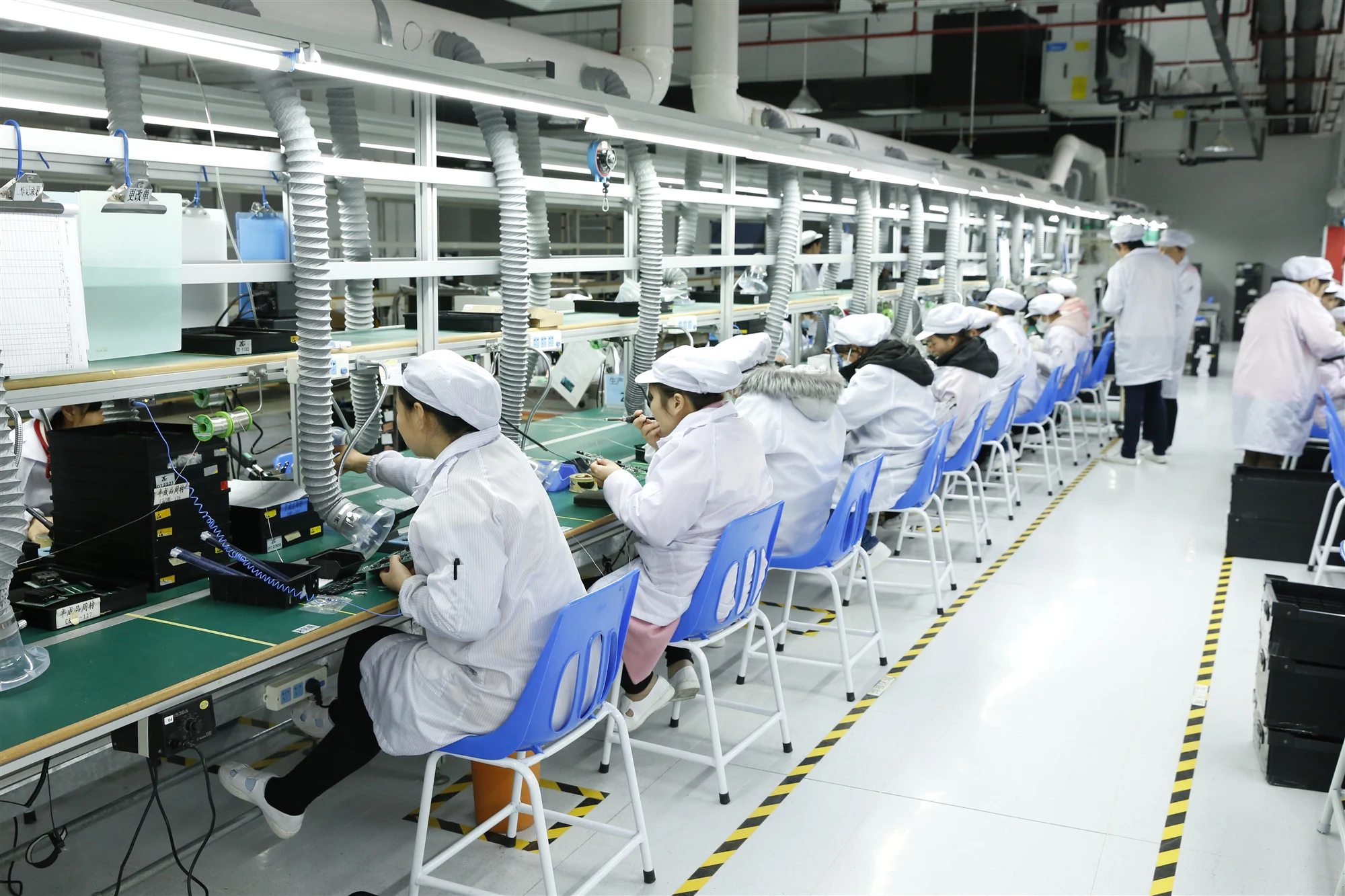

Company Profile




Guangzhou 215 Technology Co., Ltd. is a company specializing in the sales of audio products. The company is located in Guangzhou, Guangdong Province, China. The company is committed to providing high quality, cost effective audio products to users around the world.
The company's main products are: CAN bus products, CANFD bus products, isolation modules, power modules, Ethernet modules. Products are exported to the United States, Britain, Germany, France, Australia, Japan and other countries.
We welcome distributors around the world to represent our products, we will provide quality products, quality prices and services. Looking forward to our success together!
