Hot DIP Zinc Pot Continuous Galvanizing Production Line Coating Line
- Category: Metal Coating Machinery >>>
- Supplier: Qingzhou,Reachfly,Environment,Technology,Co.,Ltd.
Share on:
Product Overview
Description
Product Description

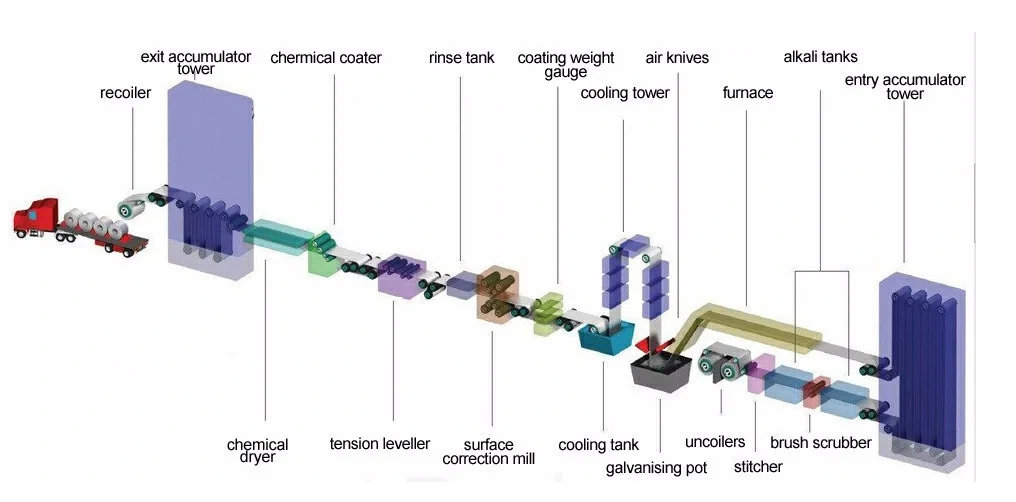

The continuous hot - dip galvanizing/galvalume line is a set of equipments that plating a layer of zinc or aluminum alloy on the strip while in high temperature. The production line was composed of uncoiler, welder, storage tank, degreasing section equipments, continuous annealing furnace, zinc pot, air knife, skin pass, tension leveler, oiler, shear, recoiler and other equipments.
Characteristics
Raw Material | Cold rolled low carbon steel, SPCC, SPCD |
Thickness | 0.1 ~ 2.5mm |
Width | 650 ~ 1650mm |
Coating weight | 60-275g / m2 (double-side) ± 5g / m2 adjustable. |
Surface coating | No spangle, normal zinc spangle and light finishing zinc spangle. |
Steel coil weight | Max 25t |
Product Grade | CQ, DQ, DDQ |
Functions | annealing reduction, galvanizing, finishing, straightening |
Energy Type | Natural Gas, LPG, Electricity |
Energy saving | Heat recovery system from waste gas |
Packing & Delivery
FAQ
Q: Are you manufacturer?
A: Yes, we are, Welcome to visit us at any time.
Q:How long is the delivery time?
A:Usually, it is 8 months.
