Wireless MP3 Player Module MP3 Decoder PCB Circuit Board 12V
- Category: >>>
- Supplier: Shenzhen Aiyinyuan Technology Co. Ltd.
Share on (1600556804140):
Product Overview
Description
Wireless MP3 Player Module MP3 Decoder PCB Circuit Board 12V
Product Name | MP3 PCB board | |
Support Functions | BT wireless /FM Radio/AUX/TF card/USB/ record/folder/Dancing screen | |
BT Software Protocol | 5.0 | |
Support Add Functions | Record/BT LINK APP/Software Protocol/Hardware Designing | |
Power Input | DC 5V/12V | |

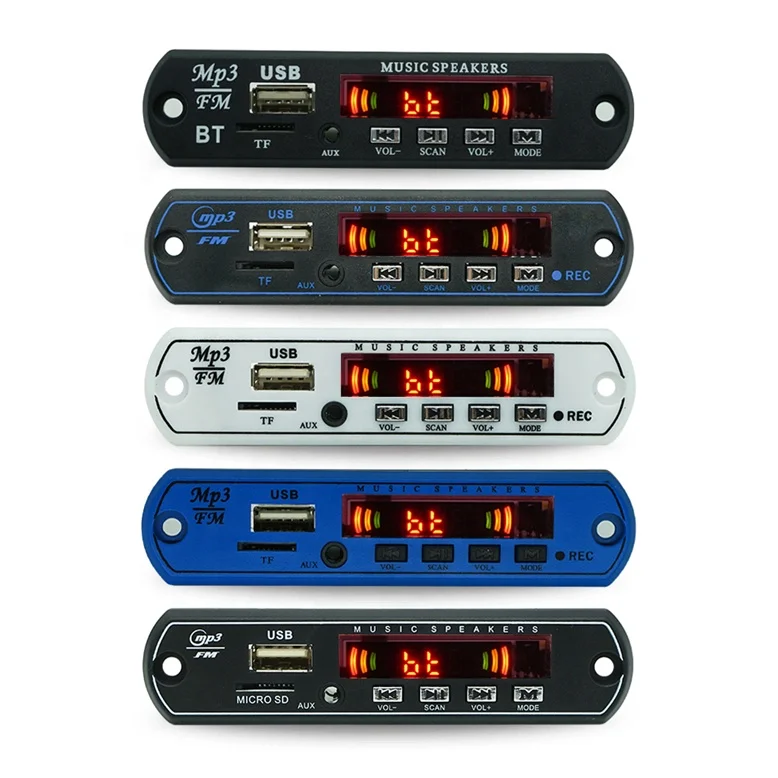

Panel Color | Black,Red,Blue,White,More Colors | |
Digital Dispaly | Dancing Highlight LED Screen | |
Using Scenarios | Home theatre system/mp3 player/speakers/Amplifier and Related Products | |
Warranty Period | 2 years or long-time | |
Modules MOQ | 1 pcs | |
Accessories | Remote controller/ connection cables/screw hole cover | |
Sample | gratis |
User scenarios:

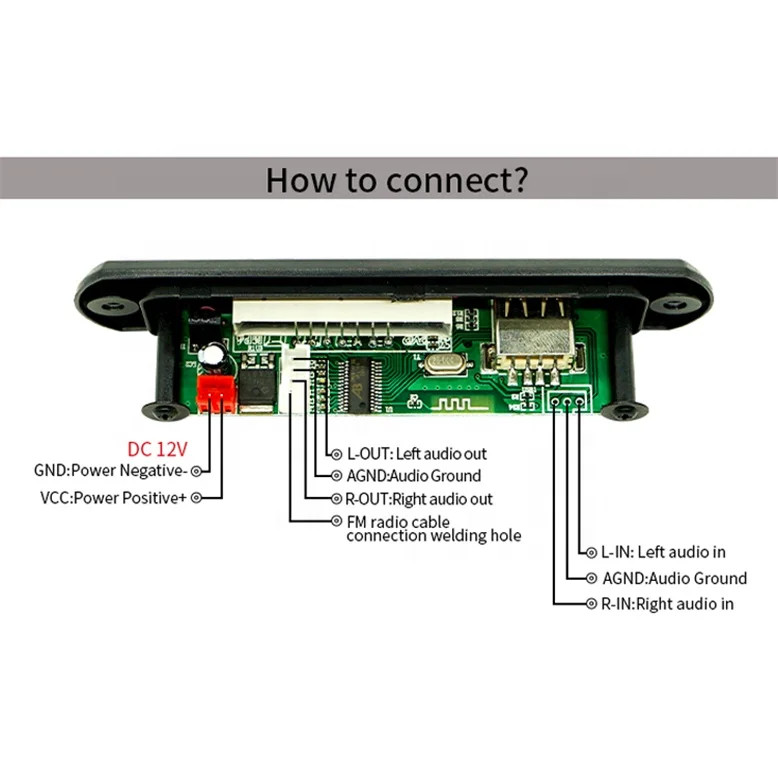

User Manual:
Plastic Panel details:

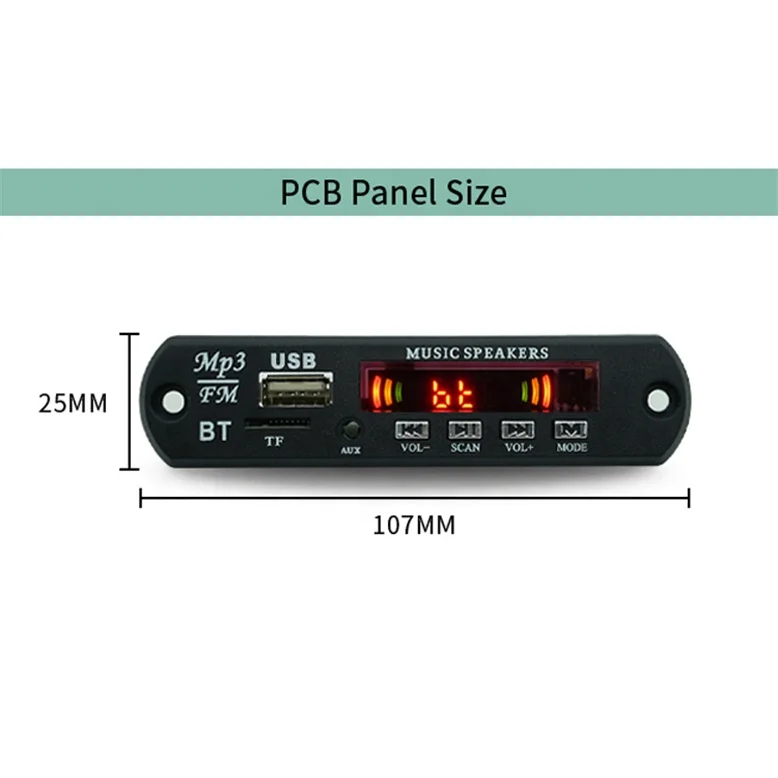

Front Panel Size:108*25.6mm;92*25.6mm
PCB Size:75*27*1.0mm
Key Size:7*3.5mm
Screw spacing:80mm
Specifications:
Function Introduction:
Support wireless call function,double decoding MP3/WMA/WAV/APE format music,read USB disk, read TF Card ,radio FM,external audio input line in,infrared remote control,power off memory ,power supply 5V or 12V optional.
Major Function:
1,Double decoding,support MP3/WMA/WAV/APE format music;
2,Support Blue tooth music;
3,Display with digital tube;

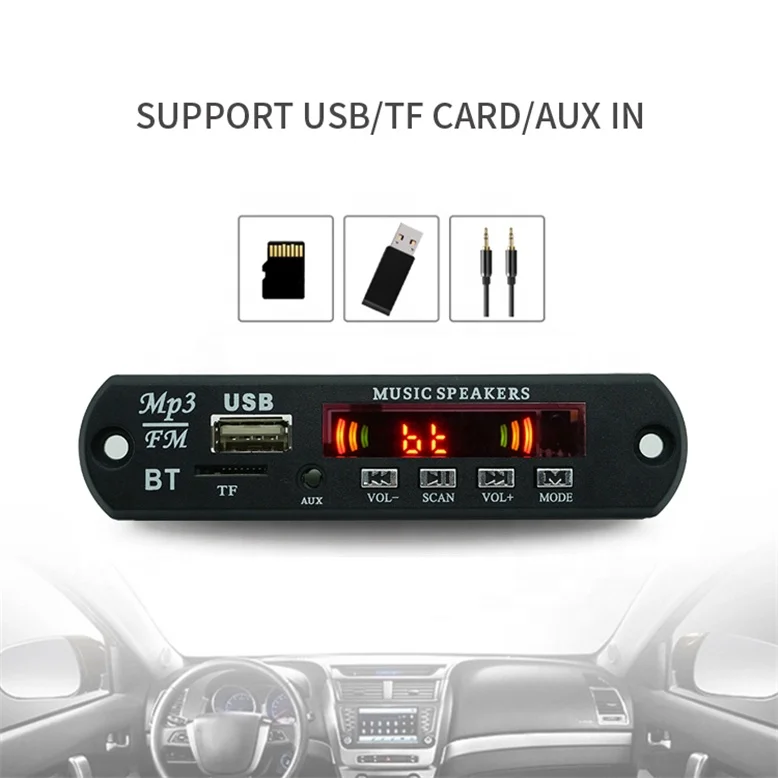

4,Support USB/TF card;
5,Power off memory function;
6,Support 5-10 meters distance infrared remote control operation;
7,Support LINE-IN(AUX)/ LINE-OUT;
8,Support FM(87.5MHZ-108.0MHZ);
9,Buttons:VOL-/ AUTO / VOL+ / MODE;
10,Support power automatic protection system(the PCBA will not burn out if the positive and negative power is reverse,it only not working);
11,The highest volume level is 30-50 level;
12,Support for pause / single loop play / replay all the repertoire.
Front Panel Size:108*25.6mm;92*25.6mm
PCB Size:75*27*1.0mm
Key Size:7*3.5mm
Screw spacing:80mm
Specifications:
Function Introduction:
Support wireless call function,double decoding MP3/WMA/WAV/APE format music,read USB disk, read TF Card ,radio FM,external audio input line in,infrared remote control,power off memory ,power supply 5V or 12V optional.
Major Function:
1,Double decoding,support MP3/WMA/WAV/APE format music;
2,Support Blue tooth music;
3,Display with digital tube;
4,Support USB/TF card;
5,Power off memory function;
6,Support 5-10 meters distance infrared remote control operation;
7,Support LINE-IN(AUX)/ LINE-OUT;
8,Support FM(87.5MHZ-108.0MHZ);
9,Buttons:VOL-/ AUTO / VOL+ / MODE;
10,Support power automatic protection system(the PCBA will not burn out if the positive and negative power is reverse,it only not working);
11,The highest volume level is 30-50 level;
12,Support for pause / single loop play / replay all the repertoire.
13,Support changing folders and record(AUX/FM/BT)

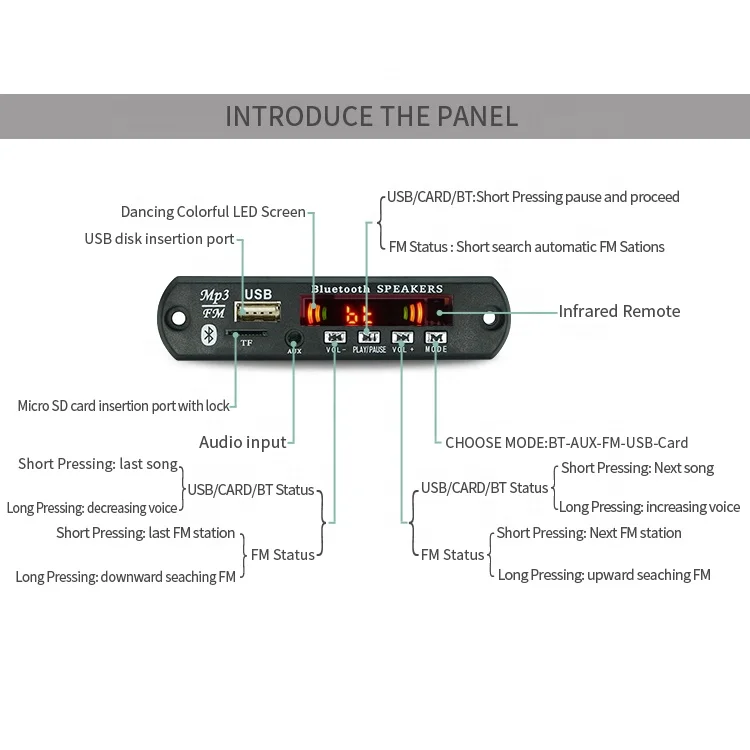

Button Operation Instructions:
1,Vol- button (last song / volume reduction): in MP3 state, vol- is short pressed for the last one, long press for volume reduction; in FM state, short press is to increase one stage number; under Blue tooth function, short press is Blue tooth one, long press is volume reduction;
2,Auto button (play / pause): in MP3 state, auto is short to play / pause; in FM state, short press is playing / pause, long press is automatic receiving station; in Blue tooth function, short press is playing / pause;
3,Vol+ button (next song / volume increase): in MP3 state, Vol is short pressed for next, long press for volume increase; in FM state, short press is to lower a stage number; under Blue tooth function, short press is Blue tooth next song, long press is volume reduction;
4,MODE button:switch between USB/SD/FM/AUX/BT functions in turn.
Button Operation Instructions:
1,Vol- button (last song / volume reduction): in MP3 state, vol- is short pressed for the last one, long press for volume reduction; in FM state, short press is to increase one stage number; under Blue tooth function, short press is Blue tooth one, long press is volume reduction;
2,Auto button (play / pause): in MP3 state, auto is short to play / pause; in FM state, short press is playing / pause, long press is automatic receiving station; in Blue tooth function, short press is playing / pause;
3,Vol+ button (next song / volume increase): in MP3 state, Vol is short pressed for next, long press for volume increase; in FM state, short press is to lower a stage number; under Blue tooth function, short press is Blue tooth next song, long press is volume reduction;
4,MODE button:switch between USB/SD/FM/AUX/BT functions in turn.
Recommend Products
FAQ
Q: What is the Minimum Order Quantity (MOQ)?
A: 2pcs per model for regular order,1200pcs per model for OEM order.
Q: Can you put my brand name (logo) on these products?
A: Yes, of course. We have 8 years of OEM manufacturing experience.
Q: How much do I need to pay for your OEM service?
A :No need to pay extra cost for our OEM service when your order quantity up to our OEM MOQ.
Q: Whatpayment method do you accept?
A: T/T, L/C, Western Union, Escrow,Credit Card etc.
Q: What is the lead time of your products?
A:1-3 business days for sample order,3-7 days for MOQ order, 7-15 days for mass production orders (based on different quantities or stock).
Q: How will you deliver my goods to me?
A: We always ship sample order and MOQ order by Express ( Door To Door), such as DHL,UPS,FeDex.
Q: How long do I need to wait before my goods arrive?
A: 5-7 days for air freight, 3-5 days for international express. 20-40 days for sea transportation.
Q: What is your product quality?
A: Our raw materials are purchased from qualified suppliers. And we have a strong quality control team to guarantee our products quality.
Q: How long is your products quality warranty?
A: We provide two year factory quality warranty.
