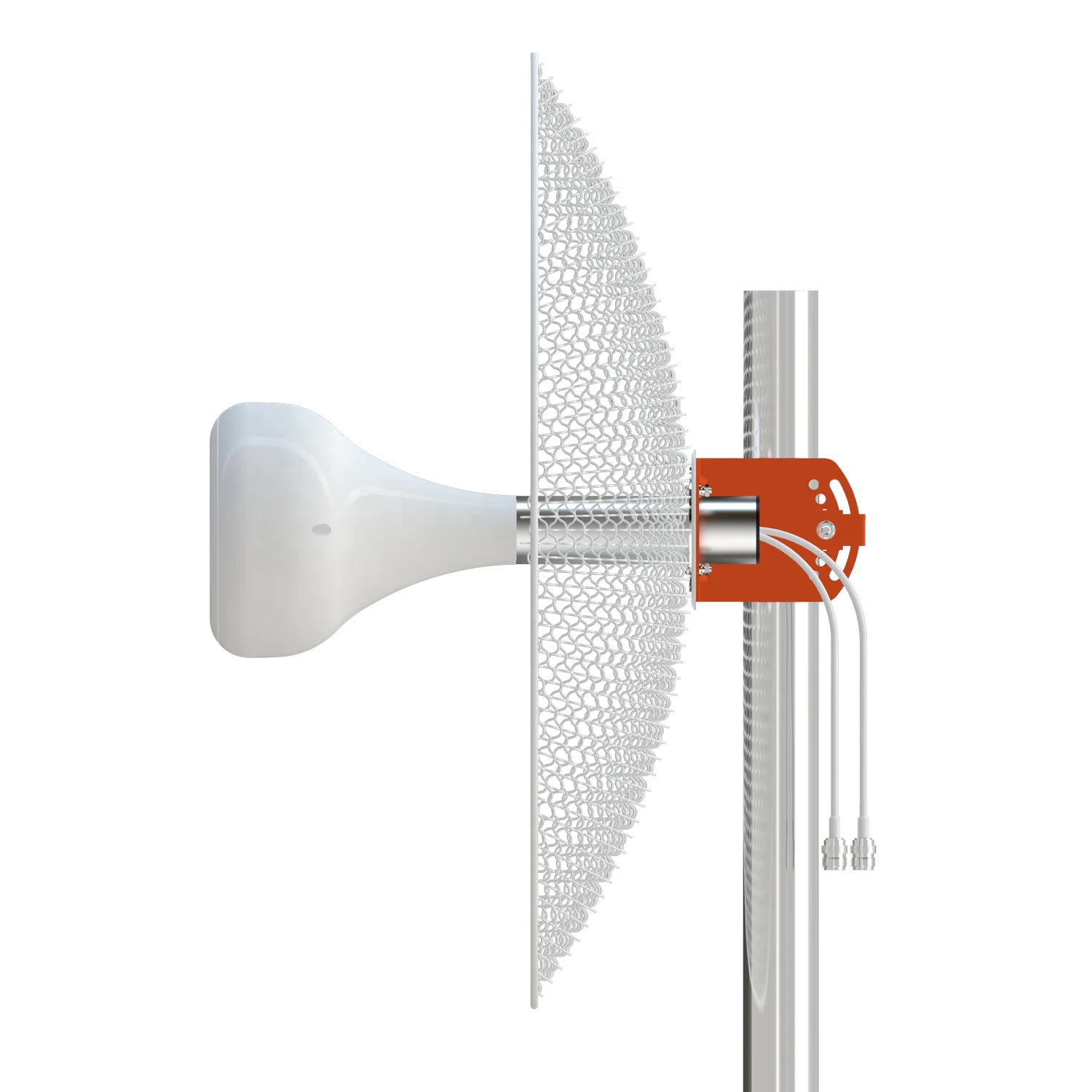

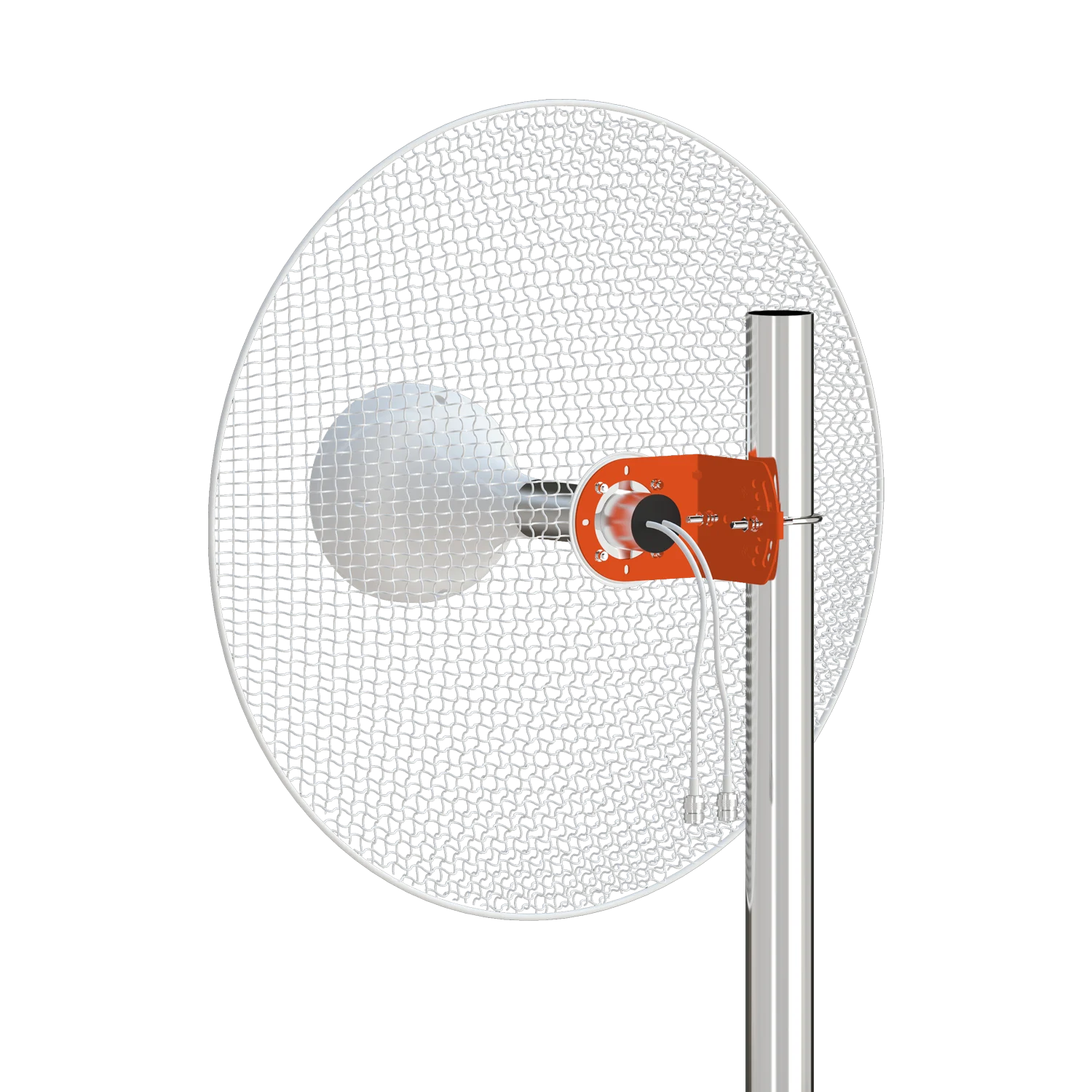

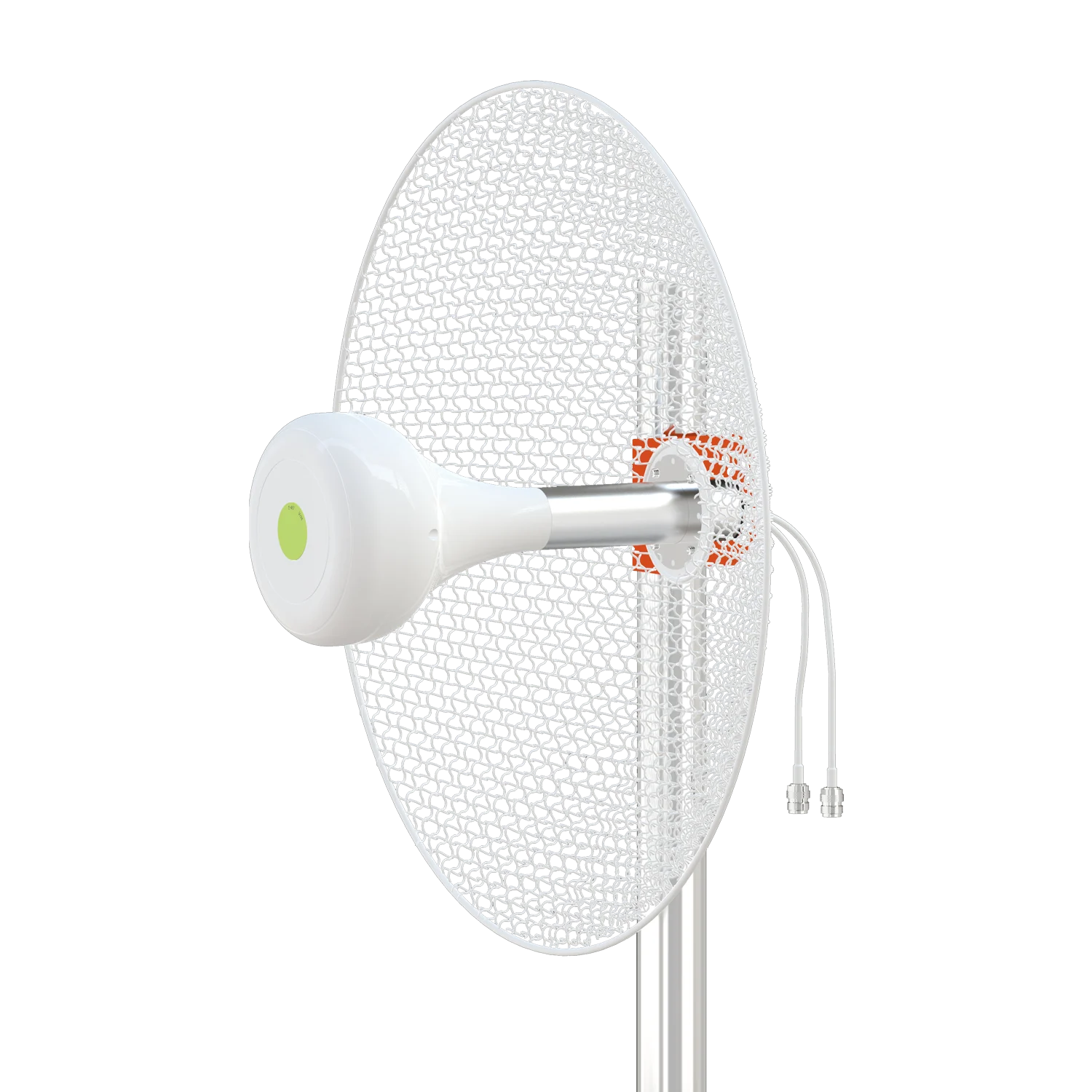

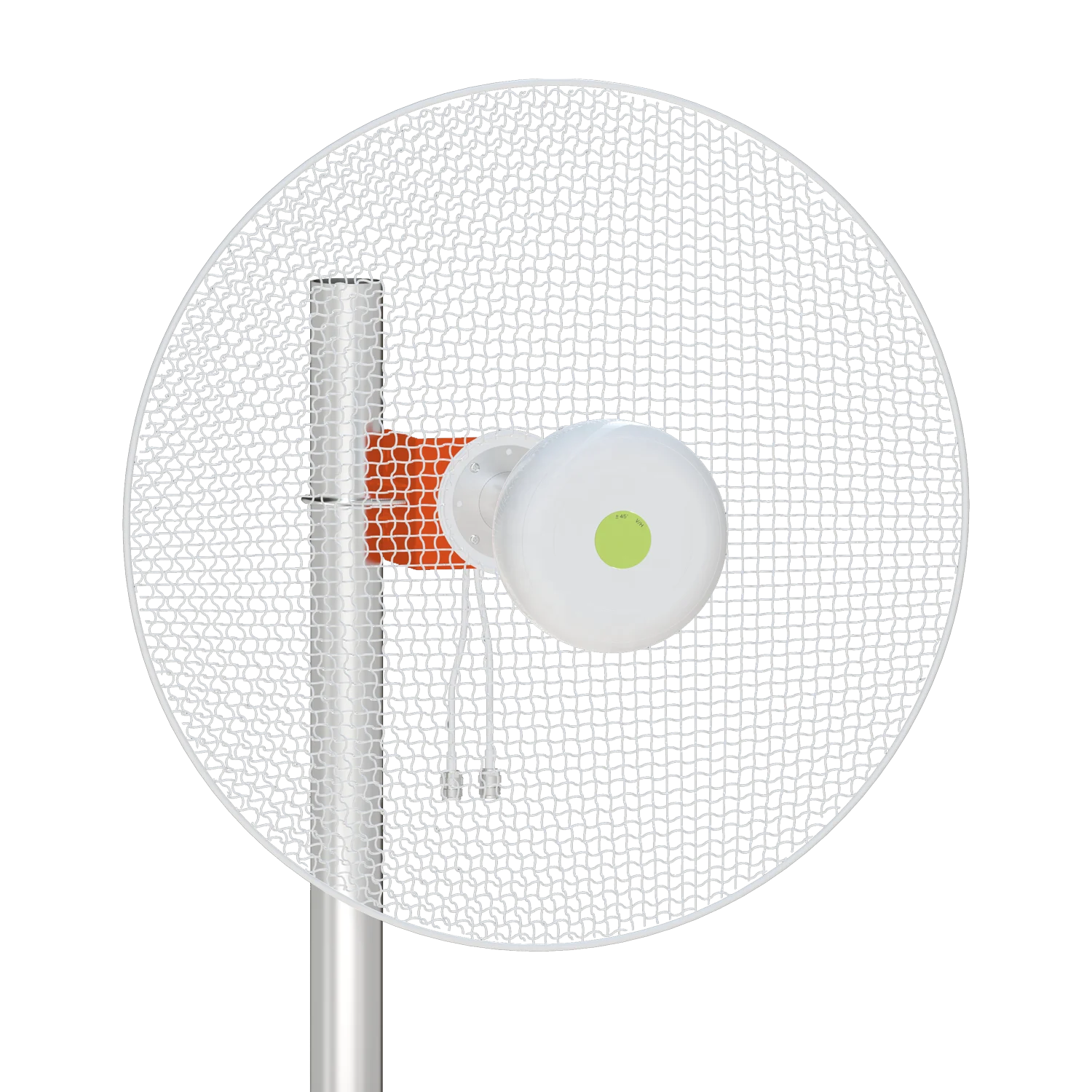

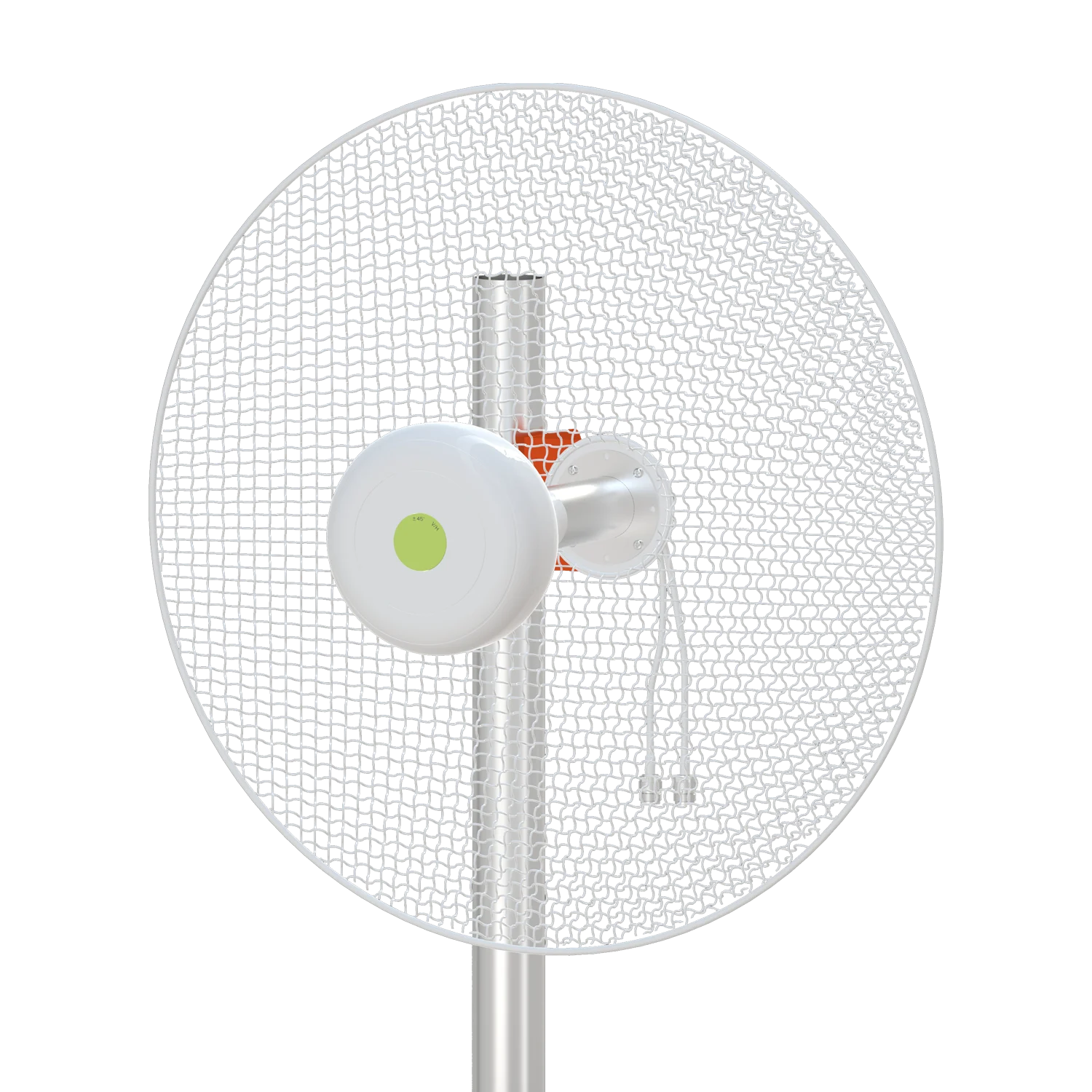

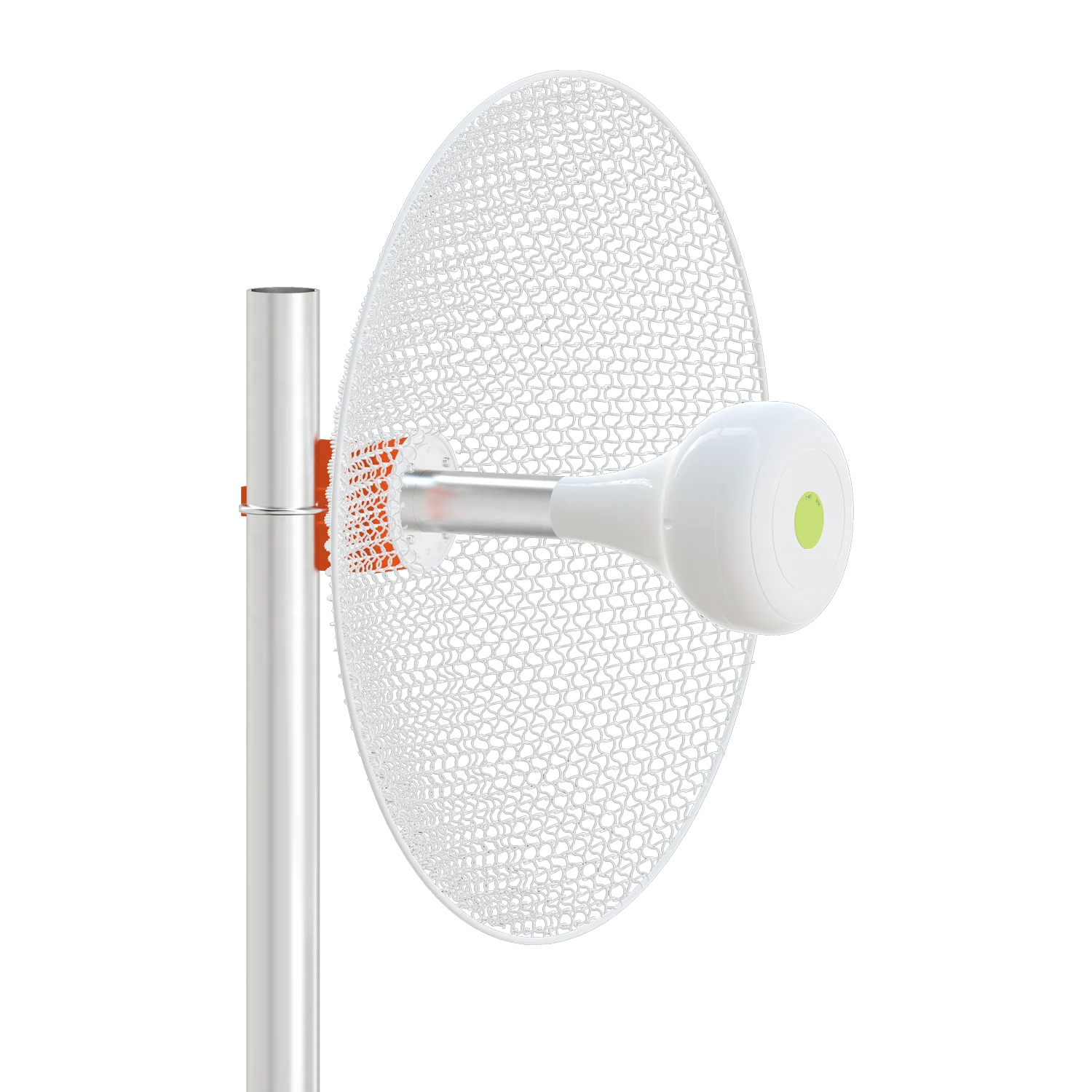

617 3800MHz 4G/5G 20dBi hyperbolic Antenna Mesh Parabolic with 2x20m RG58 for huawei radio HYBRID MIMO ANTENNA
- Category: >>>
- Supplier: WIS NETWORKS LIMITED
Share on (1600556883333):
Product Overview
Description
Products Description
Features
• 617-3800Hz Frequency
• 20dBi High Gain
• MIMO
• Dual Slant (±45°)
• 20dBi High Gain
• MIMO
• Dual Slant (±45°)
Application
• Works on any 3G / 4G / LTE / CBRS / 5G cellular network such as Verizon, AT&T, Sprint, T-Mobile and more
• Dual Antenna MIMO Design Improves Performance
• Dual Antenna MIMO Design Improves Performance
Product Paramenters
Electrical | ||||||
Model | ANT0638D20PG-XP | |||||
Frequency Range | 617-960MHz | 1710-2690MHz | 3300-3800 | |||
Gain | 9±2dBi | 18±2dBi | 20±2dBi | |||
VSWR | <2.5 | <2.0 | <2.0 | |||
Polarization | Dual Slant (±45°) | |||||
Isolation | >15dB | >15dB | >15dB | |||
Front to Back Ratio | >8dB | >15dB | >20dB | |||
Horizontal Beam width | 40±10° | 25±10° | 20±10° | |||
Vertical Beam width | 40±10° | 25±10° | 20±10° | |||
Maximum Power Per Port | 50W | |||||
Impedance | 50Ω | |||||
Lighting protection | DC Ground | |||||
Mechanical | ||||||
Connector | 2 * N/RPSMA/SMA | |||||
Antenna Size | φ0.6 m | |||||
Antenna Weight | 2kg | |||||
Antenna color | white | |||||
Diameter of the Pole | Φ30cm to φ50 cm | |||||
Mechanical Tilt | ± 25° | |||||
Operational Temperature | -40°C to +70°C (-32°F to +158°F) | |||||
