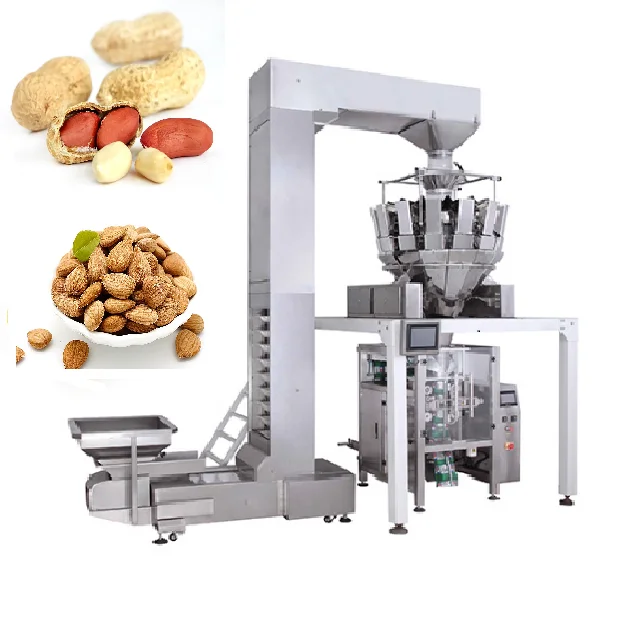

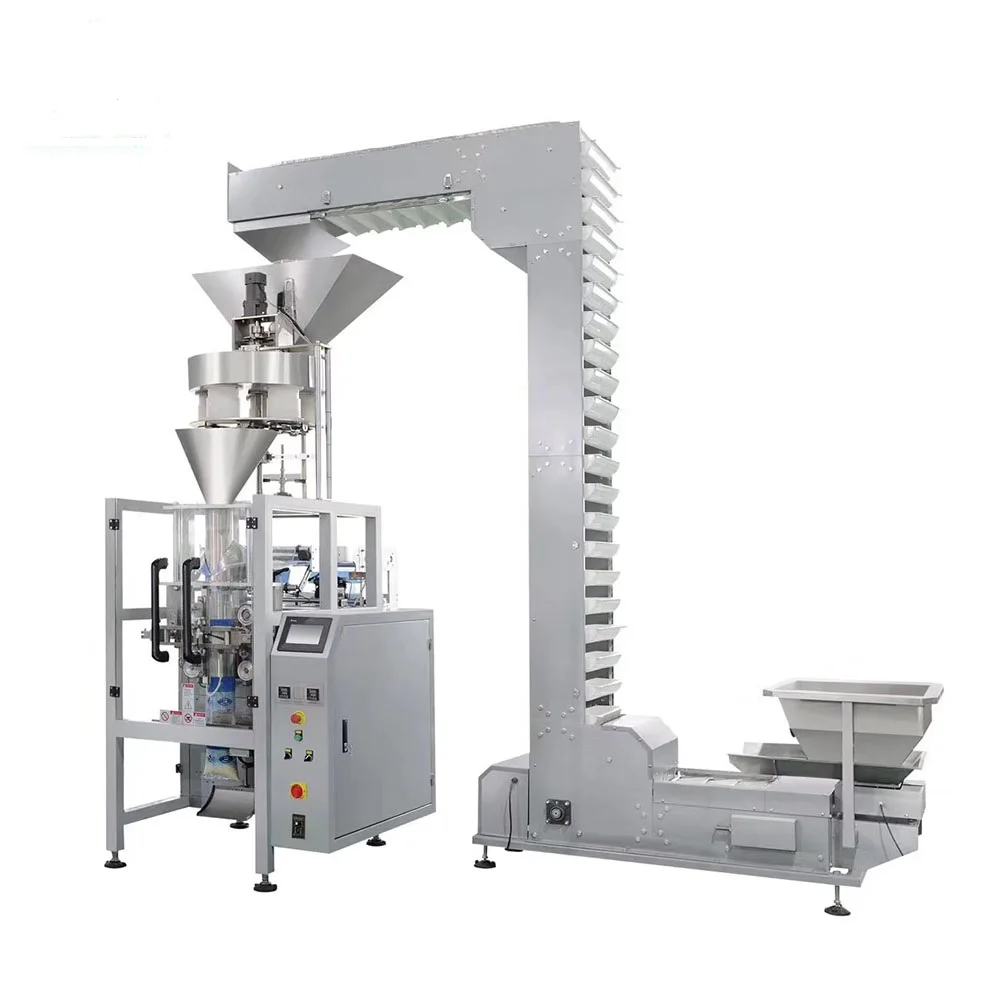

Automatic Filler Vertical Grain Bag With Multihead Weigher Snack Granular Sugar Coffee Bean Packing Machine 1kg
- Category: >>>
- Supplier: Guangzhou Xinlongtai Machinery Co. Ltd
Share on (1600556909412):
Product Overview
Description
Specification
Packing line Application | use to form fill seal and pack the coffee beans, dog food, cat food, sugar, pasta, snacks, rice, corn, beans, nuts, candy, small parts, plastic components in to the plastic bag. |
Lifting way | by PP or ABS buckets |
Lifting height | Standard discharging height 310-320cm Maded according to customer’s need |
Elevator Speed | Max 90 buckets/min, controlled by inverter, so speed adjustable |
Feeder hopper | 70L or 150L (Different price) |
Elevator Bucket size | 1.8L or4L (different price) |
Machine size | made according to customer’s need |
Elevator Power | 220V, 50HZ, 750W |
Machine frame | 304 stainless steel |
Assembling | Easy |
Warrantee | 1 year |
weighing Machine size | 100X100X130cm |
Product Description

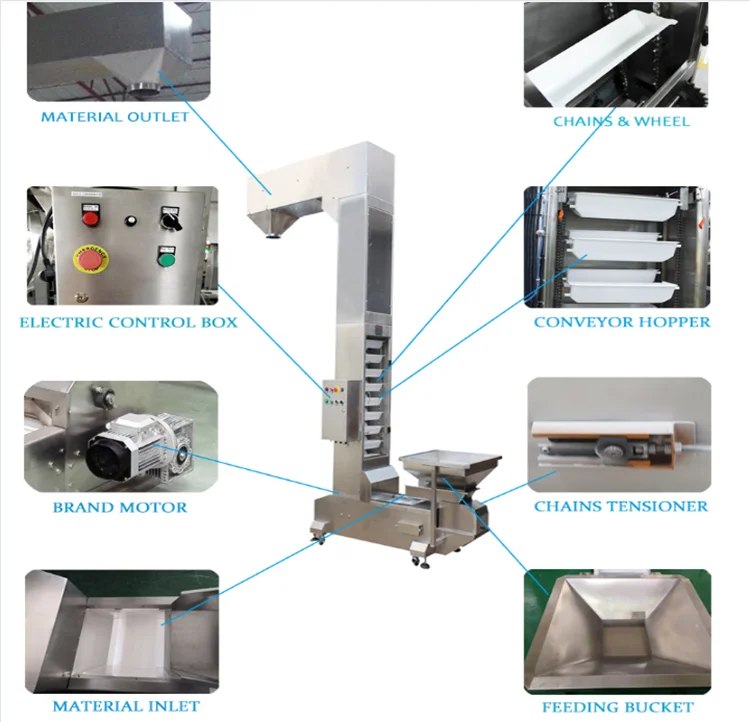

Z type bucket elevator:
It is made by 304 stainless steel frame and food class plastic ABS buckets.
The elevator is applicable for vertical lifting of grain material in departments such as corn, food, fodder and chemical industry,etc.
For the lifting machine, the hopper is driven by the chains to lift. It’s used for vertical feeding of grain or small block
material. It has advantages of large lifting quantity and highness.
The height of lifting: 360cm(the leg can adjust about 10cm height, so it can be 370cm height is total. The discharging height will be about 310cm).

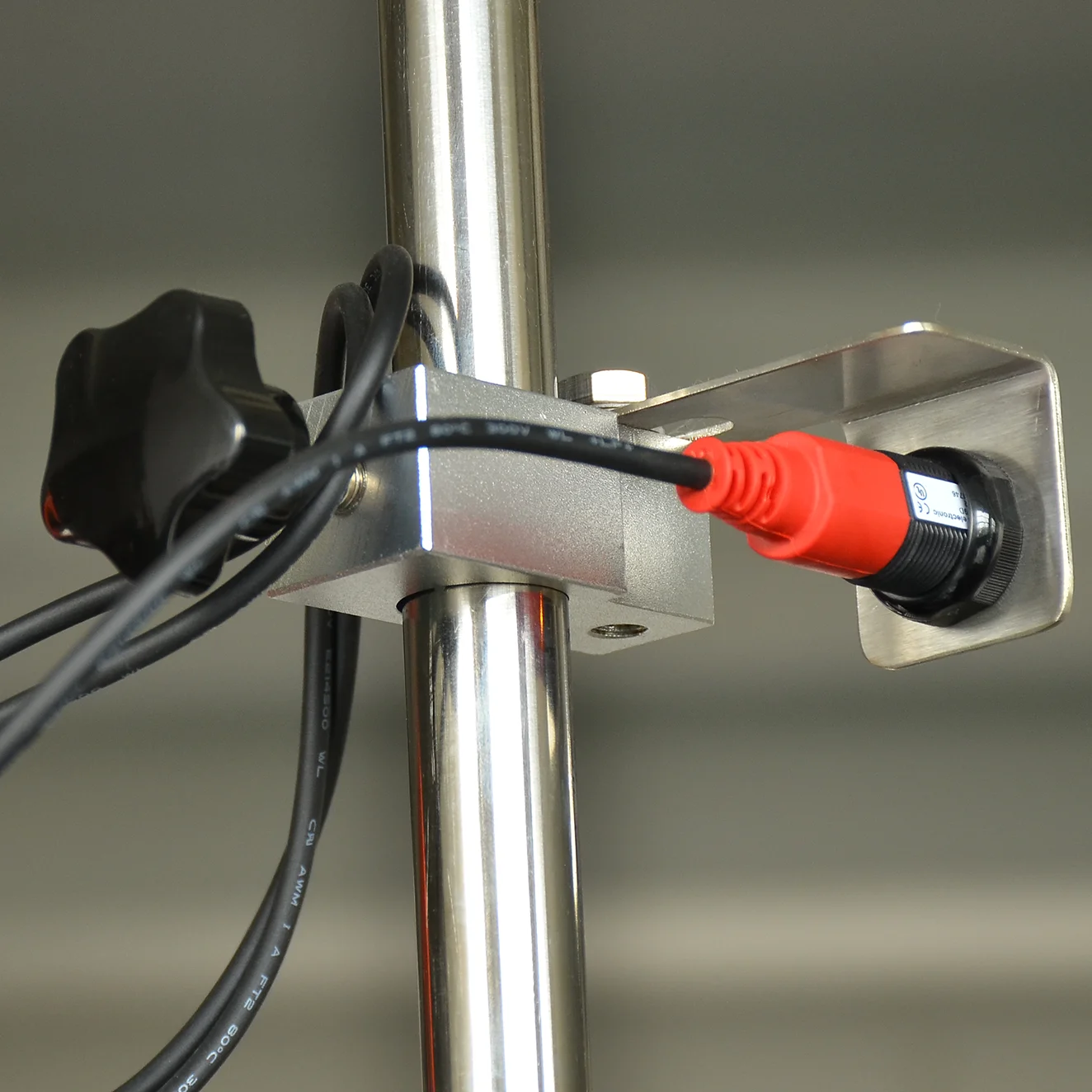

Conveyor speed controlled by inverter. Bucket movement controlled by level sensor.
Speed: Max 90buckets/min, each bucket 1.8L
Combined type vibration material hopper: 70L
Power: 750W Voltage: 220V or 380V 3PHASE
The elevator is applicable for vertical lifting of grain material in departments such as corn, food, fodder and chemical industry,etc.
For the lifting machine, the hopper is driven by the chains to lift. It’s used for vertical feeding of grain or small block
material. It has advantages of large lifting quantity and highness.
The height of lifting: 360cm(the leg can adjust about 10cm height, so it can be 370cm height is total. The discharging height will be about 310cm).
Conveyor speed controlled by inverter. Bucket movement controlled by level sensor.
Speed: Max 90buckets/min, each bucket 1.8L
Combined type vibration material hopper: 70L
Power: 750W Voltage: 220V or 380V 3PHASE

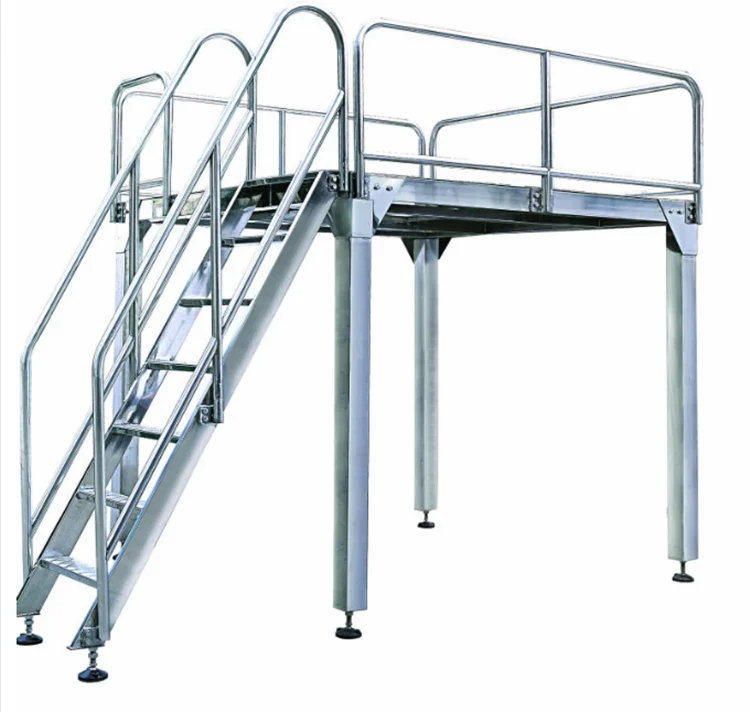

Working platform
StandardSize: 180X180X180CM or made according to real need
* Material: 304 stainless steel main frame, aluminum table and ladder feet steps (also can make 304SUS table and ladders, but in
different price)
* Safearm: 110cm height
* Supportingleg: 11X11CM, 2MM thickness 304 stainless steel
Can also add the feet protection edge on the table
* Material: 304 stainless steel main frame, aluminum table and ladder feet steps (also can make 304SUS table and ladders, but in
different price)
* Safearm: 110cm height
* Supportingleg: 11X11CM, 2MM thickness 304 stainless steel
Can also add the feet protection edge on the table
XLT-10SS -1600 multihead weigher

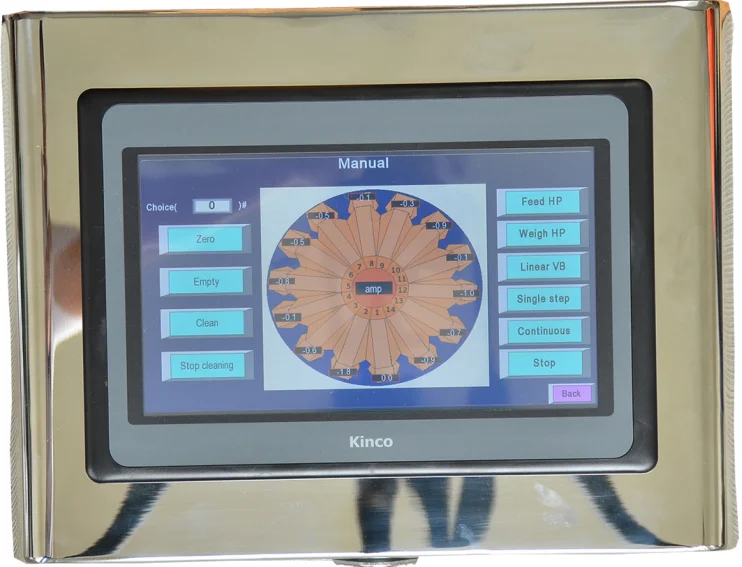

1.10.1inch color touch screen, nice to look at and easy to
operate, can add client information inside to high-light the
company image.
2.10pcs 1.6L weighing buckets, double door open.
3.Can preset 50 kinds of different products information, easy to pick out to use next time.
4.Can connect to the computer or printer, easy to know the working data of the machines.
5.Can combined with the elevator or the packing machine to be a full automatic packing line.
6.Can set the material to be discharge one by one, so that to avoid the easy break products to hit each other and break.
7.If products are almost the same in size and weight, we can use the calculating function instead of the weighing, so that each bag can be the same number in piece.
8.Adopt the import parts for the machine, so that stable and fee malfunction, long use life.
9.Each vibration feeder can be individial to control.
10.Adopts latest CAN BUS electronics and DSP technology,
each head unit with modular system control
With CE certificate.
operate, can add client information inside to high-light the
company image.
2.10pcs 1.6L weighing buckets, double door open.
3.Can preset 50 kinds of different products information, easy to pick out to use next time.
4.Can connect to the computer or printer, easy to know the working data of the machines.
5.Can combined with the elevator or the packing machine to be a full automatic packing line.
6.Can set the material to be discharge one by one, so that to avoid the easy break products to hit each other and break.
7.If products are almost the same in size and weight, we can use the calculating function instead of the weighing, so that each bag can be the same number in piece.
8.Adopt the import parts for the machine, so that stable and fee malfunction, long use life.
9.Each vibration feeder can be individial to control.
10.Adopts latest CAN BUS electronics and DSP technology,
each head unit with modular system control
With CE certificate.
Use range:
Food: coffee beans, dog food, cat food, sugar, pasta, snacks, rice, corn, beans, nuts, candy, dry fruits, biscuits...
Weight range: 3g-3000g/dump
Max Speed: 60bags/min
Weighing accuracy:±1-3g
Weighing error: 0.1g-1g
Hopper: 10PCS X 1.6L weighing buckets
Languages: English, Polish, France, Spanish, Hungary, Germany, Finland…
Drive: By step motor
Power: 1500W
Voltage: 110V, 220V, 50/60HZ
Net weight/gross weight: 380kg/480kg
Food: coffee beans, dog food, cat food, sugar, pasta, snacks, rice, corn, beans, nuts, candy, dry fruits, biscuits...
Weight range: 3g-3000g/dump
Max Speed: 60bags/min
Weighing accuracy:±1-3g
Weighing error: 0.1g-1g
Hopper: 10PCS X 1.6L weighing buckets
Languages: English, Polish, France, Spanish, Hungary, Germany, Finland…
Drive: By step motor
Power: 1500W
Voltage: 110V, 220V, 50/60HZ
Net weight/gross weight: 380kg/480kg
We have more different models for choose:
like the 10 heads 2.5L buckets weigher; 3L buckets weigher
14 heads 1.6L bucket weigher; 14 heads 2.5L buckets weigher
14 heads 3L buckets weigher
14 heads 5L buckets weigher

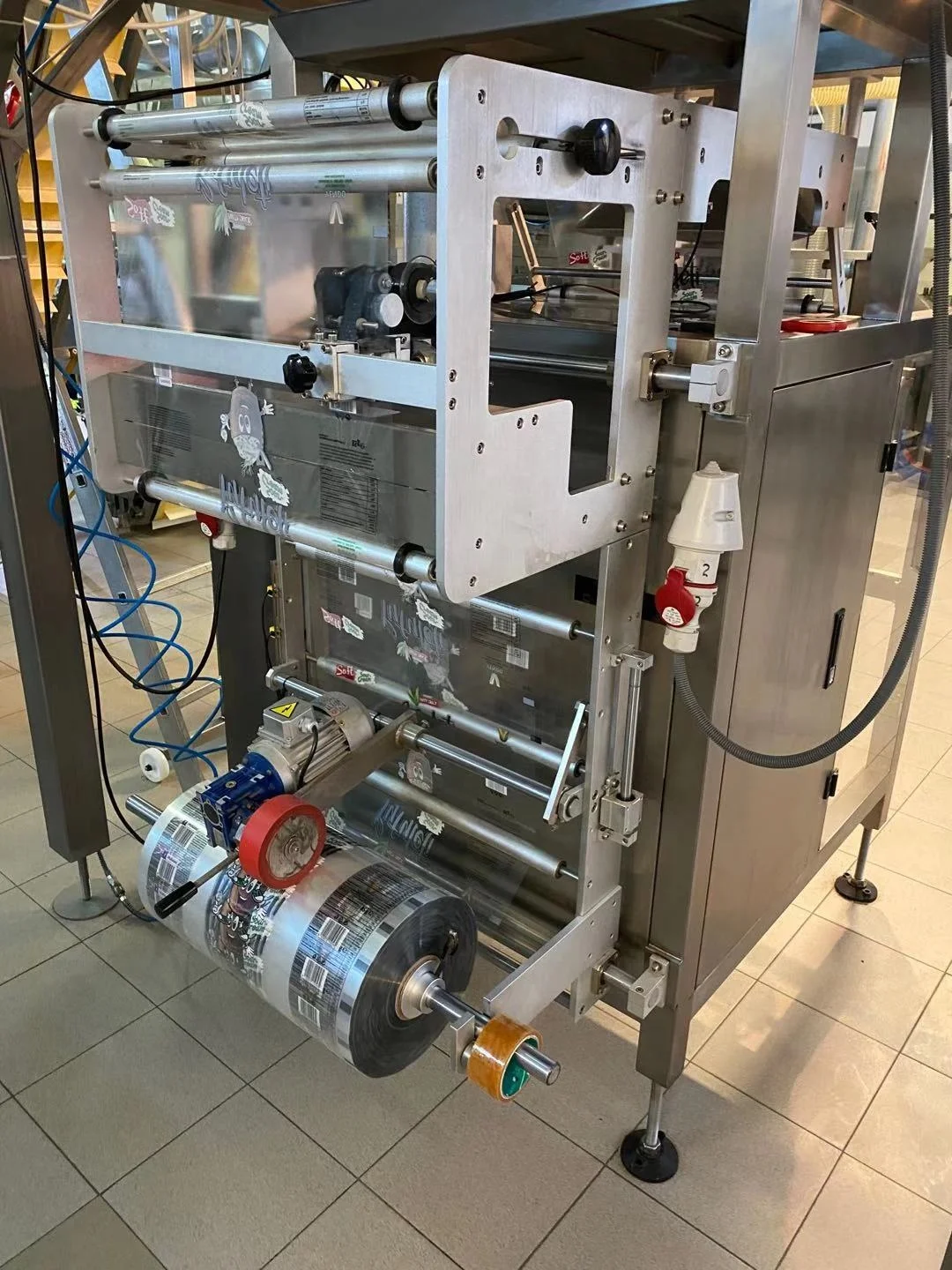

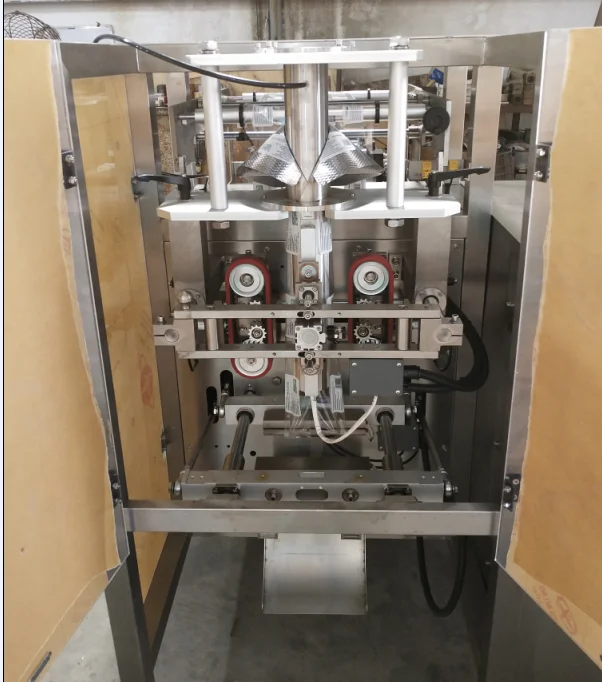

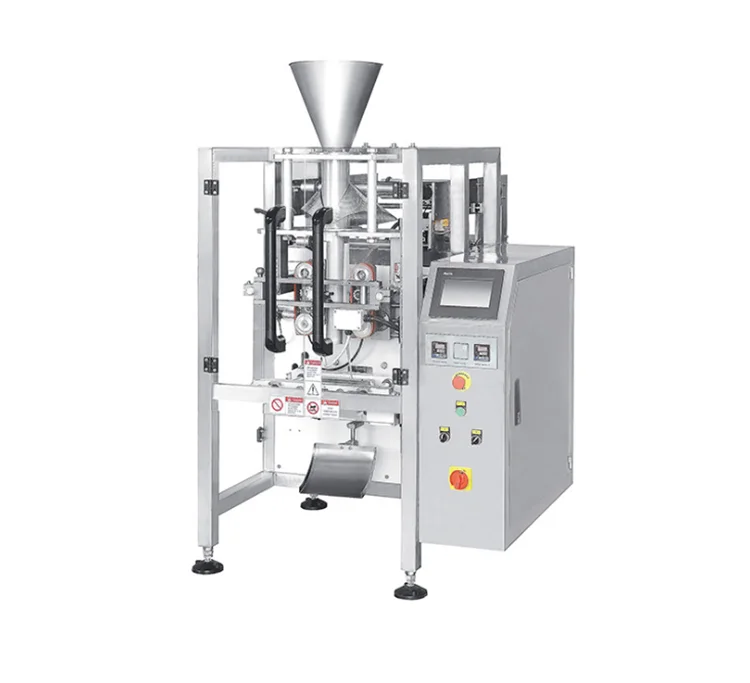

420 Packing machine: * Imported PLC computer control system with human-machine interface; touch screen is simple and direct-viewing in operation; precise positioning with servo film transporting system; excellent complete machine performance and nice packing; * Minimize the loss with complete automatic warn protection function; * Supported with metric device, the machine will automatically complete all packaging processes from measuring, feeding, filling, bag making; | ||
Items | Content | |
Packing speed | 5-100 bag/min | |
Bag size | (L)50-300mm (W)60-200mm | |
Bag making mode | Pillow-type bag, standing bag, punch | |
Range of measuring | 150-1300ml | |
The maximum width of packing film | 420mm | |
Thickness of film | 0.04-0.08mm | |
Air consumption | 200L/min 0.7×105Pa | |
Main power/voltage | 2.2KW/220V 50-60Hz | |
Dimension | 1400×970×1600mm | |
Gross weight | 400kg | |
What we can do for the bags:
We can print the date on the bags, filling the bag with gas, linking bag, easy tear bag, make holes on the bags.
The type of back seal we can do:
Please tell us the type of back seal you want to do when place order.
More machines you can choose:

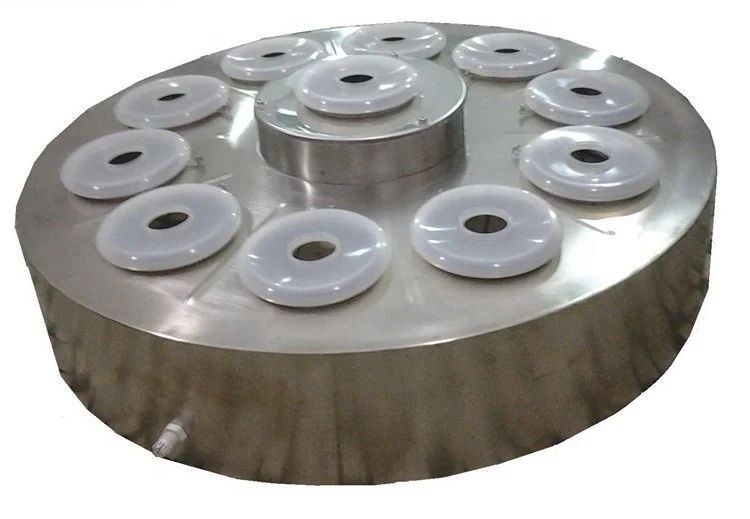

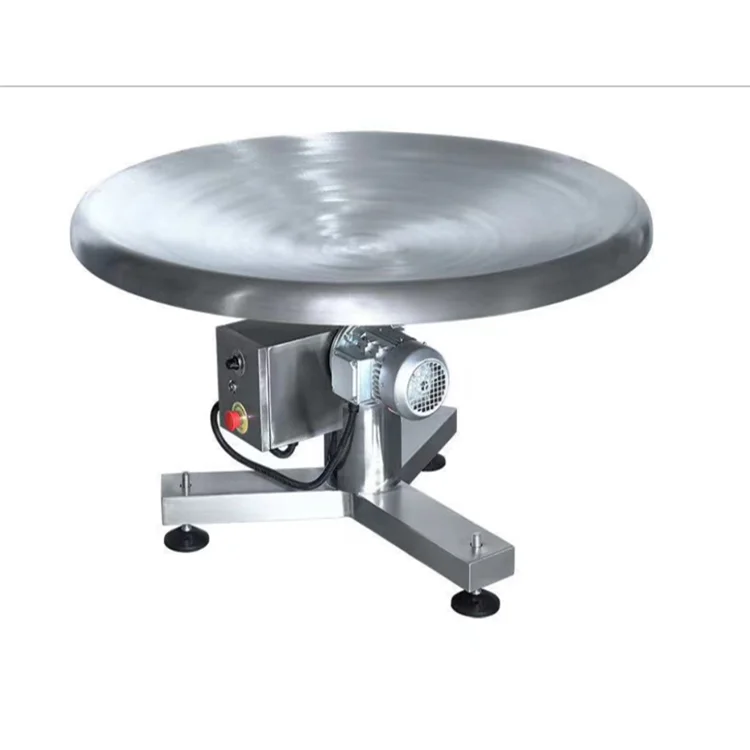

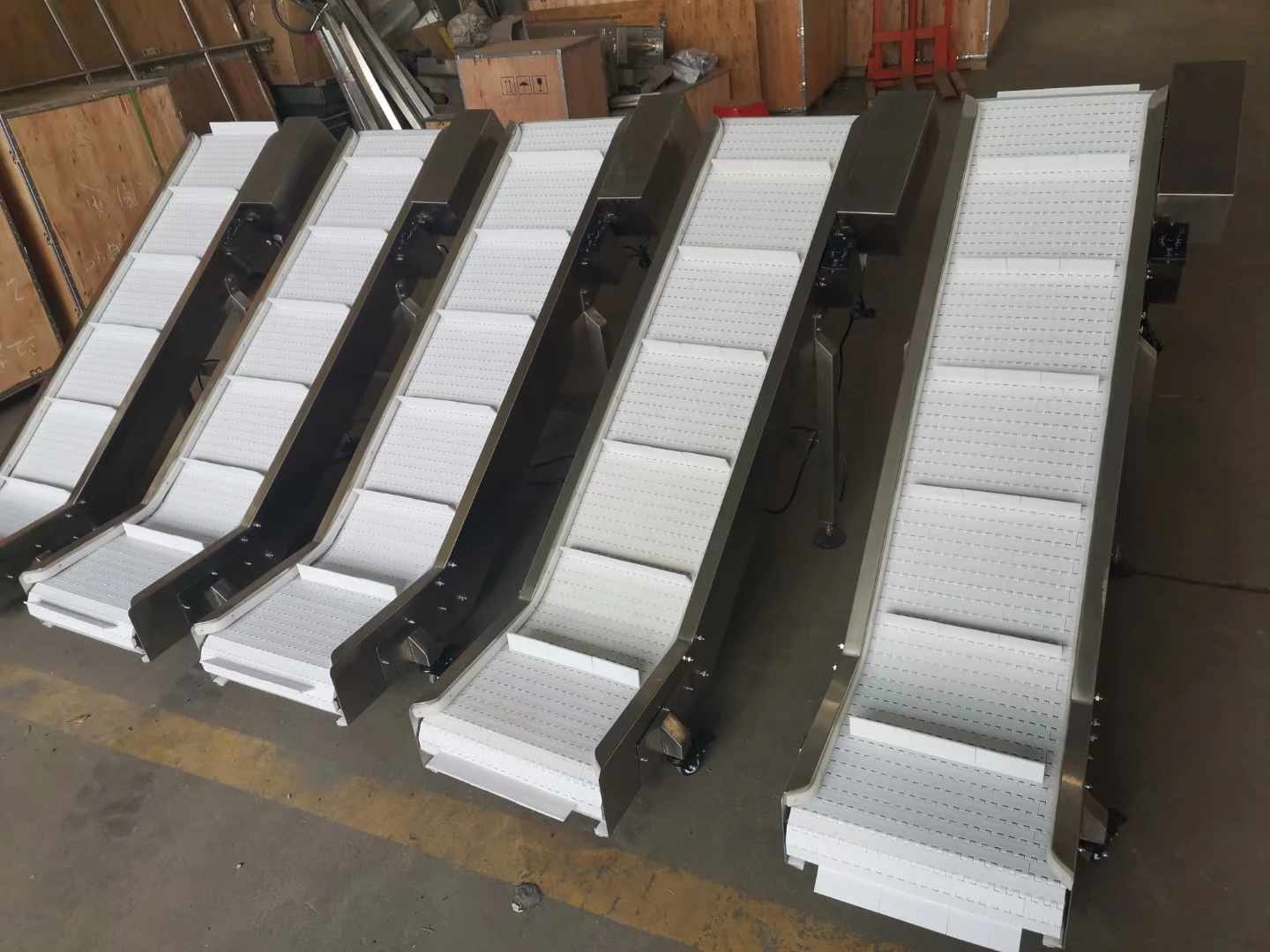

We have discharge conveyor, rotary packing table, vertical packing machine and so on.
Company Profile
GuangZhou XinLongTai Machinery Co., Ltd is located in Pearl River Triangle. It is the most energetic and developing economic area in China.
Our company is a high-tech enterprise specializing in the design, manufacture, sale and service of food packaging machines.
During this period, we have gained rich experience in packaging machinery industry and have developed full-flown technic of several ranges. So far, we have developed scores of type of packing machinery series products and mature technology. These products are applicable for food, medication, chemistry, feed, toy, ironware and other industries. Our products sell well in domestic and exported Southeast Asia, South America, East Europe and the Middle East.
We are not only offer the product with good quality but flexible packaging solution. Meanwhile, We have ability to produce kind various standard packaging machine as OEM manufacturer and provide professional services.
Warmly welcome friends from all around the world to visit, inspect, and join for our bright future.
Our company is a high-tech enterprise specializing in the design, manufacture, sale and service of food packaging machines.
During this period, we have gained rich experience in packaging machinery industry and have developed full-flown technic of several ranges. So far, we have developed scores of type of packing machinery series products and mature technology. These products are applicable for food, medication, chemistry, feed, toy, ironware and other industries. Our products sell well in domestic and exported Southeast Asia, South America, East Europe and the Middle East.
We are not only offer the product with good quality but flexible packaging solution. Meanwhile, We have ability to produce kind various standard packaging machine as OEM manufacturer and provide professional services.
Warmly welcome friends from all around the world to visit, inspect, and join for our bright future.
FAQ
1. What’s the payment terms:
Normally 100% by T/T in advance; for big order can be 30% prepayment and balance before shipment. Sometimes we accept L/C. You can place order on Alibaba and pay here or contact us for our bank account.
2.What’s the delivery time:
That depends, if we have them in stock, normally after receiving payment we will arrange the earliest shipment for you, within 7 days. If production is busy and no stock, that will depends on order quantity. Better to chat with us on Alibaba before you pay.
3. Warrantee:
All the machines we warrantee them for 12 months.
4.After sales service:
We have experienced people who can help you on line by wechat or email.
5.Packing:
All our machines are packed by new and strong wood similar cases, suitable for long sea transportation.
Normally 100% by T/T in advance; for big order can be 30% prepayment and balance before shipment. Sometimes we accept L/C. You can place order on Alibaba and pay here or contact us for our bank account.
2.What’s the delivery time:
That depends, if we have them in stock, normally after receiving payment we will arrange the earliest shipment for you, within 7 days. If production is busy and no stock, that will depends on order quantity. Better to chat with us on Alibaba before you pay.
3. Warrantee:
All the machines we warrantee them for 12 months.
4.After sales service:
We have experienced people who can help you on line by wechat or email.
5.Packing:
All our machines are packed by new and strong wood similar cases, suitable for long sea transportation.
