LINK MI 4x2 HDMI Matrix with Audio Extract Support 4K@60Hz YUV 4:4:4, 18Gbps, 3D, CEC, ARC, EDID, Downscaler, SPDIF/Analog
- Category: >>>
- Supplier: Shenzhen LINK-MI Technology Co. Ltd.
Share on (1600557476371):
Product Overview
Description
Description

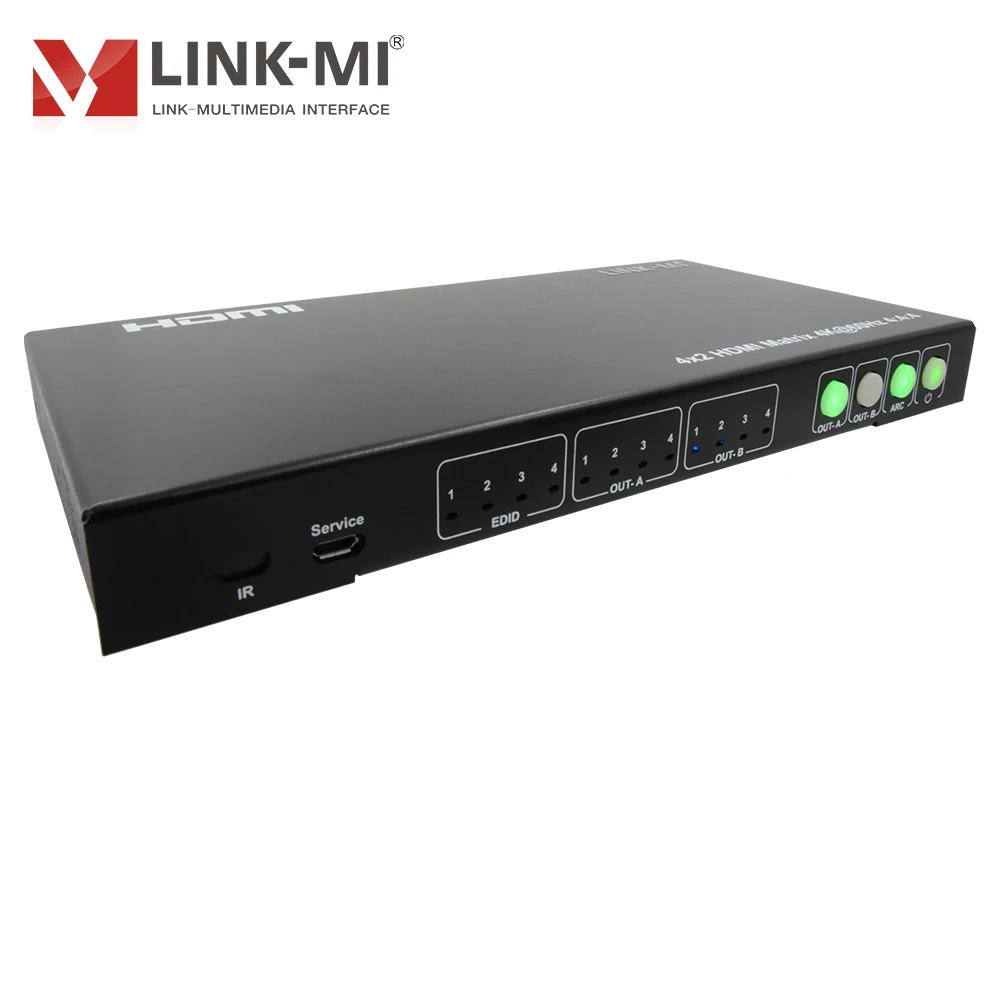

LINK-MI LM-MX15 High performance HDMI Matrix Switcher can switch any of 4 HDMI sources to 2 HDMI displays. It supports resolution up to 4K2K@60Hz.
Features

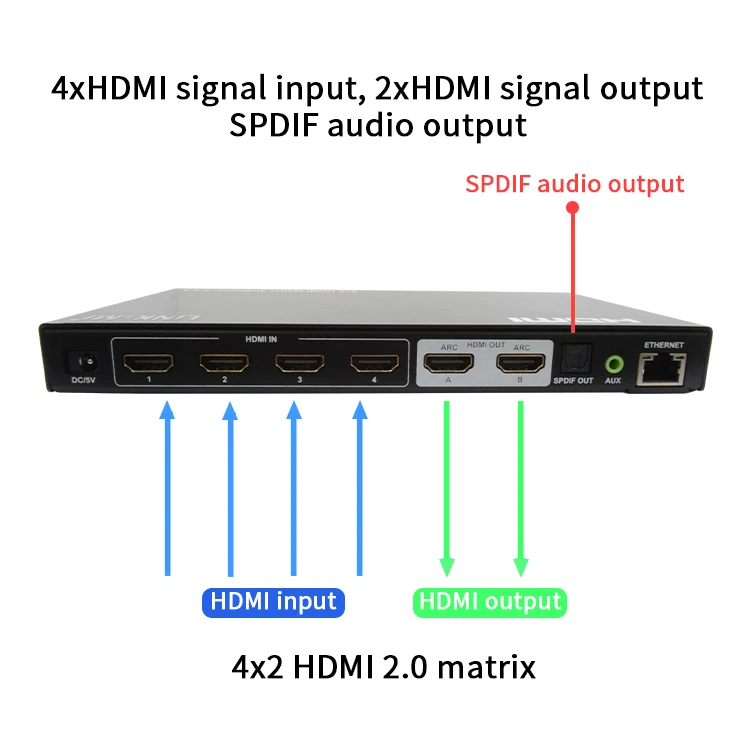

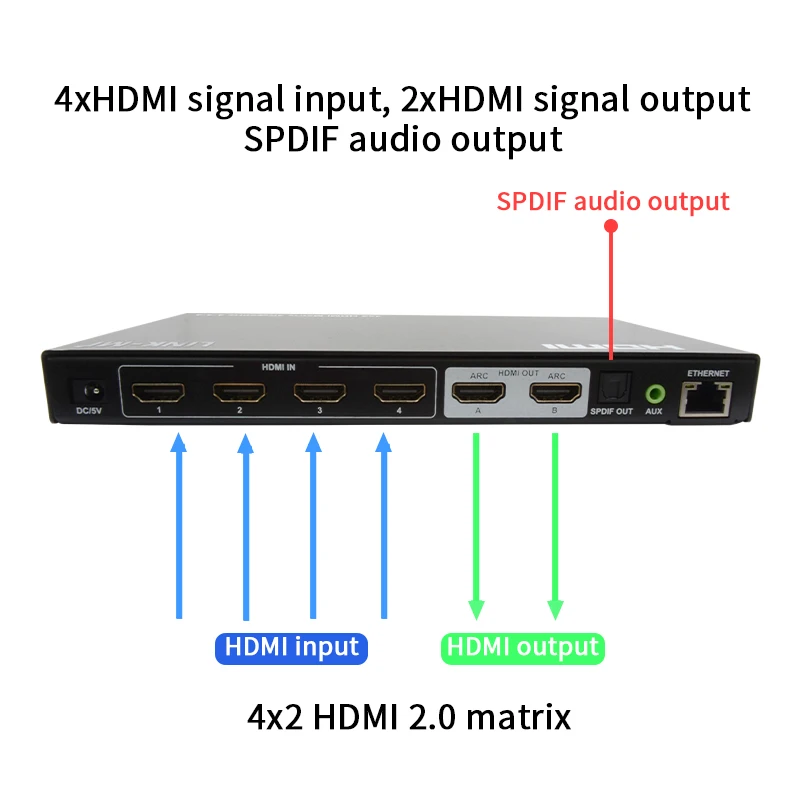

1. 4x2 HDMI Matrix, 4x HDMI Inputs, 2x HDMI Outputs

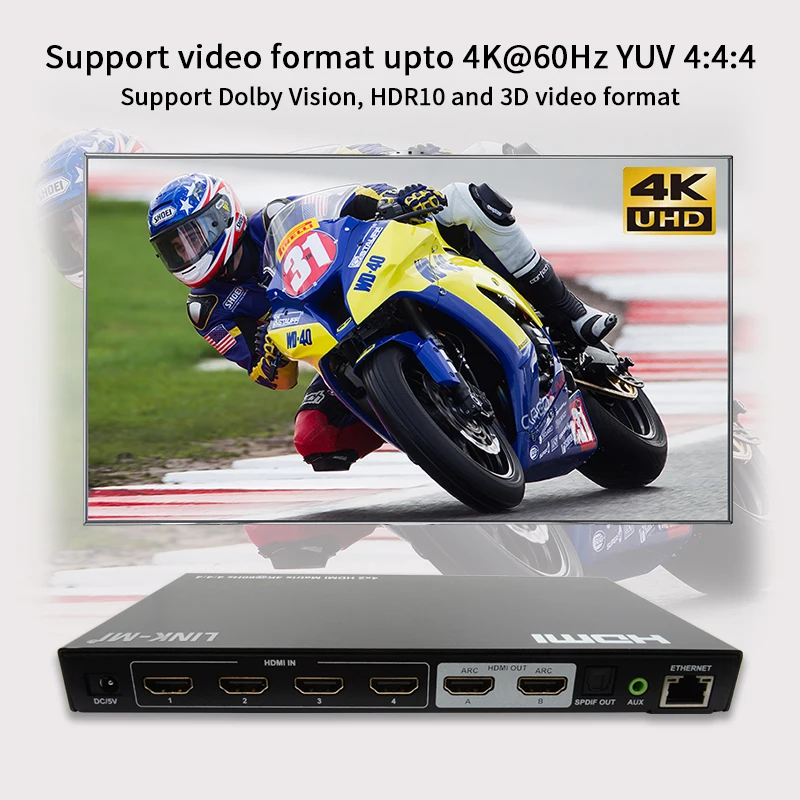

2. Support 4K@60Hz YUV4:4:4

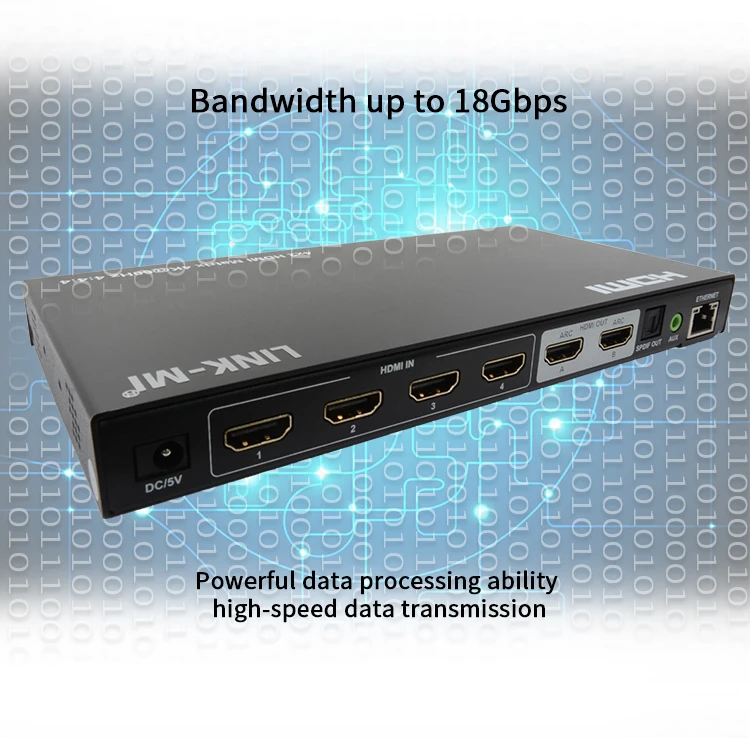

3. Bandwidth up to 18Gbps
4. HDCP 2.2 / HDCP 1.4 compliant

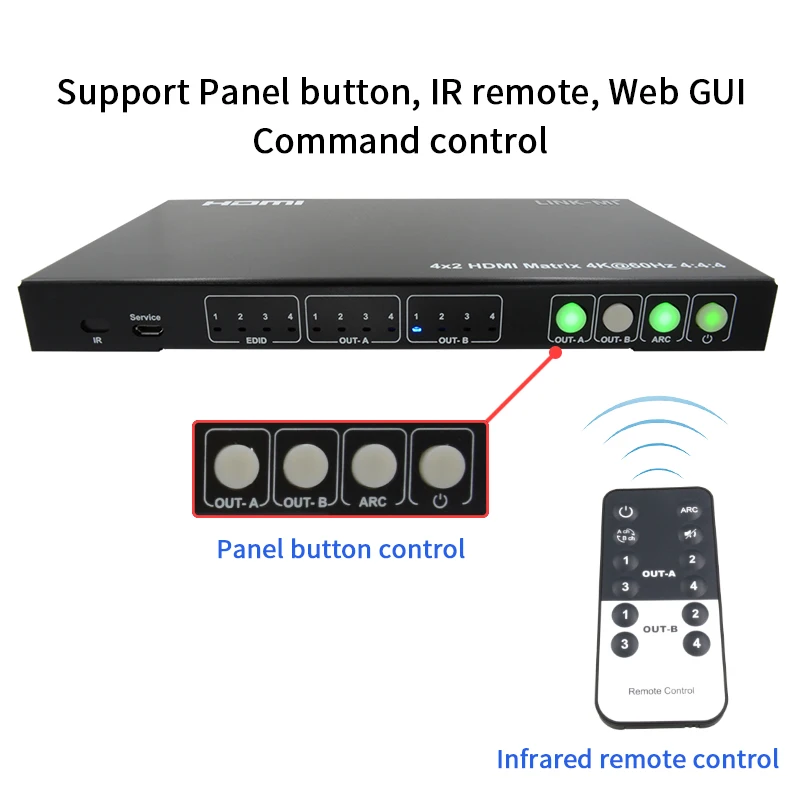

5. Support Panel button, IR remote, Web GUI, Command control
6. Support Micro USB port for firmware upgrade

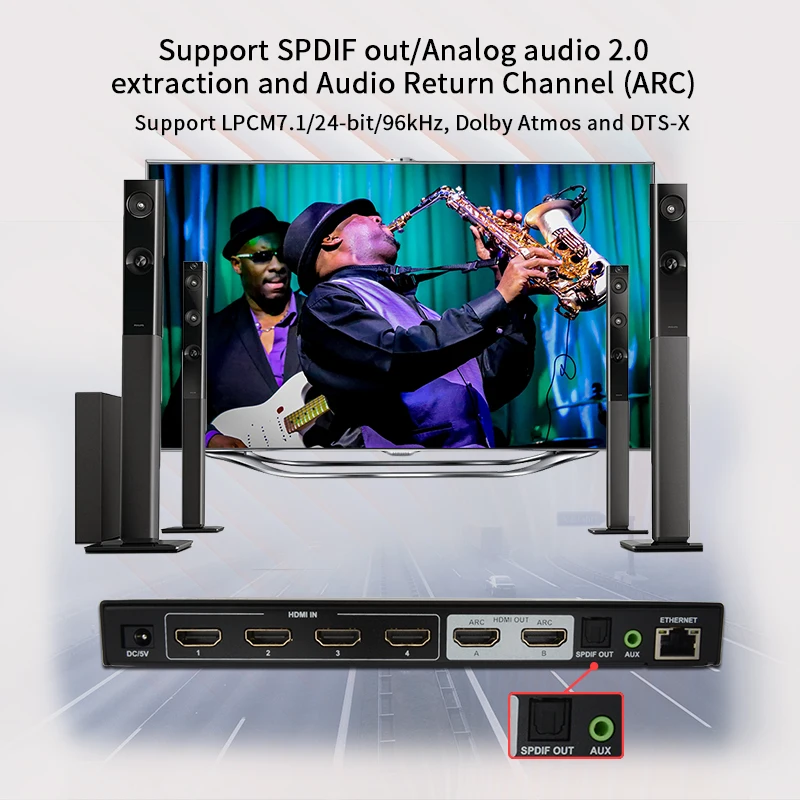

7. Support SPDIF out/Analog audio 2.0 extraction
8. Support LPCM7.1/24-bit/96khz,Dolby Atmos and DTS-X
9. Support Dolby Vision and HDR10
10. Support 3D, deep color max 12bit
11. Support CEC and ARC

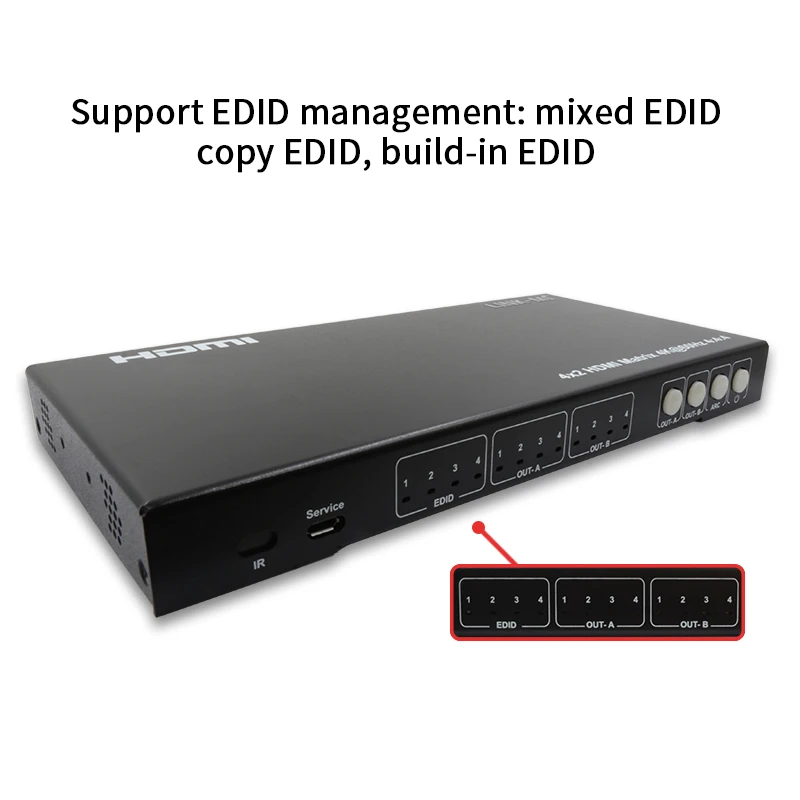

12. Support EDID management (Mixed EDID,Copy EDID,Build-in EDID)
13. Support 4K@60Hz input downscaler to 1080p

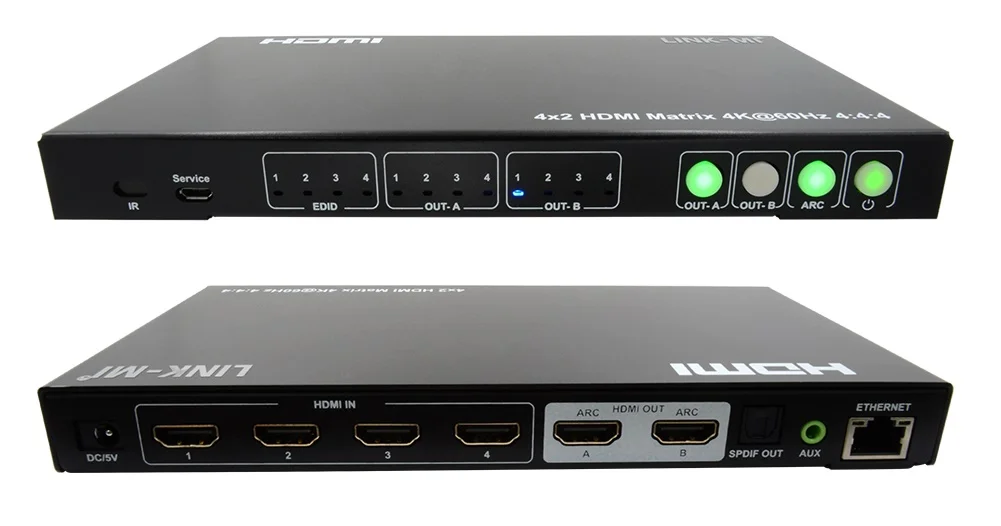

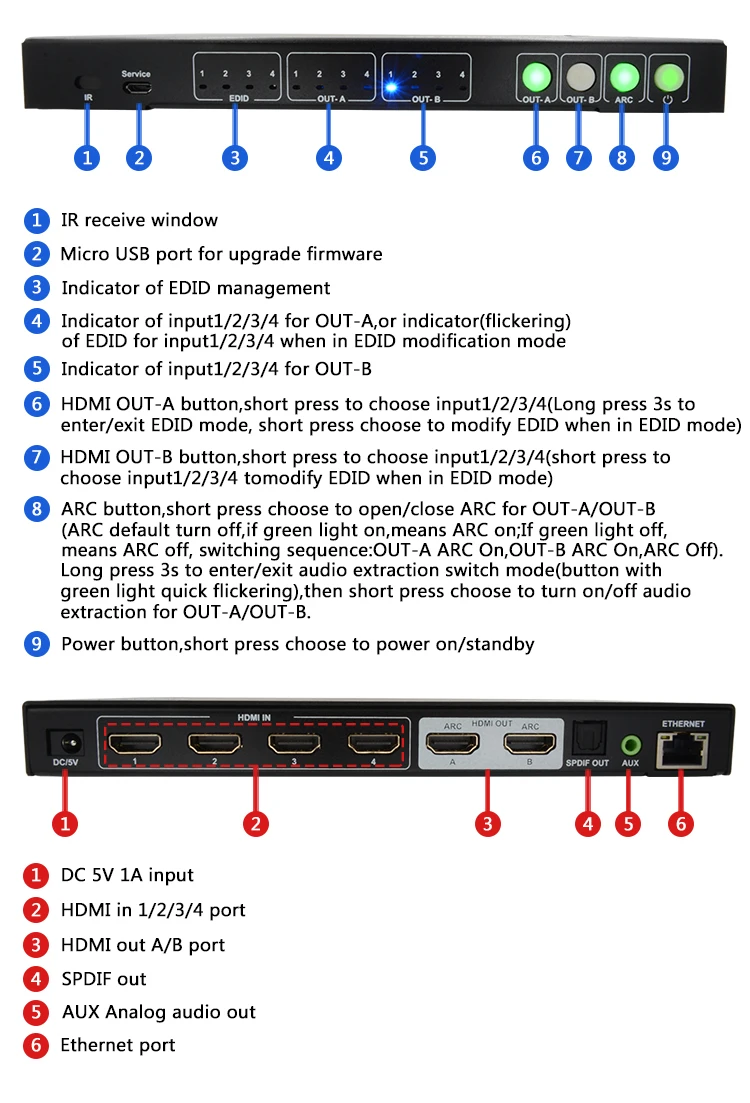

Interfaces

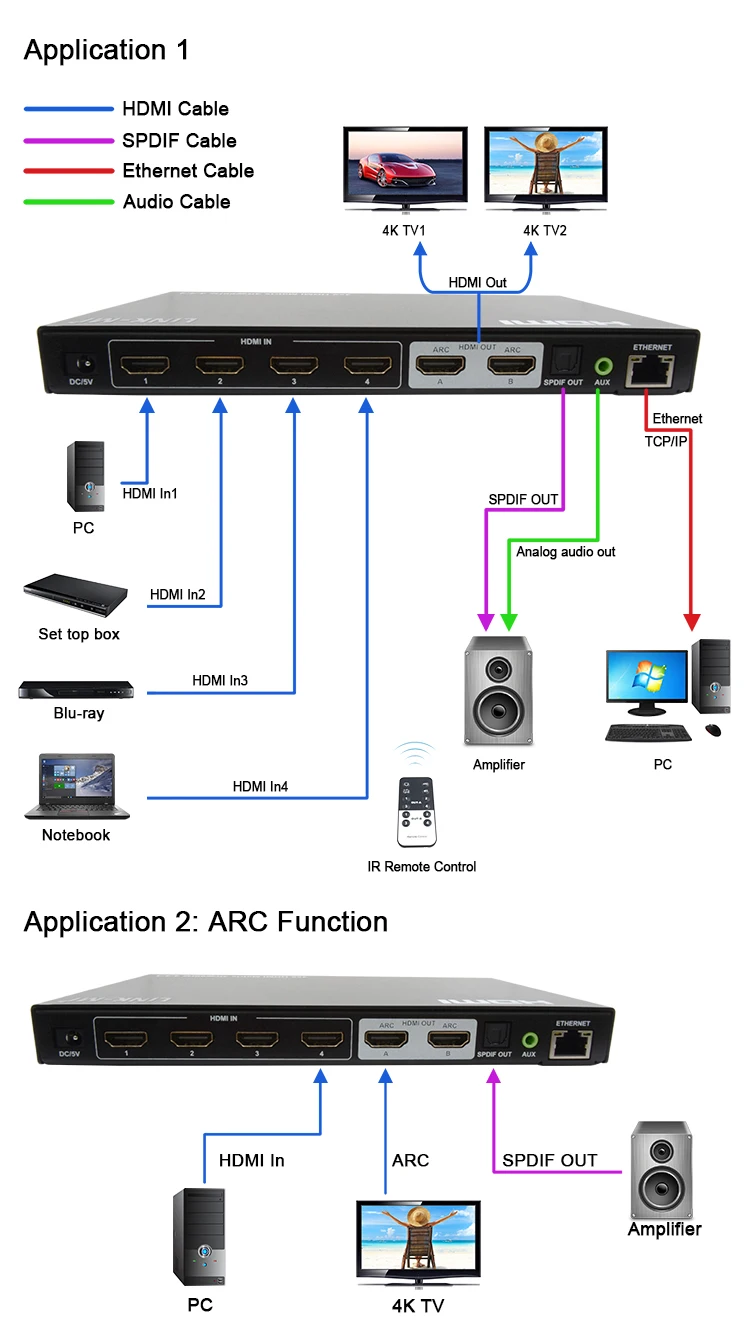

Connection
Specification
| Bandwidth | 18Gbps |
| Resolution | 480P@60Hz, 576P@50Hz, 1080P@24Hz/50Hz/60Hz, 4K@24Hz/30Hz/60Hz YUV 4:2:0, 4K@60Hz YUV4:4:4 |
| Operating temperature range | 0 to +40 ℃ |
| Operating humidity range | 5 to 90% RH (no condensation) |
| Input video signal | 0.5-1.0 volts p-p |
| Input DDC signal | 5 volts p-p |
| Analog audio Ext port | 1x3.5mm audio jack |
| Output video | HDMI 2.0 + HDCP 1.4/2.2 |
| Output audio | support HD digital audio format, SPDIF out/analog audio 2.0 out, LPCM7.1/24-bit/96Khz, Dolby Atmos and DTS-X |
| Dimension (LxWxH) | 210*104.3*20.8mm |
| Net weight | 0.66kgs |
| Power consumption | 2.5W max |

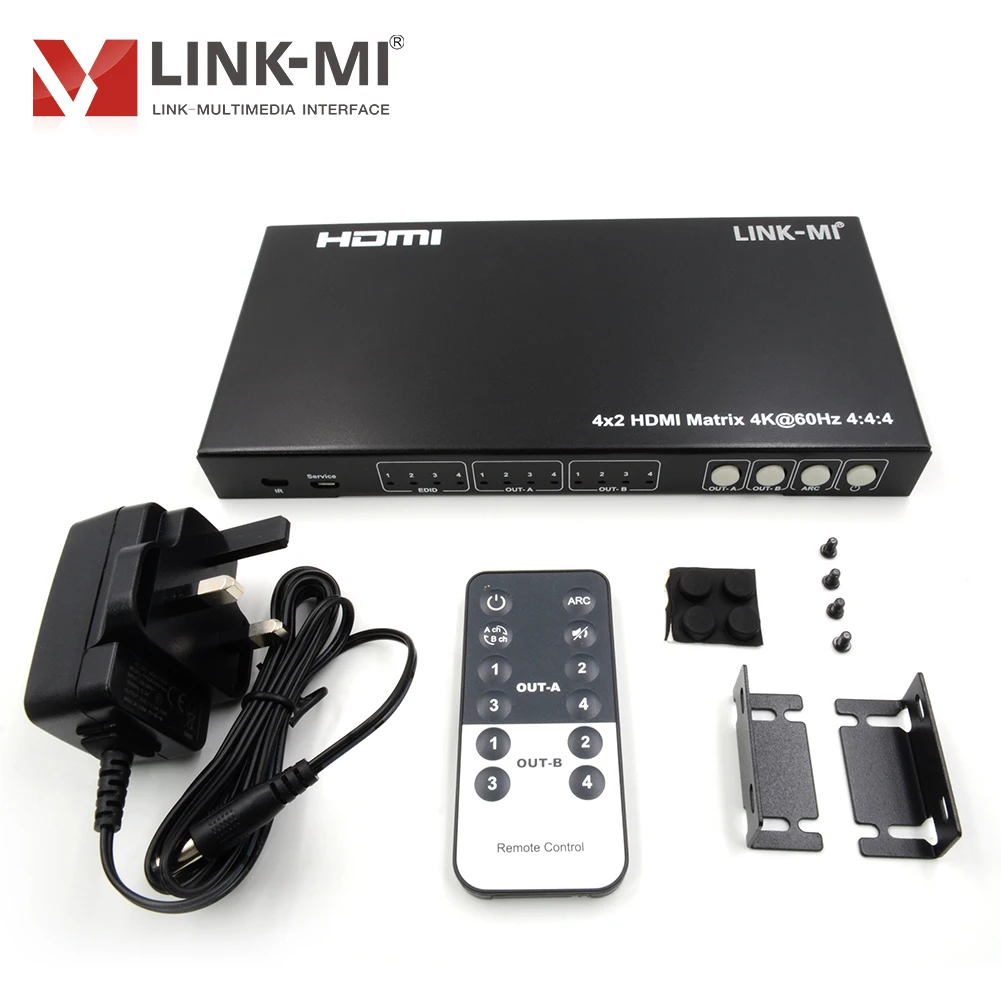

Package Contents
1) 1x 4x2 HDMI matrix
2) 1x Power adapter
3) 1x IR remote control
4) 1x L-shaped bracket
5) 1x User manual

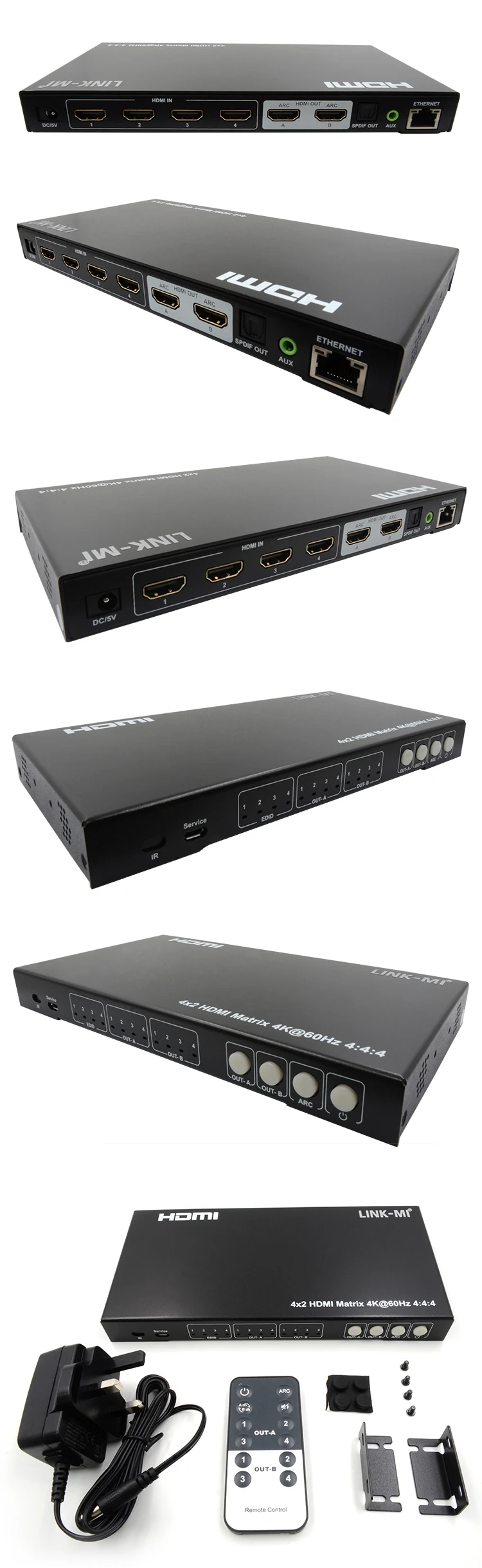

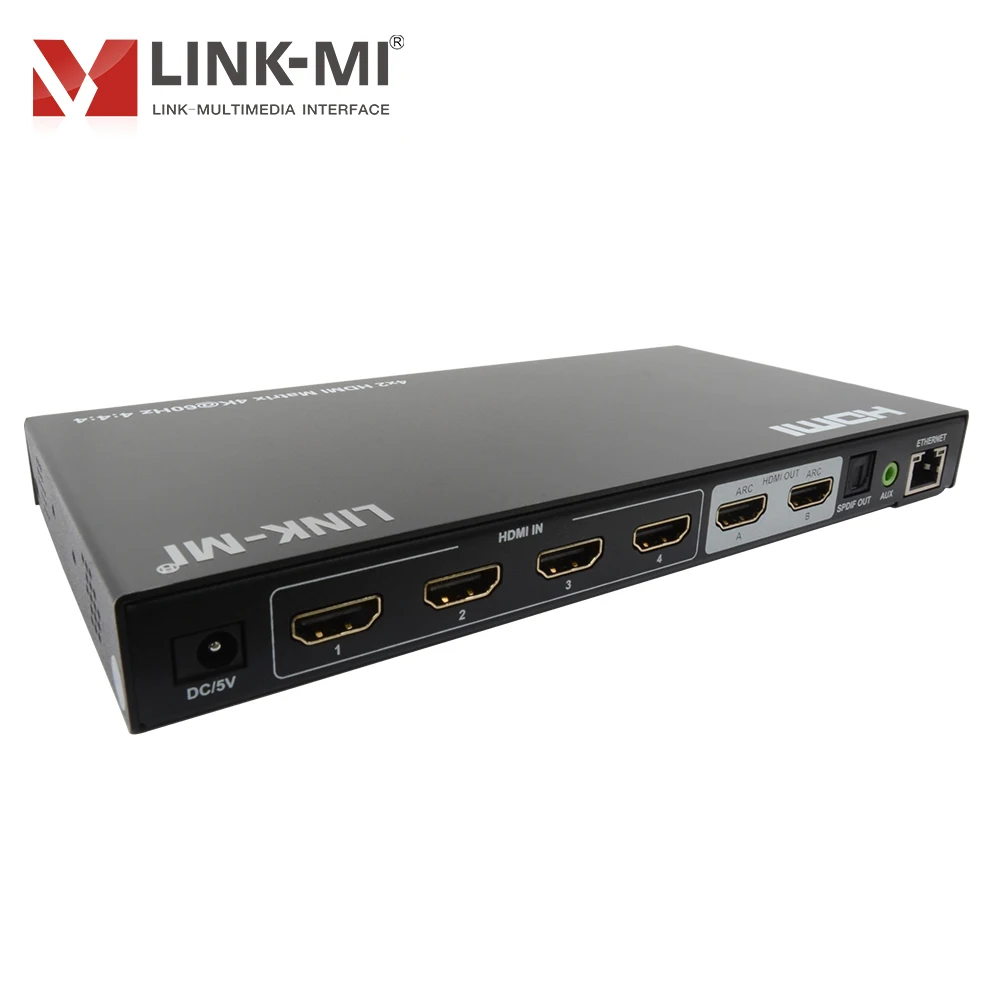

Product Picture
