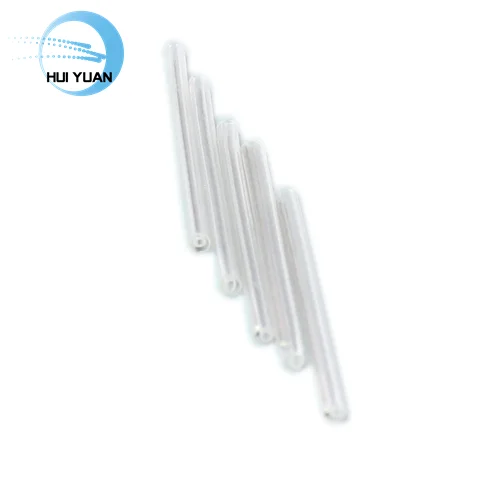

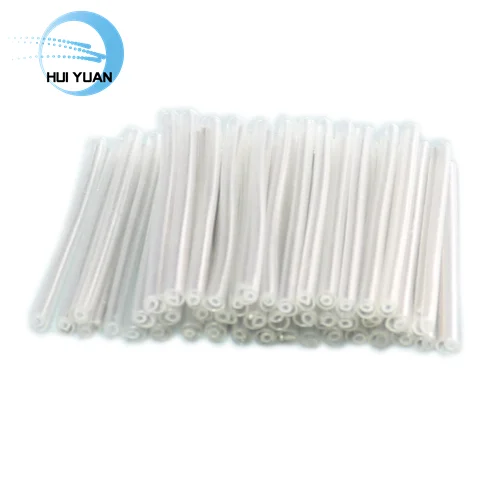

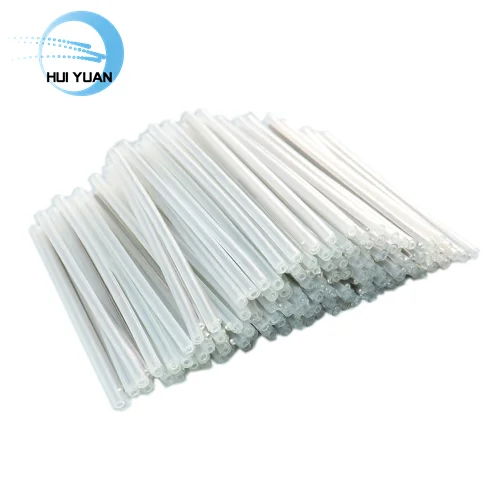

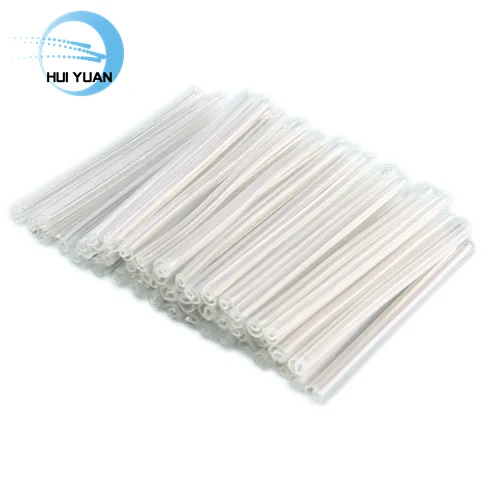

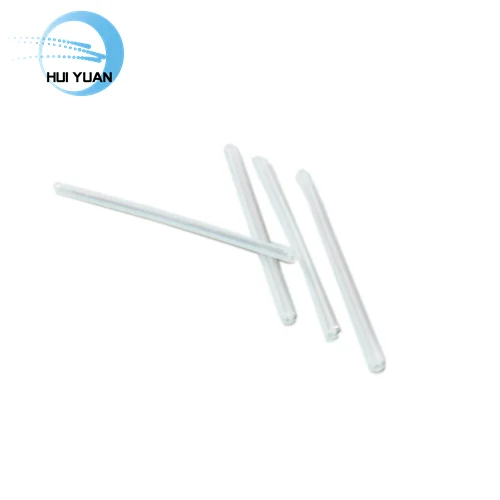

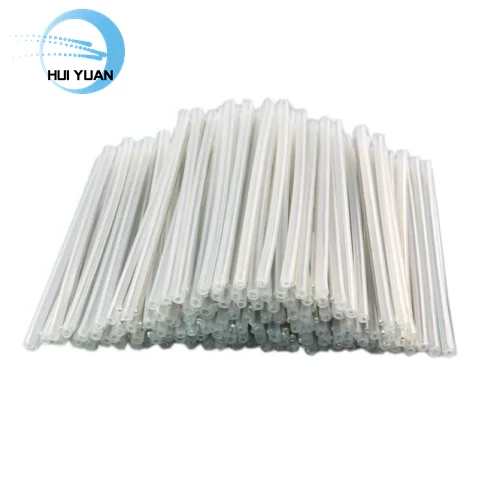

20mm micro Long Single Core Fiber Optical Splicing Protection Heat Shrink Sleeve
- Category: >>>
- Supplier: Fuzhou Huiyuan Communication Equipment Co. Ltd.
Share on (1600557876778):
Product Overview
Description
Product Description
Description
GH Mini- and Micro-size Fiber Optic Fusion Splice Protection Sleeves are designed to fit smaller areas for fiber optic splice
storage.Micro Sleeves will only accommodate 250um coated optical fibers and have after-shrink diameter of 1.2mm,Mini Sleeves will accommodated 900um or 250um coated optical fibers and have after-shrink diameter of 2.0m.
storage.Micro Sleeves will only accommodate 250um coated optical fibers and have after-shrink diameter of 1.2mm,Mini Sleeves will accommodated 900um or 250um coated optical fibers and have after-shrink diameter of 2.0m.
Fusion splice protection sleeves provide vital protection at the fused juncture between too fusion spliced optical fibers.In
addition to providing a substitute for the original fiber optic cable jacket,splice protection sleeves provide a degress of
rigidity that prevents the spliced area from bending or flexing.
addition to providing a substitute for the original fiber optic cable jacket,splice protection sleeves provide a degress of
rigidity that prevents the spliced area from bending or flexing.
Main features
Specification
Shrinking Temperature（℃） | 90 ~ 130 |
Radial Shrinking Rate (%) | >50 |
Axial Shrinking Rate (%) | <10 |
Low Temperature Property | No crackle at -55℃ lasting 4 hours |
Normal Operation Temperature（℃） | -55℃~ +135℃ |
Normal Operature Relative Humidity | ≤95% |
Spark-over Strength (kV/mm) | ≥20 |
Tensile Strength (Mpa) | 20 |
Loss at -40℃ | 0.03dB |
Loss at +60℃ RH95% | 0.01dB |
Inner Lining: Ethy Vinyl Acetate (EVA): | melts at 65℃ |
Single type sleeve materials
Description | Material | Color |
Outer Tubing | Polyolefin | Clear |
Inner Tubing | EVA | Clear |
Reinforce Steel Rod | SUS | N/A |
Single Fiber Splice Protection Sleeve
Outer tube | Outer diameter | 1.5mm±0.1 | ||
Thickness | 0.2±0.05 | |||
Length | 20.0±1 | |||
Material | Flexible Polyolefin | |||
Inner tube | Inner Diameter | 0.7±0.1 | ||
length | 19.0±1 | |||
Thickness | 0.12±0.05 | |||
Material | EVA | |||
Steel bar | Diameter | 0.5±0.05 | ||
Length | 19.0±0.25 | |||
Meterial | 302 stainless steel rob | |||
Splicing finished diameter | 1.2±0.1 | |||
Operating temperature | -55℃ to+135℃ | |||
Material Used Conform to: MIL-1-23053/5 Class 1 and 3 | ||||
