new wheel loader 4 ton 2.4m3 LW200KV high quality

Share on:


Price:$22,000.00 - $26,000.00
Price in USD:Details

Quantity:


Product Overview

Description



Product Description

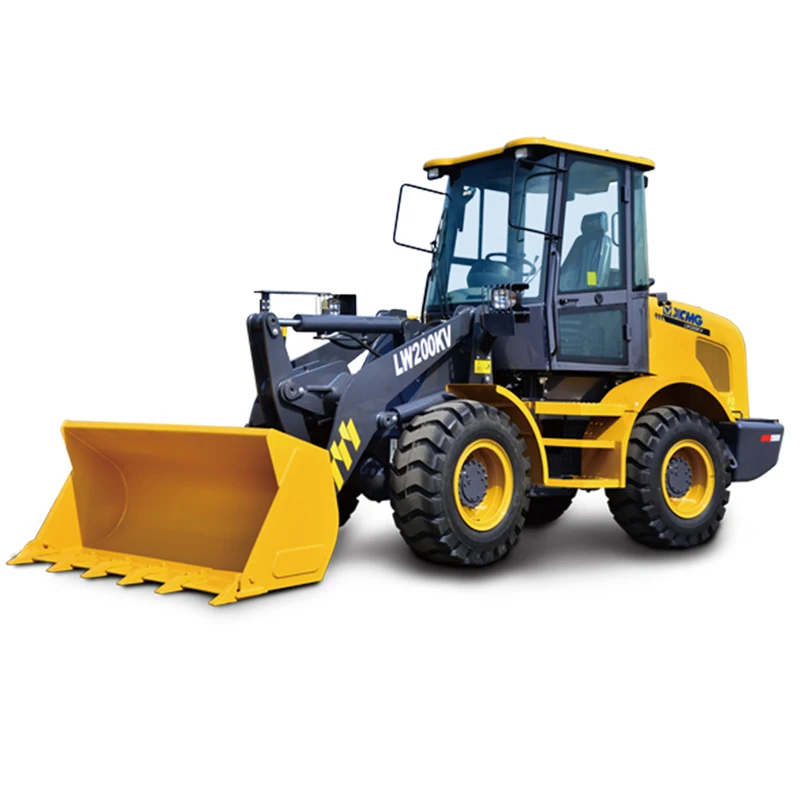

The LW200KV tire loader is based on the comprehensive upgrade of product emission, reliability, comfort, and convenience of maintenance. It further enhances the power of the whole machine, and the whole machine is more powerful and powerful. The configuration of LW200KV serialized work equipment (standard arm, high unloading arm) and auxiliary equipment (quick change bucket, fork, clamp clamp, clamp clamp, etc.) meet the requirements of different users' working conditions.

1. The model features a long wheelbase (2300mm) design to adapt to all types of overweight conditions, leading the industry in stability.


2. Digging force (LW200KV digging force ≥58kN), strong breaking force, light weight of various materials.


3. Fast and efficient, driving speed up to 28km / h, the industry's best.


4. People-oriented design ensures safety, reduces fatigue and creates an excellent operating environment for you.


5. Can be configured hydraulic pilot, FOPS and ROPS cab, air conditioning, audio, etc., comfortable operation, driving safety.


6. International small package mainstream design, large arc cab glass, streamlined hood, fender, in line with the aesthetic appearance of high-end users.


7. Engineering version of the small loader main engine, the national III emissions. The horsepower is strong and the torque reserve coefficient is large. It can meet the instantaneous overload requirements during the construction process and fully provide the power required for heavy-duty and heavy-duty operations.























































































































Description


Specification


Unit


Rated operating load


2000


kg


Bucket capacity


1




Machine weight


6400


kg


Dump clearance at maximum lift


2580


mm


Reach at maximum lift


960


mm


Wheel base


2300


mm


Tread


1490


mm


Max. breakout force


56


Kn


Max. horse power


45


Kn


Hydraulic cycle time-raise


5


s


Total hydraulic cycle time


9


s


Min. circle radius over outside bucket


5100


mm


Min. turning radius over tyres


4450


mm


Articulation angle


35


°


Gradeability


28


°


Tyre size


16/70-20



Overall machine dimension LxWxH


5950x1960x2550


mm


Engine Model


LR4B3ZU-G73X3QR-U3



Rated power/Speed


66.2/2400


Kw/rpm


Travel speed


I-gear(F/R)


10


km/h


II-gear(F/R)


28


km/h








LW200KV (1).jpgLW200KV (2).jpgLW200KV (3).jpgLW200KV (4).jpg1.jpg





company




1








.jpg





 FAQ


1.What are your advantages compared with other suppliers and manufacturers?
High quality:
As a professional and reliable supplier, we are experienced in the QualityInspection and Control.Every product will be strictly
inspected before it is delivered to our customers.


Competitive price:
We are so glad to provide the most favorable prices for our customers. And the prices are negotiable by which a win-win result
could be achieved.


2. Which payment terms are available us ?
T/T terms or other. On T/T term, 30% down payment is required in advance, and 70% balance shall be settled before shipment.


3. How long with the delivery?
Normally it takes about 20 days.


4. How about service?
24 hours online, and skype/QQ/wechat/whatsapp so on
5. Whats pareparts can you supply?
All kinds of spare parts of Hitachi Komatsu Cat Sumitomo Kobelco Doosan XCMG
,Zoomlion, Sany, Shantui,,Lugong,Sdlg,XGMA,CUMMINS ENGINE,etc.
