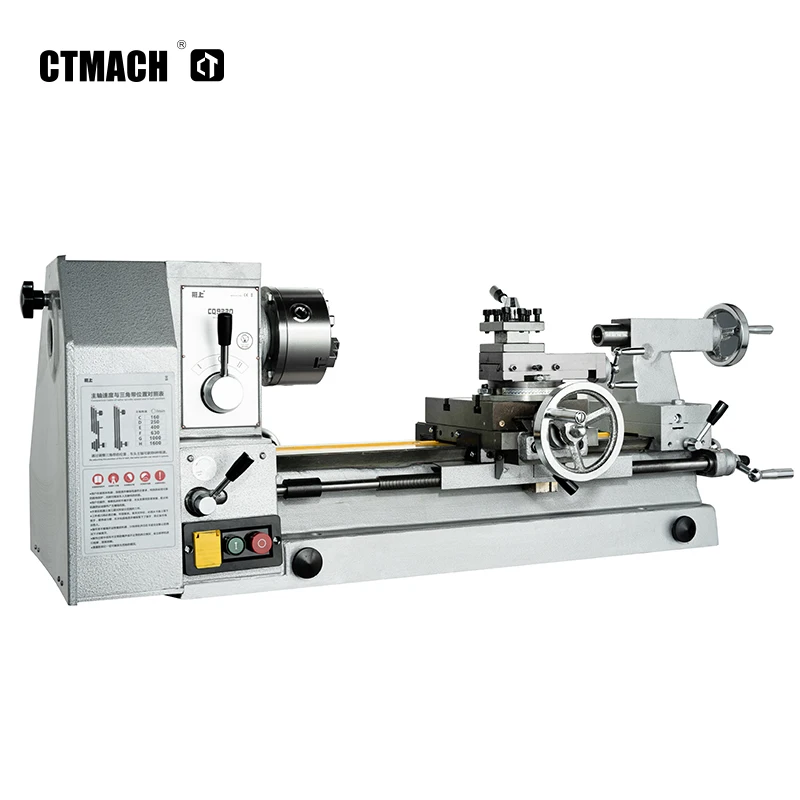

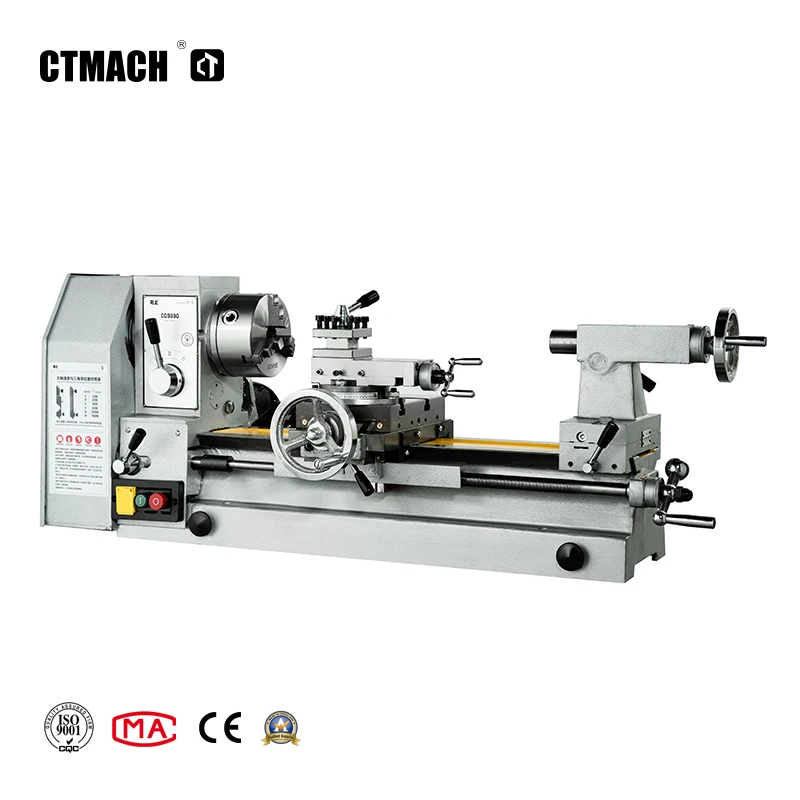

Factory direct CQ9330 small metal bench lathe machine mini bench lathe used
- Category: >>>
- Supplier: Anhui Sinsun Electronic Commerce Co. Ltd
Share on (1600558041830):
Product Overview
Description
SIMILAR PRODUCTS
CQ9330 Gearbox Metal Light Bench Lathe
◆Most economical,widely useful light hobby bench lathe .
◆ Spindle is supported by high quality tapered roller bearing.
◆ Automatic feed and threading are fully interlocked.
◆ Tailstock may be offset for turning tapers .

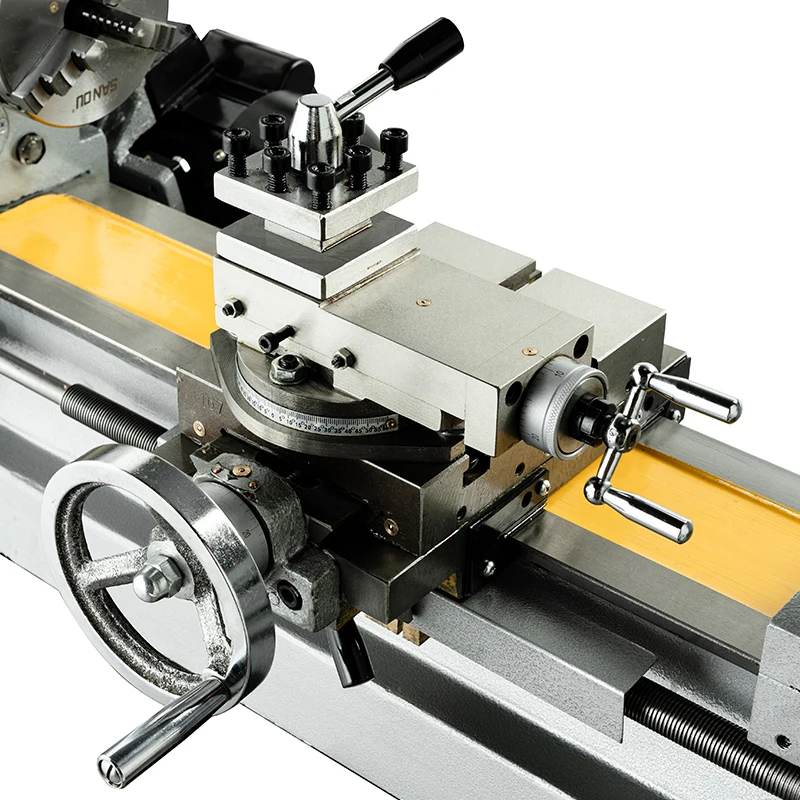

◆Adjustable gibs for slide ways.

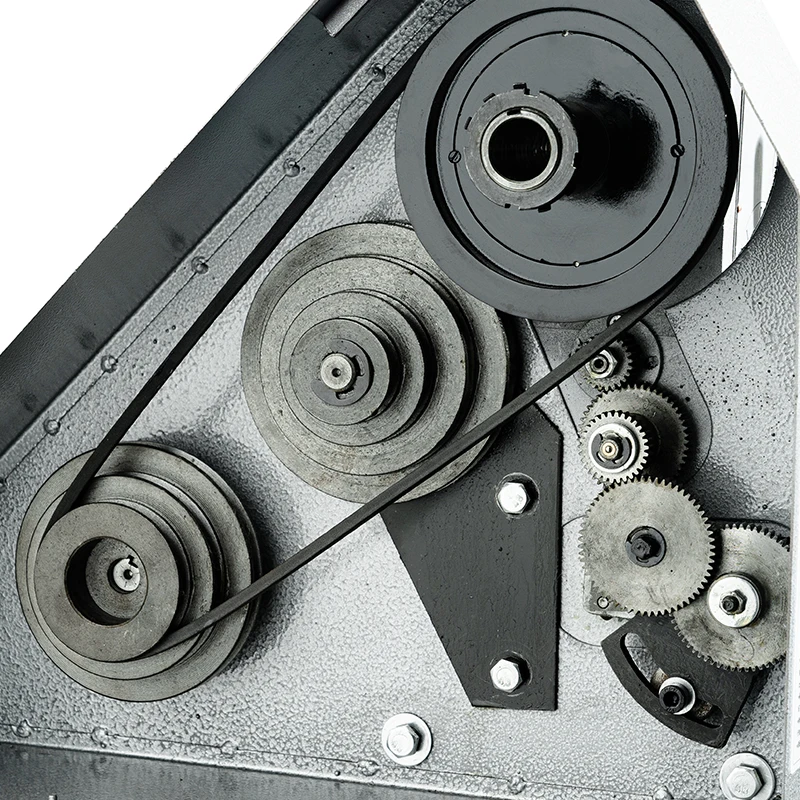

◆ Change gear has large feed and threading functions.
◆ Large Spindle bore(MT4)
◆ Spindle is supported by high quality tapered roller bearing.
◆ Automatic feed and threading are fully interlocked.
◆ Tailstock may be offset for turning tapers .
◆Adjustable gibs for slide ways.
◆ Change gear has large feed and threading functions.
◆ Large Spindle bore(MT4)
PRODUCT SPECIFICATIONS
Swing Over Bed | 300mm |
Swing Over Cross Slide | 140mm |
Distance Between Centers | 500mm |
Spindle Taper | MT4 |
Spindle Bore | 26mm |
Tailstock Sleeve Travel | 50mm |
Tailstock Taper | MT3 |

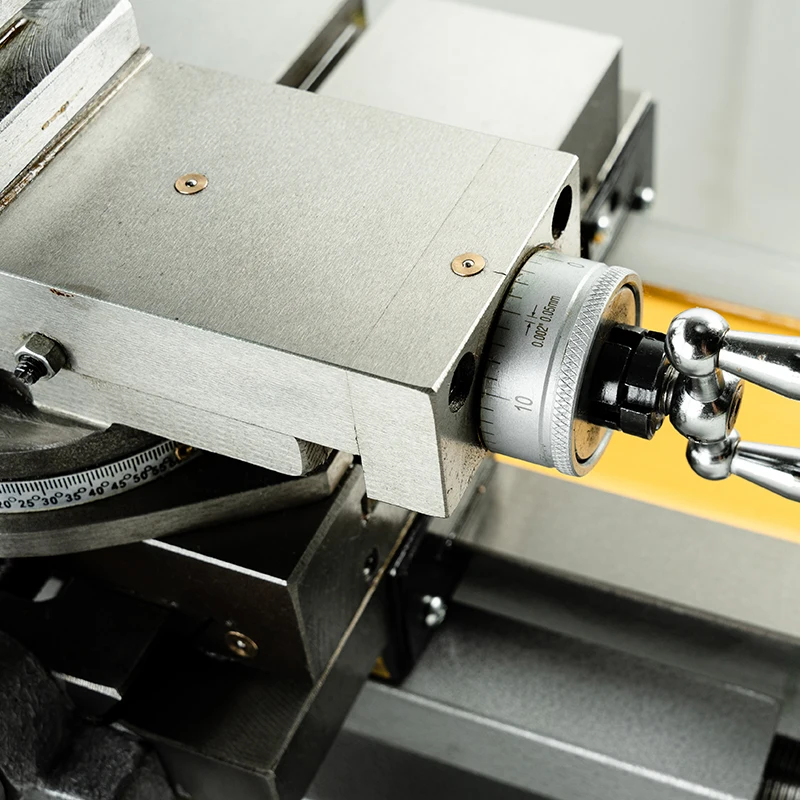

Middle Carriage Travel | 200mm |
Small Carriage Travel | 80mm |
Metric Threads (Grade) | 0.5-3.0mm (14) |
Inch Threads (Grade） | 11-40 TPI (20) |
Longitudinal Feed | 0.075, 0.15mm/r |

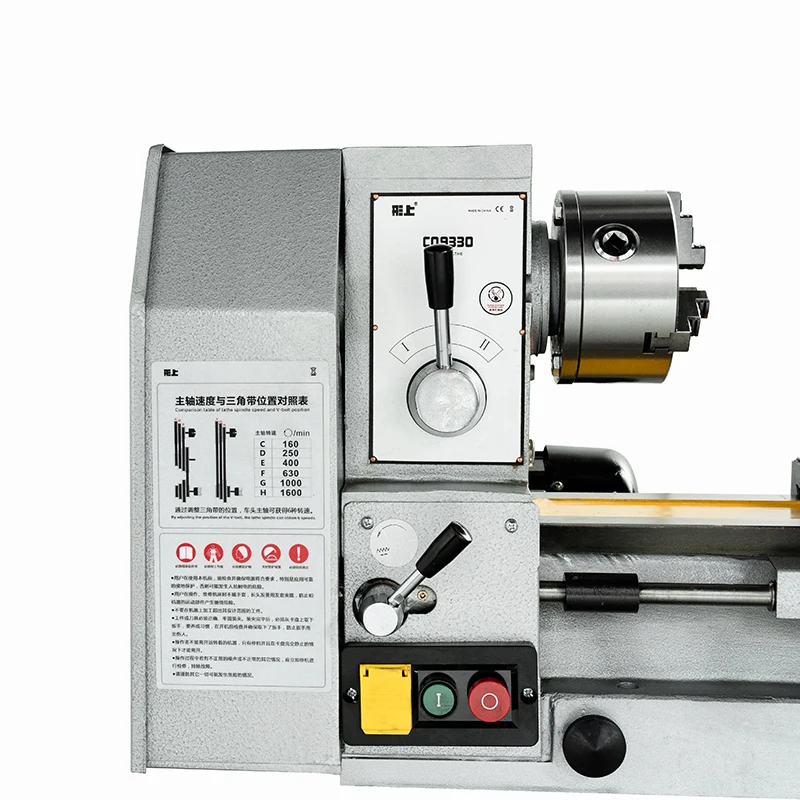

Spindle Speeds | 160-1600RPM (6) |

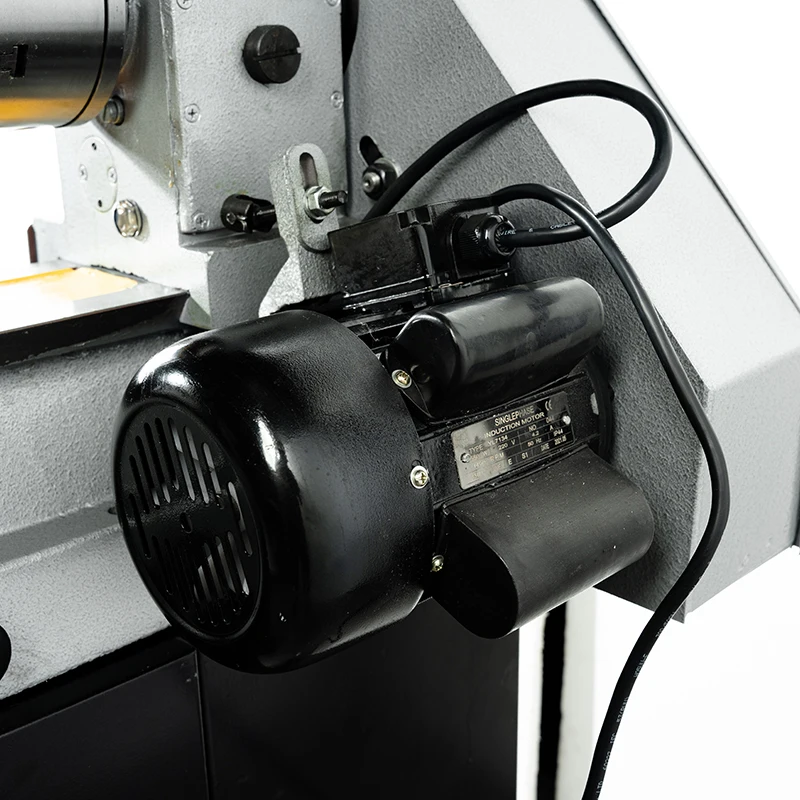

Motor Power | 550w |
N.W. | 145kg |
Overall Dimensions | 1060*540*400mm |
FEATURES AT A GLANCE

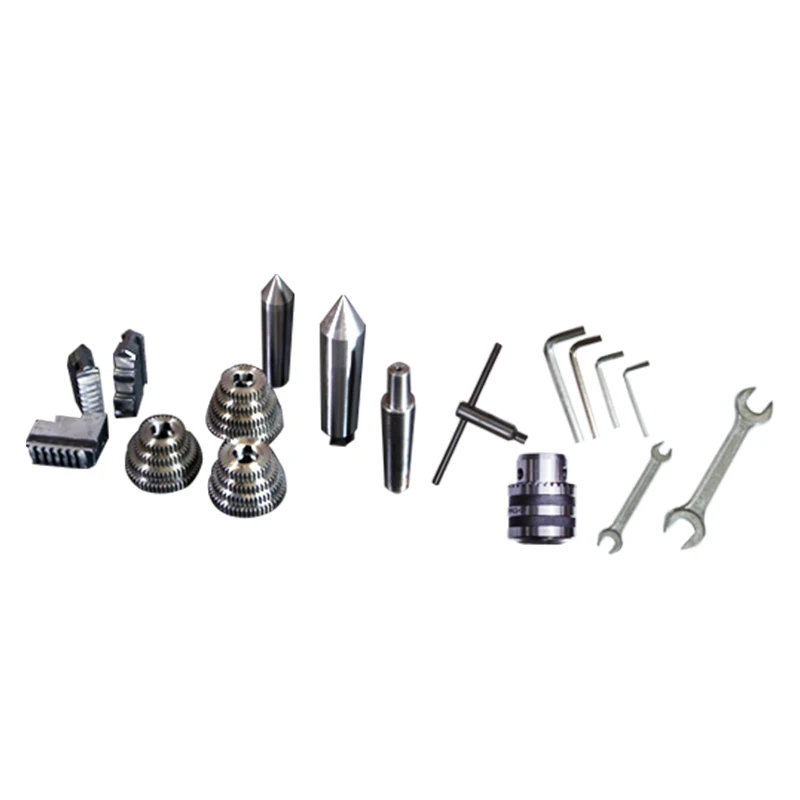

Product Acessories
SALES AND SERVICE NETWORK
Products are exported to more than 30 countries and regions in the world
EU CE standard, safe and reliable
ISO9001 quality system certification
EU CE standard, safe and reliable
ISO9001 quality system certification
Company Profile
FAQ
Q.What are your normal lead times?
A.Our company typical lead times range from 3-20days after receipt of order.
Q.What are the terms of payments you offer?
A.We accept payment of T/T, L/C, and Western Union, cash, OlA etc.
Q.what kind of package do you offer?
A.Normally in plywood case, to make sure all goods in good condition.
Q.What is the MOQ for your production?
A.The MOQ depends on your requirements for color, logo and so on.For some normal items, we have in stock, the MOQ is 1 set.
Q.Do you have CE certification？
A.Yes, we have CE certification, machine quality is one year guaranteed.
Q.How to control the quality of the products?
A.We have always placed great emphasis on the quality level is maintained.Moreover,the principle we always maintain is "to provide customers better quality, better price,and better service".
A.Our company typical lead times range from 3-20days after receipt of order.
Q.What are the terms of payments you offer?
A.We accept payment of T/T, L/C, and Western Union, cash, OlA etc.
Q.what kind of package do you offer?
A.Normally in plywood case, to make sure all goods in good condition.
Q.What is the MOQ for your production?
A.The MOQ depends on your requirements for color, logo and so on.For some normal items, we have in stock, the MOQ is 1 set.
Q.Do you have CE certification？
A.Yes, we have CE certification, machine quality is one year guaranteed.
Q.How to control the quality of the products?
A.We have always placed great emphasis on the quality level is maintained.Moreover,the principle we always maintain is "to provide customers better quality, better price,and better service".
