SQM 1L Samy High Energy Small Lab Grinding planetary Ball Mill
- Category: Chemical Machinery & Equipment >>>
- Supplier: Changsha,Samy,Instrument,&,Equipment,Co.,Ltd.
Share on:
Product Overview
Description

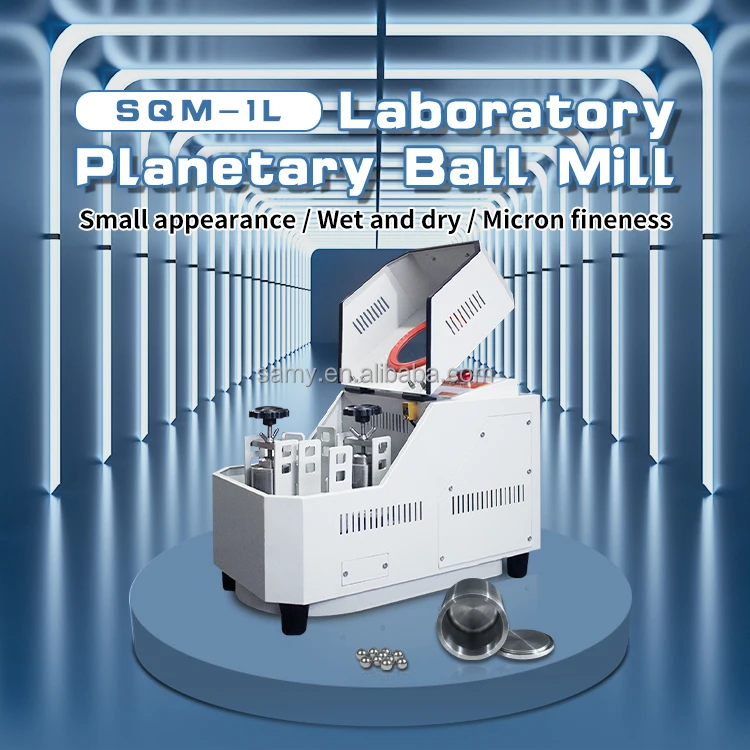

SQM-1L Samy High Energy Small Lab Grinding planetary Ball Mill
Technical Parameters
Name | SQM-1L Samy High Energy Small Lab Grinding planetary Ball Mill |
Capacity | 250ml * 4 = 1000ml = 1L |
Style | Planetary |
Transmission mode | Gear drive |

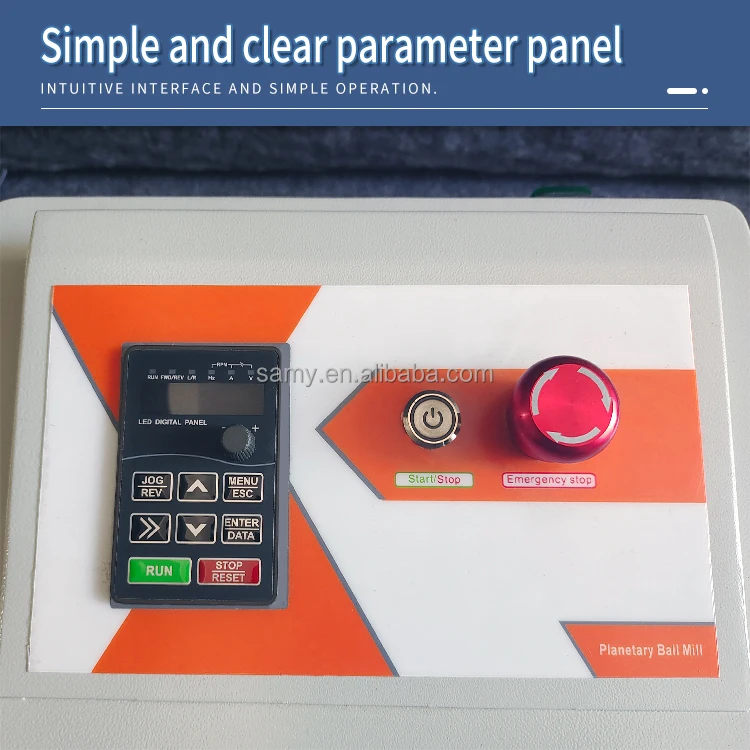

Speed control mode | Frequency conversion speed regulation |
Speed rate(r/min) | 2:1 |
Revolution speed(r/min) | 30-400 |
Rotation speed(r/min) | 60-800 |
Power supply | 220V 50HZ |
Rated power(W) | 550 |
Run time(h) | 0-9999 |
Feed particle size(mm) | <15mm, hard material <3mm |
Grain size(μm) | <0.1μm |
Net Weight | 40KG |
Product Description
Introduction
SQM-1L planetary ball mill is an essential device for mixing, fine grinding, sample preparation, nano-material dispersion, new product development and small batch production of high-tech materials.

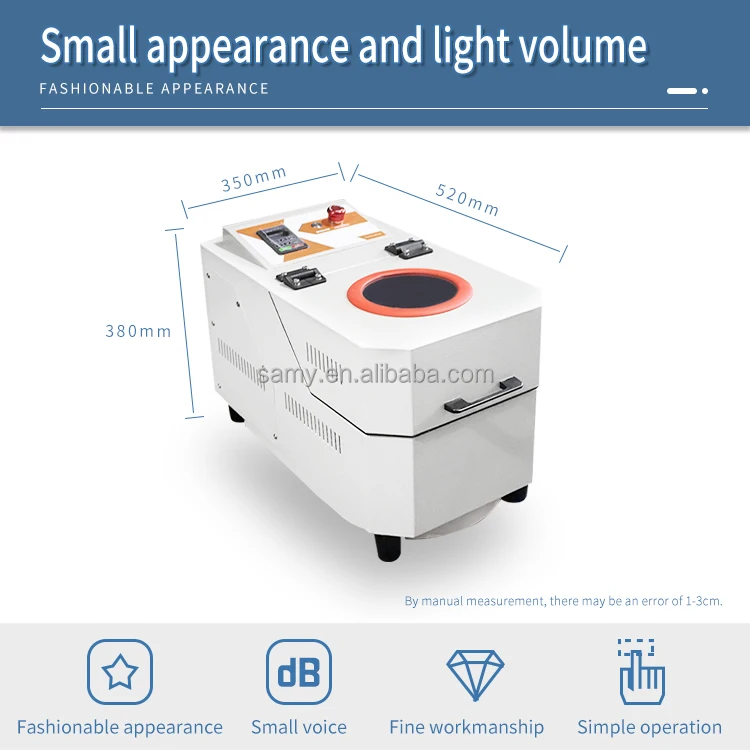

This product is small in size, full in function, high in efficiency and low in noise.
Features

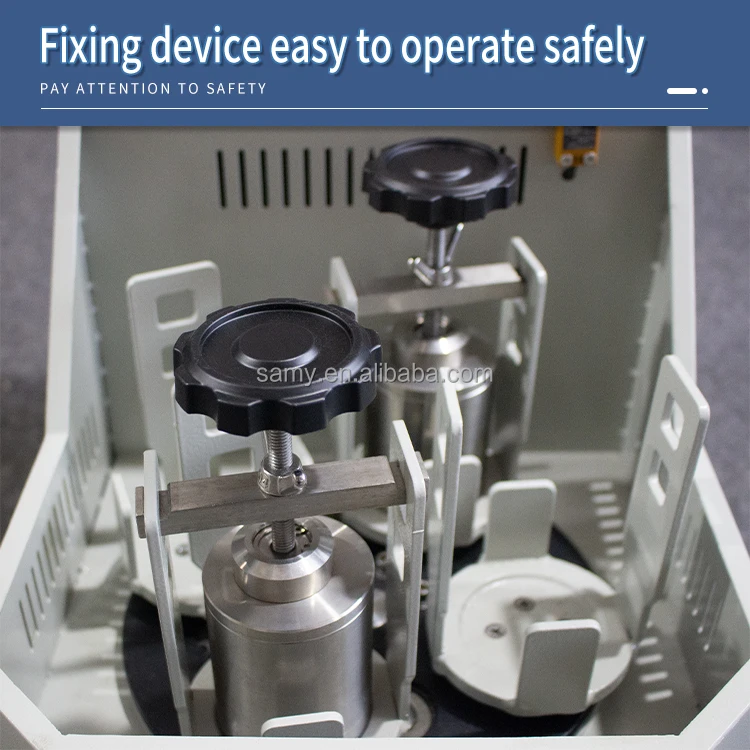

1. The compression rod assembly adopts 304 stainless steel, which is anti corrosive and durable.
2. Safety door design. Open the door cover and automatically stop the machine.
3. Visible window for convenient observation of machine operation.
Working mode
Two or four ball milling tanks work at the same time maximum sample loading: 2/3 of the volume of ball milling tanks. Feed tension: soil material ≤10 mm. Other materials ≤3 mm. Discharge particle size: the minimum can reach 0.1 um (i.e. 1.0 x 10 mm-4).
Grinding Media

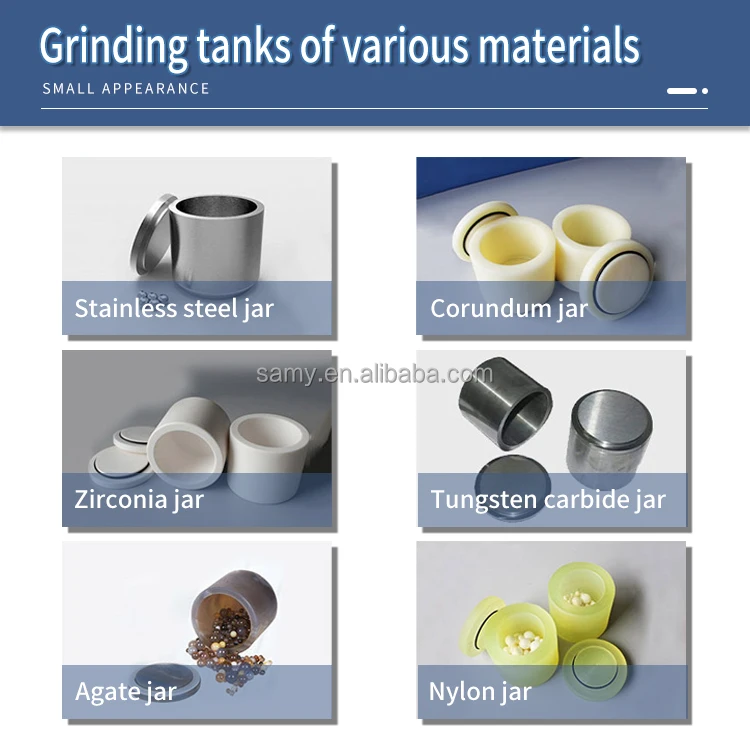

The grinding jars for your optional, we have stainless steel jars, zirconium jars, agate jars, ceramic jars, nylon jars, tungsten carbide jars, PU jars, etc. The SQM-1L planetary ball mill jars suitable for the capacity from 100 ml to 250 ml, so you can select the correct jars capacity before confirm the order.
Related Products
Company Profile
Why We Choose Samy?
1. Established in 2010, we have 10 years' experience and certificates like CE, ISO13485, ISO9001 and IEC61010.2. Our products are of high quality and cheap prices.
3. Multiple models of ball mills with accessories. There must be one that can meet your needs.
4. Working videos provided.
5. Professional team from production to sale. Sales team 24 hrs online.
6. High reputation among customers worldwide.
7. We have distributors in some countries.
8. Fast delivery within 15 days. Always have products in stock.
9. Accept customer logo customization when amount meets.
10. 12 months' warranty.
5. Professional team from production to sale. Sales team 24 hrs online.
6. High reputation among customers worldwide.
7. We have distributors in some countries.
8. Fast delivery within 15 days. Always have products in stock.
9. Accept customer logo customization when amount meets.
10. 12 months' warranty.
Our Service
Warranty
12 months.
Technical Support
1. Technical support by phone, email or WhatsApp or Wechat or Skype around the clock.
2. Friendly English version manual and operation video.
After sales services
* Free training advice towards our machine in our factory.
* Free suggestion and consultation, technical support and service by email/fax/tel and lifetime technical support.
12 months.
Technical Support
1. Technical support by phone, email or WhatsApp or Wechat or Skype around the clock.
2. Friendly English version manual and operation video.
After sales services
* Free training advice towards our machine in our factory.
* Free suggestion and consultation, technical support and service by email/fax/tel and lifetime technical support.
Payment Terms
Packing and Delivery
FAQ
1. Q: What's the planetary ball mill used for?
A: The planetary ball mill is used for powder fine grinding, our SQM-1L planetary ball mill is small and low noise, very suitable for laboratory small amount grinding experiments.
A: The planetary ball mill is used for powder fine grinding, our SQM-1L planetary ball mill is small and low noise, very suitable for laboratory small amount grinding experiments.
2. Q: What's production capacity of the machine?
A: The SQM-1L ball mill can take max four 250ml regular jars and 100ml vacuum jars. You can also place just 2 jars diagonally for regular jars.
3. Q: What are the material of grinding jars and balls?

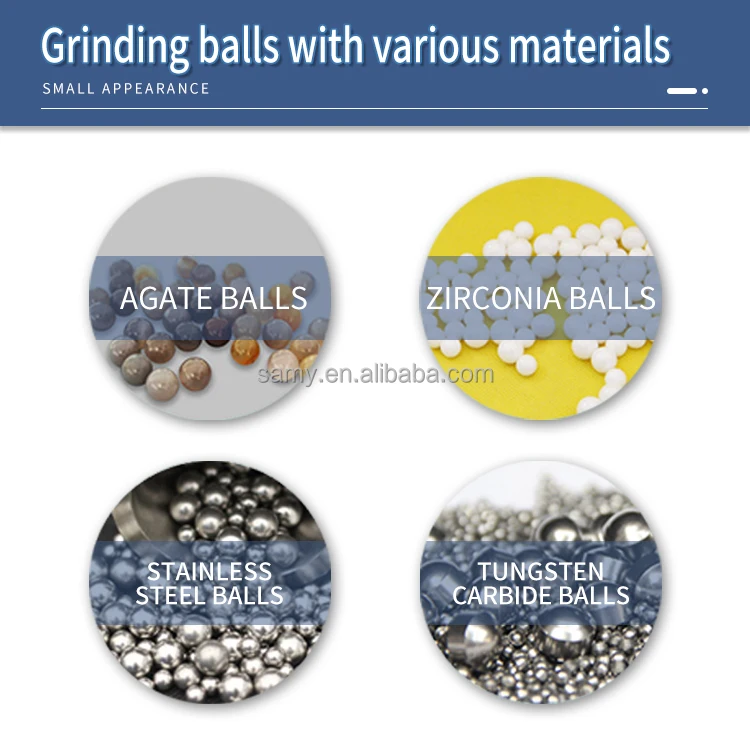

A: We have many kinds of materials according to your sample features, like stainless steel, zirconia, agate, alumina, tungsten carbide, PTFE, polyurethane, etc.
4. Q: Do you have MOQ request?
A: We are accept MOQ as 1 set.
5. Q: What are the payment terms?
A: You can pay through Alibaba, T/T, Western Union, MasterCard, credit card, PayPal, etc.
6. Q: What kind of package for the machine?
A: We have special bubble bags for inside protection, and export wooden case for outside packing.
7. Q: How many days can you deliver?
A: We can deliver within 7 workdays after we got the payment.
SQM-1L Samy High Energy Small Lab Grinding planetary Ball MillA: The SQM-1L ball mill can take max four 250ml regular jars and 100ml vacuum jars. You can also place just 2 jars diagonally for regular jars.
3. Q: What are the material of grinding jars and balls?
A: We have many kinds of materials according to your sample features, like stainless steel, zirconia, agate, alumina, tungsten carbide, PTFE, polyurethane, etc.
4. Q: Do you have MOQ request?
A: We are accept MOQ as 1 set.
5. Q: What are the payment terms?
A: You can pay through Alibaba, T/T, Western Union, MasterCard, credit card, PayPal, etc.
6. Q: What kind of package for the machine?
A: We have special bubble bags for inside protection, and export wooden case for outside packing.
7. Q: How many days can you deliver?
A: We can deliver within 7 workdays after we got the payment.
SQM-1L Samy High Energy Small Lab Grinding planetary Ball Mill
SQM-1L Samy High Energy Small Lab Grinding planetary Ball Mill
