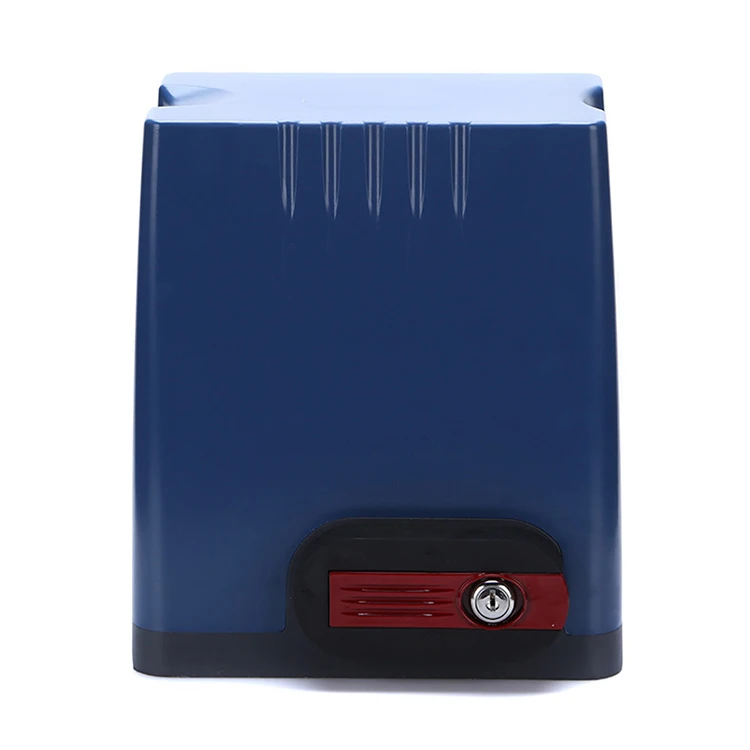

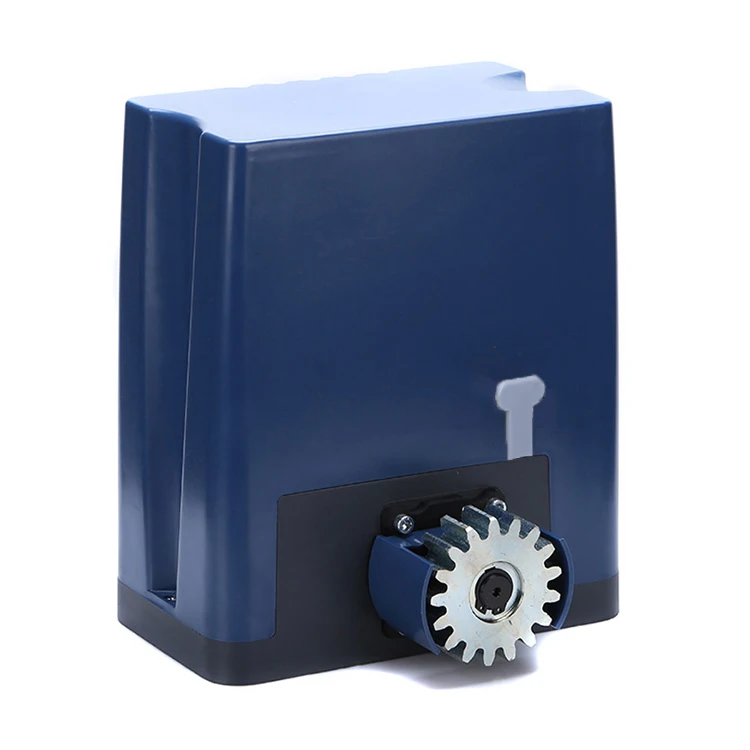

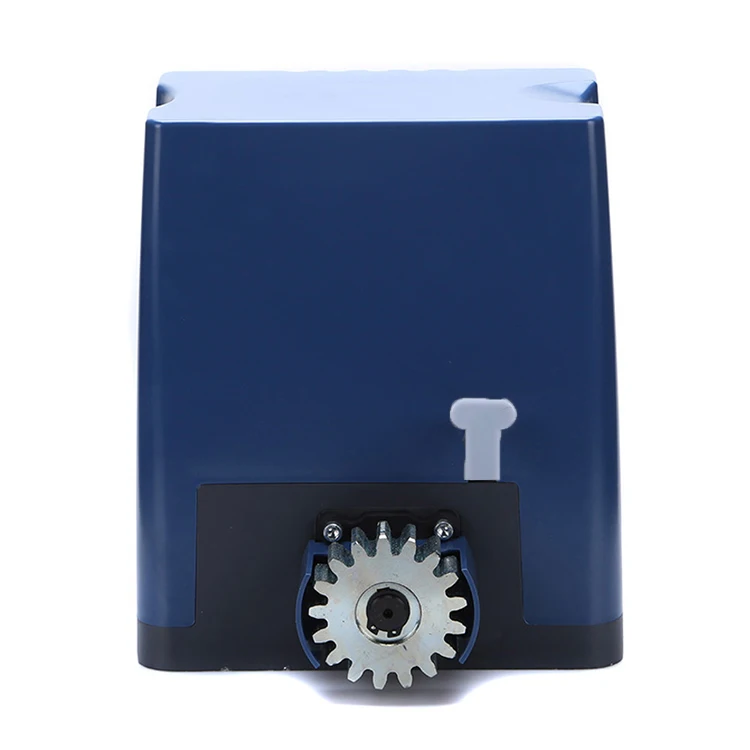

DKC800DC Gear Driven 800kg DC Motor Residential Remote Control Automatic Door Opener / Sliding Door Motor/ Gate operator
DKC800DC Gear Driven 800kg DC Motor Residential Remote Control Automatic Door Opener / Sliding Door Motor/ Gate operator
DKC800DC Gear Driven 800kg DC Motor Residential Remote Control Automatic Door Opener / Sliding Door Motor/ Gate operator
DKC800DC Gear Driven 800kg DC Motor Residential Remote Control Automatic Door Opener / Sliding Door Motor/ Gate operator
DKC800DC Gear Driven 800kg DC Motor Residential Remote Control Automatic Door Opener / Sliding Door Motor/ Gate operator
DKC800DC Gear Driven 800kg DC Motor Residential Remote Control Automatic Door Opener / Sliding Door Motor/ Gate operator
DKC800DC Gear Driven 800kg DC Motor Residential Remote Control Automatic Door Opener / Sliding Door Motor/ Gate operator

DKC800DC Gear Driven 800kg DC Motor Residential Remote Control Automatic Door Opener / Sliding Door Motor/ Gate operator

Share on (1600558249496):


Price:$95.00 - $114.00

Quantity:


Product Overview

Description



Products Description


* DC24V motor with built-in control unit
* Optional connect backup battery
* Solar system compatible
* Keypad/single button interface
* Alarm lamp, photo beam and safety beam interface
* User can select auto-close function
* Soft start and slow stop(smart version, optional)
* Auto-reverse function when hitting obstacle during closing(smart version, optional)
* Manual key release design for emergency power failure




Product display




Functions & Features


1. The DKC500DC/DKC800DC gate opener designed for residential use, weight up to 500/800 Kg and operating distance up to 8 meters.
2. Compact structure, novel appearance, easy installation.

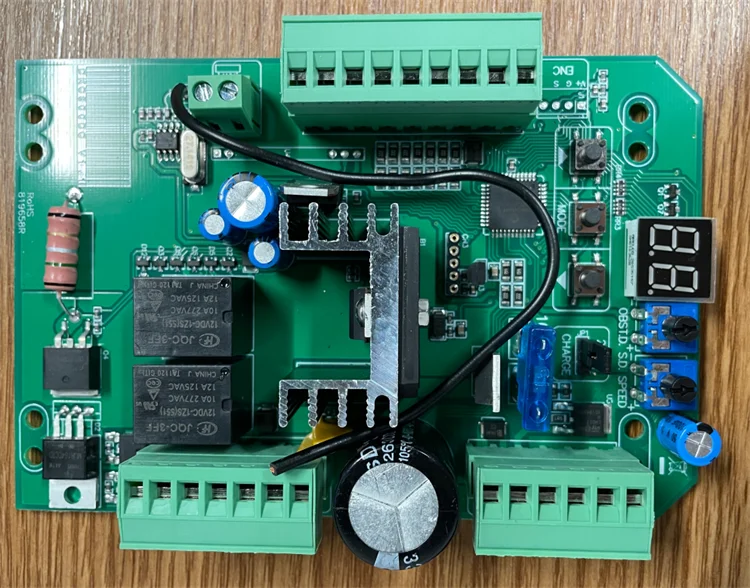

3. Built-in control board, optional for backup battery and solar charger.
4. MCU is supplied to control the gate opener.
5. Keypad / single button interface.
6. Alarm lamp, Photo beam & safety beam interface.
7. User can select auto-close function.
8. Magnetic limit switch, soft start & slow stop function.
9. Manual key release design for emergency purposes.
10. Automatic stop when hitting obstacle during opening, auto-reverse when hitting obstacle during closing.
11. Solar System compatible




Product Specs


Unit Model
DKC500DC
DKC800DC
Power Supply
220V,50Hz;110V,60Hz; DC24V

Max. Gate Weight
500KG
800KG
Motor Power
DC24V,150W
DC24V,170W
Gate Moving Speed
13 m/min
18 m/min
Limit Switch
Magnetic limit switch

Recording of up Remotes
44

Decoding / Frequency
Rolling code / 433.92MHz

Work Duty
S2 20min

Noise
≤58dB

Work Temperature
-20°C~70°C

Gross Weight
11 KG


Product dimension




Product packaging




Case reference




Our Company



SHENZHEN SINOMATIC TECHNOLOGY CO, LIMITED, locates in Shenzhen China, is a high-tech enterprise integrating R&D, production and sales.

Main product lines include: Pedestrian access control turnstile, Vehicle barrier gate, hydraulic road bollard and blocker, Automatic gate operator etc.

Our products are widely used in places wherever access control is needed, such as government organs, army, schools, hospital, airports, terminals, tourist attractions, parking lot.

So far, company products have been exported to more than 100 countries, like Italy, Germany, UK, Spain, Russia, Canada, Mexico, Brazil, UAE, India, Malaysia, Singapore, Thailand, South Africa, Nigeria, Kenya etc.

Stable function and excellent performance is the product R&D purposes. Offering most affordable price to customers is the product design concept. Our goal is to establish a win-win situation and long-term cooperation relationship with all our customers and partners.
