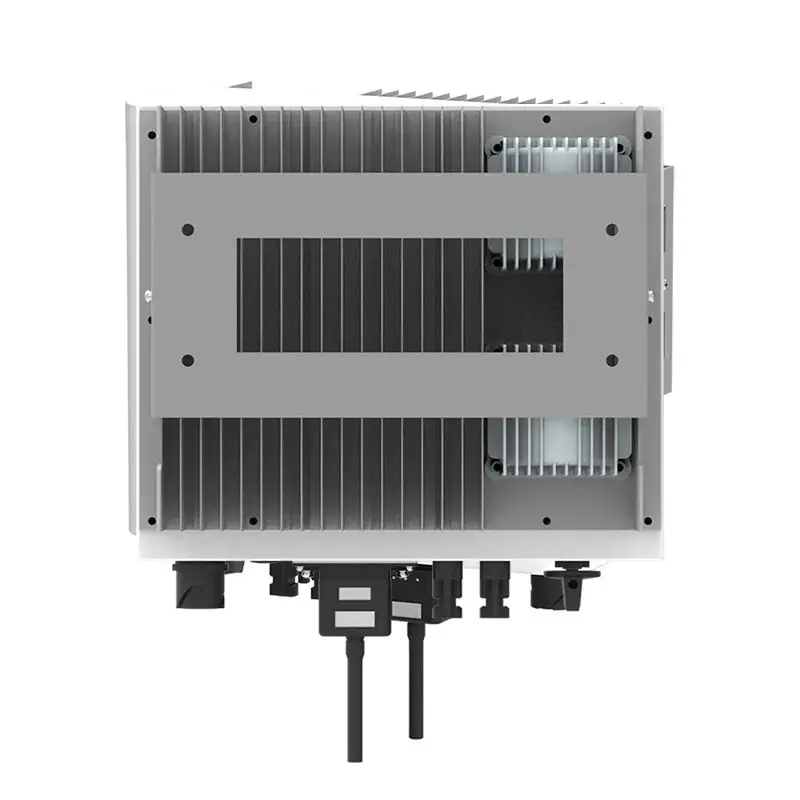

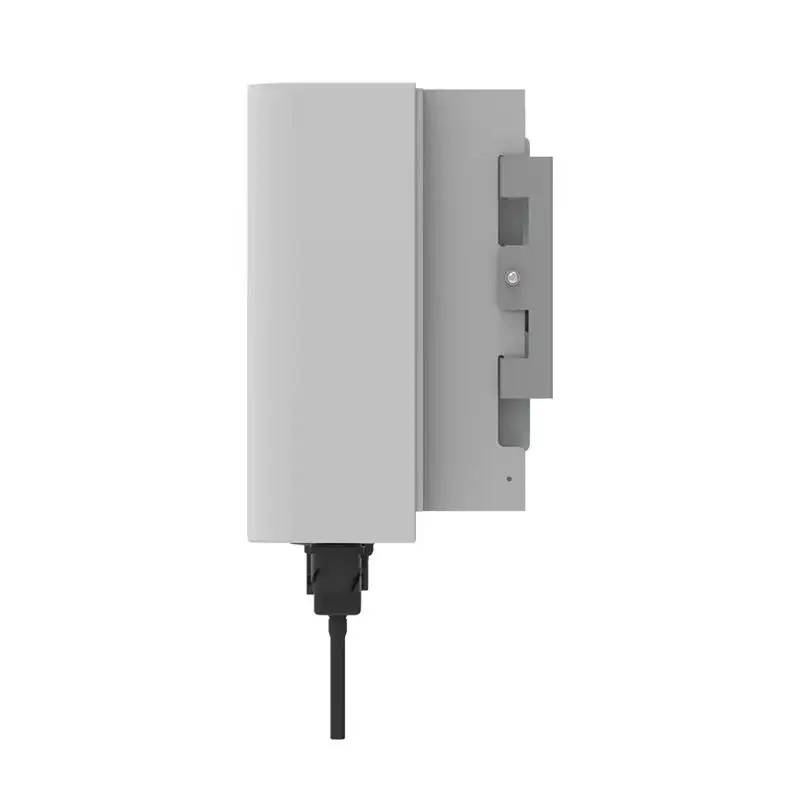

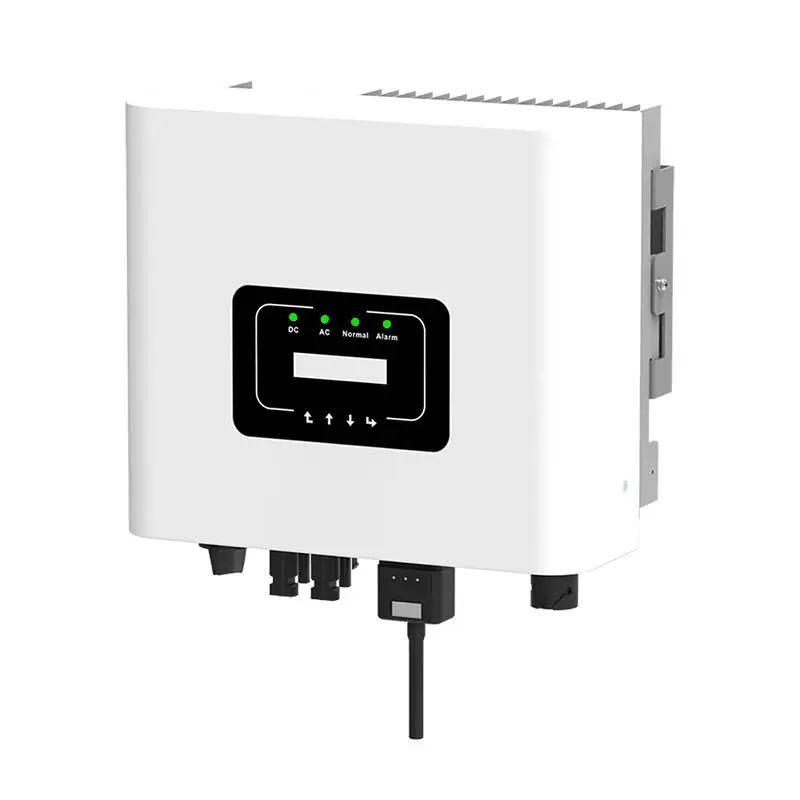

  • Deye on grid inverter SUN 3.6KW 4KW 4.6KW 5KW 6KW G04 EU standard single phase Deye on grid solar inverter
Deye on grid inverter SUN 3.6KW 4KW 4.6KW 5KW 6KW G04 EU standard single phase Deye on grid solar inverter
Deye on grid inverter SUN 3.6KW 4KW 4.6KW 5KW 6KW G04-EU standard single-phase Deye on grid solar inverter
Deye on grid inverter SUN 3.6KW 4KW 4.6KW 5KW 6KW G04-EU standard single-phase Deye on grid solar inverter
Deye on grid inverter SUN 3.6KW 4KW 4.6KW 5KW 6KW G04-EU standard single-phase Deye on grid solar inverter
Deye on grid inverter SUN 3.6KW 4KW 4.6KW 5KW 6KW G04-EU standard single-phase Deye on grid solar inverter
Deye on grid inverter SUN 3.6KW 4KW 4.6KW 5KW 6KW G04-EU standard single-phase Deye on grid solar inverter
Deye on grid inverter SUN 3.6KW 4KW 4.6KW 5KW 6KW G04-EU standard single-phase Deye on grid solar inverter

Deye on grid inverter SUN 3.6KW 4KW 4.6KW 5KW 6KW G04 EU standard single phase Deye on grid solar inverter

Share on (1600558301433):


Price:$368.00 - $488.00

Quantity:


Product Overview

Description



Product Description


Deye Single Phase String Inverter
SUN-3.6/5/6-G | 3.6-6KW | Single Phase | 2 MPPT | Single Inverter




1. 2MPP tracker, Max. efficiency up to 97.5%
2. Zero export application,VSG application
3. String intelligent monitoring (optional)
4. Wide output voltage range
5. Anti-PID function(Optional)


Specification


Model
SUN-3.6K-G
SUN-5K-G
SUN-6K-G
Input Side
Max. DC Input Power (kW)
4.7
6.5
7.8
Max. DC Input Voltage (V)
550


Start-up DC Input Voltage (V)
80


MPPT Operating Range (V)
70~500


Max. DC Input Current (A）
13+13

Max. Short Circuit Current (A)
19.5+19.5

Number of MPPT / Strings per MPPT
2/1+2


Inverter output



Rated Output Power (kW)
3.6
5
6
Max. Active Power (kW)
3.96
5.5
6.6
Nominal Output Voltage / Range (V)
L/N/PE 220V/0.85Un-1.1Un, 230V/0.85Un-1.1Un (Optional)


Rated Grid Frequency (Hz)
50 / 60 (Optional)


Operating Phase
Single phase


Rated AC Grid Output Current (A)
15.7
21.7
26.1
Max. AC Output Current (A)
17.2
23.9
28.7
Output Power Factor
0.8 leading to 0.8 lagging


Grid Current THD
<3%


DC Injection Current (mA)
<0.5%


Grid Frequency Range
47~52 or 57~62 (Optional)


Efficiency



Max. Efficiency
97.5%


Max. Efficiency
97.5%


MPPT Efficiency
>99%


Protection



DC Reverse-Polarity Protection
Yes


AC Short Circuit Protection
Yes


AC Output Overcurrent Protection
Yes


Output Overvoltage Protection
Yes


Insulation Resistance Protection
Yes


Ground Fault Monitoring
Yes


Anti-islanding Protection
Yes


Temperature Protection
Yes


Integrated DC Switch
Yes


Remote software upload
Yes


Remote change of operating parameters
Yes


Surge protection
DC Type II / AC Type II


General Data



Size (mm)
330W×323H×190D


Weight (kg)
7.5


Topology
Transformerless


Internal Consumption
<1W (Night)


Running Temperature
-25~65℃


Ingress Protection
IP65


Noise Emission (Typical)
<25 dB


Cooling Concept
Natural cooling


Max. Operating Altitude Without Derating
2000m


Designed Lifetime
5  years


Grid Connection Standard
CEI 0-21, VDE-AR-N 4105, NRS 097, IEC 62116, IEC 61727, G99, G98, VDE 0126-1-1, RD 1699, C10-11


Operating Surroundings Humidity
0-100%


Safety EMC / Standard
IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2


Features

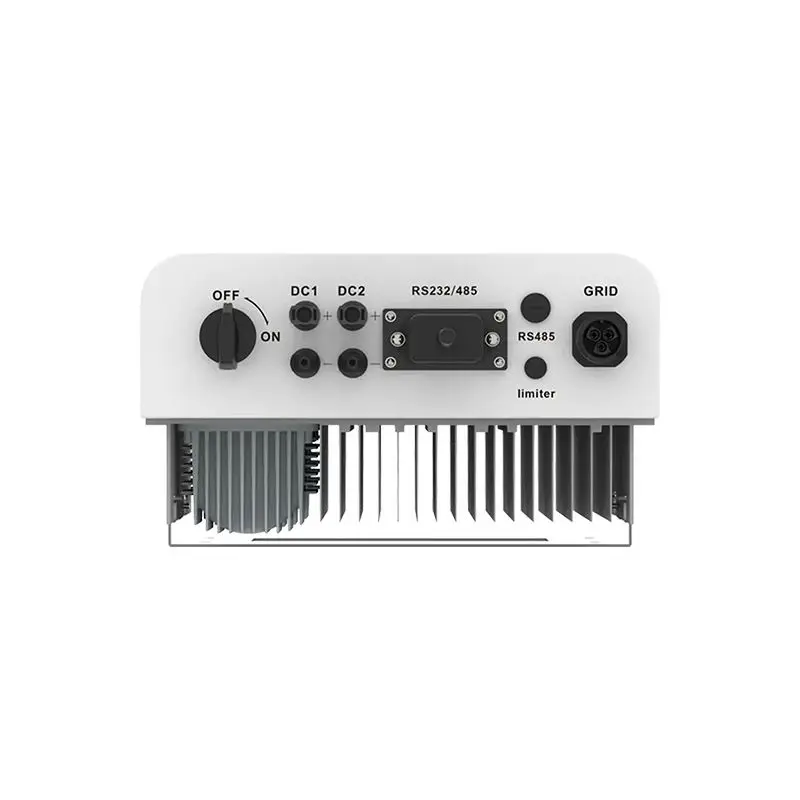

DC Connection
MC-4 mateable


AC Connection
IP65 rated plug


Display
LCD1602


Interface
RS485/RS232/Wifi/LAN




Wiring order & Accessories




Our factory




Ningbo Deye Inverter Technology Co., Ltd is dedicated to providing complete photovoltaic power system solutions, including residential and commercial power plants solutions. Also, Deye offers the right device for each application: for all module types, for grid-connection and stand-alone grids as well hybrid inverter system, for small house systems and commercial systems in the Megawatt range. Among them, PV grid-connected inverter power range from 1.5-110kW, Hybrid inverter 3kW-12kW, and microinverter 300W-2000W.


Why Choose Deye Solar inverters?


1.Deye Solar inverters have been installed in more than 60 countries (e.g. Australia, Brazil, India, the UK, Germany,
Italy,Belgium, Spain, Netherland, France, Vietnam, South Africa, Pakistan, Japan, Korea, China etc.) with currently 9 own
subsidiaries in Shenzhen, Wuxi, Dongguan, Xinyang, Australia, India, Germany, UK and Italy.

2.Your Best Choice For AC Storage Hybrid Solutions and String Inverters

3.All Deye Solar inverters can be found in PV Solar system

4.All Deye Solar inverters and distributors are insured by US CHUBB Insurance corporation company

5.All Deye Solar inverters are equipped with Standard WiFi communication

6.Deye Solar inverters are equipped with 25-year data storage capabiliity (Internal SD Card)


Certificate

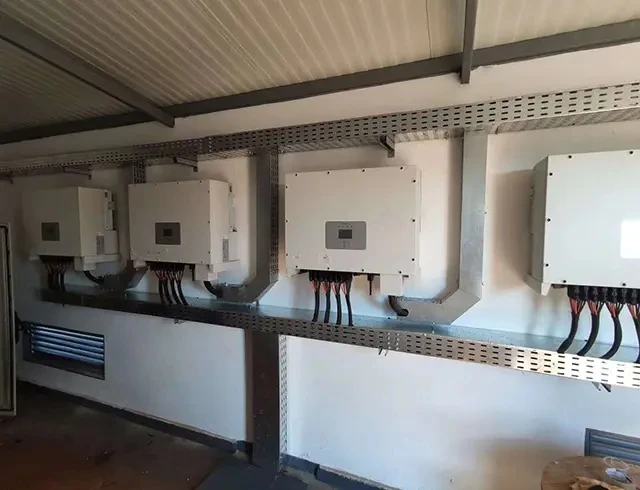

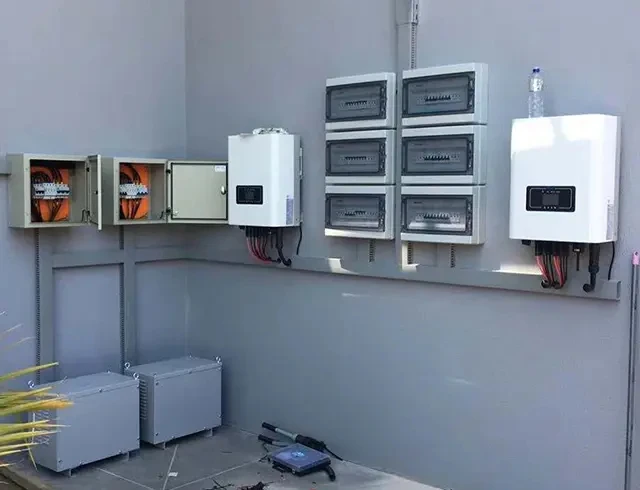

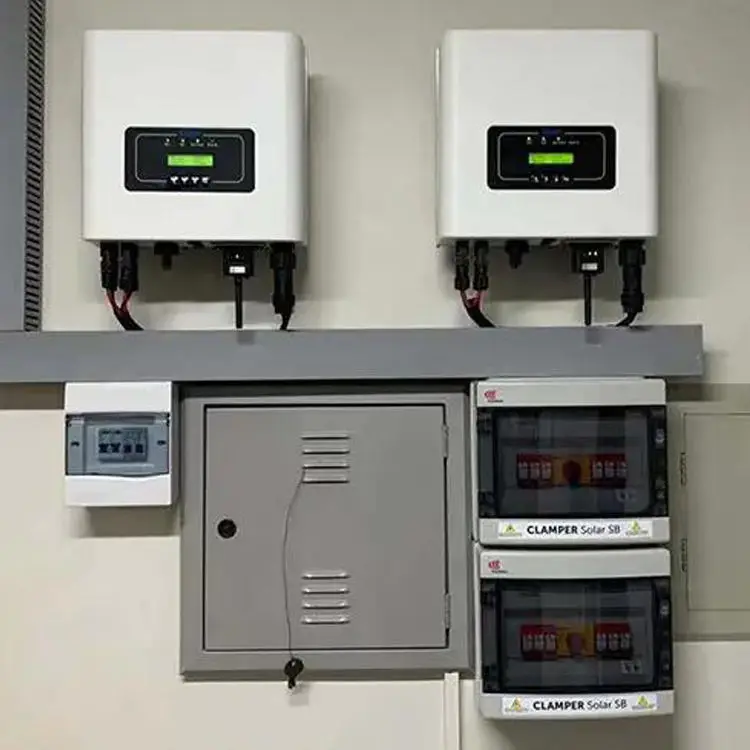

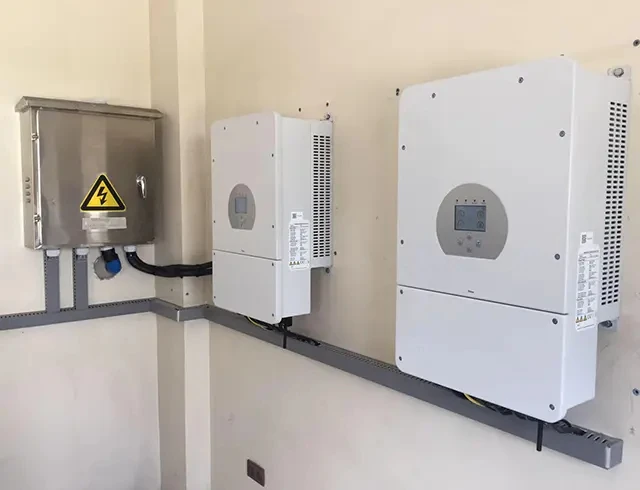

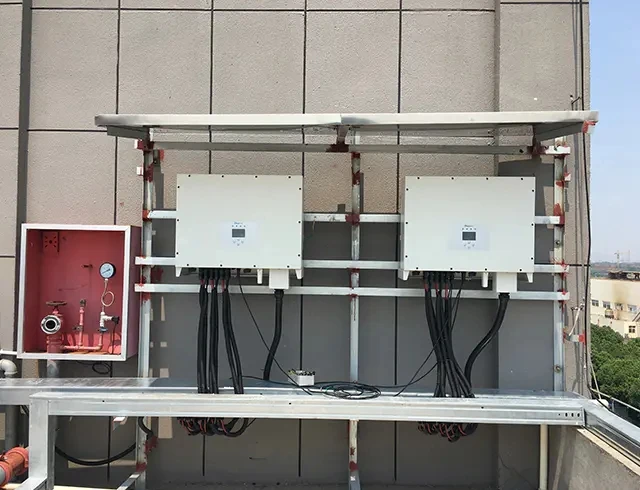

Projects cases

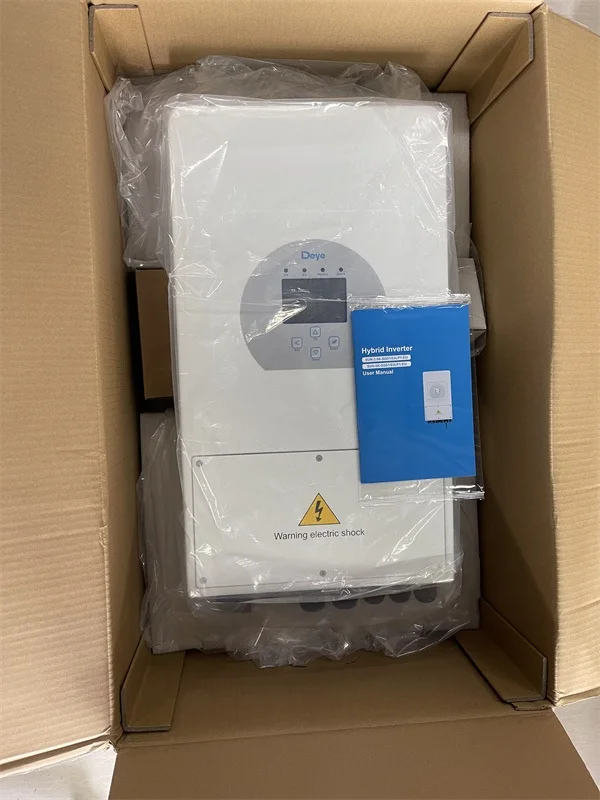

Product packaging






FAQ


1. Who are we?
We are a professional manufacturer on Solar Panel with many years experience. Our factory and business office located in Wuxi City, Jiangsu Province.

2. What can we provide?
We can provide solar panel,solar inverter,solar energy system.

3. Why choose us?
A.Higher power generation
B.Competitive price
C.High quality standard
D.Customized service

4. What services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,FAS,CIP,FCA,DDP,DDU；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,PayPal,Western Union,Cash.
