Share on:


Price:$4,000.00 - $4,400.00
Price in USD:Details

Quantity:


Product Overview

Description



Product Description







Satellite Signals
GPS: L1C/A,L1C,L1P,L2C,L2P,L5
GLONASS:G1, G2,G3
BDS: B1I, B2I, B3I, B1C, B2a, B2b, ACEBOC;
Galileo: E1, E5a, E5b, ALTBOC, E6
QZSS: L1C/A, L1C, L2C, L5, LEX;
SBAS: L-Band












            Environment
Work Temperature:-30℃~+65℃
Storage Temperature:-40℃~+80℃
Waterproof & dustproof:IP68
Humidity:100% anti-condensation



Recommend Products

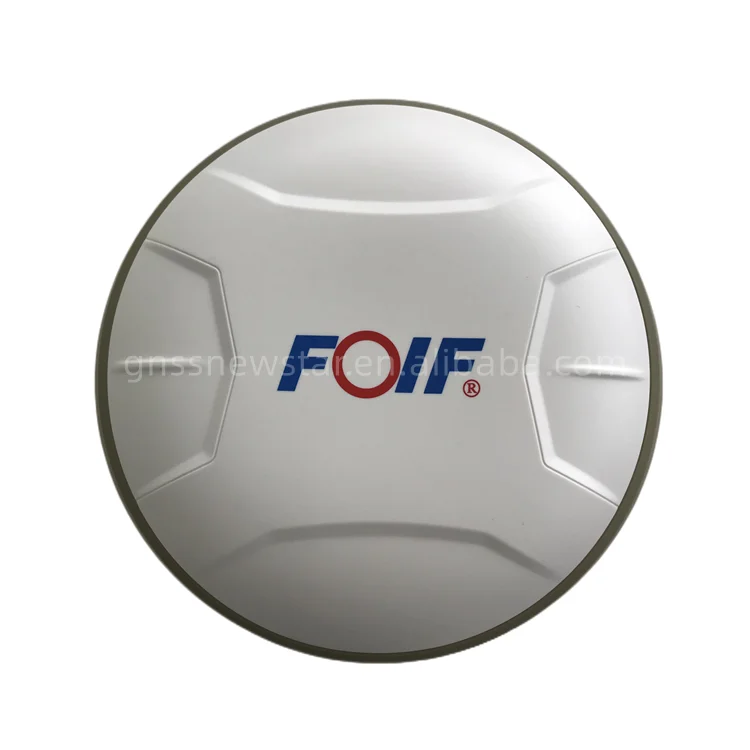

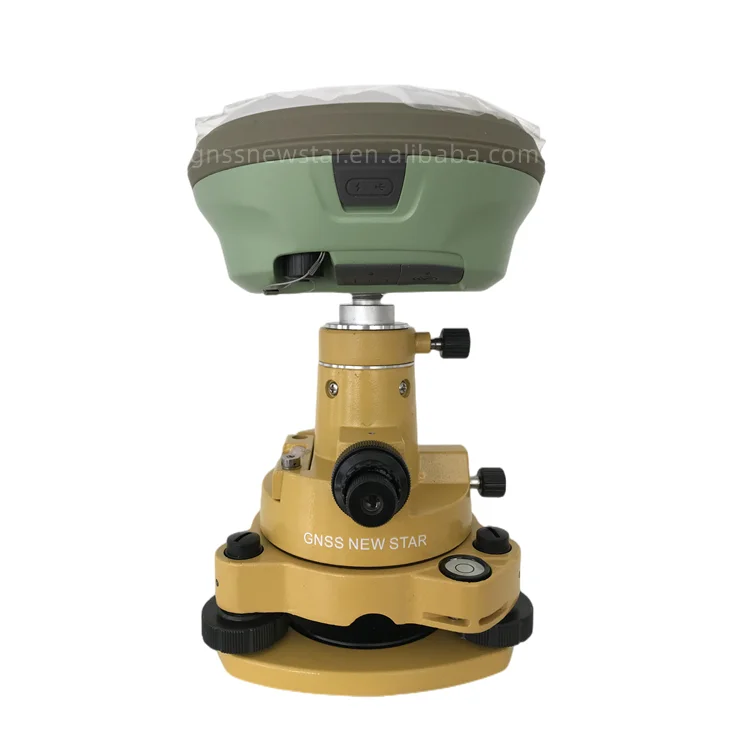

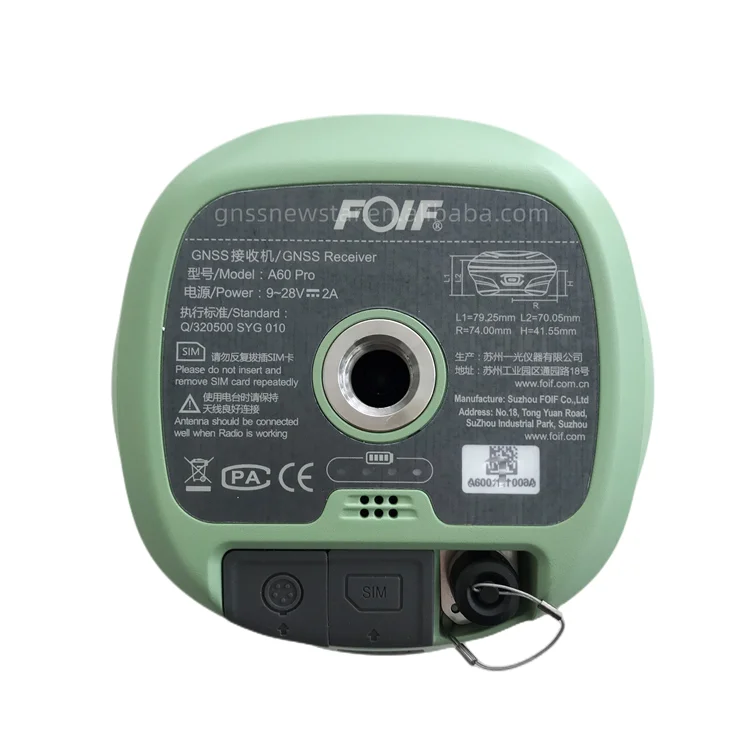

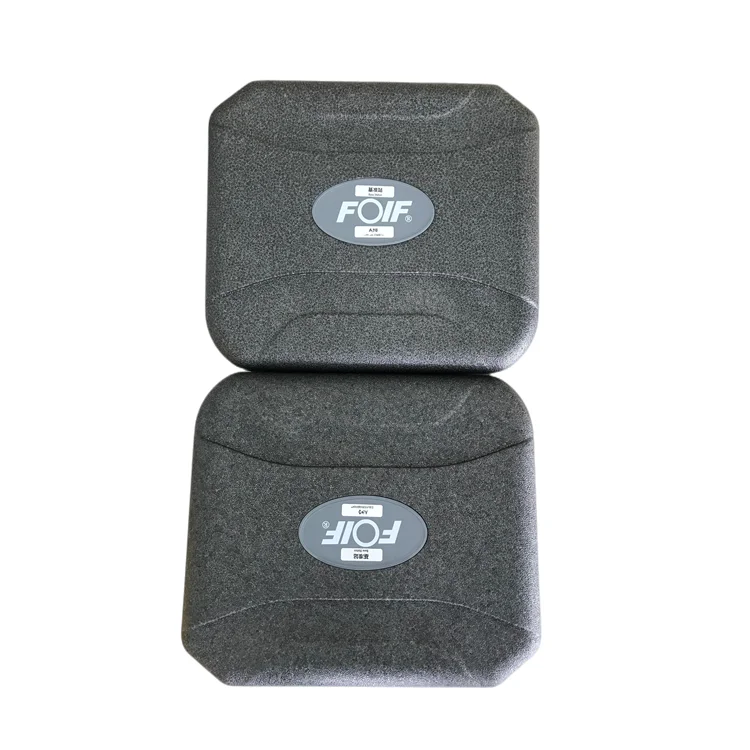

Details Images








Specification


GNSS
Channels
800 channels （P20）
Satellite Signals
GPS: L1C/A,L1C,L1P,L2C,L2P,L5;
GLONASS:G1, G2,G3
BDS: B1I, B2I, B3I, B1C, B2a, B2b, ACEBOC;
Galileo: E1, E5a, E5b, ALTBOC, E6
QZSS: L1C/A, L1C, L2C, L5, LEX;
SBAS: L-Band
Accuracy
Static
H: ±(2.5mm+0.5 x10-6. D) RMS,V: ±(5mm+0.5 x10-6. D) RMS
RTK
H: ±(8mm+0.5 x10-6. D) RMS,V: ±(15mm+0.5 x10-6. D) RMS
DGNSS
<0.5m
SBAS
0.5m
ATLAS H10
8cm
Initialization Time
<10s
Initialization Reliable
99.90%
System
OS
Linux
Memory
8GB
Wi-Fi
The controller could connect with receiver by WIFI, support WebUI management: update, data download, operation setting and etc.
Bluetooth
V2.1+EDR/V4.1Dual, Class2. Automatically search for Bluetooth and connect within 5 seconds.
E-Bubble
Support
IMU Tilt Survey
Fusion positioning, 400Hz refresh rate, 2cm (@60°Tilt degree)
Audio
support TTS audio broadcast
Datalink
UHF radio
Tx/Rx Internal Radio, 0.5W/2W adjustable, 410-470MHz
Radio protocol
Support GeoTalk, GEOMARK, PCC GMSK, SATEL, PCC-EOT, TrimTalk 450S, TrimMark III,TrimTalk(4800), South, Hi-Target,HZSZ and etc.
Network
4G-LTE, TE-SCDMA, CDMA(EVDO 2000), WCDMA, GSM(GPRS)EG25-G network module, international Network mode
Reference outputs
RTCM2.3, RTCM3.2, RTCM3.X, CMR,CMR+
Physical
Interface
1*TNC Radio Antenna, 1*5Pin(Power & RS232),Type-c port, 1 button
Button
1 Power Button
Indication Light
4 Indication Lights
Size
Φ148mm×H74.5mm
Weight
1.0kg
Power supply
Battery capacity
4.2V, 13600mAH battery
Life Timer
Static Survey: 28 hours, Rover RTK survey: 22h
External power source
DC 9-18V, with overvoltage protection
Environment
Work Temperature
-30℃~+65℃
Storage Temperature
-40℃~+80℃
Waterproof & dustproof
IP68
Humidity
100% anti-condensation


Company Profile




Our Advantages




FAQ


1. who are we?
We are based in Tianjin, China, start from 2019,sell to Africa(20.00%),Central America(16.00%),Southern Europe(15.00%),Eastern Europe(8.00%),Southeast Asia(7.00%),Mid East(6.00%),Northern Europe(5.00%),North America(5.00%),Western Europe(5.00%),South America(5.00%),Oceania(5.00%),South Asia(2.00%),Eastern Asia(1.00%). There are total about 5-10 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
GPS,RTK,UAV,TOTALSTATION,GNSS RECEIVERS

4. why should you buy from us not from other suppliers?
Tianjin New Starr Technology Trade Co., Ltd. is an electronic product R&D and production-oriented trading company, specializing in the research and manufacture of high-precision GNSS motherboards and industrial

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T；
Language Spoken:English,Chinese,Spanish
