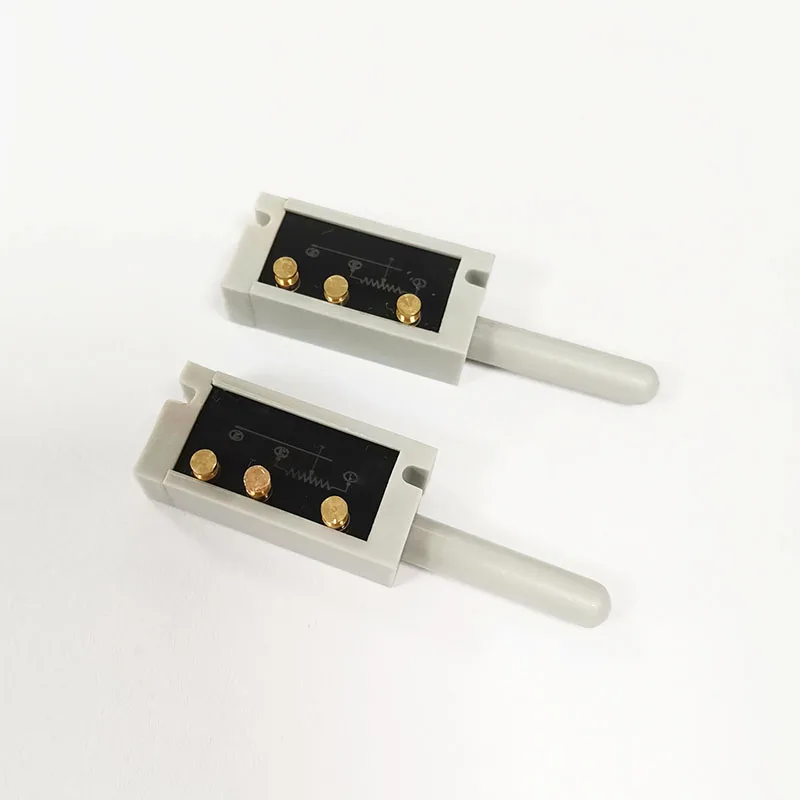

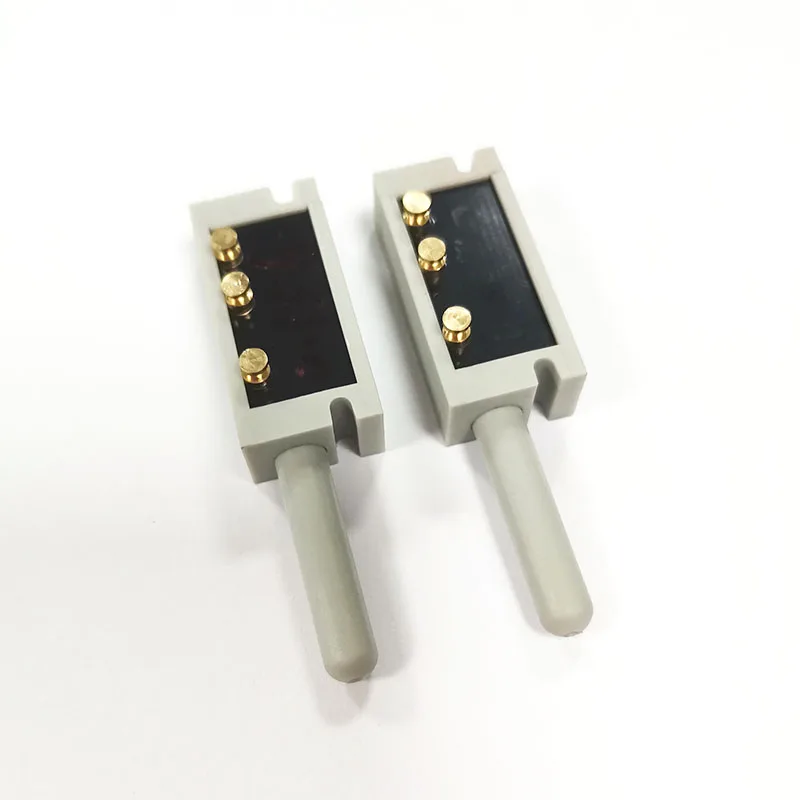

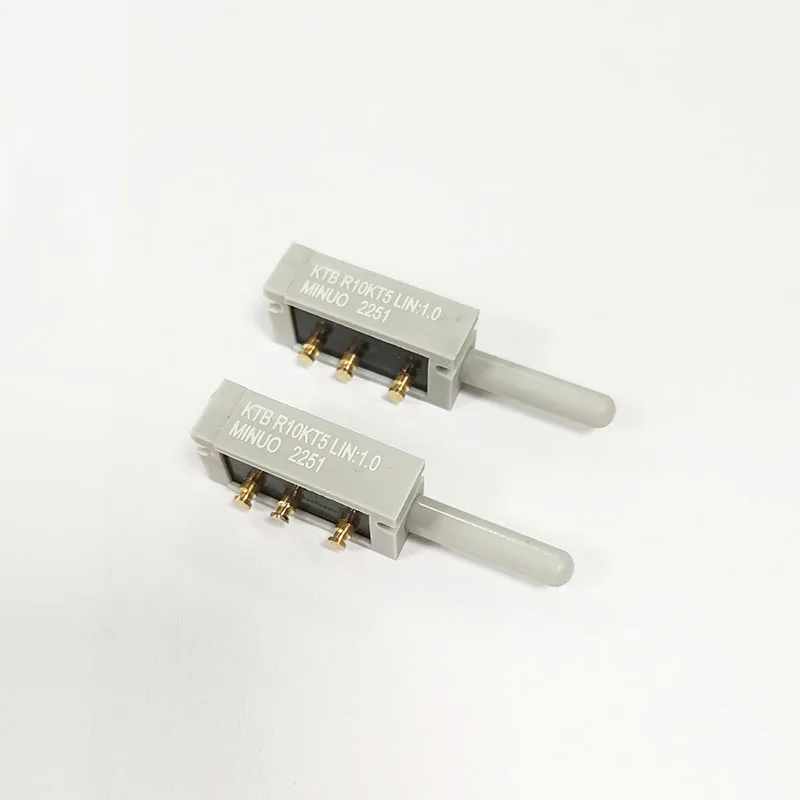

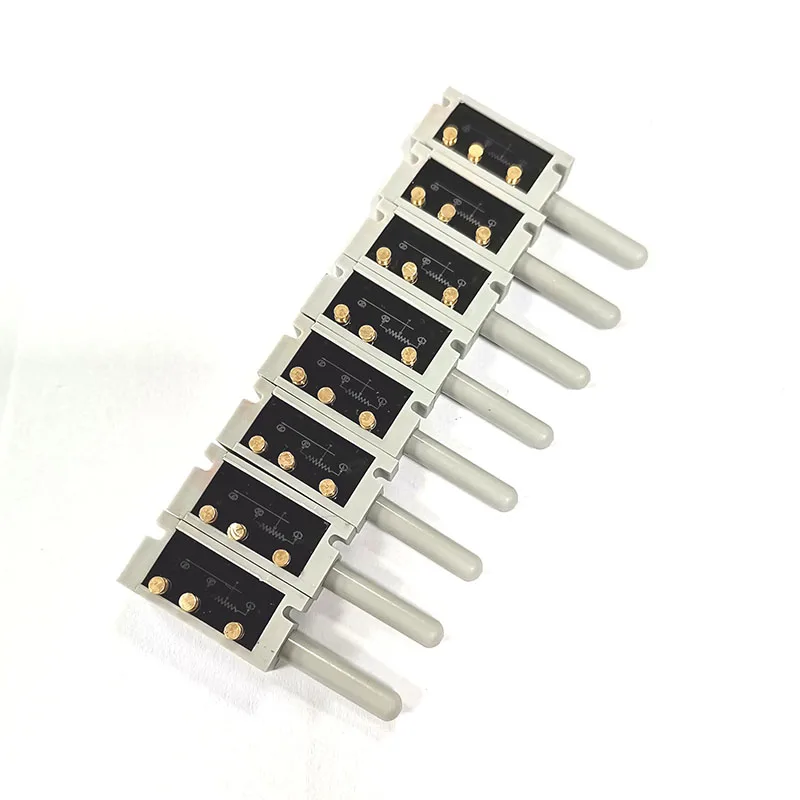

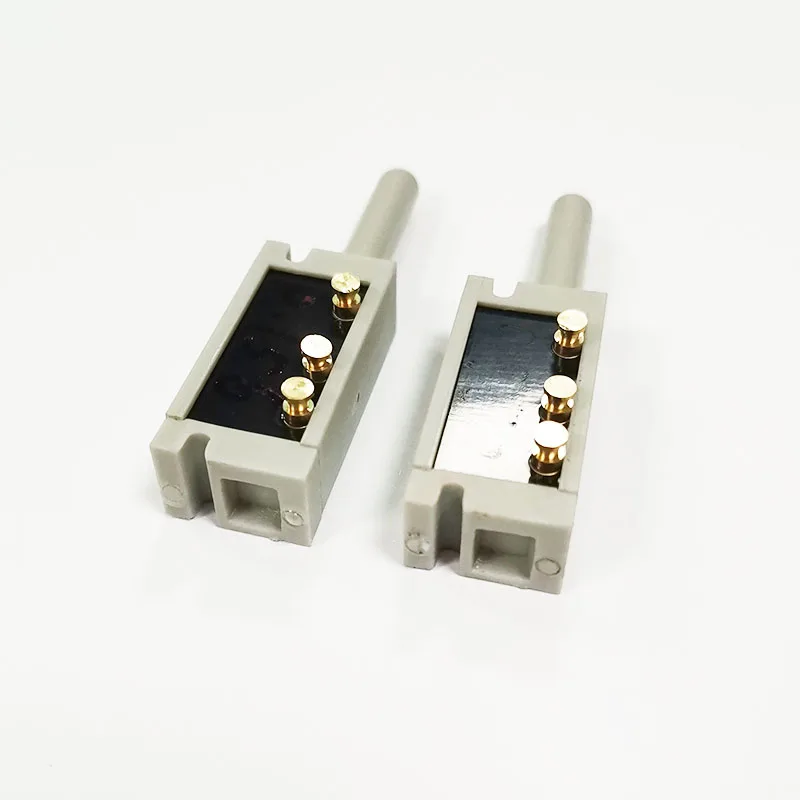

Model 404 Series 404 R 10K T5 L1.0 Spring Return Linear Actuation Conductive Plastic Position Sensor
Model 404 Series 404 R 10K T5 L1.0 Spring Return Linear Actuation Conductive Plastic Position Sensor
Model 404 Series 404 R 10K T5 L1.0 Spring Return Linear Actuation Conductive Plastic Position Sensor
Model 404 Series 404 R 10K T5 L1.0 Spring Return Linear Actuation Conductive Plastic Position Sensor
Model 404 Series 404 R 10K T5 L1.0 Spring Return Linear Actuation Conductive Plastic Position Sensor
Model 404 Series 404 R 10K T5 L1.0 Spring Return Linear Actuation Conductive Plastic Position Sensor
Model 404 Series 404 R 10K T5 L1.0 Spring Return Linear Actuation Conductive Plastic Position Sensor

Model 404 Series 404 R 10K T5 L1.0 Spring Return Linear Actuation Conductive Plastic Position Sensor

Share on (1600558806007):


Price:$11.00 - $15.00

Quantity:


Product Overview

Description



Products Description


Spring Return
Linear Actuation
Conductive Plastic
Position Sensor
Applications in Robotics, Automotive,
Heavy Equipment, and Industrial
Automation
*Short stroke (12.7mm), with spring self-reset linear displacement sensor
* Linear drive
* Conductive plastic technology
* Accurate position feedback
* Low cost,
Compact design for small Spaces
* Long life - 5 million timesShort stroke


Resistance
10k Others can be customized
Standard Resistance Tolerance
±20%
Minimum Practical Resistance Tolerance
±5%
Independent Linearity
±1%
Minimum Practical Independent Linearity
±0.5%
Input Voltage
400 VDC maximum, not to exceed power rating
Power Rating
0.25 Watts at 70°C, derating to 0 at 125°C
Dielectric Strength
1,000 V rms
Insulation Resistance
1,000 Megohms minimum
Output smoothness
0.1% maximum at 10” to 18” per minute
Actual Electrical Travel
12.7 mm ±0.38 mm
Electrical Continuity Travel
within mechanical travel
Resolution
essentially infinite
Temperature Coefficient of Resistance
-400 ppm/°C
Temperature Coefficient of Output Voltage
±10 ppm/°C
Total Mechanical Travel
14.2 mm ±0.38 mm
Actuating Force
14 oz. maximum
Backlash
0.003” maximum
Static Stop Strength
20 lb. minimum
Body Style
rectangular
Load Life
5 million
Operating Temperature Range
-40°C to +125°C


dimension drawing




Details Images




Company Profile




Shenzhen minor electronic co., LTD., founded in 2004,minor main production and sales of conductive plastic displacement sensor(electronic ruler), Angle displacement sensor (including auto direction power sensor, gas sensor, throttle sensor, car seats,gearbox sensor, etc.), Pull rope (line) displacement sensor ，transmitter, magnetostrictive displacement sensor, intelligentdigital display table, grating feet, range from 5 mm to 30 m, product accuracy is 0.1%, 0.05%, 5um, 1um variety, completespecifications and models, range range service life and accuracy in the leading position in the industry.
