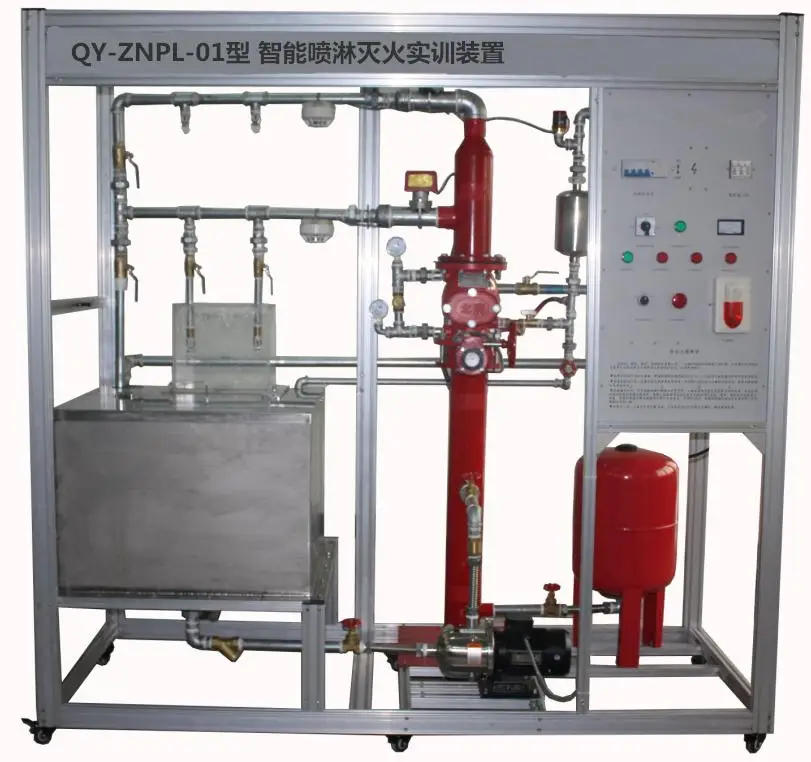

Intelligent Spray Fire Alarm Trainer Building electrical teaching equipment Didactic Equipment Educational Equipment

conceptual design to selection of various parts of the materials, from the field layout to low voltage components connection, from the application of the system components to the product process, from the power supply and distribution technology to the automation process control, the device almost covers all aspects of the practical application of building fire fighting. And it runs through and supports the whole course system of building fire related majors. It’s applicable to different types of students and trainees in undergraduate, specialist, vocational colleges and secondary vocational schools and vocational training agencies for the one-stop skills training and assessment in the design, equipment installation, connection, operation, debugging and fault exclude of building intelligent spray fire extinguishing and property management. It can also be used in majors like mechanical engineering and automation, electrical engineering and automation, water supply and drainage works, building electrical, building intelligent equipment, construction equipment, municipal engineering, hydro mechanical and electrical engineering and other related professionals. Involved curriculums are as follows: “Building fire protection technology”, “Fire alarm and fire linkage system construction”, “Building intelligent technology”, “Water supply and drainage pipe network system”, “Building Water Supply and Drainage Engineering”, “Instrumentation and control for water supply and drainage engineering”, “Mechanical and electrical integration technology”, “Sensor Technology”, “Equipment power supply and distribution technology” and other courses.

1. System power supply: three-phase five wire system with 380V + 10%, and 50Hz

2. Working environment: temperature is of -10℃to +40 ℃, relative humidity is less than or equal to 85% (25 ℃) and the altitude is of less than or equal to 4000m

3. Reliability: MTBF≥ 2000h; the average recovery time of fault (MTTR) ≤ 0.5h

4. Capacity: less than or equal to 1.5KVA

5. Product size (length * width * height): 2000mm * 790mm * 1850mm

1. Galvanized pipe cutting operation training

2. Galvanized pipe threading operation training

3. Galvanized pipe installation operation training

4. Valve installation operation training

5. Raw materials and pipe connectors operation training

6. Water pump wiring operation training

7. Low-voltage electrical wiring operation training

8. Sensor wiring operation training

9. Pneumatic part operation training

10. The overall system operation training

11. Manual state system operation training

12. Intelligent control system operation training

13. Real-time monitoring operation training
