Pressure Transducer Companies Melt Pressure Transducers
US $598.00-$629.00
0.5% 1%FS Melt Pressure Transmitter Price For Replacement Dynisco Melt Sensor
- Category: Pressure Sensors >>>
- Supplier: Changsha,Luosen,Automation,Technology,Co.,Ltd.
Share on:
Product Overview
Description
0.5% 1%FS Melt Pressure Transmitter Price For Replacement Dynisco Melt Sensor
0.5% 1%FS Melt Pressure Transmitter Price For Replacement Dynisco Melt Sensor
Product Description

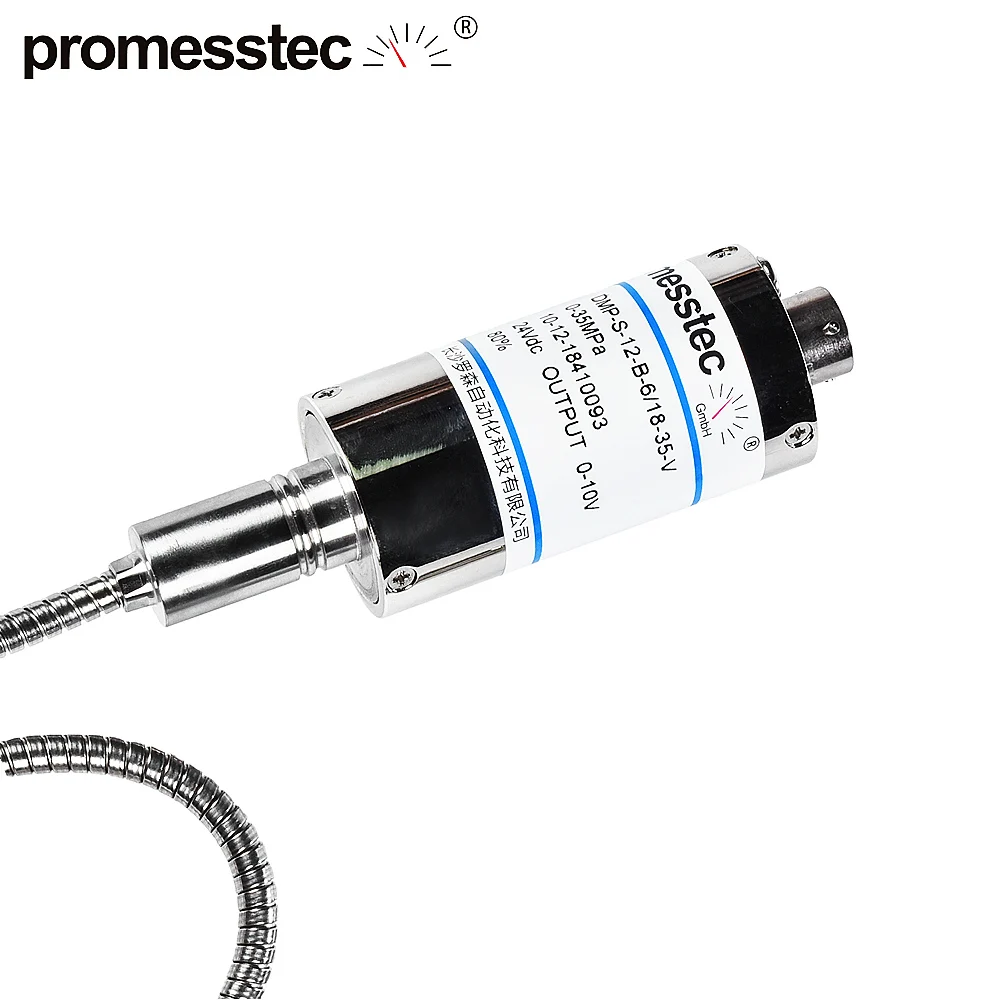

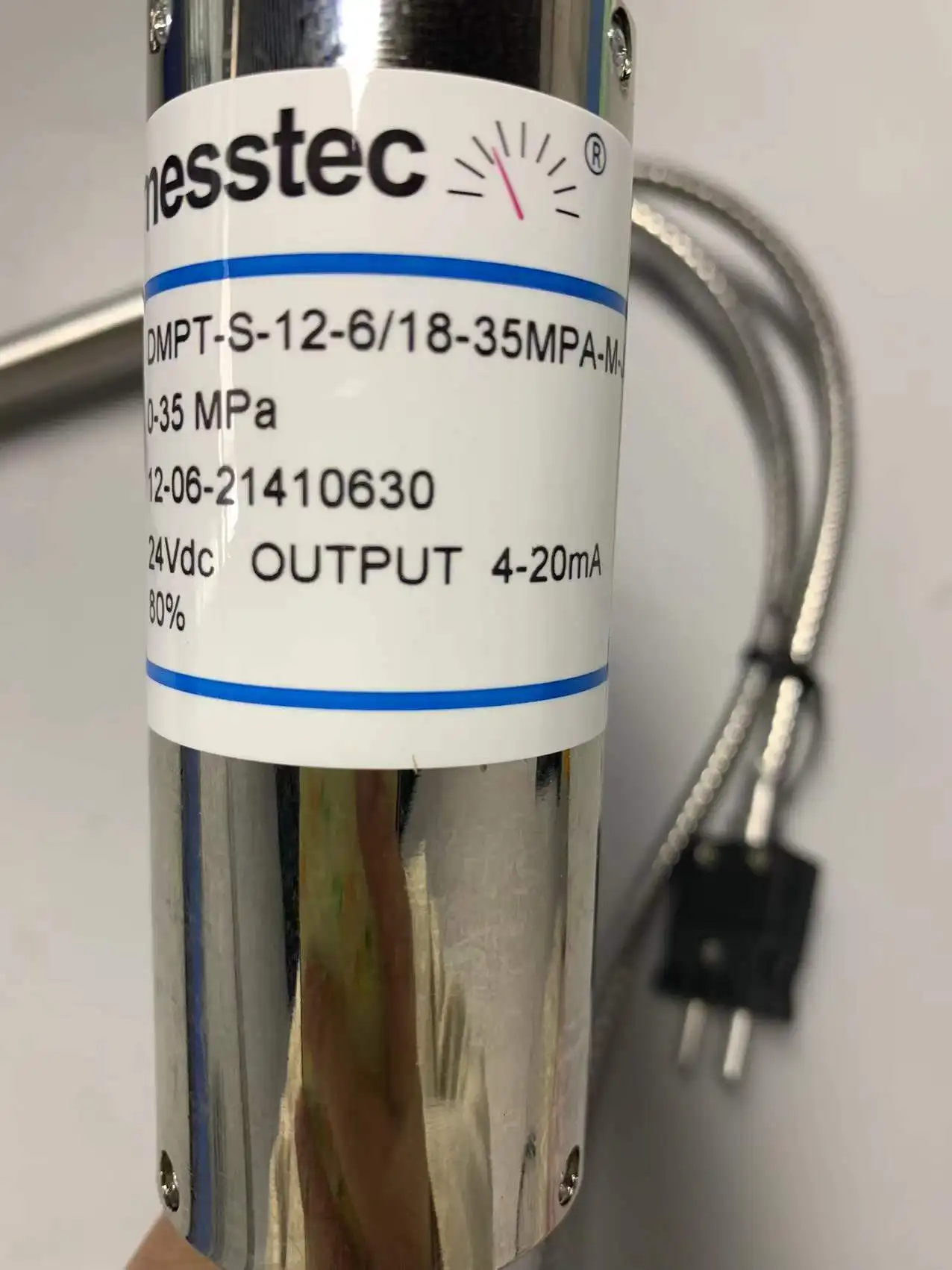

DMP standard pressure transducer/transmitter, is a straight rod melt pressure transducer/transmitter introduced by our company for the domestic market, in which DMP-T is equipped with thermocouple to measure pressure and temperature at the same point. This series of products can be matched with PY500 series intelligent digital pressure instruments of our company and the same type of domestic and foreign press instruments. Its advantage is that the pressure measurement is accurate and reliable, and the amplified signal is directly entered into the PLC control system, 80% inner calibration, simple installation and high cost ratio. It is widely used in high temperature pressure monitoring of chemical fiber and plastic extrusion industry.
| Application ♦Chemical fiber Equipment ♦Plastic and Rubber manufacturing Equipment ♦Pharmaceutical, food processing, packaging equipment | Feature 80% inner calibration Accuracy is better than that of 1%FS Excellent stability and repeatability Zero & full span can be adjustable Standard diaphragm is 15-15PH SS Other diaphragms are available upon request |
Technical specifications
Example of ordering
DMP |
| Electrical connector | Mounting screw thread | Transducer/ Transmitter |
| Range | Output signal | Temperature difference |
Empty:Single function type T:Double function type |
|
|
|
|
|
|
| |
(F)5PIN(S)6PIN | ||||||||
(14)M14x1.5,(12)1/2-20UNF, (18)M18x1.5, (22)M22x1.5 optional | ||||||||
(empty)Transducer:(B) Transmitter | ||||||||
Hard rod length:S: 6" (152mm), 9" (230mm), 12"(305mm) Flexible pipe length:N: 18" (460mm), 30" (762mm) | ||||||||
(3.5-200) 0-3.5MPa-0-200MPa for example 35MPA=35 | ||||||||
(M2)2mV/V, (M3) 3.33mV/V (M)4-20mA (V)0-10V | ||||||||
J:Grading number is J; K:Grading number is K; E:Grading number is E; P:Pt100platinum resistor | ||||||||
Product details
Company Information
Changsha Luosen Automation Technology Co., Ltd. is headquartered in Changsha, Hunan, and the company is based on Promesstec. It is a technology-oriented enterprise specializing in R&D, production and sales services of A.S (automatic sensing technology). Changsha Luosen is committed to building domestic high-tech sensing technology products, combining German core sensing technology with China's localized market demand, contributing its own meager strength to the domestic sensor market, especially in the field of process automation.
Changsha Luosen's clients include Fortune 500 companies, government agencies, integrated divisions and distributors to meet the diverse market needs of manufacturing and industry. Changsha Luosen's products are mainly used in: plastic machinery, chemical fiber machinery, petrochemical, water treatment engineering, power plants, aerospace, air compressors, air conditioners, automobiles, plastics, packaging. Medical, electronics, chemical, rubber, textile and food packaging.
Changsha Luosen will continue to attach importance to the reliability, stability and accuracy of its products, helping customers to achieve tangible needs, win-win cooperation and create value.
Our Services
OEM / ODM services
To meet the user diversified requirement, We have established a set of customer service and technical support system with OEM / ODM order as the center, and responded and Handle the customer's requirements in a timely manner to ensure accurate delivery time and product quality.
Order services
Fastest reply:Professional sales engineers 30mins 7/24 online services
Payment terms:T/T ,Western union, Paypal, Credit Card, L/C, Escrow others
Fast delivery: within 24 hours release the cargo (normal spec.), Customized 7-12 days after payment .
MAINTENANCE & AFTER-SALES SERVICES
Customer Feedback:
One Sales engineers and One technical engineers will be one-on-one service for you to exclude all obstacles when use our sensors.
Warranty period: 36 months
Product life-long maintenance:
we can provide you with the maintenance of the whole life of the sensors
Package&Shipping
FAQ
Q:Can you accept ODM & OEM service ?
A:We professional provide OEM &ODM service for pressure transducer.
Q:Could I get samples?
A:Yes,we have raw materials in stock to help you to get the samples as soon as we can.
Q:How about the quality of the magnets?
A:We have the certification of ISO,CE and ROSH,we could send the certification test of our company to you.
Q:How is the price?
A:We are quality first,we will provide the best quality pressure sensor we can with reasonable price.
Q:Could you provide me the shortest lead time?
A:We have materials in our stock,if you really need,you can tell us and we will try our best to satisfy you.
Q:Could I visit your factory?
A:Of course,if you need we will help you to visit our factory.
Q: How can I get the quotation?
A: Send your inquiry to us by the inquiry from on the right-side or the bottom of this page. you will get the reply within 12hours, and the quotation will send to you according to your requirements.
Q. How can I get my sensors?/ What's the means of transport?
A. We main delivery goods by express: DHL, FedEx, UPS,TNT, etc or logistics by indicator.
Q. How to order ?
A. In order to recommend you the most suitable pressure transmitter and make an accurate quotation,please provide the following information and send it to our sales when you are going to make an inquiry, thanks !
1. What is your medium? Water ,oil or others.
2. Working Temperature? -30℃~80℃
3. Pressure range: 0-1bar...2000Bar optional
4. Output signal:4-20mA, 0-5V or others
5. Electronic connection? Antiseptic cable or by order
