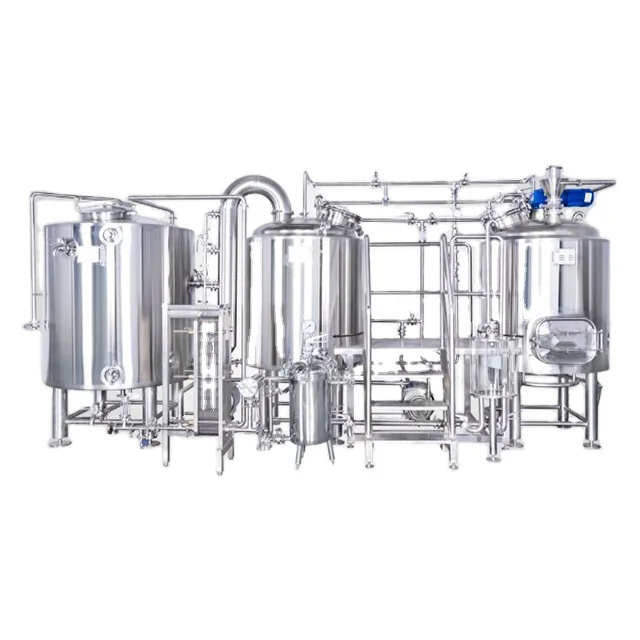

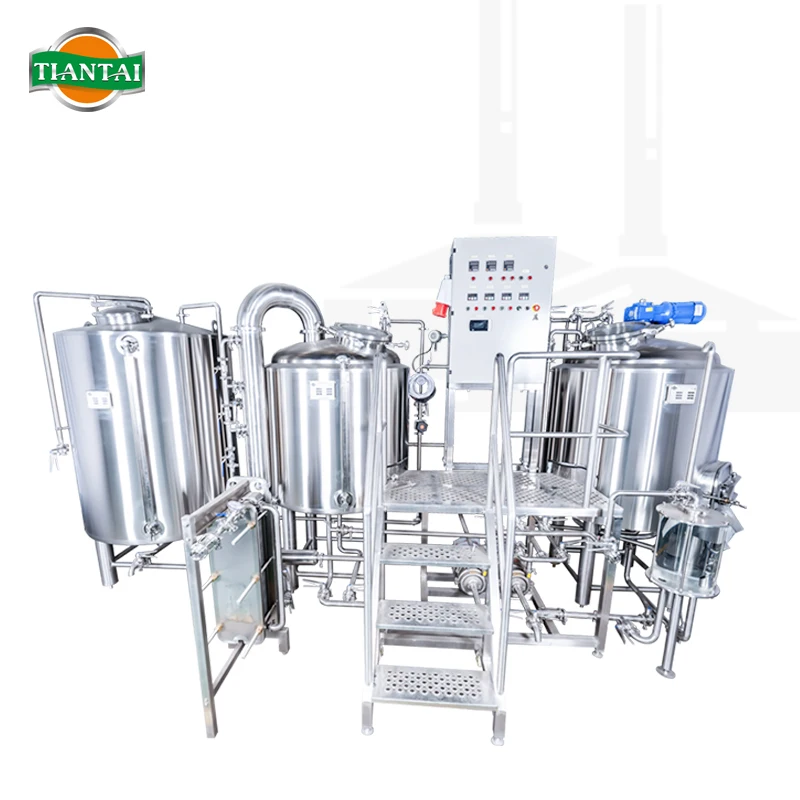

200l pilot beer brew system for beer recipe testing small batches beer brewing homebrewing customized two vessel brewhouse

Product Overview

Description

Welcome to visit Tiantai 200L Brewery Equipment product pages!

This is Sharon here, feel free to chat with me if there are any questions or other information needed!







Details:





Part 2: Specifications

1x 50L mash/lauter boiling whirlpool combined tank

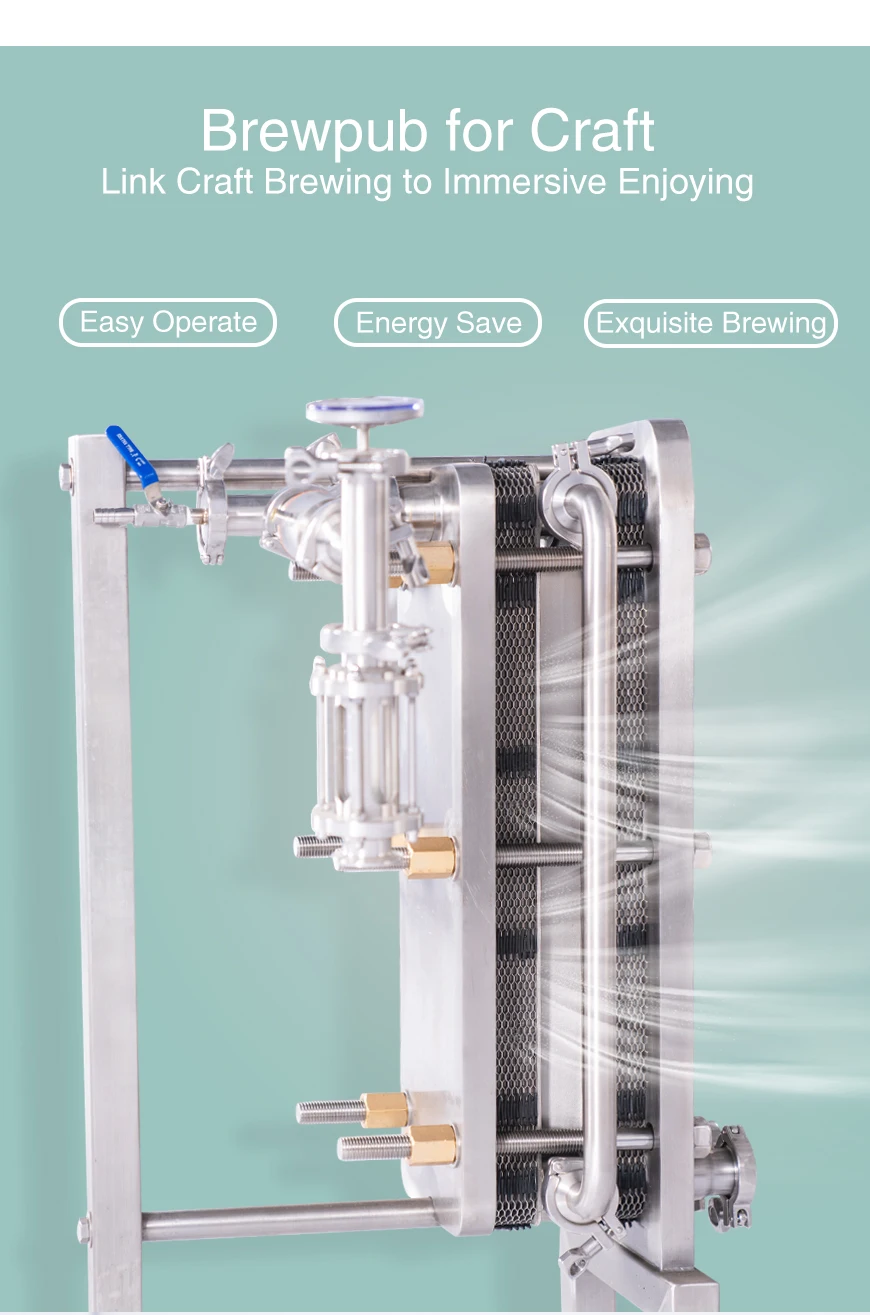

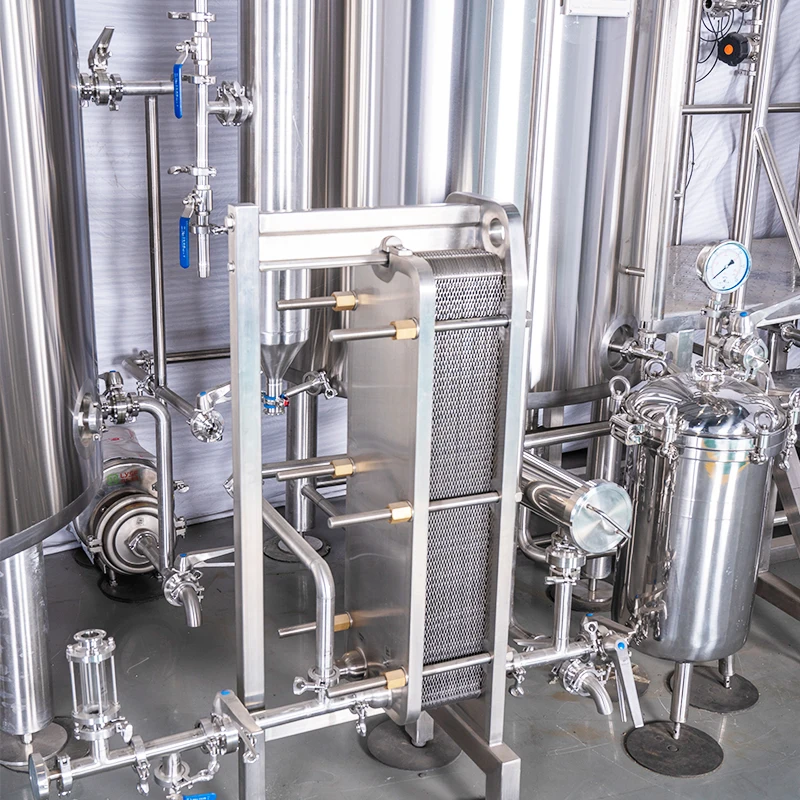

1x one plate heat exchanger for wort cooling

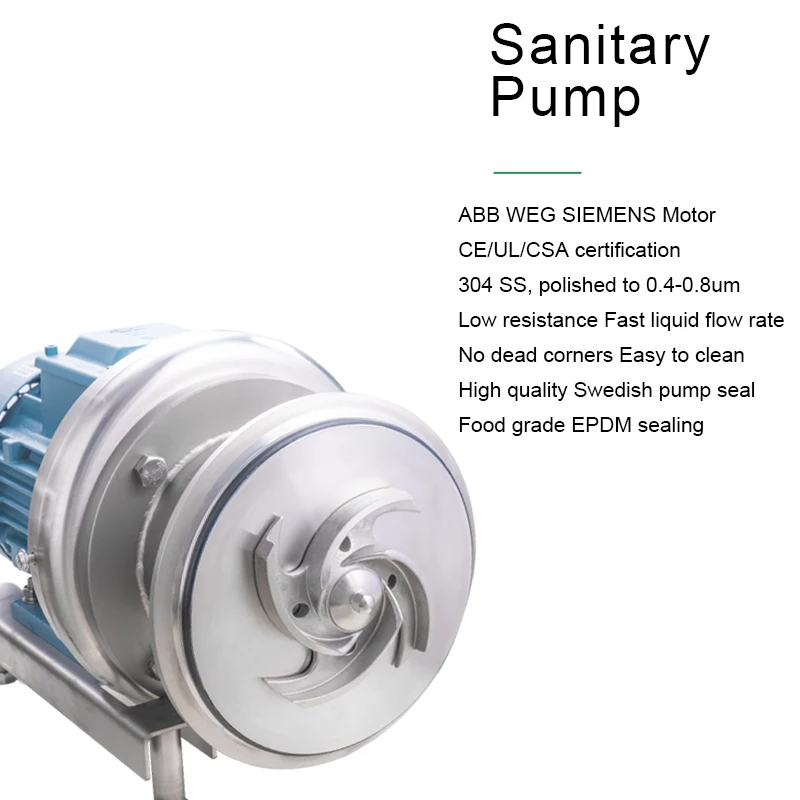

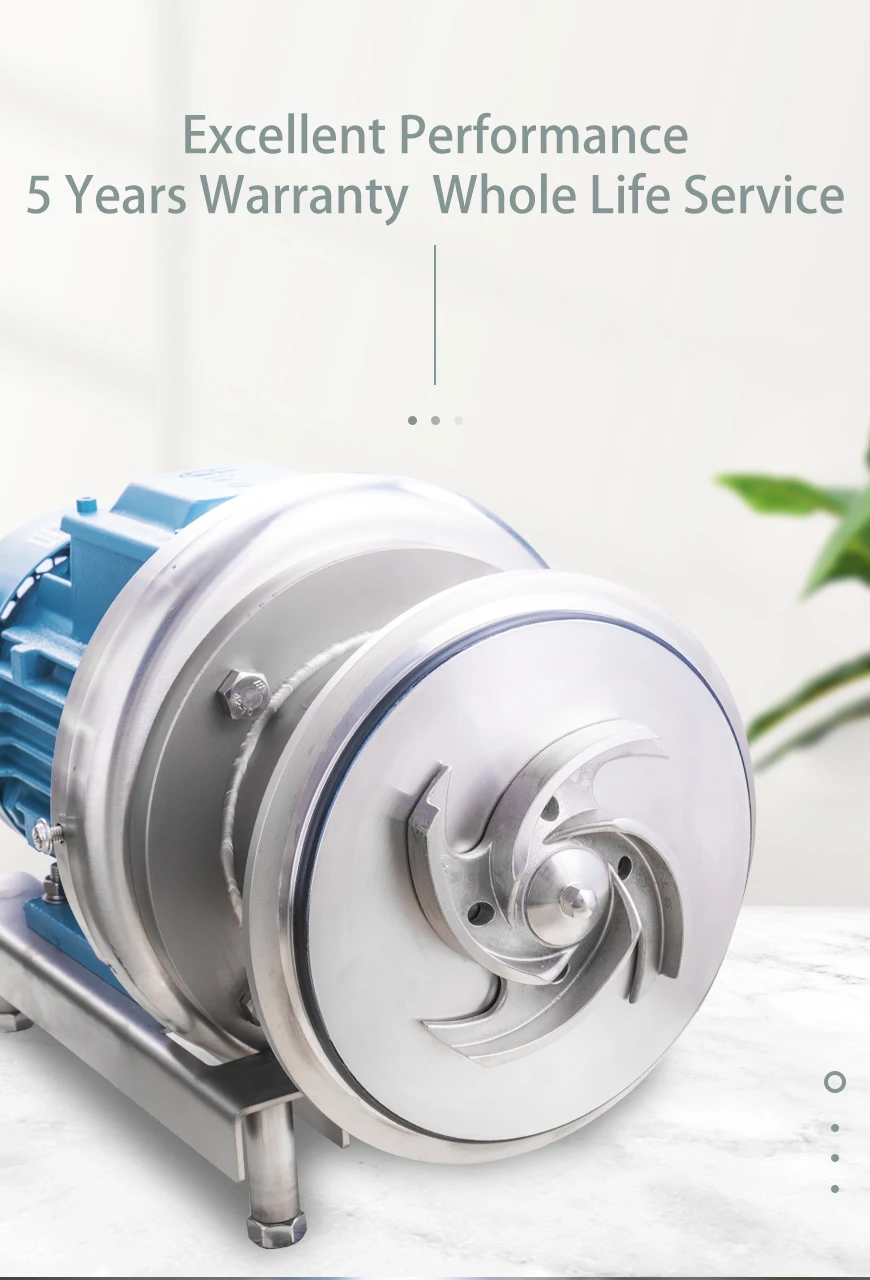

1x centrifugal type wort pump

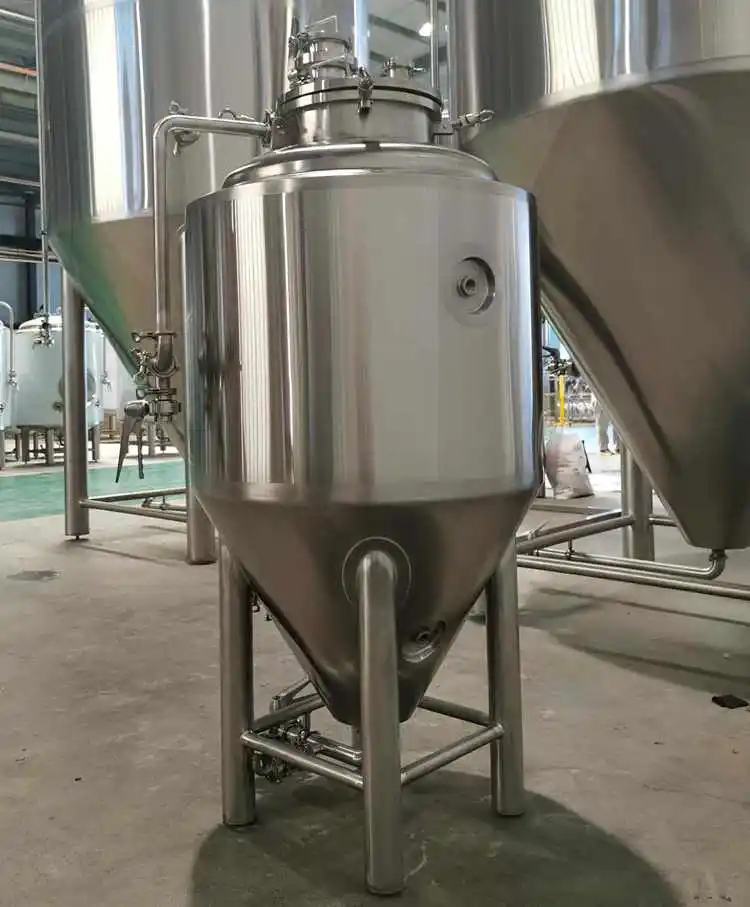

2x 50L fermentation tank with cooling jacket and insulation
1x glycol water tank with refrigerator for cooling fermentation tanks

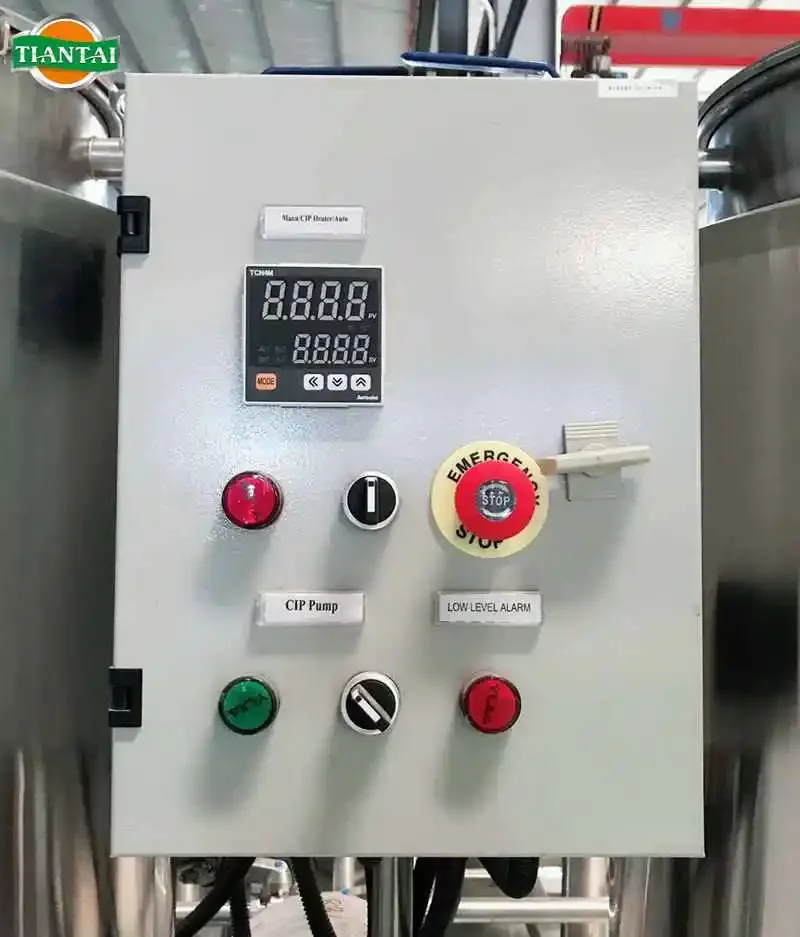

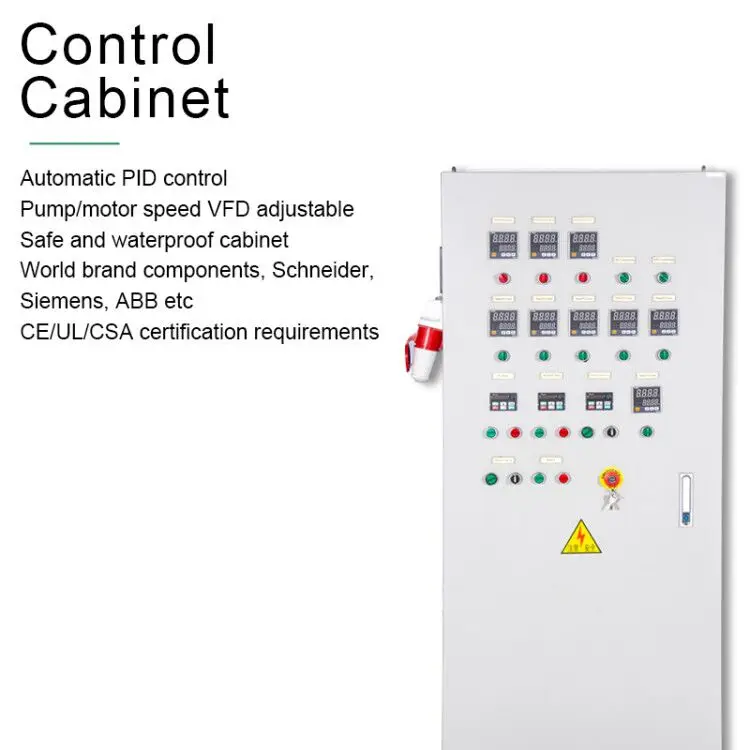

1x controlling panel for all flow and temperature control, digital panel or plc optional
All tanks interior shell 2mm, cladding shell 1.5mm, SUS304.

----------------------------------------------------------------------------------------------------------------------------------

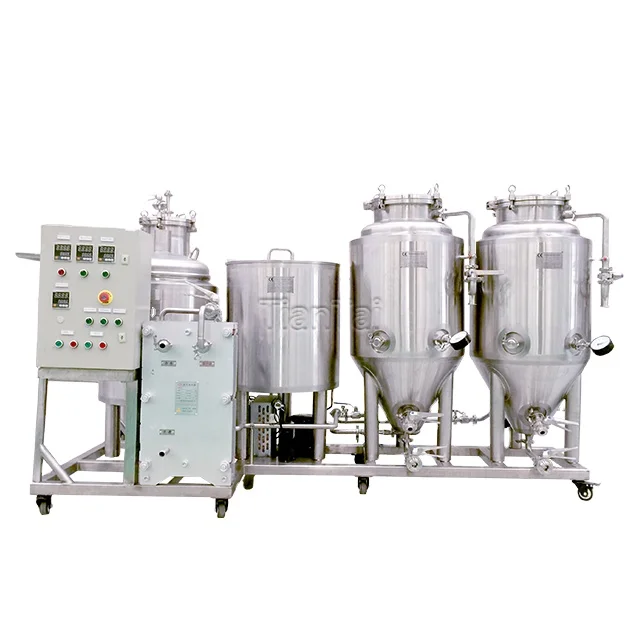

50L Brew Kit:

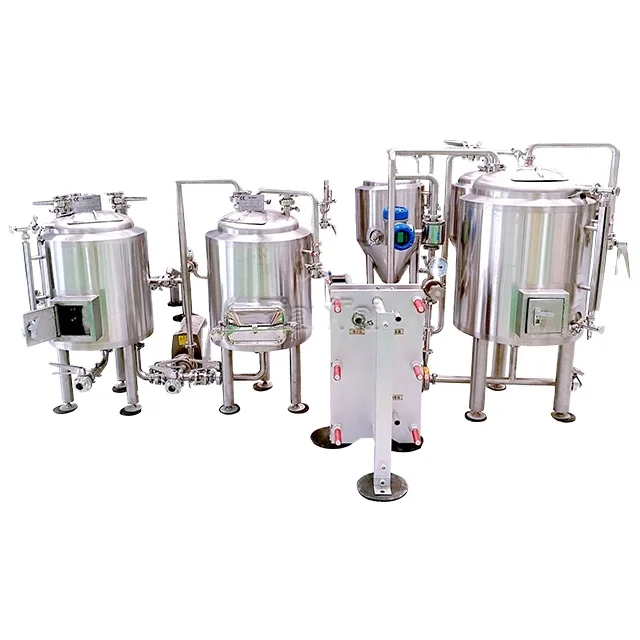

100L Brew Kit:

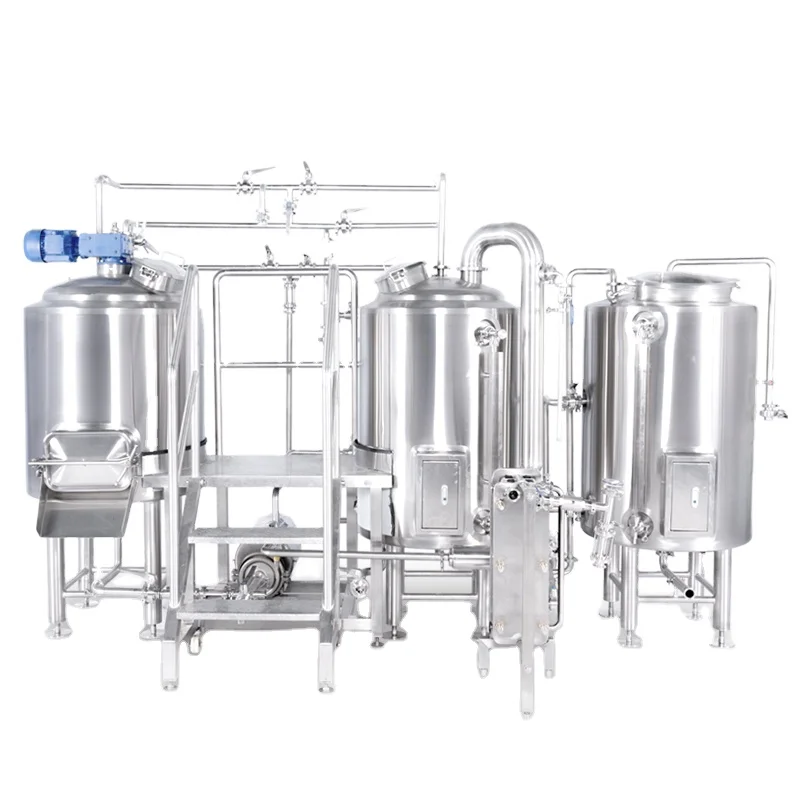

200L Brew Kit:

300L Brew Kit:

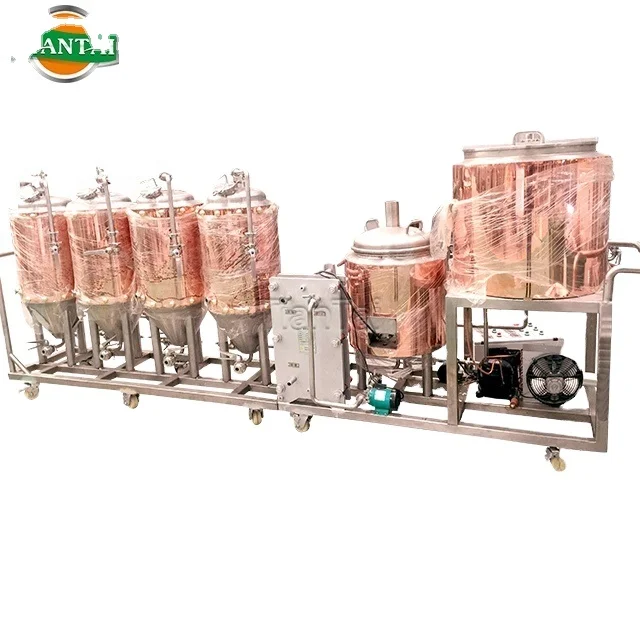

Copper Tun:



Features:

Material	304/316 Stainless Steel/Copper
Welding	100% TIG automatically welding with pure argon gas shield
Interior shell	Stainless Steel, Thickness:3mm
Exterior shell	Stainless Steel, Thickness:2mm
Insulation	TH=80mm with low thermal conductivity PU
Cooling	35% Glycol liquid -5℃
Cooling jacket	Dimple plate on bottom and side wall
Jacket working pressure	<2bar/30psi

 Part 3: Power request specification

 Heating Elements: 6kw; 220v/50,60Hz-1p;
Wort pump:0.55kw; 220v/50,60Hz-1p;
Refrigerator:1.5KW; 220v/50,60Hz-1p.

Part 4: Package

Fumigation-free veneer crates packing; All system is packed in one veneer crate.

Net Weight: 280kg
Dimension: 2100 x800 x1750mm
Installed area:1.7m2

\\
