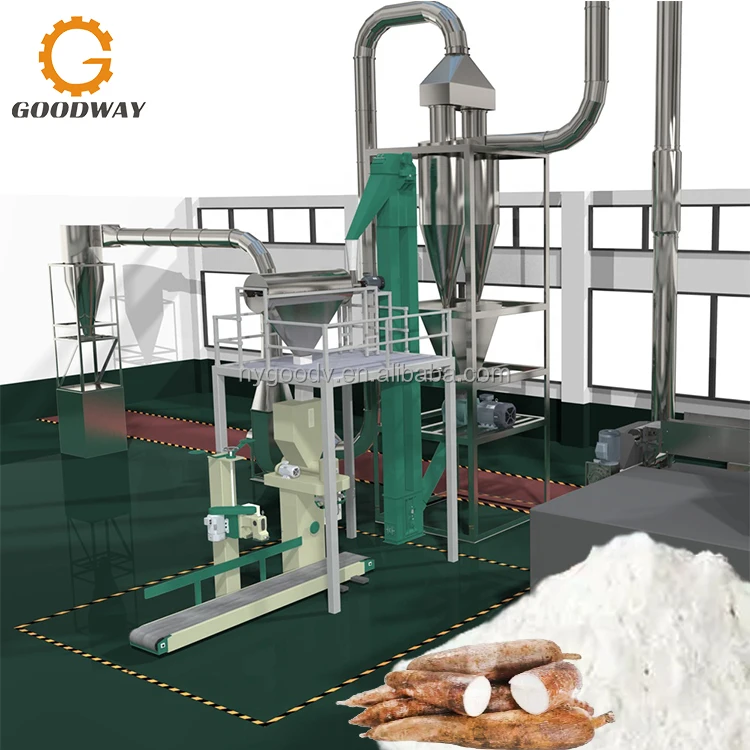

Good Quality Cassava Machine Cassava Flour Powder / Fufu Flour Processing Production Machinery
- Category: >>>
- Supplier: Nanyang Goodway Machinery & Equipment Co. Ltd.
Share on (1600559067239):
Product Overview
Description
Good Quality Cassava Machine Cassava Flour Powder / Fufu Flour Processing Production Mahcinery
Goodway is an expert in design and providing cassava flour machine and cassava flour processing line since 1991. Some customers also call our cassava flour production process equipment as cassava flour equipment, cassava flour making machine, or cassava flour production machine. Anyway, we devote ourselves to providing high-quality cassava flour making machines with competitive price.

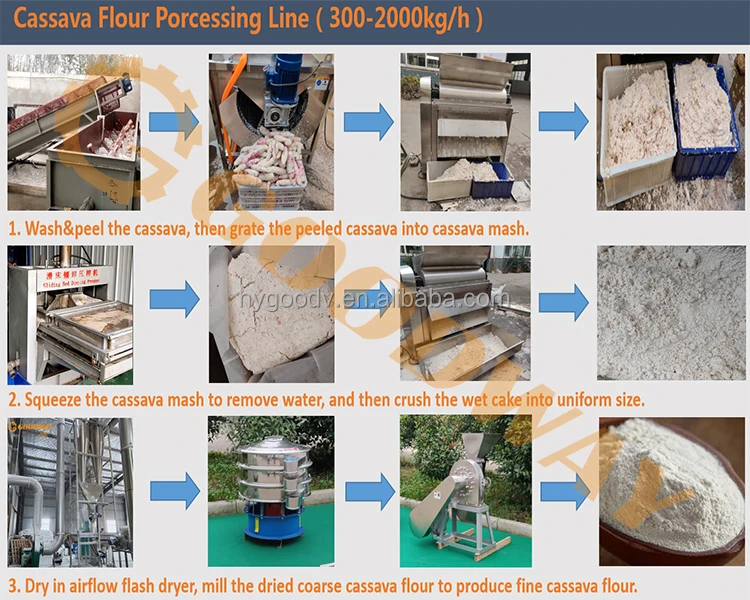

Multiple distinct operations are required in cassava flour production line: washing, peeling, grating, de-watering, breaking &
sifting, cassava flour drying, milling, and packaging. According to the production line, GOODWAY provides related machines, including the cassava root harvester, cassava sieving machine, cassava skin peeling machine and cassava slicer, etc..

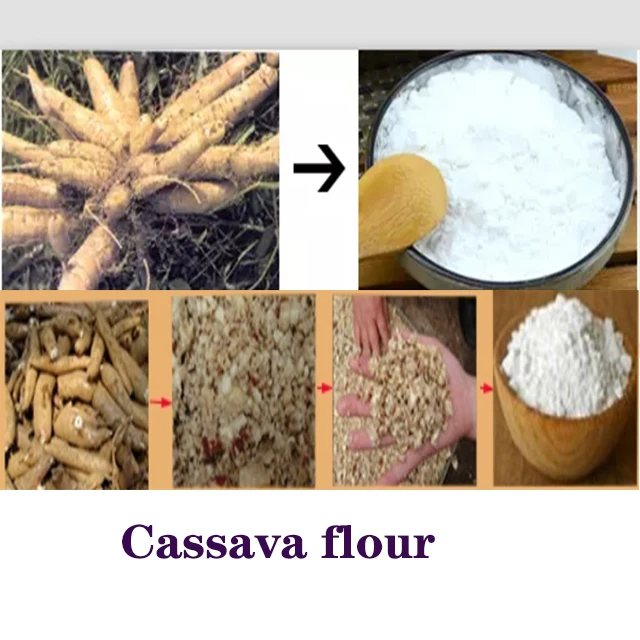

We provide below a brief description showing how to process cassava flour.
sifting, cassava flour drying, milling, and packaging. According to the production line, GOODWAY provides related machines, including the cassava root harvester, cassava sieving machine, cassava skin peeling machine and cassava slicer, etc..
We provide below a brief description showing how to process cassava flour.
Products Description

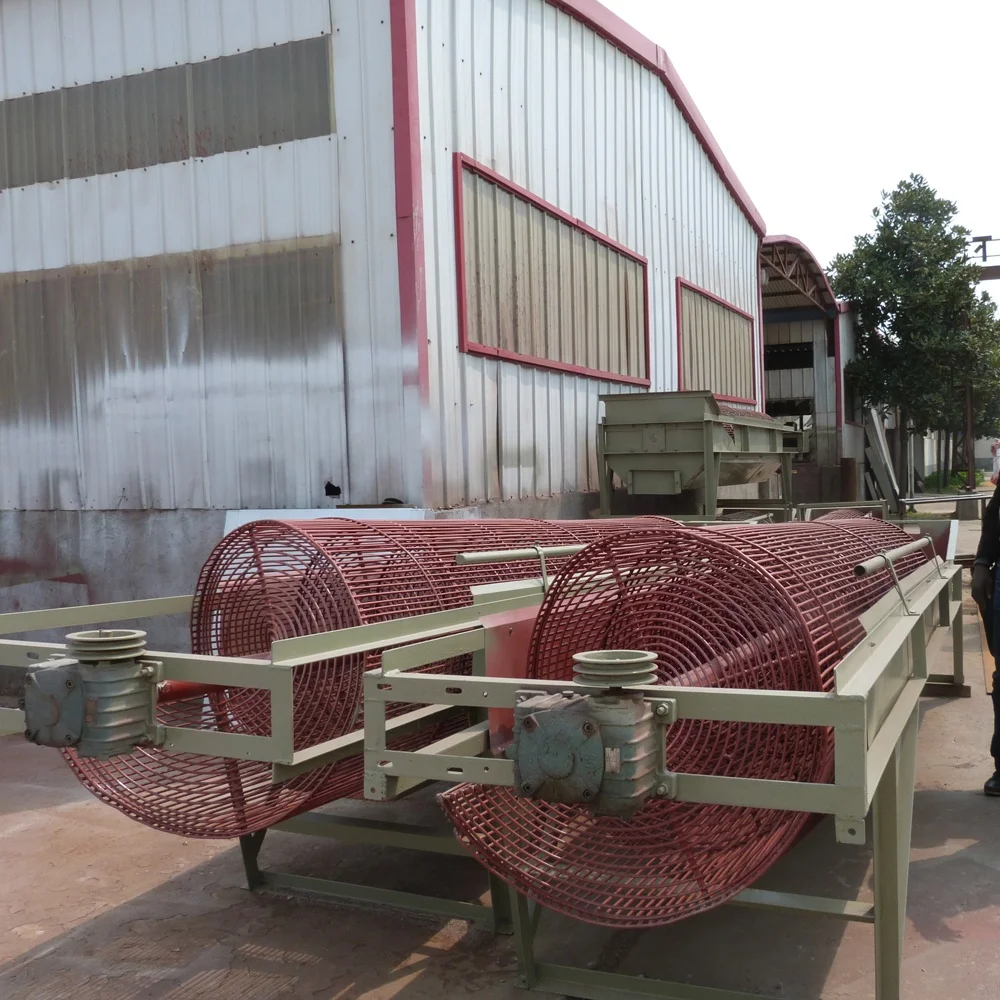

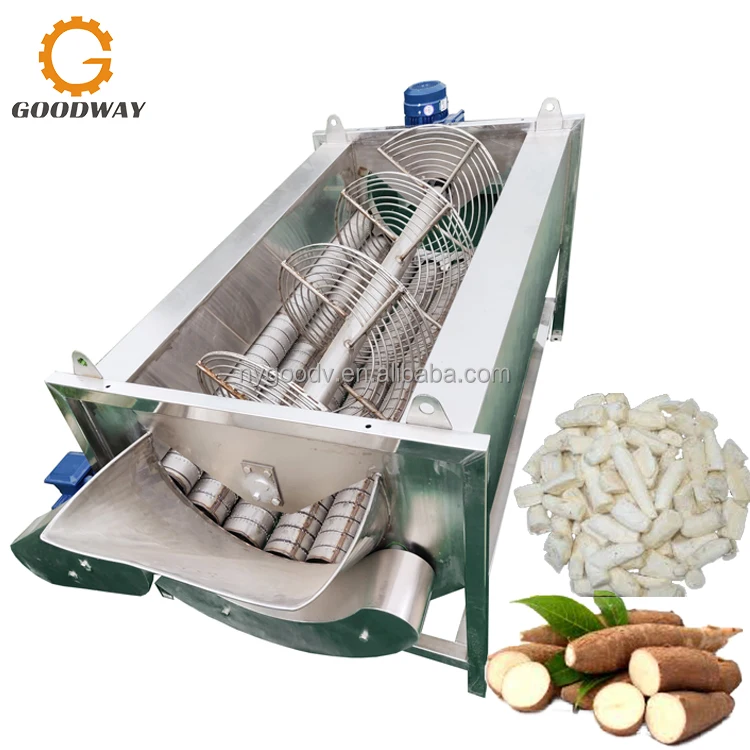

1、Cassava washing machne - Cleaning and Washing Cassava Roots
Wash the fresh cassava roots in clean water to remove the surface mud and sand. It's the first step of the cassava flour process and very important for the quality of final cassava flour(HQCF).
2、Cassava peeling machine - Peeling Cassava Roots
Peel the washed cassava roots to remove the outer brown skin and inner thick cream layer. The water source should be checked regularly to ensure it is not dirty or contaminated.

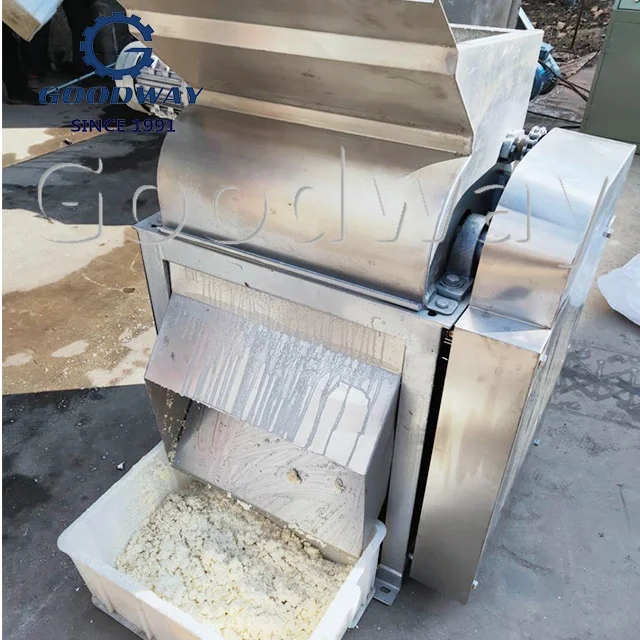

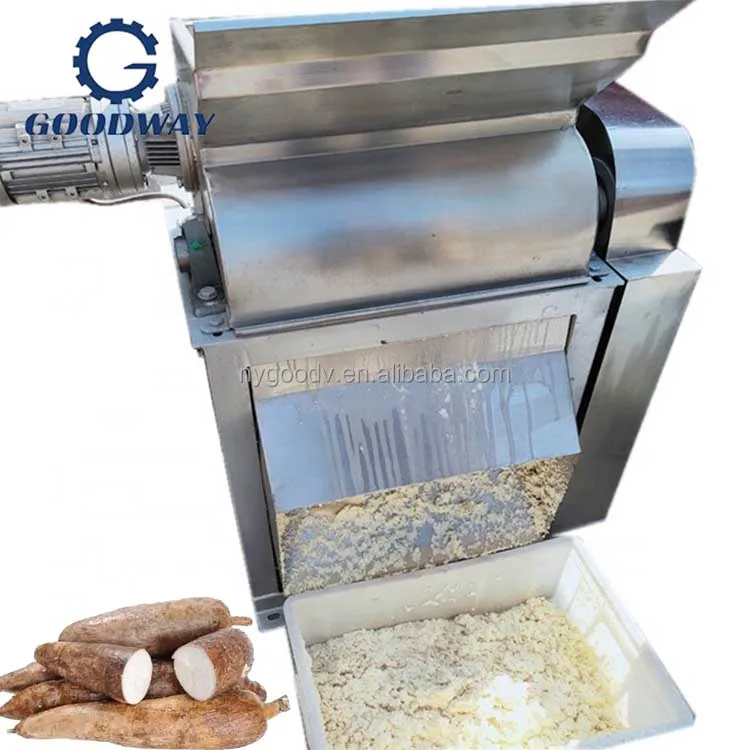

3、Cassava grating machine-Grating Peeled Cassava Roots into Mash
Cassava roots or slices enter the grater and are then grated into the cassava slurry between rotating nail roll and rotary drum while the engine is running with the electricity as power.

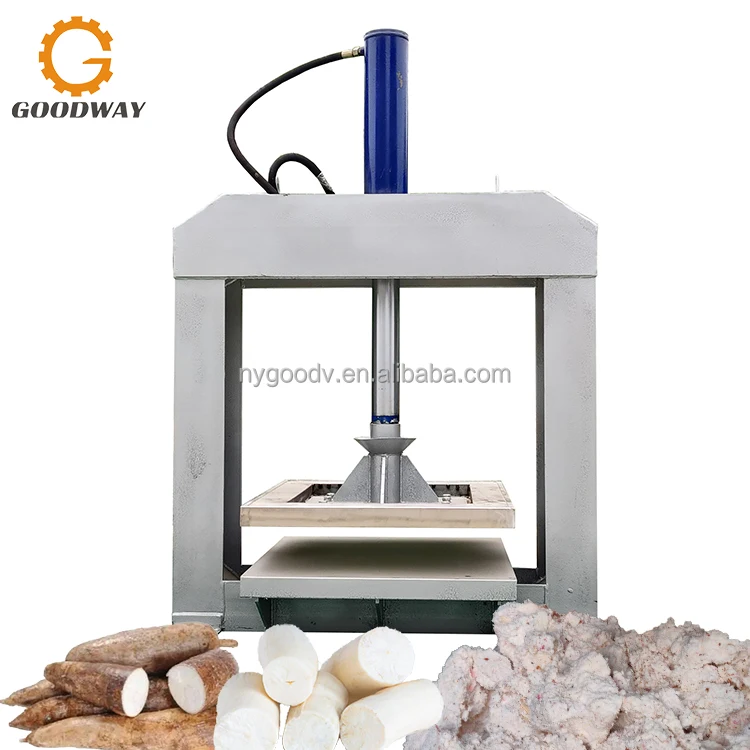

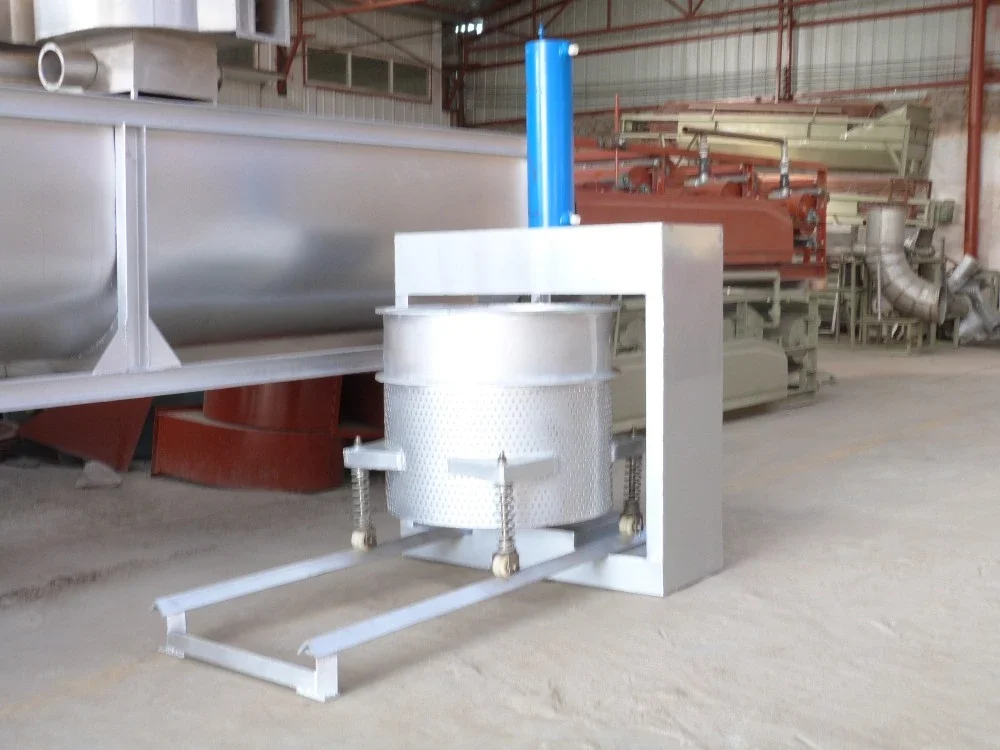

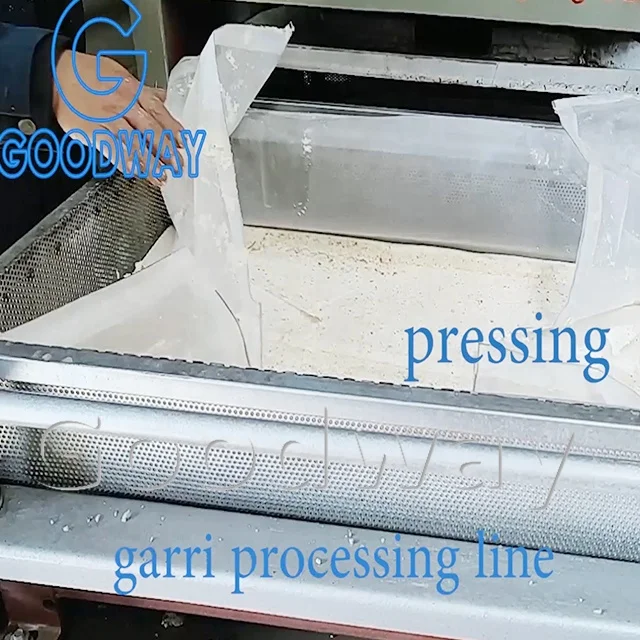

4、Cassava dewatering machine - De-watering Mash into Wet Cake
Load the bags directly on to a hydraulic press. Under control of hydraulic station and electric cabinet to lift and press the jack handle up and down until it becomes hard to move. Repeat the process several times each day until no more water comes out of the bag to produce a firm wet cake.
Model no. | Capacity | Press frame volume | Power | Cylinder pressure | Interior casing dimension(L×W×H) | Overall dimension (L×W×H) | Weight |
GD-HP-400 | 150-200kg/hour | 400L | 2.2kw | 20MPa/50t | 1000×400×1200mm | 1200×750×2100mm | 1.2ton |

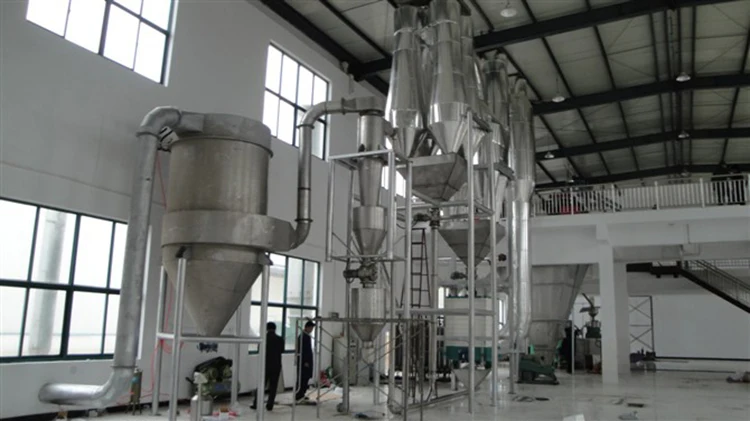

5、Airflow drying machine - Drying Grits into Dried Coarse Cassava Flour
Effectively dry the wet grits into dried coarse cassava flour(HQCF) with low moisture content by the principle of heat transfer exchange. The drying process is more reliable and of higher quality.

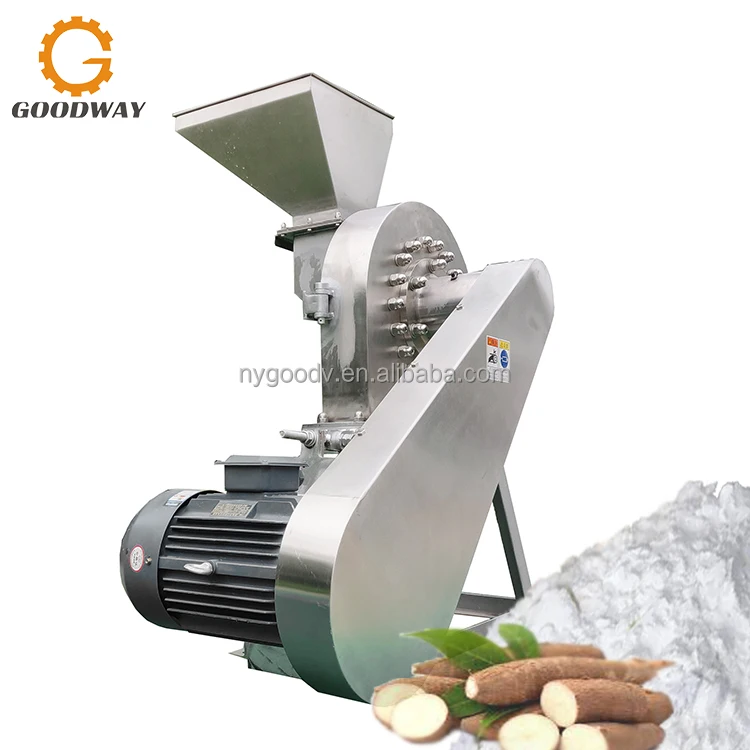

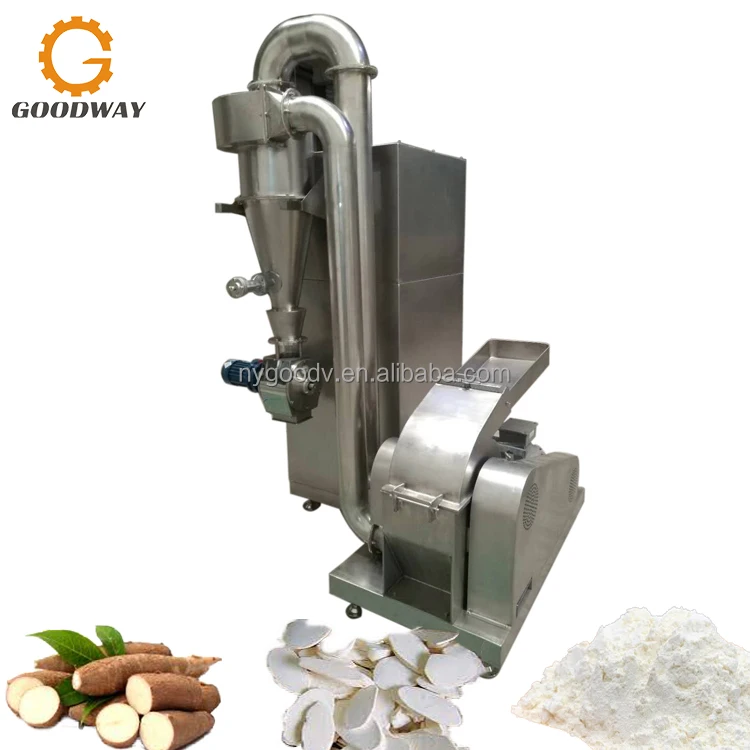

7、Flour milling machine - Milling Coarse Flour into Fine Flour(HQCF)
Mill the dried coarse garri to produce fine garri. Milling can be done using a roller mill machine.
Company Profile
Our Service
Case & Project
FAQ
Q: Are you a factory or trading company?
A: We are factory.
Q: What is your main product?
A: System solutions in the fields of cassava starch, potato starch, sweet potato starch, cassava and yam flour, garri/gari, fufu flour, cassava chips processing.
Q: How do you control the items quality?
A: Each machine strictly tested one by one before shipping.
Q: What is the delivery time?
A: As normal 25 days after payment confirmed.
Q: What should we do if we find some items are missing or defective when we receive the box?
A: Please contact us ASAP, we will check and give you best solution soon.
Q: What is the quality guarantee policy?
A: 12-24 months guarantee for all goods from our company, but we do not accept any man-made sabotage.
