Best Price Toilet Paper Production Line Made in China Toilet Tissue Paper Machine Jumbo Paper Roll 80 Gsm Indonesia 350m/min
- Category: >>>
- Supplier: Liuzhou Fexik Intelligent Equipment Co. Ltd.
Share on (1600559087656):
Product Overview
Description
Product Description
Best Price Toilet Paper Production Line Made in China
Toilet paper full embossing roller slitting rewinding machine is to perforate and cut the raw paper into various sizes according to the requested. The finished product is neat, in good order and with equality tension. It has the feature of compact structure, easy and stable operation, less electricity consumption and covers a small area. The highest production speed is 200-350M/min.
It has HMI, Chinese-English switch; synchronous frequency conversion drive;integration of mechanics, electrics and photo. It is equipped with whole trouble information. It can detect and adjust every action of the rewinder automatically to keep the rewinder in optimal situation.For example:There is a web tension system in the line,It can control speed according to the tension of web so it can adapt different type of jumbo roll.So it is the best choice to produce top-grade bathroom tissue and kitchen towel for paper company.
Technical Parameter：
Machine Model | 2800/2900/3600/4000/4300 |
Width of Parent Roll | 2750/2850/3550/3950/4250（mm) |
Working Speed | 350m/min |
Dia. of Finished Roll | 90-150 |

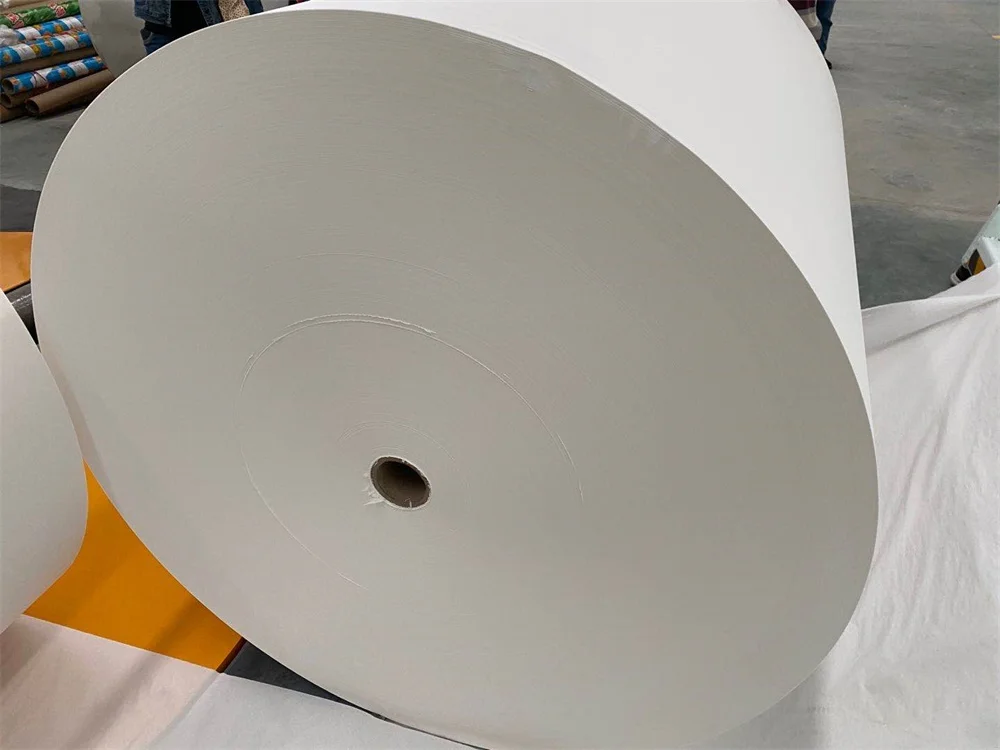

Dia. of Parent Rall | 1500, 2000, 2500, 3000 |
Inner Dia. of Parent Roll's Core | 76.2 (customized) |
Perforation Pitch | 120mm (Adiustable, other size please specify) |
Programmable Controller | PLC computer programming |
Count Mode of Paper Roll | by the diameter or sheets amount |
Glue Laminator | point to point,decorative embossing |
Unwinder | 1-4 ply(customized) |
Motive Power | 90-150 KW |
Details:
Full embossing device
This embossing unit can engrave the pattern without color, the diameter of roller is 240mm, and the pattern is engraved by computer, it it very clear and regular.
This embossing unit can engrave the pattern without color, the diameter of roller is 240mm, and the pattern is engraved by computer, it it very clear and regular.

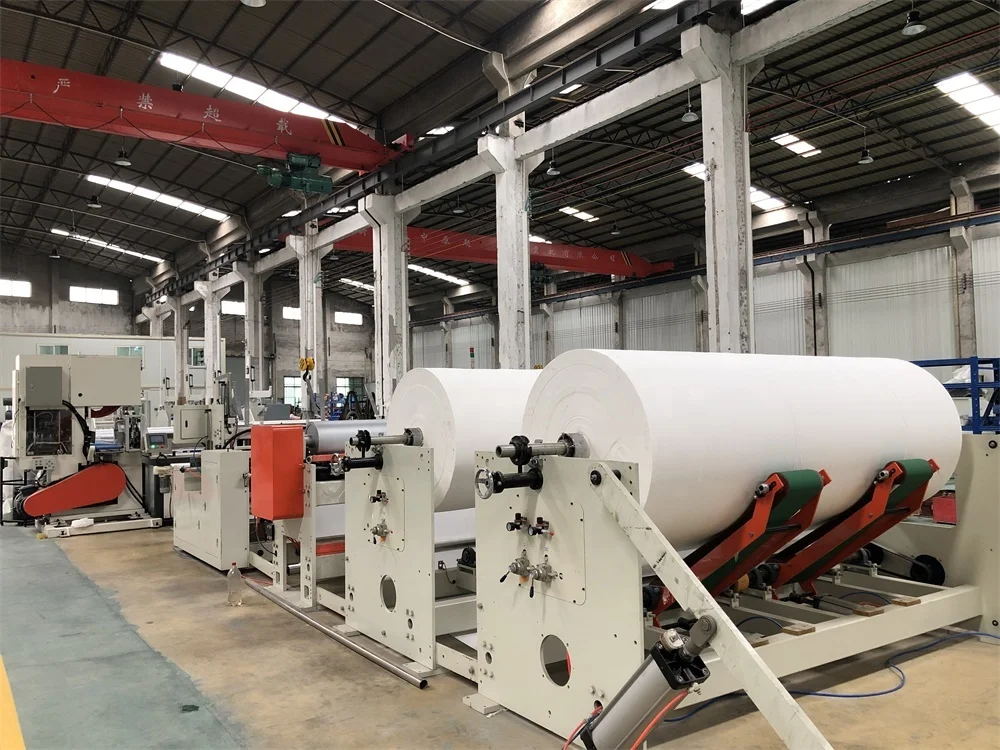

Jumbo roll stand
Independent wall-type jumbo roll stand, structure is simpler and stronger, easy to clean. It is controled by the independent frequency motor, and the tension is tracked by the encoder.
Independent wall-type jumbo roll stand, structure is simpler and stronger, easy to clean. It is controled by the independent frequency motor, and the tension is tracked by the encoder.
Glue lamination device
This glue lamination unit can add colors, but one glue lamination can only engrave one kind of pattern, the diameter of the embossing rollers are 394 mm. And the pattern is engraved by computer, it it very clear and regular. Pattern can be any logo, words, flowers,etc
This glue lamination unit can add colors, but one glue lamination can only engrave one kind of pattern, the diameter of the embossing rollers are 394 mm. And the pattern is engraved by computer, it it very clear and regular. Pattern can be any logo, words, flowers,etc

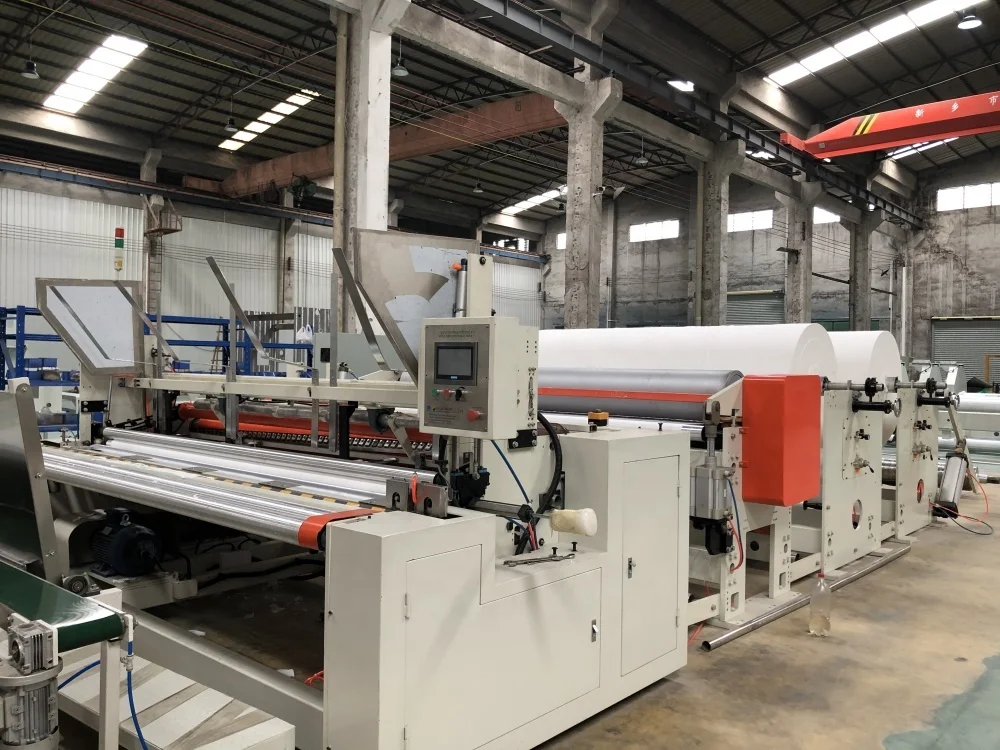

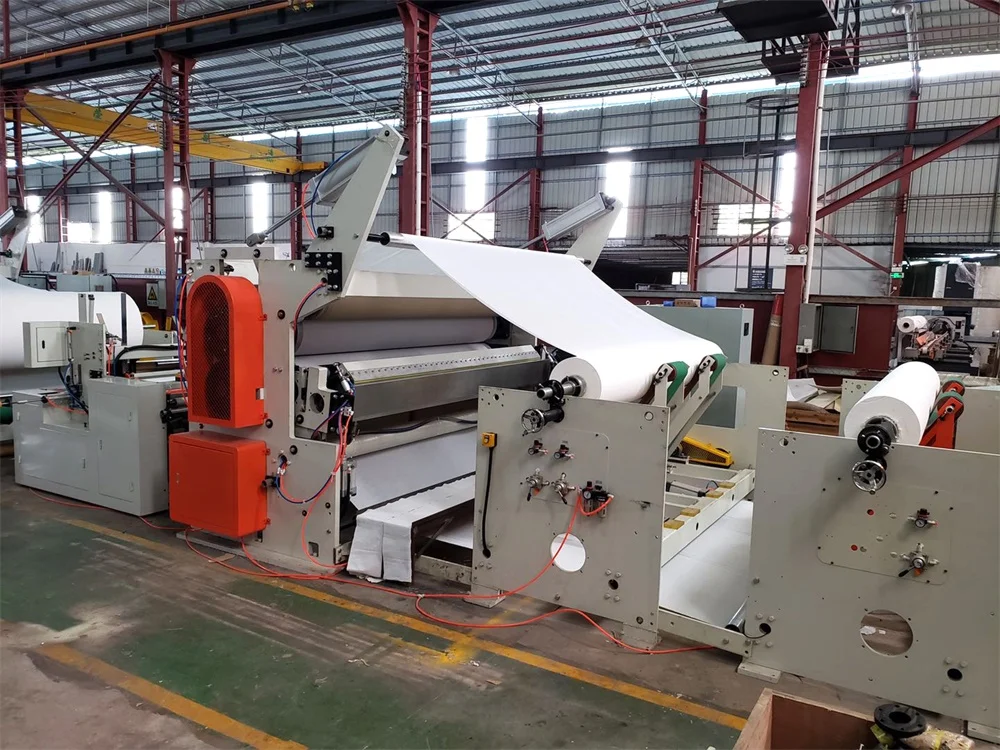

Real machine model:
1 rewinding unit + 1 glue lamination unit + 2 full embossing units + 2 jumbo roll stands
1 rewinding unit + 1 glue lamination unit + 2 full embossing units + 2 jumbo roll stands
2.Log saw cutting machine:
1) Stable production speed: 120 cuts/ min.
2) Adopt to independent servo motor drive and PLC control system.
3) High precision positioning,with length tolerance ±1mm.
4) Model clamping unit, reliable and easy to assemble.
5) Reliable and stable servo drive high precision trimming system.
6) Cutting diameter: 90-150mm, tolerance ±5mm
2) Adopt to independent servo motor drive and PLC control system.
3) High precision positioning,with length tolerance ±1mm.
4) Model clamping unit, reliable and easy to assemble.
5) Reliable and stable servo drive high precision trimming system.
6) Cutting diameter: 90-150mm, tolerance ±5mm
3.Toilet tissue roll bundling packing machine:
1.It adopts advanced servodrive,touch screen and PLC.Parameter is setted conveniently and quickly. Machine automatic completes product from the automatic feeding, arranging, openging the bag, filing into the bag, inserting angle and sealing.
2.The machine is designed to have a quick, flexible format changeover.
3.The world's first 180-degree flip on the bag body, making the device smaller, lower energy consumption.
2.The machine is designed to have a quick, flexible format changeover.
3.The world's first 180-degree flip on the bag body, making the device smaller, lower energy consumption.
Items | Technical parameters | ||||
Size range bag | (F-J25 model) Max.L700×W360×H150mm (F-J25A model) Max.L560×W360×H250mm | ||||

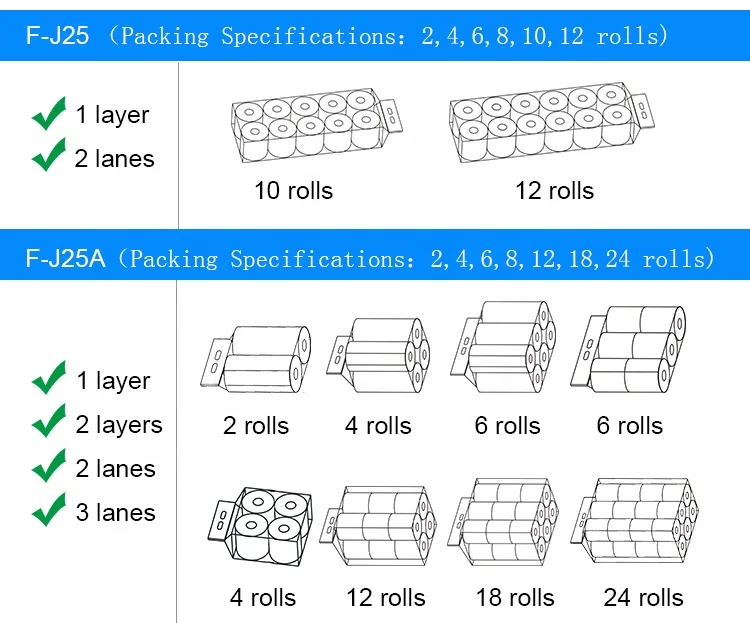

Packing specifications | 4/6/8/10/12 rolls | ||||
Packing arrangement | Horizontal packing | ||||
Set packing speed | 25bags/min | ||||
Stable packaging speed | 5-20bags/min | ||||
Packing film | PE precasting bag | ||||
Tatal power supply | 9KW | ||||
Mini air pressure requirement | 5Mpa | ||||
Power supply | 380V 50HZ | ||||
Weight | 1900KG | ||||
