Single Colors Plastic Bag Label Printer Flexo Printing Machine Flexographic Printer
$34,000.00-35,000.00
YT 4 colour PE PP PVC food packaging poly bag flexo printing machine price for plastic film printing
- Category: >>>
- Supplier: Wenzhou Lisheng Printing And Packaging Machinery Co. Ltd.
Share on (1600559096410):
Product Overview
Description
Product Description
YT series four color Flexo printing machine
Performance
1.easy operation.flexible staring.accurate color register
2.the meter counter can set printing quantity according to the requirements. Stop the machine automatically at the quantity or when the material is cut off.
3.pneumatic printing cylinder lifting and lower for choose. It will stir the printing automatically after lifting.
4.the printing ink is spread by the anilox cylinder with even ink color
5.reliable drying system coordinated with high speed rotation, it will automatically break circle when the machine stops
6.360 continuous and adjustable longitudinal register device.
7.the frequency control of motor speed adapts to different printing speed.
8.there are jogging/stopping buttons on the plate roller base and material rolling rack so as to make it easy operate the
machine when the plate is installed
2.the meter counter can set printing quantity according to the requirements. Stop the machine automatically at the quantity or when the material is cut off.
3.pneumatic printing cylinder lifting and lower for choose. It will stir the printing automatically after lifting.
4.the printing ink is spread by the anilox cylinder with even ink color
5.reliable drying system coordinated with high speed rotation, it will automatically break circle when the machine stops
6.360 continuous and adjustable longitudinal register device.
7.the frequency control of motor speed adapts to different printing speed.
8.there are jogging/stopping buttons on the plate roller base and material rolling rack so as to make it easy operate the
machine when the plate is installed
Model | YT series |
Structure type | Stack |
Colors | 2,4,6,8 colors |
Printing width | 0~3m for choose |
Maximum machine speed | 80m/min |
Printing speed | 50m/min |
Printing length | Standard is 400mm， Customized is available from 300-1000mm |
Thickness of plate | 1.14mm.1.7mm 2.28mm.2.84mm. 3.94mm Customized is available |
Register precision | ≤0.3mm |
Gear module | 1.5mm |
Heating method | Electricity heating |
Web fixing method for un/rewinder | Safety chuck+ Air expanding shaft |
Adhesive tape thickness for stick printing cylinder | 0.38mm or 0.5mm for choose |

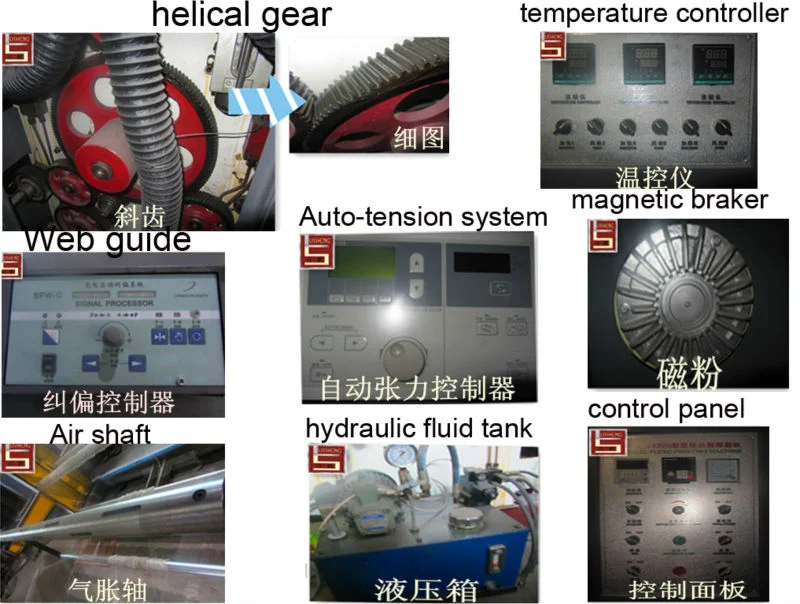

Key components
Air shaft
Tight to material ,flat material , better printing
Metal Anilox roller
Carry the inks to the plate cylinder.
Transmission by spur gear
also have synchronous for optional, help printing speed more fast
Import Auto tension control & magnetic power (2 set )
Control un&rewind parts balance material both side.
Ultrasonic Web guide （1set）
Swift tracking print photo .
Plate roller
Can be customized.(Range 300-800mm)
Printing roller uses static balance and dynamic balance processing
Printing roller uses static balance and dynamic balance processing
Sample pictures
Related Products

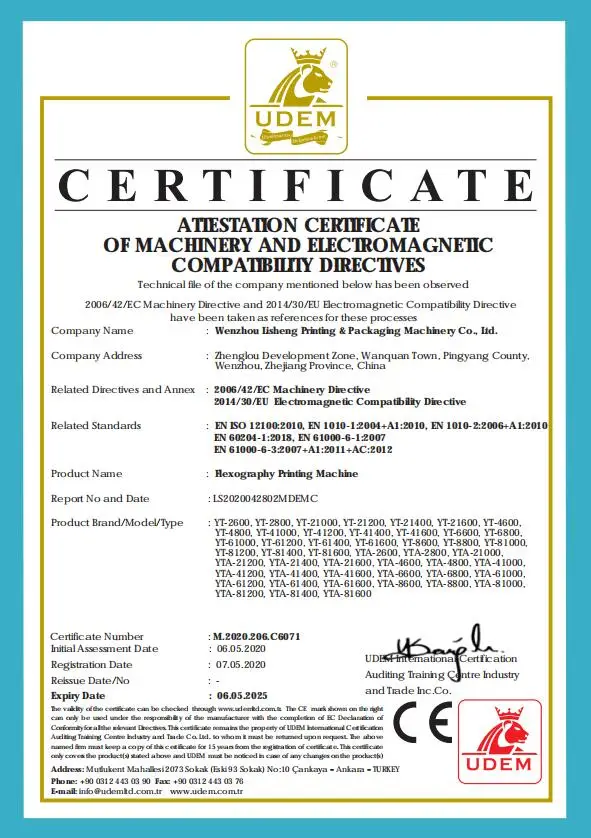

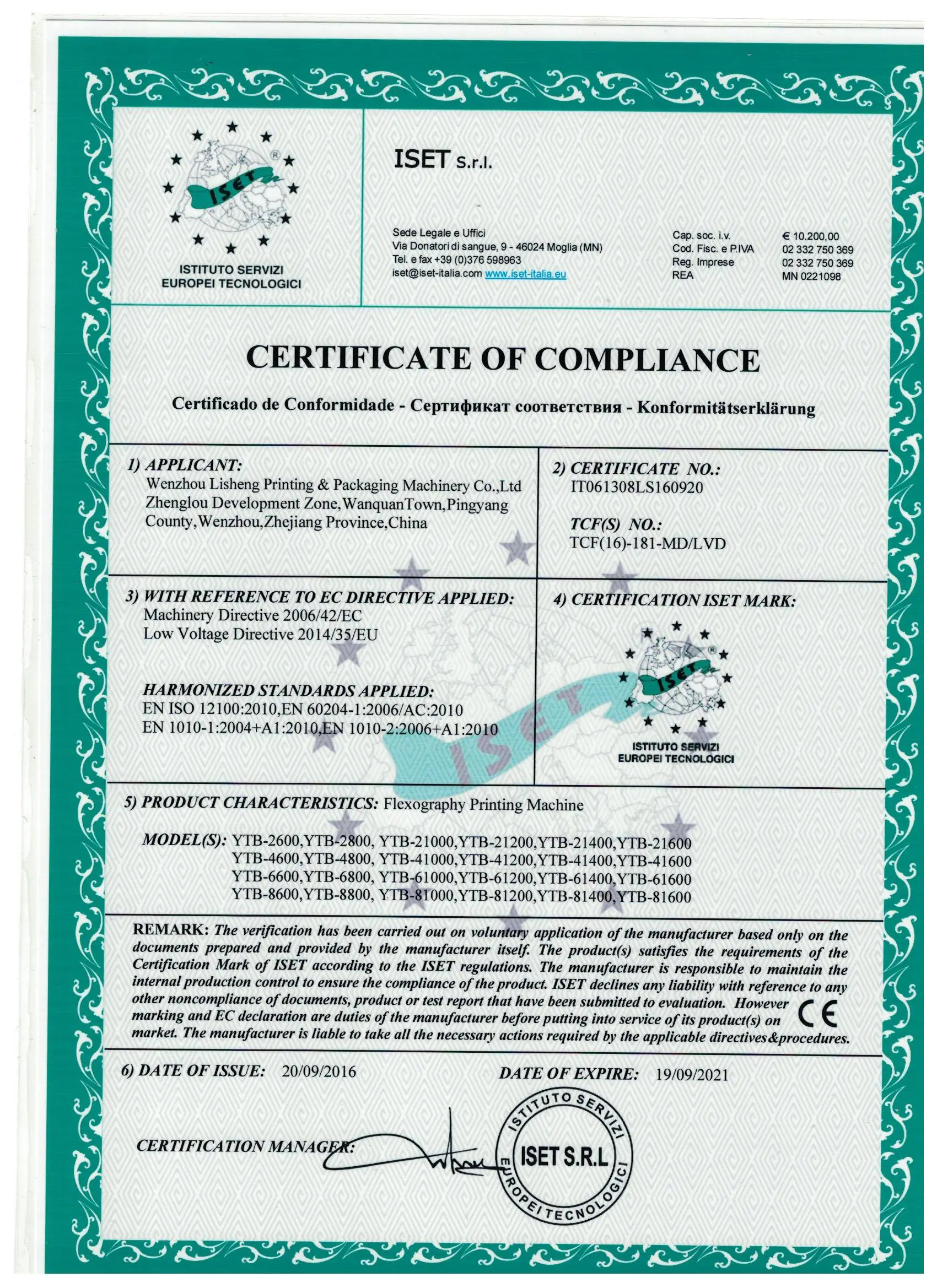

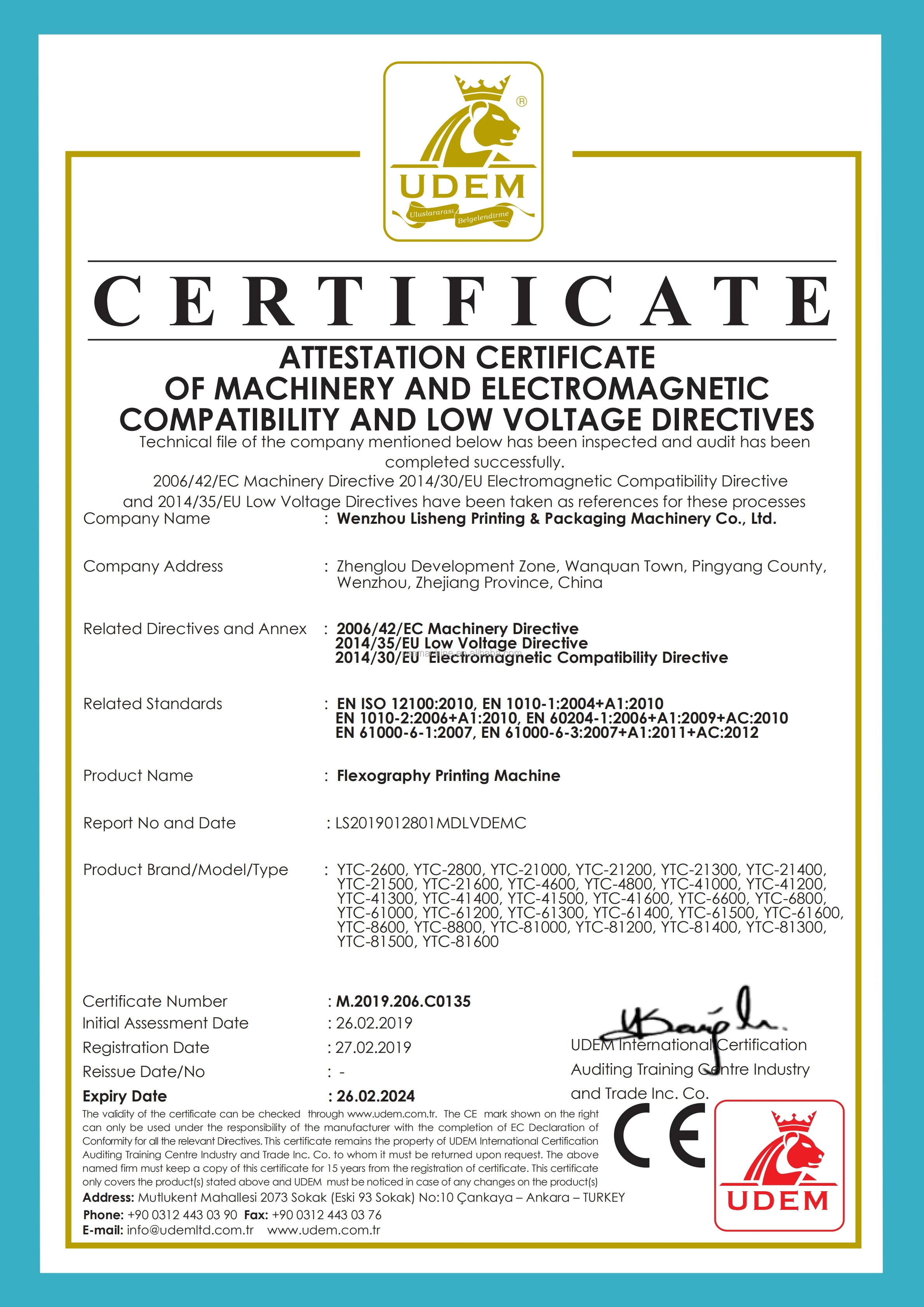

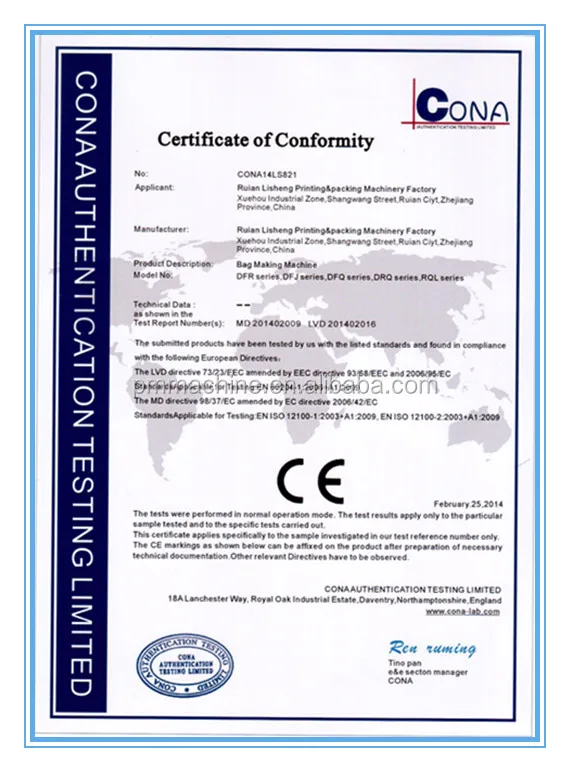

Certifications
After Sales Service
After sale service
Can arrange engineer come to install the machine and training worker, but customer need pay the charges, include flight tickets cost, boarding and lodge cost, salary 100USD/day.
Exhibition
FAQ
1.Are You a Factory or Trading Company?
-We are a factory, with 20 years experience on machines, our products sell very well all over the world.
2.Where is your factory located? How can I visit there?
-Our factory is located in Ruian Zhejing China. The nearest airport is Wenzhou airport. It's about 40 minutes by plane from Shanghai (5 hours by train). All our cliens, from home or abroad, are warmly welcomed to visit us.
3.What can the machine print on?
-Our machine is multifunction, can do roll to roll printing, such as paper, plastic, woven,nonwoven and so on . Surely, you can send us your products, and we'll offer you the proper machine.
4.Can I get some samples? How can I get it ?
-Yes, we can send you some free sample, but you are reponsable for delivery charages of TNT or DHL.
5.How about the after service?
-We can arrange engineers to service overseas.
6.Why choose Lisheng Machinery?
-We are one of leaders in this field(in China). Our high-quality products and service enabled us to expand our market from china to more than 60 countries.
7.I need a quotation/how much is your price?
-Please tell us your material,the width of your material,and how many color do you need? Then we will know which machine is suitable for you and suggest the right machie for you.
8.Waht's your delivery time?
-Usually finish the production within 30 days after we confirm to receive the 30% advanced payment.Actually need to check according to our stock & production plan.
-Usually finish the production within 30 days after we confirm to receive the 30% advanced payment.Actually need to check according to our stock & production plan.
9.How long is your machine's warranty period?
-All our machine have one year guarantee, starting from finished installation.
10.How would we do if the parts broken within warranty?
-We would express the free replacement partswithin the warranty date.
