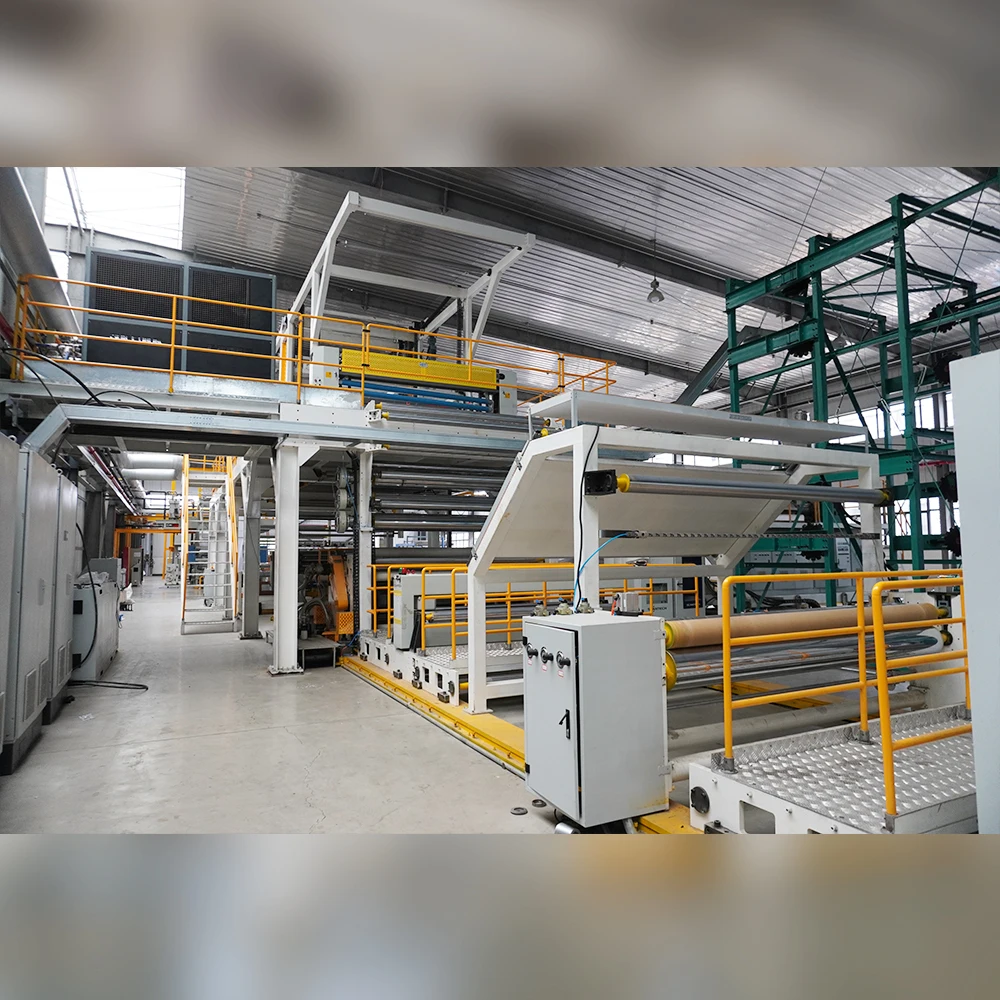

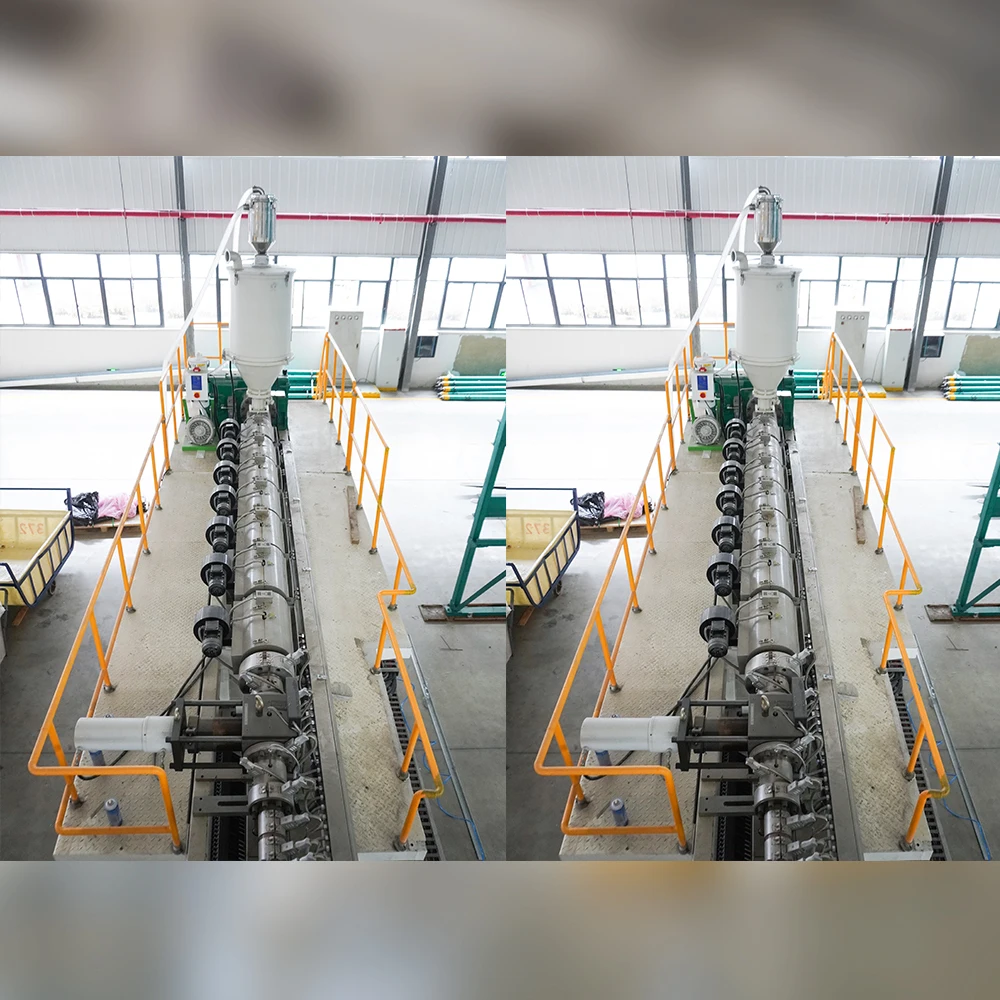

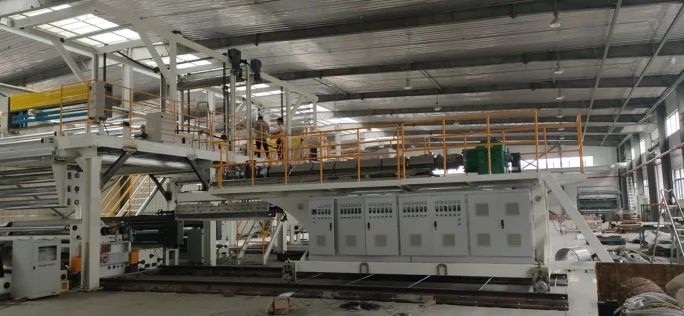

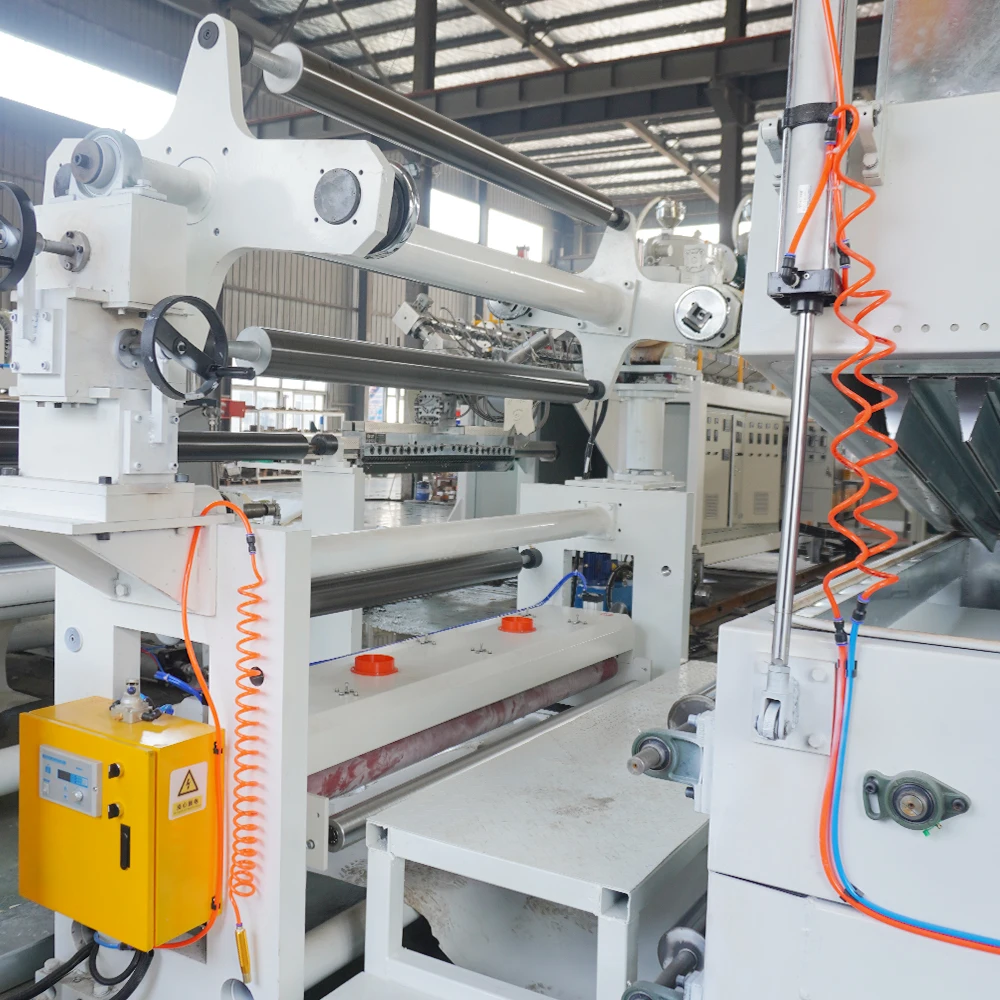

PLA laminating coating extrusion machine food package laminating machine pe pp coating machine line
- Category: Plastic Laminating Machines >>>
- Supplier: Nanjing Gs-Mach Extrusion Equipment Co. Ltd.
Share on (1600559097045):
Product Overview
Description
Model | GS1800 Laminating Coating Extrusion Machine | ||||||
Base Material | Kraft Paper , Plastic Film , Aluminium Foil , Non woven fabric , Paper Board | ||||||
Laminating Coating Width | 700-1700mm | ||||||
Machine line speed | 100-200m/min(depends on the base material processing ) | ||||||
Coating Material | PP PE Resin / PET Resin / PLA / EMMA | ||||||
Winding diameter | Max 1800mm ( Customized Design) | ||||||
Unwinding Diameter | Max 1800mm ( Customized Design) | ||||||
According to the different requirements of the customers special the customized machine

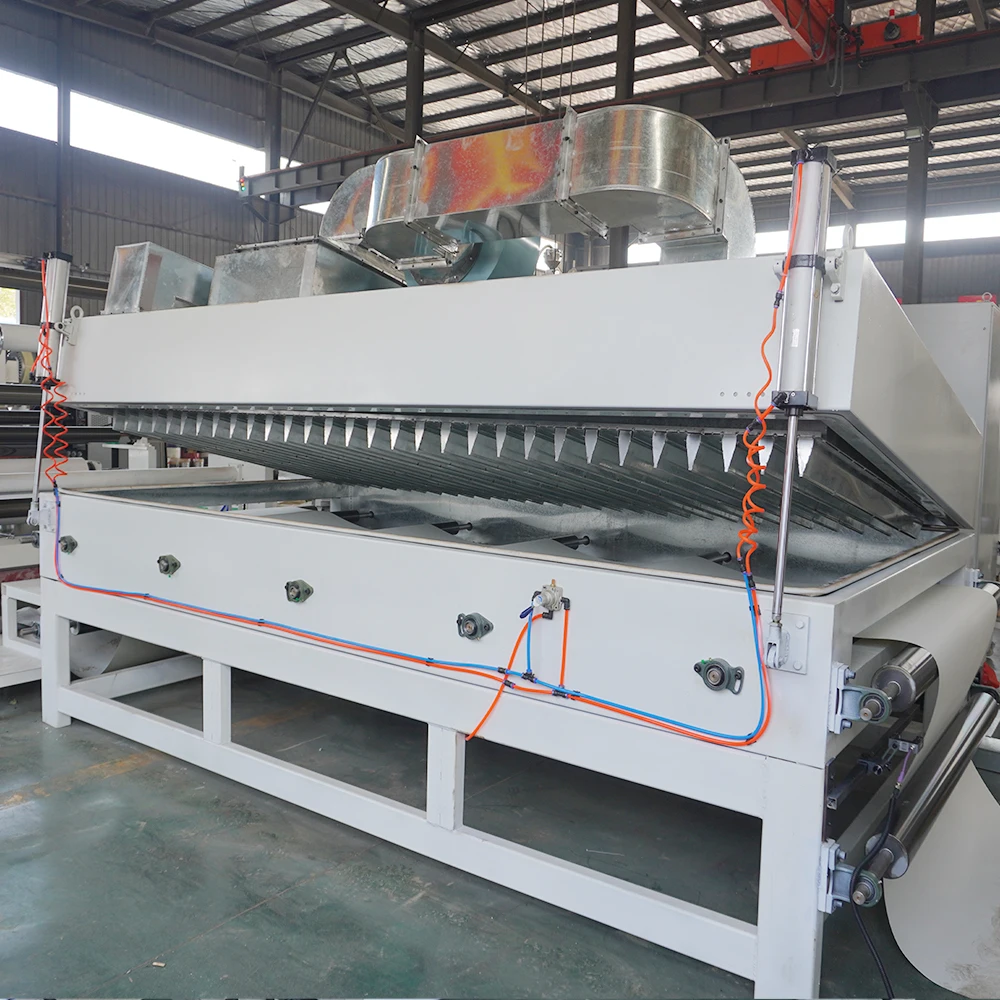

Oven Heating
Oven Heating method：Electric heating , conducting oil heating ; gas heating ; steam heating , all these can be chosen by customer themselves.

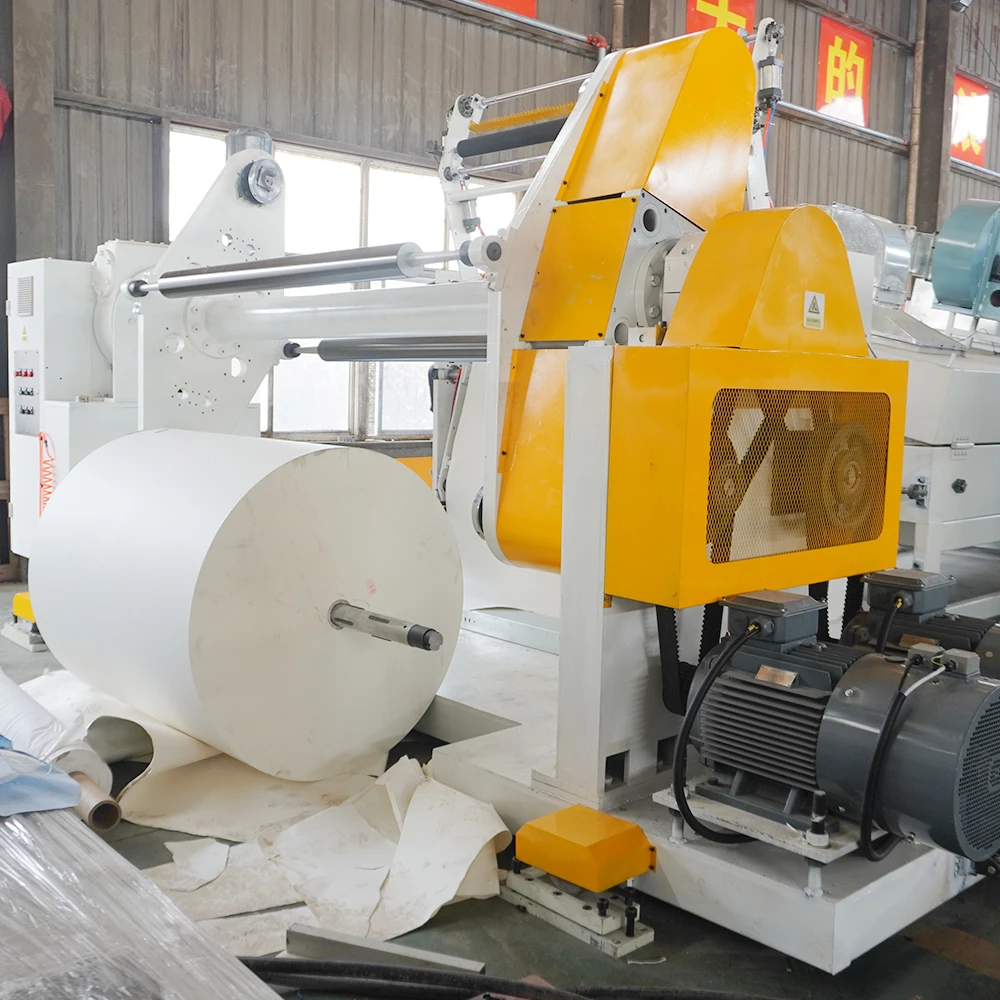

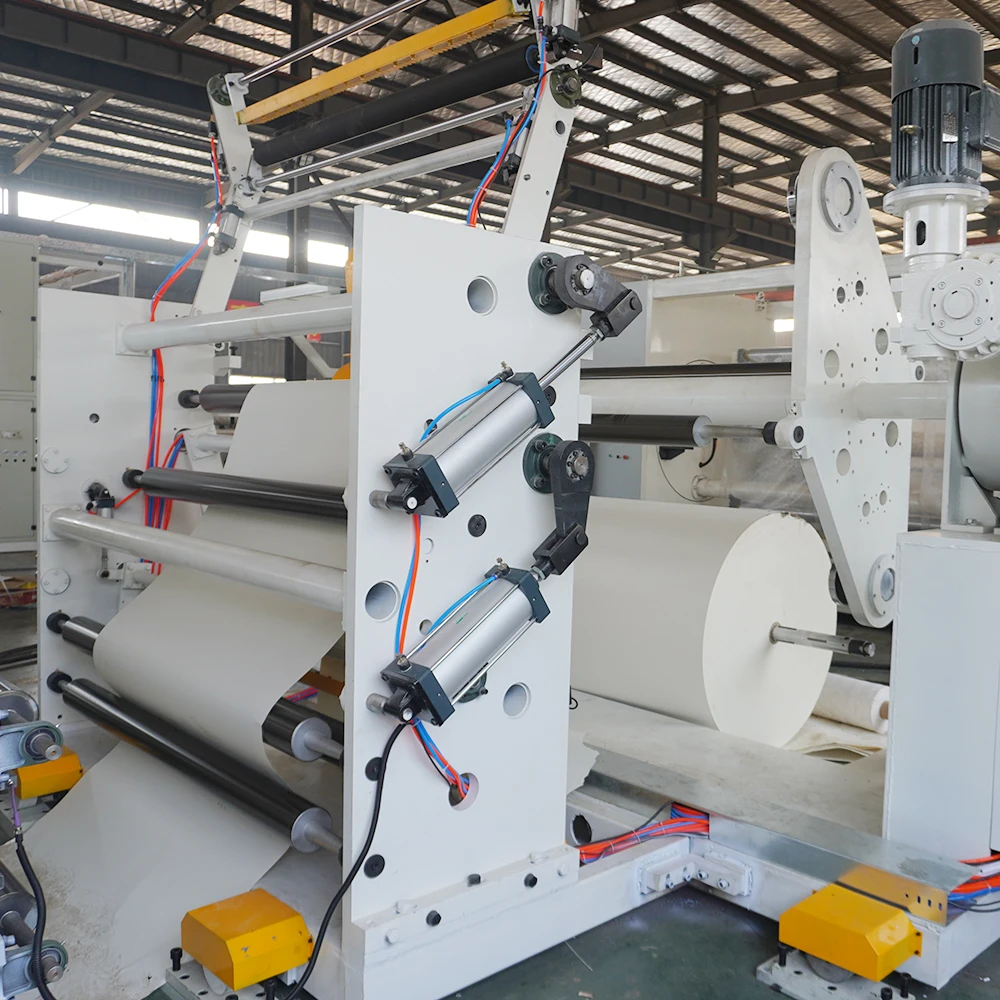

Unwinding Machine unit
Double station automatic non stop splicing system ; bearing weight can reach 4ton or customized ,different base materials adopt different designs

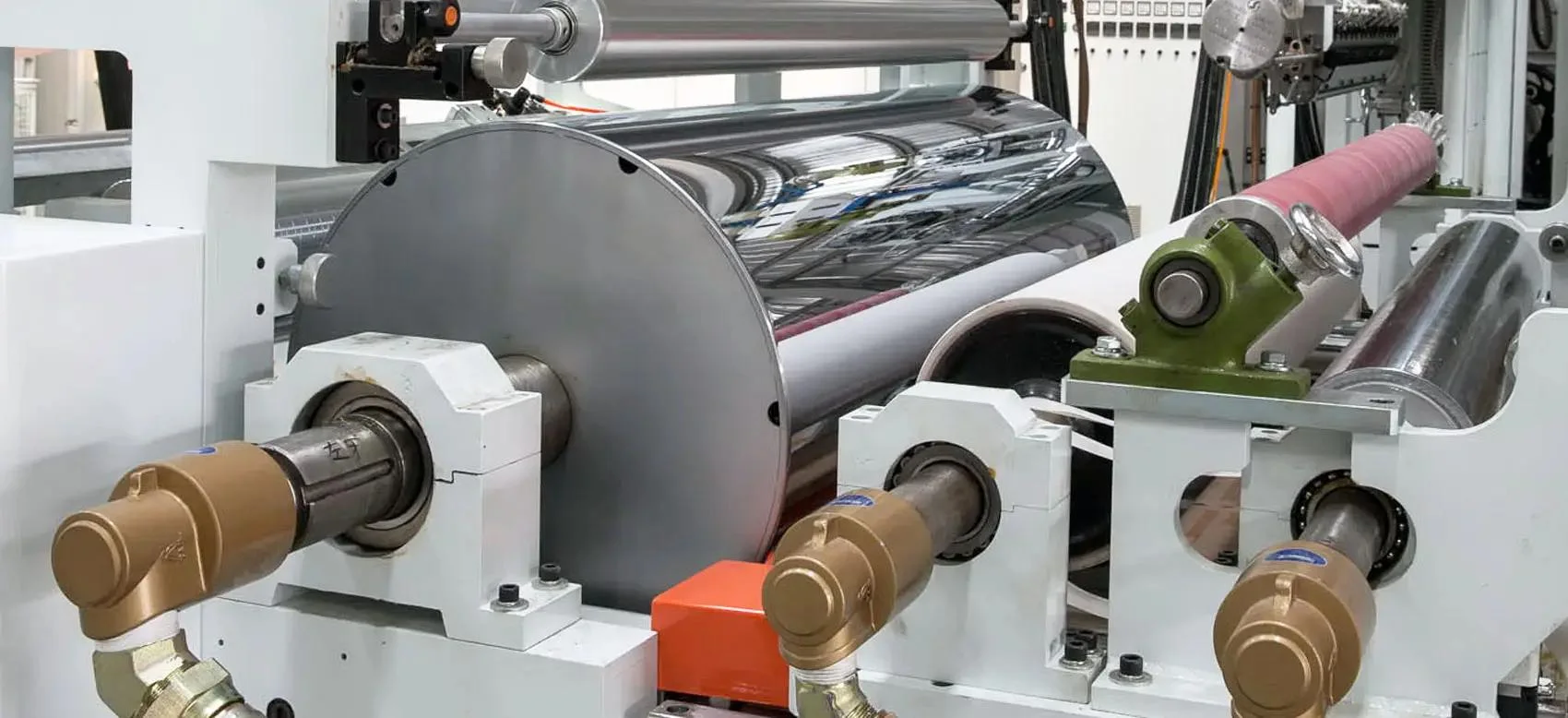

Laminating Molding Compositing System
Molding cooling capacity and excellent temperature uniformity
A film having a small roll unevenness and a uniform thickness can be obtained, since the surface of the roll is molded and precision machined , high speed and high stable operation can be achieved

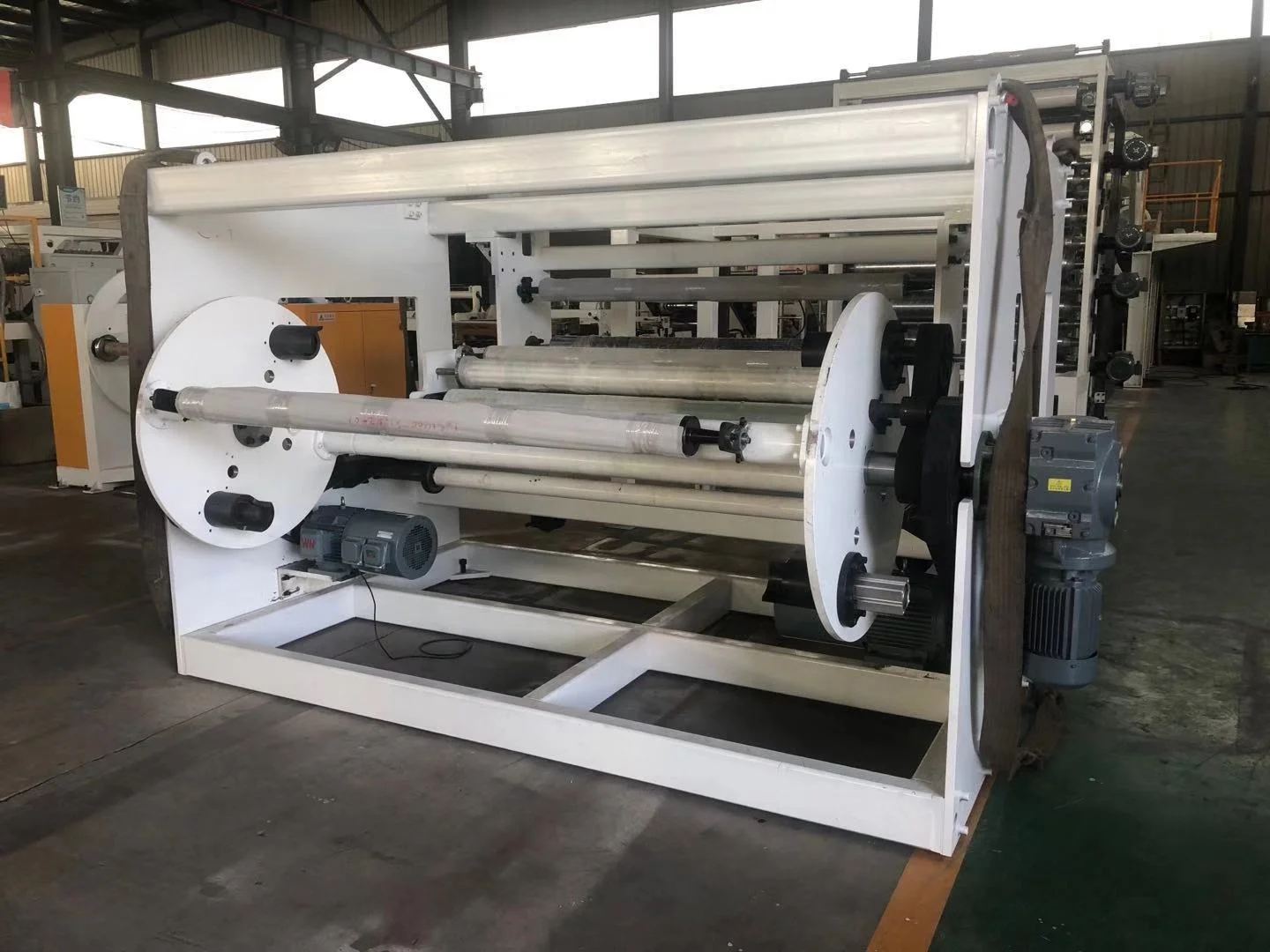

Rewinding Device Unit
The structure adopts the central coiling method,automatically rewinds and is equipped with a set of unloading shaft devices, and the winding tension adopts a set of Fujikura frictionless cylinders and Japanese precision regulating valves to achieve constant torque winding.

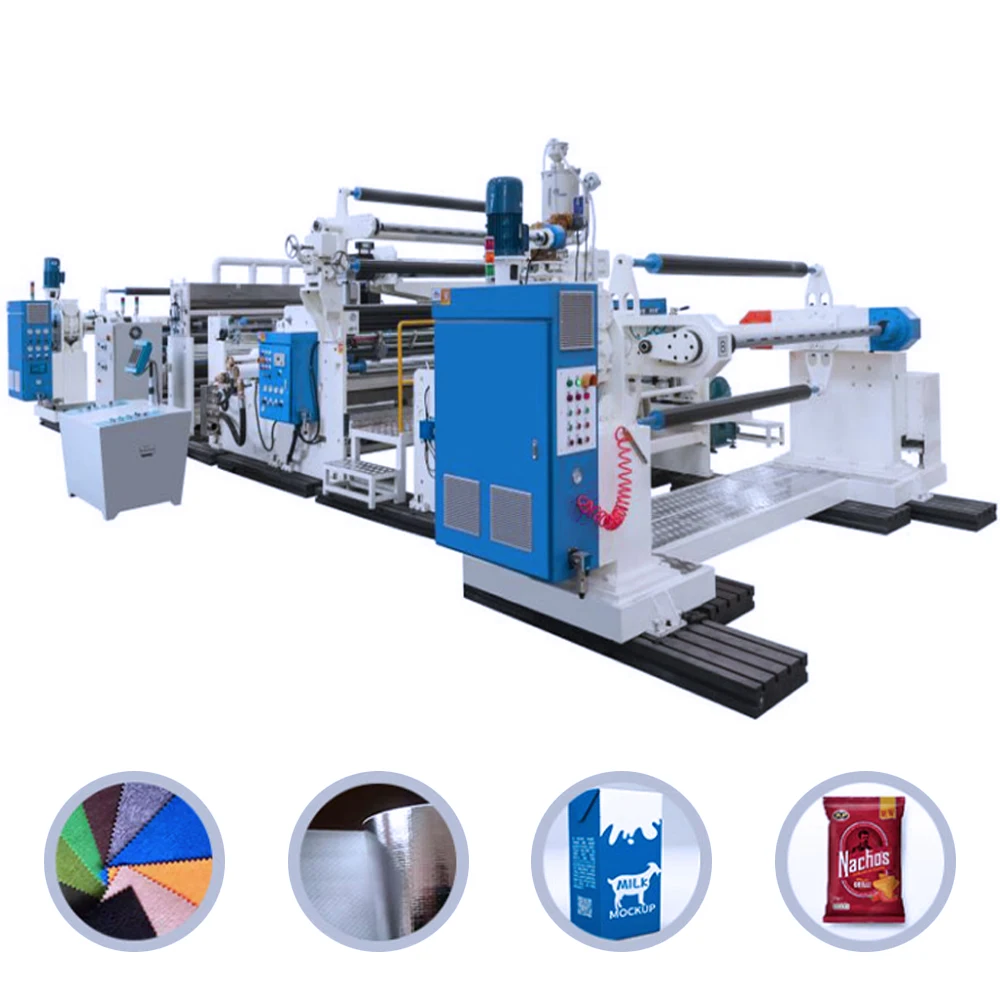

Production Application
Paper Cups
Paper cup inside laminating
Protective suit laminating
Non woven fabric
Non woven fabric roll & Non woven bags
Kraft Paper
Kfrat paper , paper boards , paper roll used in packaging field , all can be laminated to make it water proof
Woven fabric laminating coating
Alu foil packaging film
High resistance, can resistance light and air prevent products become bad; mostly use for liquid packaging, like milk and juice.

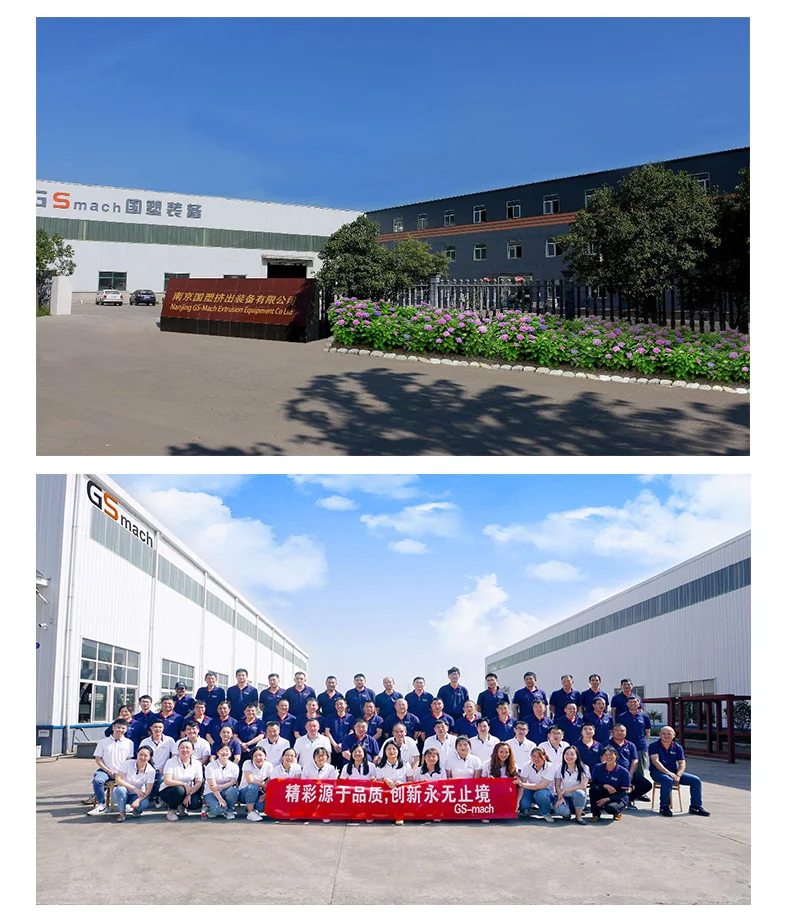

Production Factory
Company Introduction
Nanjing GS Mach Extrusion Equipment Machinery Co., Ltd. We are capable team with perfect technology & strength in manufacturing hot melt adhesive coating laminating machine. Own more than twenty years’ experience in hot melt adhesive coating and lamination.We are leading manufacture for producing Hot melt adhesive coating machine, hot melt adhesive coating lamination machine, TPU/EVAadhesive film casting extrusion machine, TPO/HDPE waterproof coil production line etc with good quality and pretty competitive price.
