Product Overview
Description
Product Overview

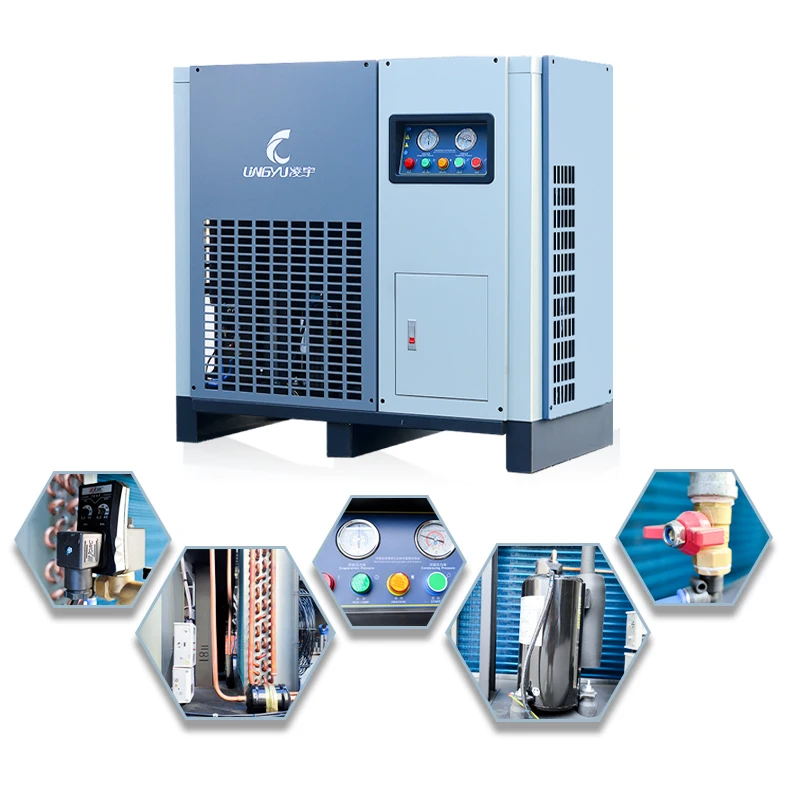

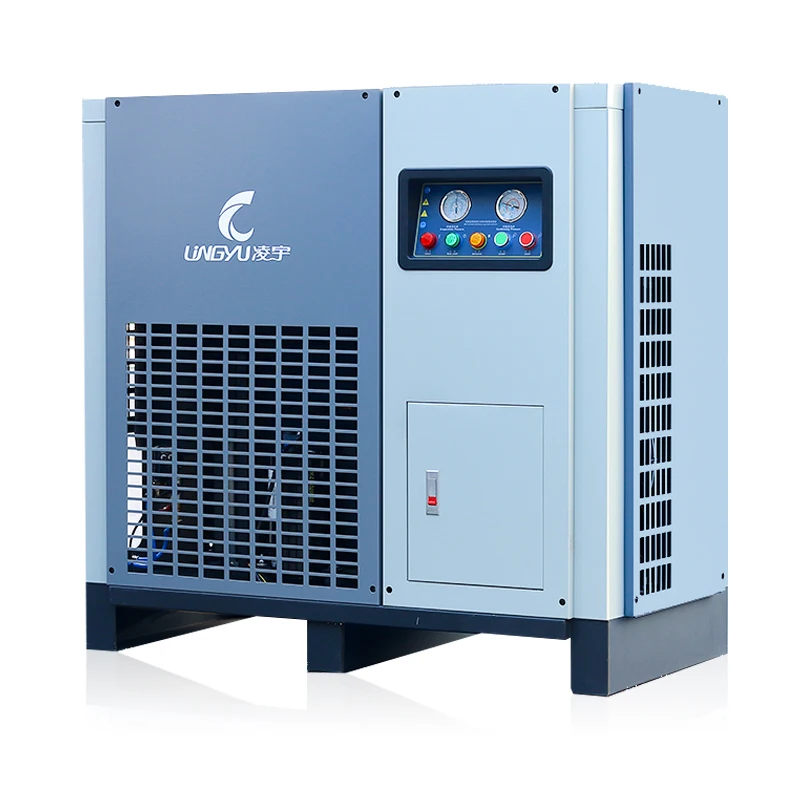

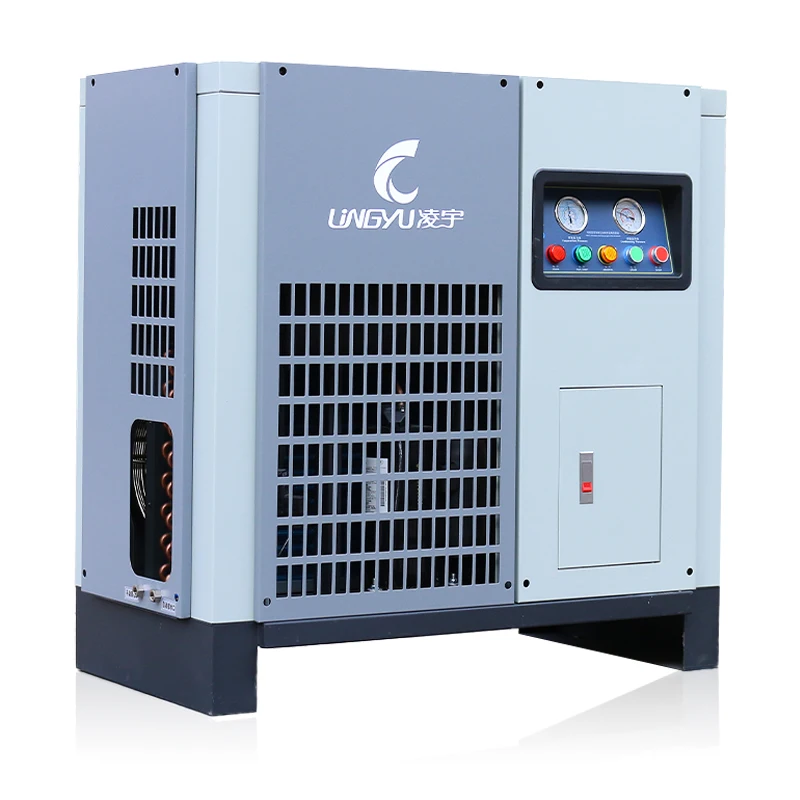

refrigerated compressed air dryer installation working animation setup selection repair filter drier refrigeration

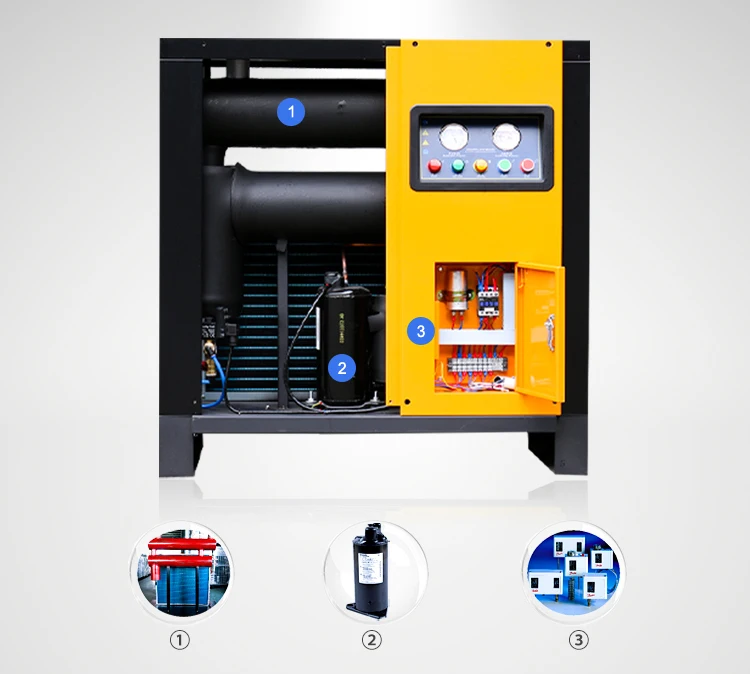

PRODUCT CONFIGURATION
Pre-heat exchanger
Effectively recover the cooling capacity and reduce the compressor load
Compressor
1. Panasonic,Danfoss etc compressors
2. strong and continuous
3. long-term work capacity
2. strong and continuous
3. long-term work capacity
System protection
1. high and low pressure protection of refrigerant system
2.phase sequence protection and built-in overload .
2.phase sequence protection and built-in overload .
Condenser
1.compsosed of hydrophilic aluminum foil +high -quality copper tube heat transfer in high efficiency
2.it is not easy to block by dust.
2.it is not easy to block by dust.
Gas-liquid separator
1.99% separation efficiency
2.complete gas-liquid separtion effect
3.avoided the secondary evaporation of water
4. effect of the cold dryer is ensured .
2.complete gas-liquid separtion effect
3.avoided the secondary evaporation of water
4. effect of the cold dryer is ensured .
Cooling fan
1.MaEr external rotor cooling fan
2. large cooling air volume,low noise and stable preation.
2. large cooling air volume,low noise and stable preation.
PRODUCT SPECIFICATIONS
Model | Capacity | Voltage | Power | Inlet/Outlet | Weight | Dimension |
(Nm³/min) | (V/Hz) | (KW) | (Kg) | (H×W×D) | ||
LY-D10AC | 1.5 | 220/50 | 0.68 | G1" | 48 | 710*440*680 |
LY-D20AC | 2.5 | 220/50 | 0.83 | G1" | 58 | 800*440*880 |
LY-D30AH | 3.8 | 220/50 | 1.1 | G1-1/2" | 95 | 930*500*980 |
LY-D50AH | 6.5 | 220/50 | 1.5 | G1-1/2" | 115 | 1000*550*1030 |
LY-D75AH | 10.5 | 220/50 | 2.2 | G2" | 160 | 1150*650*1240 |
LY-D100AH | 13.5 | 380/50 | 2.8 | G2-1/2" | 225 | 1300*650*1350 |
LY-D120AH | 17.0 | 380/50 | 2.8 | G2-1/2" | 235 | 1300*650*1350 |
LY-D150AH | 21.5 | 380/50 | 5.2 | DN80 | 295 | 1510*700*1450 |
LY-D180AH | 25.0 | 380/50 | 5.2 | DN80 | 345 | 1510*700*1450 |
LY-D200AH | 28.5 | 380/50 | 5.5 | DN80 | 430 | 1605*850*1550 |
LY-D250AH | 32.0 | 380/50 | 6.2 | DN80 | 450 | 1605*850*1550 |
LY-D300AH | 37.0 | 380/50 | 7.8 | DN100 | 550 | 1750*850*1700 |
LY-D350AH | 41.5 | 380/50 | 7.8 | DN100 | 600 | 1750*850*1700 |
LY-D400AH | 45.0 | 380/50 | 10.5 | DN100 | 630 | 1850*950*1830 |
LY-D450AH | 50.0 | 380/50 | 10.5 | DN100 | 680 | 1850*950*1830 |
LY-D500AH | 55.0 | 380/50 | 11.7 | DN125 | 780 | 1850*950*2020 |
LY-D550AH | 60.0 | 380/50 | 11.7 | DN125 | 830 | 1850*950*2020 |
LY-D600AH | 65.0 | 380/50 | 11.9 | DN125 | 1000 | 1820*1330*2250 |
LY-D700AH | 75.0 | 380/50 | 13.9 | DN125 | 1150 | 1850*1395*2390 |
LY-D800AH | 85.0 | 380/50 | 14.4 | DN125 | 1350 | 1860*1420*2400 |
LY-D900AH | 95.0 | 380/50 | 16.7 | DN150 | 1500 | 1900*1400*2450 |
LY-D1100AH | 110.0 | 380/50 | 18.3 | DN150 | 1600 | 1980*1500*2450 |
No | Product name | refrigerated compressed air dryer installation working animation setup selection repair filter drier refrigeration |
1 | Power | 1.1KW |
2 | Air capacity | 3.8 M3 |
3 | Refrigerated dryer pressure | Max 10bar |
4 | Dryer inlet temperature | Max 80C |
5 | Dew Point | 2~10C |
6 | Pressure loss | ≤0.02MPa |
7 | Refrigerant | R22, R134a, R407c, R410a |
8 | MOQ | 1 set |
SALES AND SERVICE NETWORK
Contact US
Distributor Wanted
If you are a agent of Lingyu Global Countries, the rights you have :
Products： the most competitive product channels.
After-sales： professional 24-hour after-sale technical support.
Price： lowest price and spare parts support.
Market：professional marketing support.
Technology： strong advanced manufacturing capability support.
Exhibition
FAQ
Q: Are you a factory or a trading company?
A: We are factory. And we have ourselves trading company.
Q: What is the specific address of your company?
A: No.3, 2nd Street, yuanle Road, Dongsheng Town,
Zhongshan City, Guangdong Province, China
Q: Do your company accept ODM & OEM?
A: Yes, of course. We accept full ODM & OEM.
Q: What about the voltage of products?
Can they be customized?
A: Yes, of course. The voltage can be customized
according to your requirement.
Q: Do your company offer spare parts of the machines?
A: Yes, of course, high quality spare parts are
available in our factory.
Q: What are your payment terms?
A: 30% T/T in advance, 70% T/T before delivery.
Q: What payment ways do you accept?
A: T/T, Western Union
Q: How long will you take to arrange the goods?
A: For normal voltages,we can delivery the goods within 7-15
days. For other electricity or other customized machines,
wewill delivery within 25-30 days.essed air dryer piston compressor air dryer compressor adsorption dryer screw dryer precise filter cold dryer refrigerated air dryer
