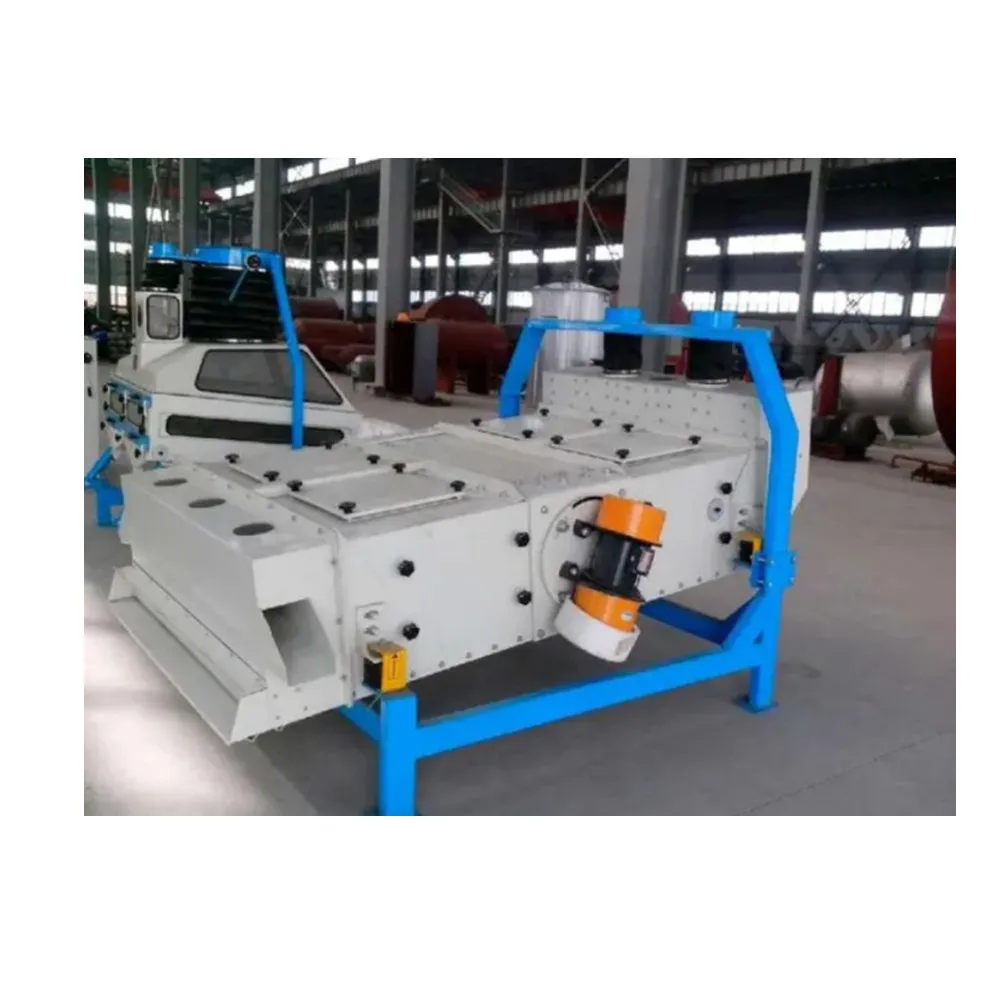

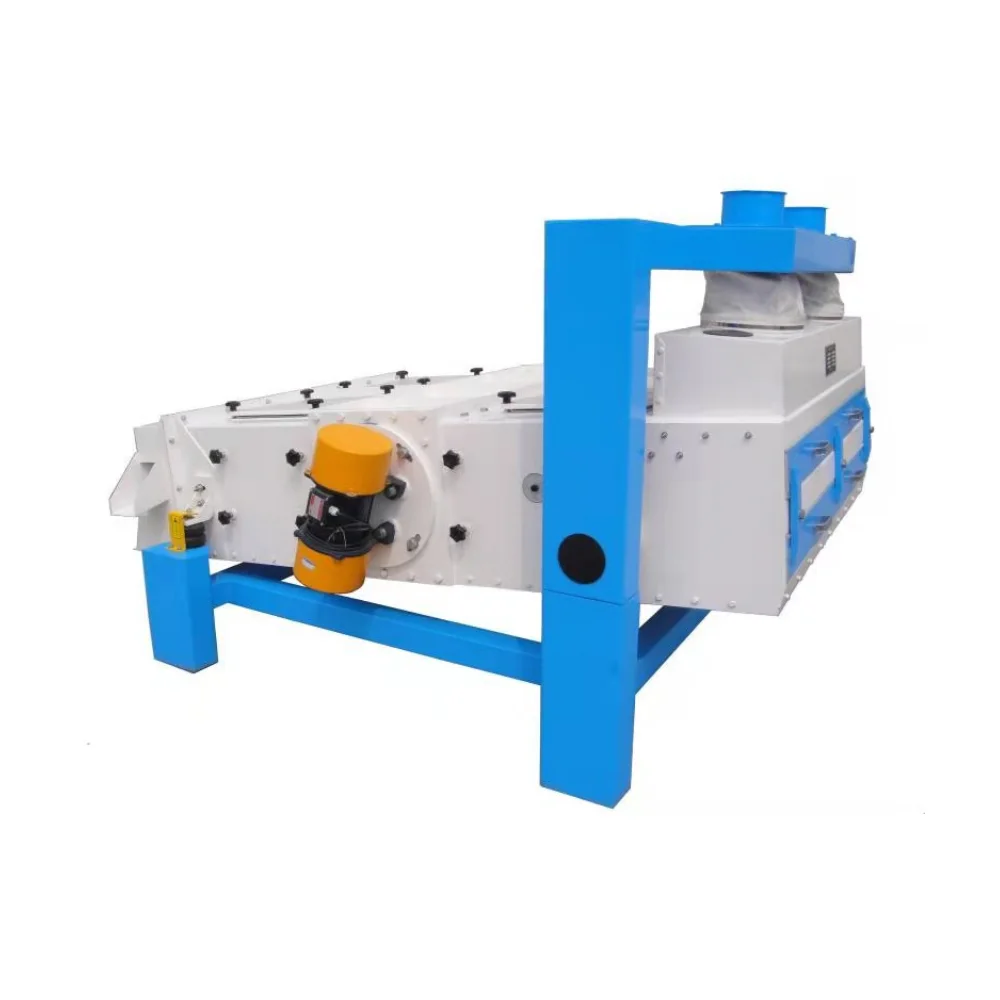

Seeds Cleaning Machine Vibrating Screen Mesh Grading Sesame Seeds Cleaning Grain Processing Machinery
- Category: >>>
- Supplier: Tacheng City Xinchen Trading Co. Ltd.
Share on (1600559126978):
Product Overview
Description
Product description
Application
This machine is suitable for the initial cleaning of raw grains in grain depots and seed companies, the initial cleaning and cleaning of raw materials in milling, rice milling, feed, chemical, food processing and other industries.
By replacing the sieve plates of different specifications, many varieties of materials such as wheat, corn, rice, and oil can be cleaned.
By replacing the sieve plates of different specifications, many varieties of materials such as wheat, corn, rice, and oil can be cleaned.
Features
1. Good effect on the treatment of medium and small impurities
2. The screen body and the frame are supported by four rubber springs, which can effectively prevent the vibration from being transmitted to the ground.
3. The sieve plate is easy to install and remove
4. The vibration motor directly drives the screen body, and the failure rate is low
5. There are two types of fixed and mobile optional
2. The screen body and the frame are supported by four rubber springs, which can effectively prevent the vibration from being transmitted to the ground.
3. The sieve plate is easy to install and remove
4. The vibration motor directly drives the screen body, and the failure rate is low
5. There are two types of fixed and mobile optional
Details Images
Model | Power (kw) | Capacity (t/h) | ||
Pre cleaning | Cleaning | |||
TQLZ40*80 | 2*0.12 | 3 | 2 | |
TQLZ60*100 | 2*0.25 | 12 | 4 | |
TQLZ100*100 | 2*0.25 | 20 | 7 | |
TQLZ100*150 | 2*0.37 | 30 | 11 | |
TQLZ100*200 | 2*0.37 | 40 | 14 | |
TQLZ150*150 | 2*0.75 | 45 | 16 | |
TQLZ150*200 | 2*0.75 | 60 | 22 | |
TQLZ180*200 | 2*1.1 | 70 | 26 | |
TQLZ150*270 | 2*1.5 | 100 | 30 | |
TQLZ180*270 | 2*1.5 | 120 | 35 | |
Company profile
Customer
Packing & Shipping
Contact Us
FAQ
Q: Why work with your company ?
A: We have 14 years experience in oil press machine industry, and we can help you find a great solution that can save your cost and reach your production targets. Our main products including :screw oil press, oil filter, oil refinery machine and spare parts etc.
Q: How can I judge your machine quality ?
A: Actually we already got good reputations in Russia and The Five Countries in Central Asia because of our service and stable quality. All of our machines can provide 1 year warranty and lifetime maintenance, for core parts are 6 months warranty.
Q: If i don't know how to operate this machine ? How can i do ?
A: Our engineer will help you from the starts, and machine has been tested and fully assembled before shipping, you just needs to make 2-4 hours wear-in and then can work.
Q: What's wear-in for new machine?
A: Using 10 KG oil cake + 1 KG sand + 1 KG water, mix them, put in oil press, wear in 3~4 hours.
1. 1st hour, adjust oil cake thickness as 3 mm.
2. 2nd hour, adjust oil cake thickness as 2.5 mm.
3. 3rd hour, adjust oil cake thickness as 2 mm.
Q:What are cold press and hot press?
A: Cold press is pressing dry and raw seeds. usually need to press 2 times to get maximum oil.
Hot press is pressing roasted seeds. usually only 1 time to get maximum oil. peanuts roast to 125~130 degree with 1~2% moisture.
Q:What service do you provide?
A: (1) 1 year free warranty, whole lifetime maintenance.
(2) Supplying wearing parts all year around.
(3) Supplying technical solutions at any time.
(4) Helping design and plan the oil plants construction.
(5) Providing installation video.
(6) Developing agents with good policies around world.
Q: How can I get a quotation?
A: Contact us immediately for further details by sending us an inquiry.
A: We have 14 years experience in oil press machine industry, and we can help you find a great solution that can save your cost and reach your production targets. Our main products including :screw oil press, oil filter, oil refinery machine and spare parts etc.
Q: How can I judge your machine quality ?
A: Actually we already got good reputations in Russia and The Five Countries in Central Asia because of our service and stable quality. All of our machines can provide 1 year warranty and lifetime maintenance, for core parts are 6 months warranty.
Q: If i don't know how to operate this machine ? How can i do ?
A: Our engineer will help you from the starts, and machine has been tested and fully assembled before shipping, you just needs to make 2-4 hours wear-in and then can work.
Q: What's wear-in for new machine?
A: Using 10 KG oil cake + 1 KG sand + 1 KG water, mix them, put in oil press, wear in 3~4 hours.
1. 1st hour, adjust oil cake thickness as 3 mm.
2. 2nd hour, adjust oil cake thickness as 2.5 mm.
3. 3rd hour, adjust oil cake thickness as 2 mm.
Q:What are cold press and hot press?
A: Cold press is pressing dry and raw seeds. usually need to press 2 times to get maximum oil.
Hot press is pressing roasted seeds. usually only 1 time to get maximum oil. peanuts roast to 125~130 degree with 1~2% moisture.
Q:What service do you provide?
A: (1) 1 year free warranty, whole lifetime maintenance.
(2) Supplying wearing parts all year around.
(3) Supplying technical solutions at any time.
(4) Helping design and plan the oil plants construction.
(5) Providing installation video.
(6) Developing agents with good policies around world.
Q: How can I get a quotation?
A: Contact us immediately for further details by sending us an inquiry.
