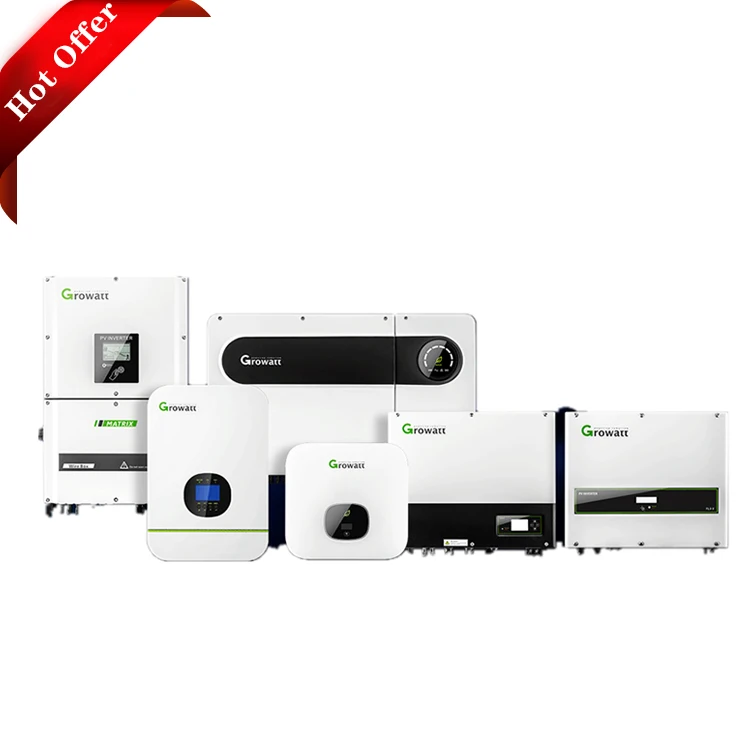

Factory Direct Growatt Solar Off Grid Inverter Three Phase Hybrid Inverter 1000 watts Solar Charge Controller 10kW
Factory Direct Growatt Solar Off Grid Inverter Three Phase Hybrid Inverter 1000 watts Solar Charge Controller 10kW
Factory Direct Growatt Solar Off Grid Inverter Three Phase Hybrid Inverter 1000 watts Solar Charge Controller 10kW
Factory Direct Growatt Solar Off Grid Inverter Three Phase Hybrid Inverter 1000 watts Solar Charge Controller 10kW
Factory Direct Growatt Solar Off Grid Inverter Three Phase Hybrid Inverter 1000 watts Solar Charge Controller 10kW
Factory Direct Growatt Solar Off Grid Inverter Three Phase Hybrid Inverter 1000 watts Solar Charge Controller 10kW
Factory Direct Growatt Solar Off Grid Inverter Three Phase Hybrid Inverter 1000 watts Solar Charge Controller 10kW

Factory Direct Growatt Solar Off Grid Inverter Three Phase Hybrid Inverter 1000 watts Solar Charge Controller 10kW

Share on (1600559128816):


Price:$639.00 - $699.00

Quantity:


Product Overview

Description

















specification

Model H9
H9-1KW
H9-1.5KW
H9-2KW
H9-3KW
H9-4KW
Rated power
1000W
1500W
2000W
3000W
4000W
Standard cell voltage
12VDC/24VDC
12VDC/24VDC
12/24/48VDC
24/48VDC
24/48VDC

Size
Unit Dimensions
510*255*205mm
Package Dimension LxWxH
560*305*255mm
Weight
NET WEIGHT
12kg
14kg
16kg
18kg
21kg
Gross Weight
15kg
17kg
19kg
22kg
25kg
specification
Model H9
H9-5KW
H9-6KW
H9-8KW
H9-10KW
H9-12KW
Rated power
5000W
6000W
8000W
10000W
12000W
Standard cell voltage
48/96VDC
48/96VDC
48/96VDC
48/96VDC
48/96VDC
Size
Unit Dimensions
510*255*205mm
650*260*230mm
Size
Package Dimension
560*305*255mm
700*310*270mm
Weight
NET WEIGHT
24kg
26kg
43kg
46kg
49kg
Gross Weight
28kg
30kg
48kg
51kg
54kg
Input
DC input voltgae range
10.5-15VDC (Single battery voltage）
Utility input voltgae range
170-275VAC（220V) 85-138VAC(110V)
Utility input frequency range
45-65HZ
Output
Inverter output efficiency
≥85%
Inverter output voltage
220VAC±2% 110VAC±2%
Inverter output frequency
50/60HZ±1%
inverter output waveform
sine wave
Utility output voltage range
constant voltage output 220VAC±10% 110VAC±10%
Utility output frequency range
50Hz 60Hz automatic tracking
Output waveform distortion
≤3%
charging current
optional
C0=0A,C1=5A,C2=10A,C3=15,C4=20A,C5=25A,C6=30A
protection
Battery Lack-voltage alarm
10.5VDC (Single battery voltage）
Battery low-voltage protection
10VDC (Single battery voltage）
Battery over-voltage protection
16.7VDC (Single battery voltage）
Battery over-voltage alarm
15VDC (Single battery voltage）
Overload protection
rated power≥110％，60Spower off；≥130％，10Spower off；≥150％，0.6Spower off。
Temperature protection
≥85℃ alarm，≥90℃shutdown the machine
Working mode
1
Normal Mode： Utility is preferred, Utility is charging
02
Eco Mode:load power≤10% shutdown the machine，≥11%-100%turn on
03
Solar inverter is preferred,Utility is not charging,charging:battery voltage≥13V switch to inverter mode;Inverter:battery
voltage≤10.5V, switch to utility mode
other
conversion time
≤4ms
Panel Display
LCD
heat-dissipating method
Smart Fan Control
≤42℃ Fan slow turning heat dissipation，≥45℃ Fan high turning heat dissipation
Work environment
noise
≤55dB
temperature
-10-- +40℃
elative humidity
＜95%








Q1. Who are we?
A1. We are an enterprise integrating R&D and production. We can also accept OEM orders.

Q2. Where is our main market?
A2. Our sold very well in Southeast Asia, Middle East, Africa,americas...

Q3. What can you buy from us?
A3. Solar tied inverter, solar off grid hybrid solar inverter, Solar pumping inverter, Pure sine ave inverter, Modified sine wave inverter, MPPT/PWM solar controller.

Q4. What is our advantage ?
A4. We have professional R&D team, can customized the products you want.

Q5. How can we guarantee quality?
A5. Always a pre-production sample before mass production;Always final Inspection before packing.

Q6. How to select a suitable products?
A6. Tell us your demand, we can recommend a suitable inverter to you.

Q7. How long can we offer a sample?
A7. Most products are in stock, you can buy sample and be shipped at any time.

Q8. What is the warranty ?
A8. One year warranty on products.

Q9. How to solve the technical problem ?
A9. 24 hours on-line after-service consultancy to make your problem solve easily.
