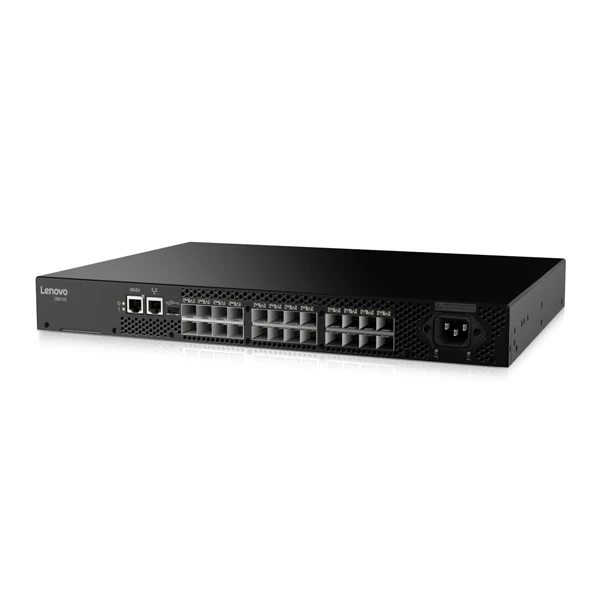

Lenovo ThinkSystem DB610S Gen 6 FC SAN Switch with 8 ports licensed 8X16G SWL SFP transceiver
- Category: >>>
- Supplier: Shenzhen Topstar Technology Industrial Co. Ltd.
Share on (1600559132098):
Product Overview
Description
Lenovo ThinkSystem DB610S Gen 6 FC SAN Switch with 8 ports licensed 8X16G SWL SFP transceiver
Product Description
Specification:
| Scalability | Full-fabric architecture with a maximum of 239 switches |
| Certified Maximum | 6,000 active nodes; 56 switches, 19 hops in Brocade Fabric OS fabrics; larger fabrics certified as required |
| Fibre Channel Ports | Maximum of 24 ports configuration. Switch mode (default): 8-, 16-, and 24-port configurations. can be an E, F, M and D ports Brocade Access Gateway default port mapping: 16 F Ports, 8 N Ports |
| Port on Demand (PoD) | 8-port SW License with 8 x 16Gbps SWL FC transceivers 8-port SW License with 8 x 32Gbps SWL FC transceivers |
| Performance | Fibre Channel: 4.25Gbps line speed, full duplex; 8.5Gbps line speed, full duplex; 14.025Gbps line speed, full duplex; auto-sensing of 4, 8, 16 and 32Gbps port speeds |
| Aggregate Bandwidth | 768Gbps end-to-end full duplex |
Maximum Fabric Latency | Latency for locally switch ports is 900 ns (including FEC) |
Port Types | F_Port, E_Port, M_Port, D_Port (ClearLink Diagnostic Port) on 24 SFP+ ports Brocade Access Gateway mode: F_Port and NPIV-enabled N_Port |
| Media Types | Support any combination of 16/32Gbps Short Wavelength (SWL) and 16/32Gbps Long Wavelength (LWL) or 16Gbps Extended Long Wavelength (ELWL) hot-pluggable transceivers |
| Rack-mount Rail Kits | Fixed rail kit is included standard, Mid-mount rack kit (Part # 01KP864) –optional |
| Software Offerings | Enterprise Software Bundle includes Trunking, Fabric Vision, Extended Fabric: included standard or optional depending on model |
| Dimensions/Weight | Height: 4.29cm (1.68 in.); Width: 42.8cm (16.8 in.); Depth: 30.6cm (12.06 in.)/Weight: 5.73kg (12.65 lbs) fully loaded |
| Power and Cooling | Base switch includes a single, fixed power supply with four integrated system cooling fans |
Power Consumption | 76.52W with all 24 ports populated with 32Gbps SWL optics 55.83W for idle configuration (all optics loaded but not initialized) |
| For Brocade: |
| BR-G610-24-32G BR-G610-8-32G-0 BR-G610-8-16G-0E BR-G610-8-32G-0-Z |
| BR-G620-48-32G-R BR-G620-24-16G-R HD-G620-24-32G-R-1-Z |
| HD-G630-48-32G-F BR-G630-48-32G-R G630-96-32G-R G630-48-F G630-48-R |
| BR-6510-24-16G-R |
| BR6520-48-8G-R BR6520-96-16GR BR6520-48-16GR BR6520-48-0-R |
