Cold storage panels wall EPS panel low cost precast concrete house
- Category: >>>
- Supplier: Zhejiang Quzhou Jaryee Technology Co. Ltd.
Share on (1600559138008):
Product Overview
Description
Products Description
Cold room PU panel is made of light polyurethane as core material, and both side hard color steel sheet, S.S. or aluminum metal. The advantage of polyurethane is good at heat resistance. The outside metal can prevent heat loss due to big temperature difference between inside and outside of room. So it can increase cold room efficiency and make it energy saving.
Product Name | Cold Room Panel |
Panel Type | Cam lock/Slip joint |
Core Material | PU/PIR |
Foam Density | 40±2 Kg/m3(PU) / 45±2 Kg/m3(PIR) |
Thickness | 50/75/100/120/150/200mm |
Width | 960mm/1000mm/1120mm/Others |
Length | Customized |
Material of Panel Surface | Color steel sheet/Stainless steel/Aluminum/Others |
Both Sides Steel Thickness | 0.3mm-0.1mm |
Color | RAL color |
Technical Standard | ||||
Core material | PU(Polyurethane) | PIR(Polyisocyanurate) | ||
Density | 40±2 kg/m3 | 45±2 kg/m3 | ||
Heat Conductivity | ≤0.024 W/m. k | ≤0.022 W/m. k | ||
Compressive Strength | ≥150 N/cm2 | ≥160 N/cm2 | ||
Combustion performance | B2 grade | B1 grade | ||
The bond strength between sandwich core layer and panel | ＞0.1 | ＞0.1 | ||
Product show

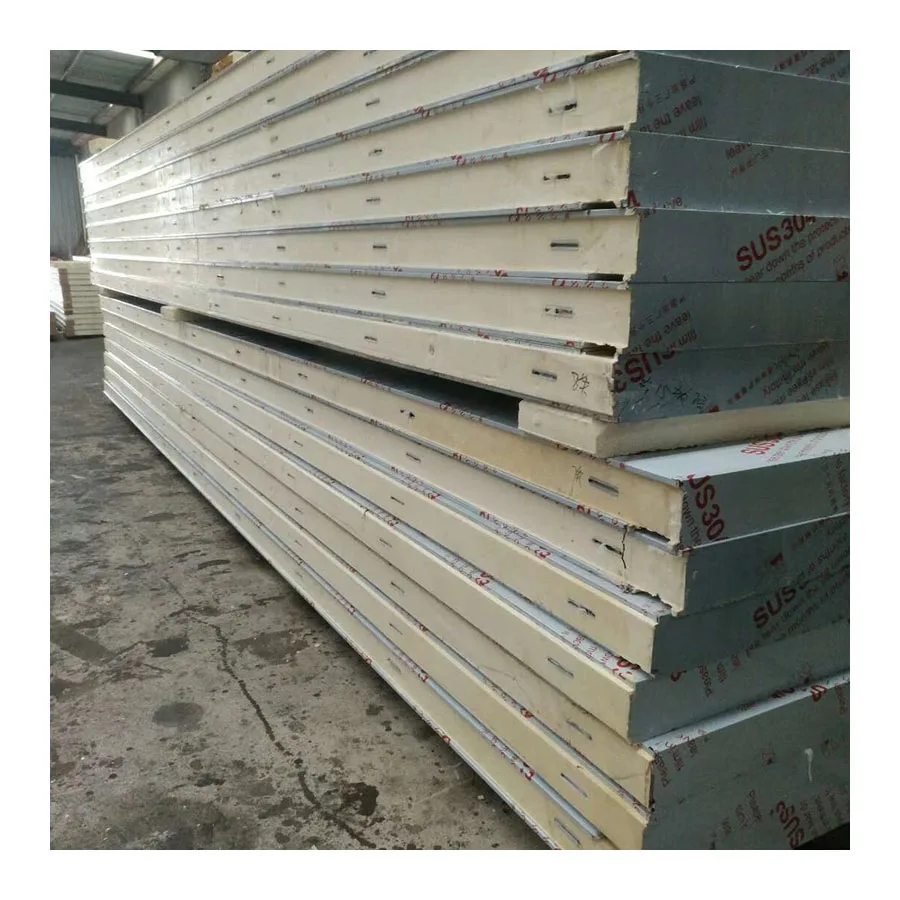

Packing & Delivery

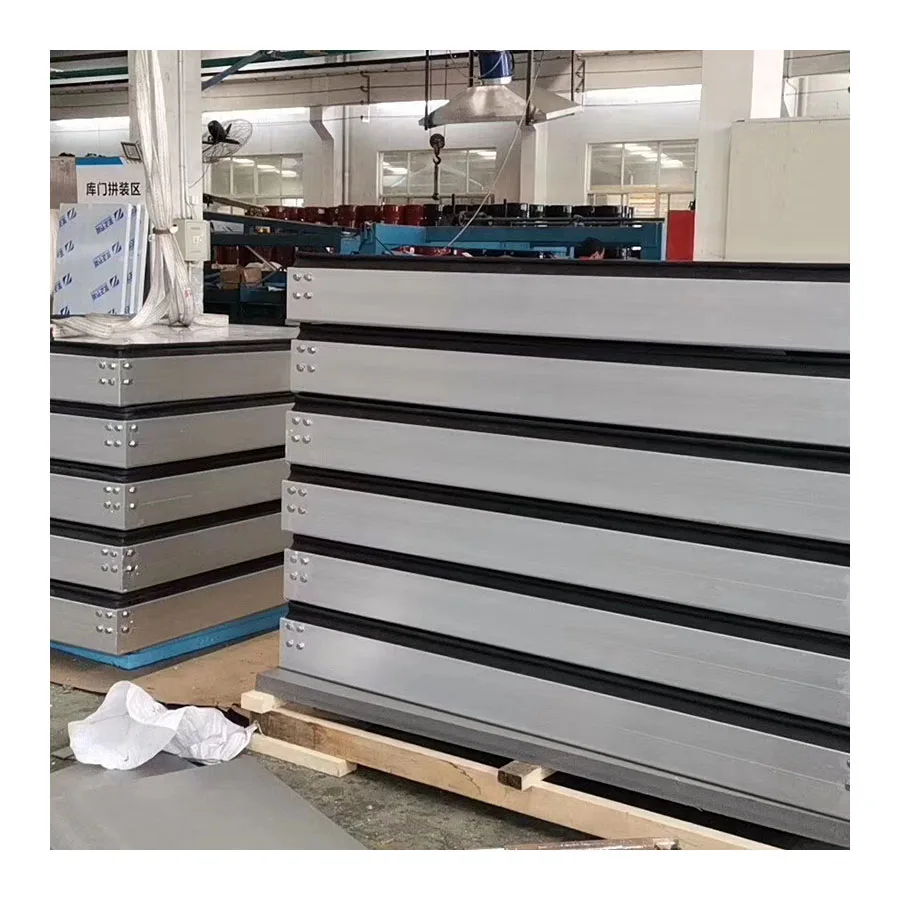

Production line
