Product Overview
Description
YUK622

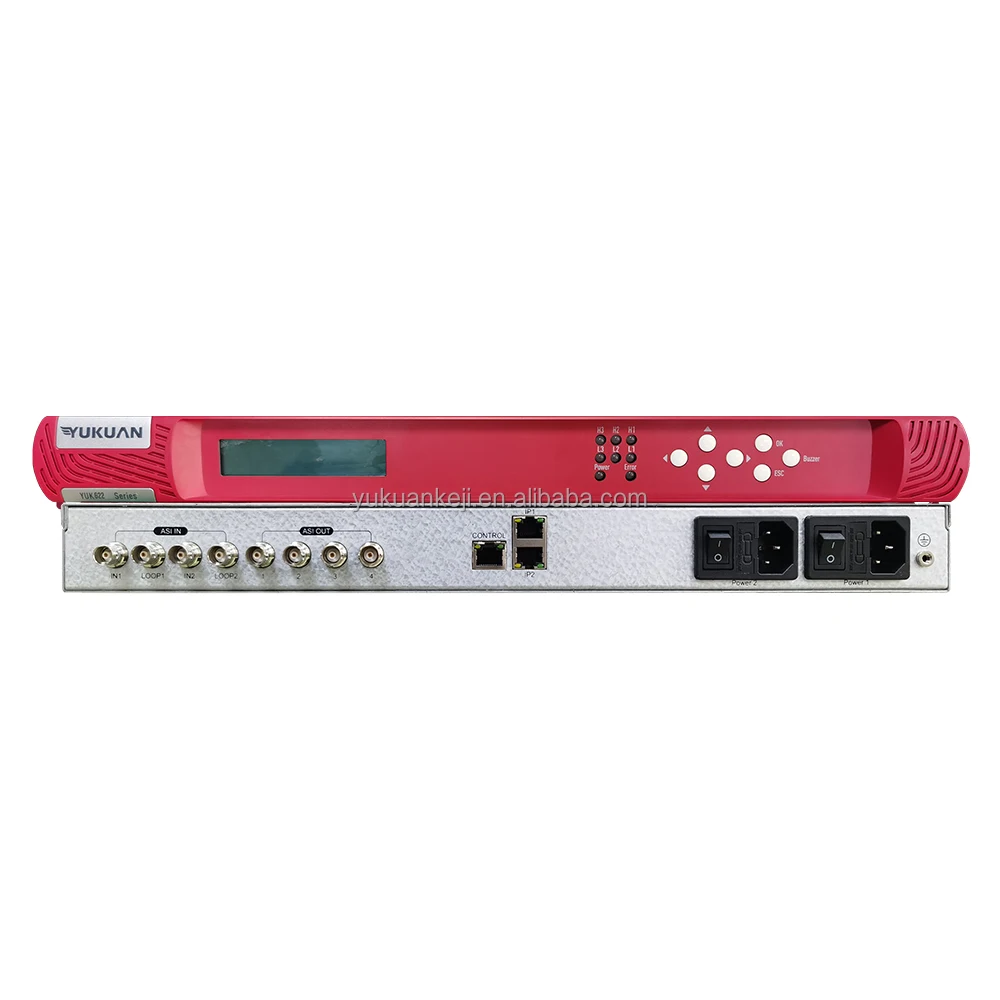

IP to ASI & ASI to IP Gigabits Gateway Converter TV Broadcasting Station Equipments
Product Overview

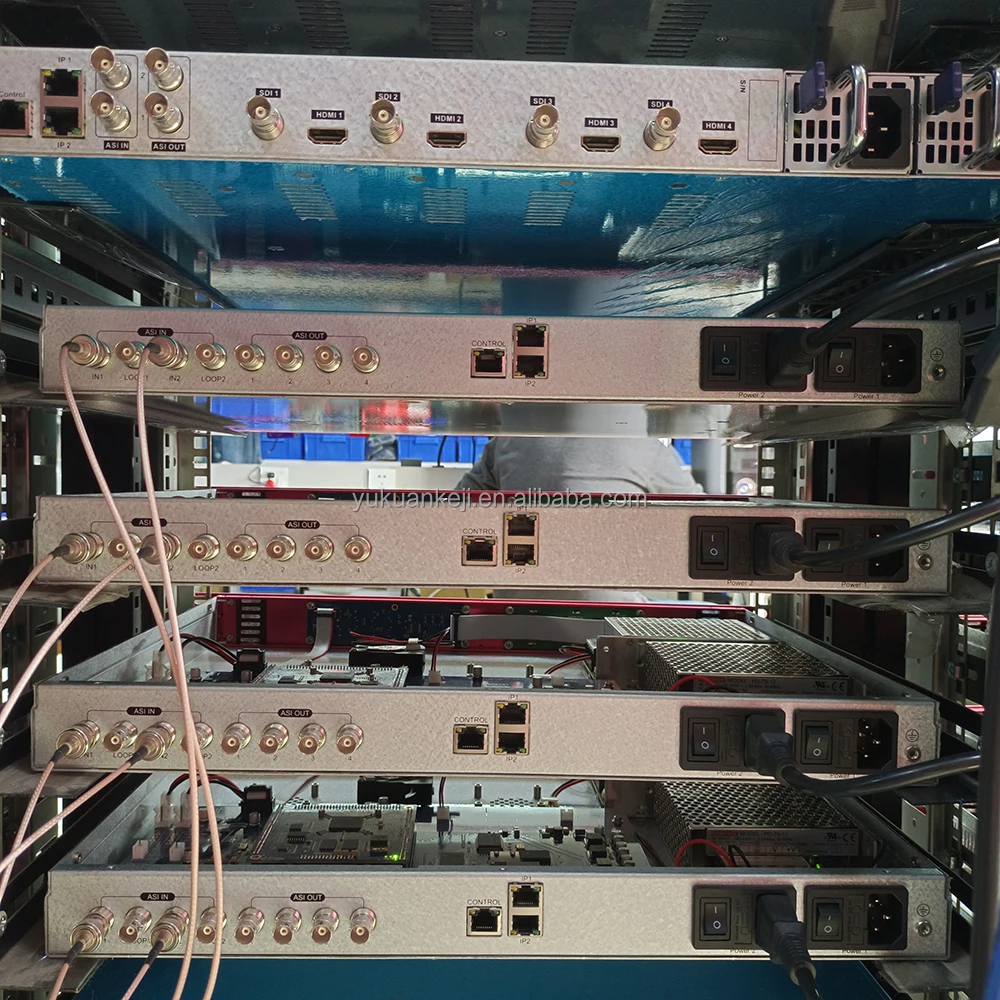

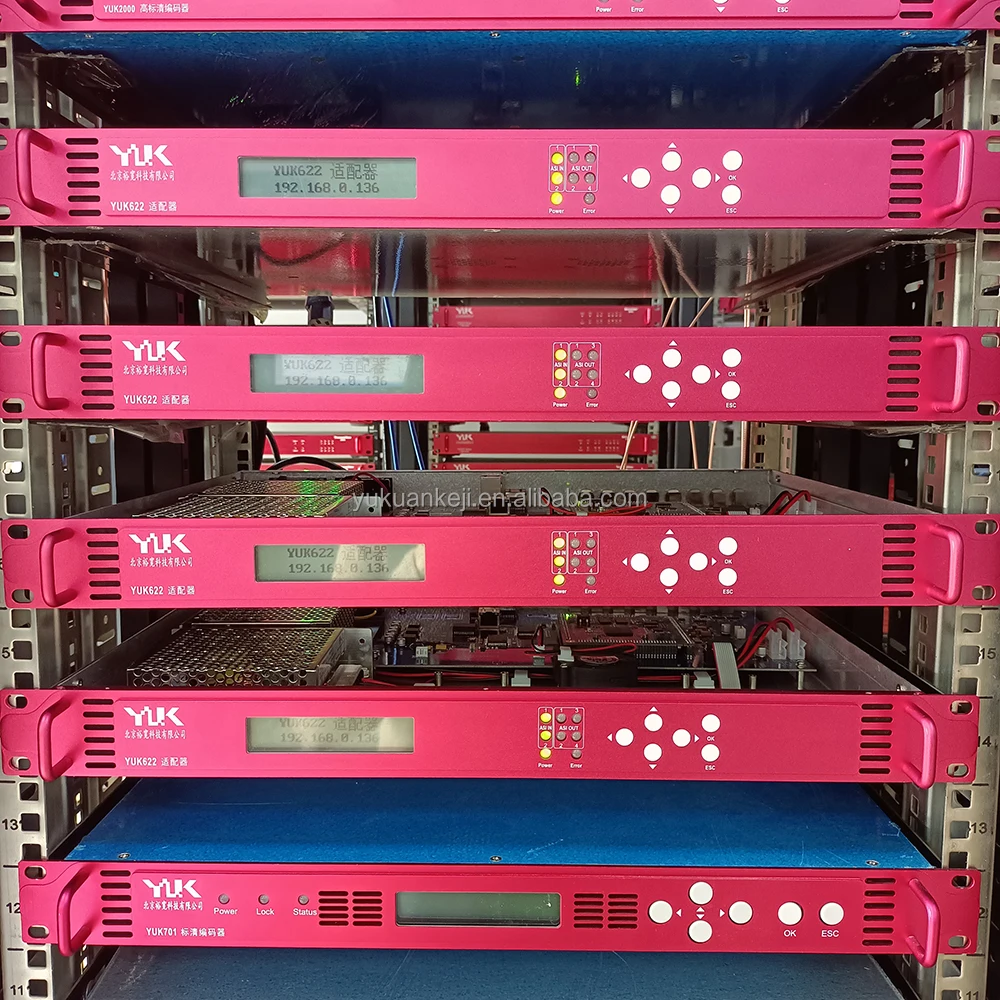

YUK622 converts IP to ASI or ASI to IP. It can receive the transport stream from ASI/IP input (comply with MPEG-2 standard). The device is configured with 2×ASI input, 2×ASI loop out, 4×ASI output, 2×IP input output. It supports simultaneous transmission of bi-directional ASI and IP signals and outputs 4×MPTS & 64×SPTS. It has two optical
ports(optional).
ports(optional).
Product Feature
* 2×ASI input
* 2×ASI loop out
* 4×ASI output
* 2×IP input/output, 64x(MPTS/SPTS) input, UDP RTP protocol
* 4×MPTS & 64×SPTS output
* Optical port(optional)
* Based on Webnetwork management, LCD independent parameter setting
* Dual power supply
* 2×ASI loop out
* 4×ASI output
* 2×IP input/output, 64x(MPTS/SPTS) input, UDP RTP protocol
* 4×MPTS & 64×SPTS output
* Support multiplexer function
* Optical port(optional)
* Based on Webnetwork management, LCD independent parameter setting
* Dual power supply
Specification
Parameter | Typical Value | |
ASI Input/Output | ||
Input | 2×ASI(BNC) input, 2×ASI(BNC) loop out, 75Ω | |
Output | 4×ASI(BNC), 75Ω | |
Executive Standard | DVB-ASI, EN50083-9 | |
Output Bit Rate | ≤200Mb/s | |
TS over IP | ||
Connector | 2×IP(RJ-45) input and output, 10/100/1000Base-T | |
Effective Bit Rate | 900Mb/s(1000Base-T) | |
Frame Length | (1-7)×188 adjustable bytes | |
Transfer Protocol | UDP/RTP Multicast | |
Local and Remote Management | ||
Connector | 1×RJ45, 10/100 Base-T | |
Remote Control | HTTP Web | |
Local Control | Front panel buttons+LCD | |
Physical Specification | ||
Power Supply | AC 100-240V, 50/60Hz | |
Temperature Range | 0°C~45°C(operation), -20℃~80℃(storage) | |
Net Weight | 3.5kg | |
Dimension(L×W×H) | 19 inches 1U Rack(485mm×350mm×44mm) | |

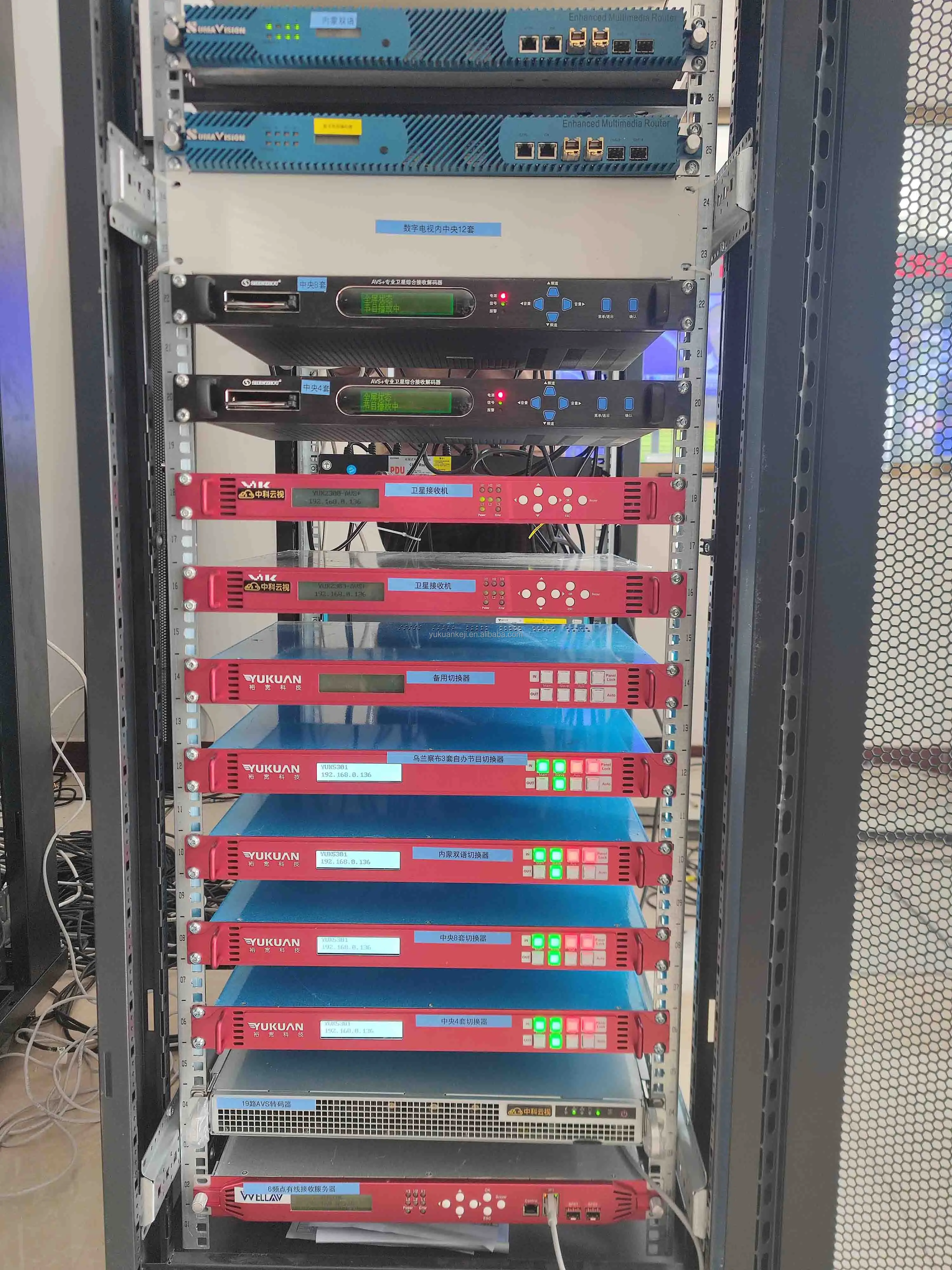

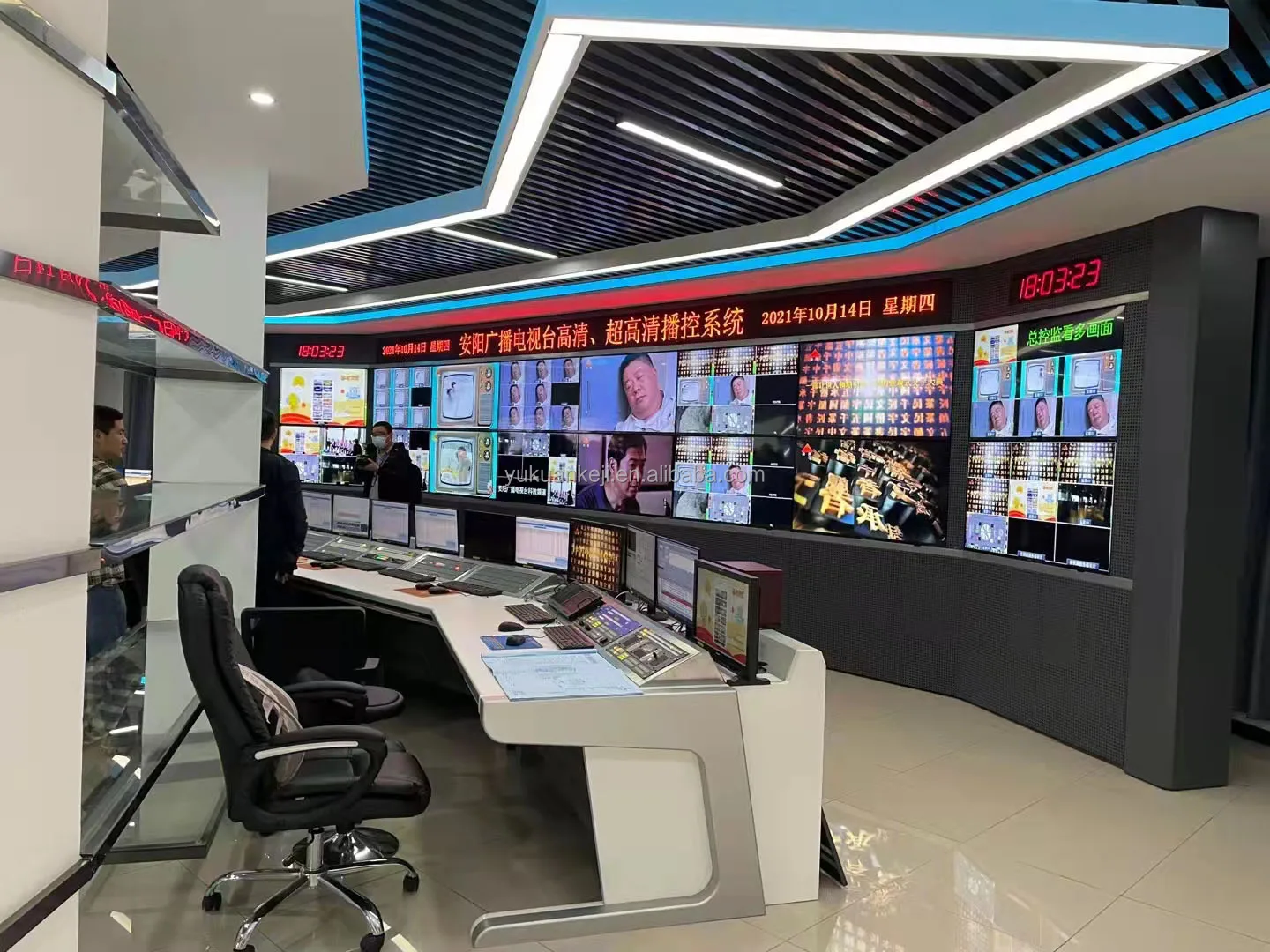

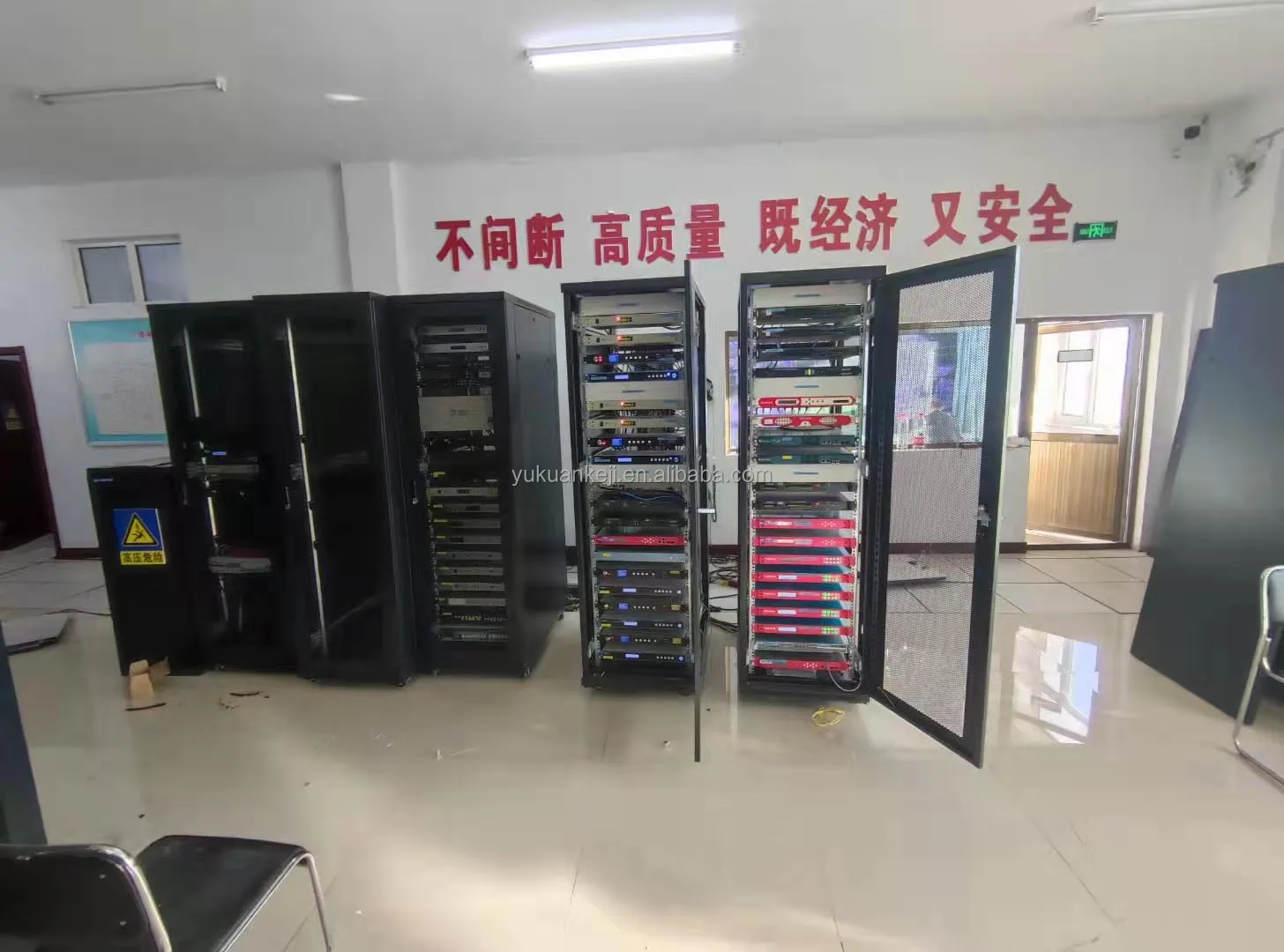

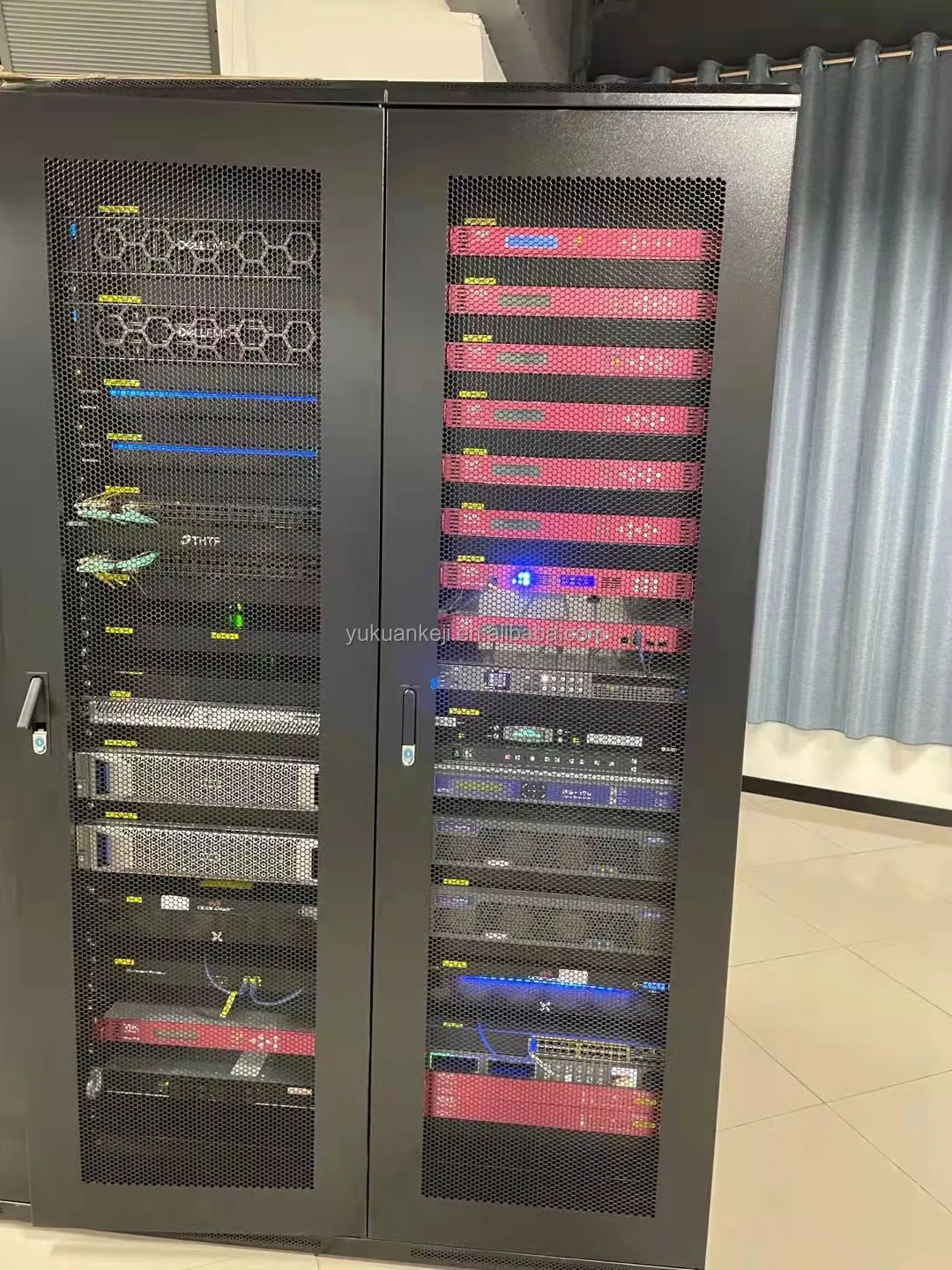

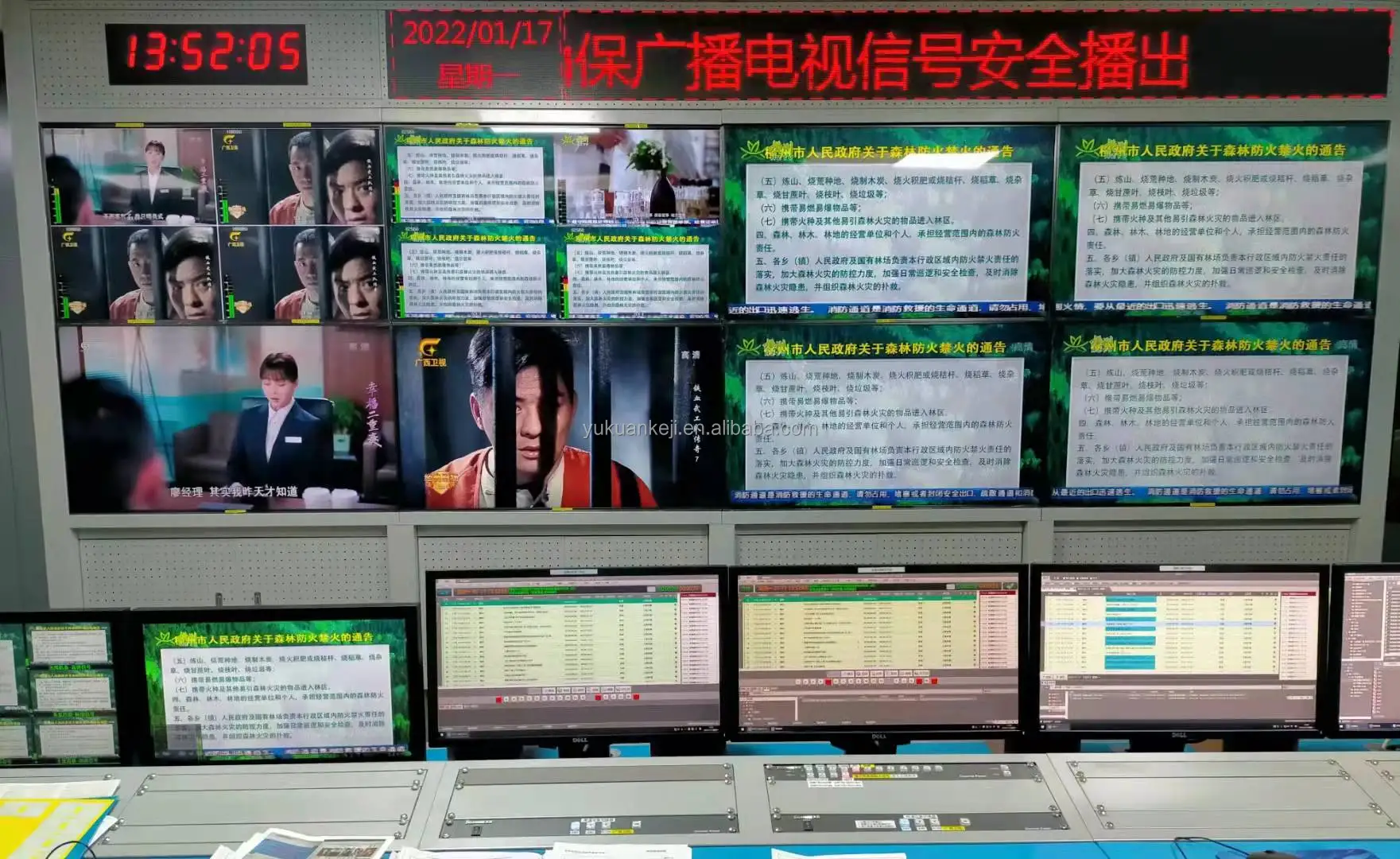

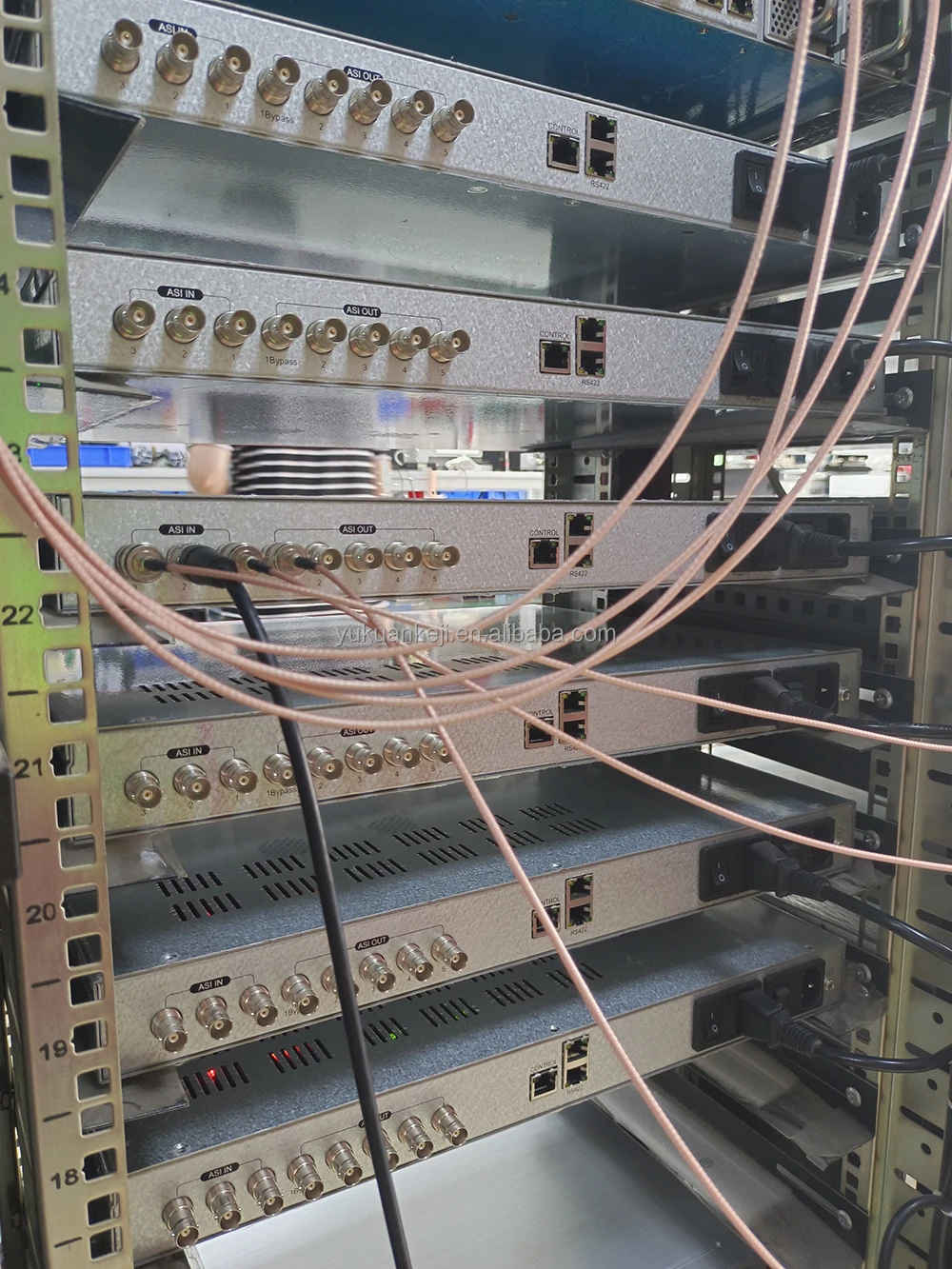

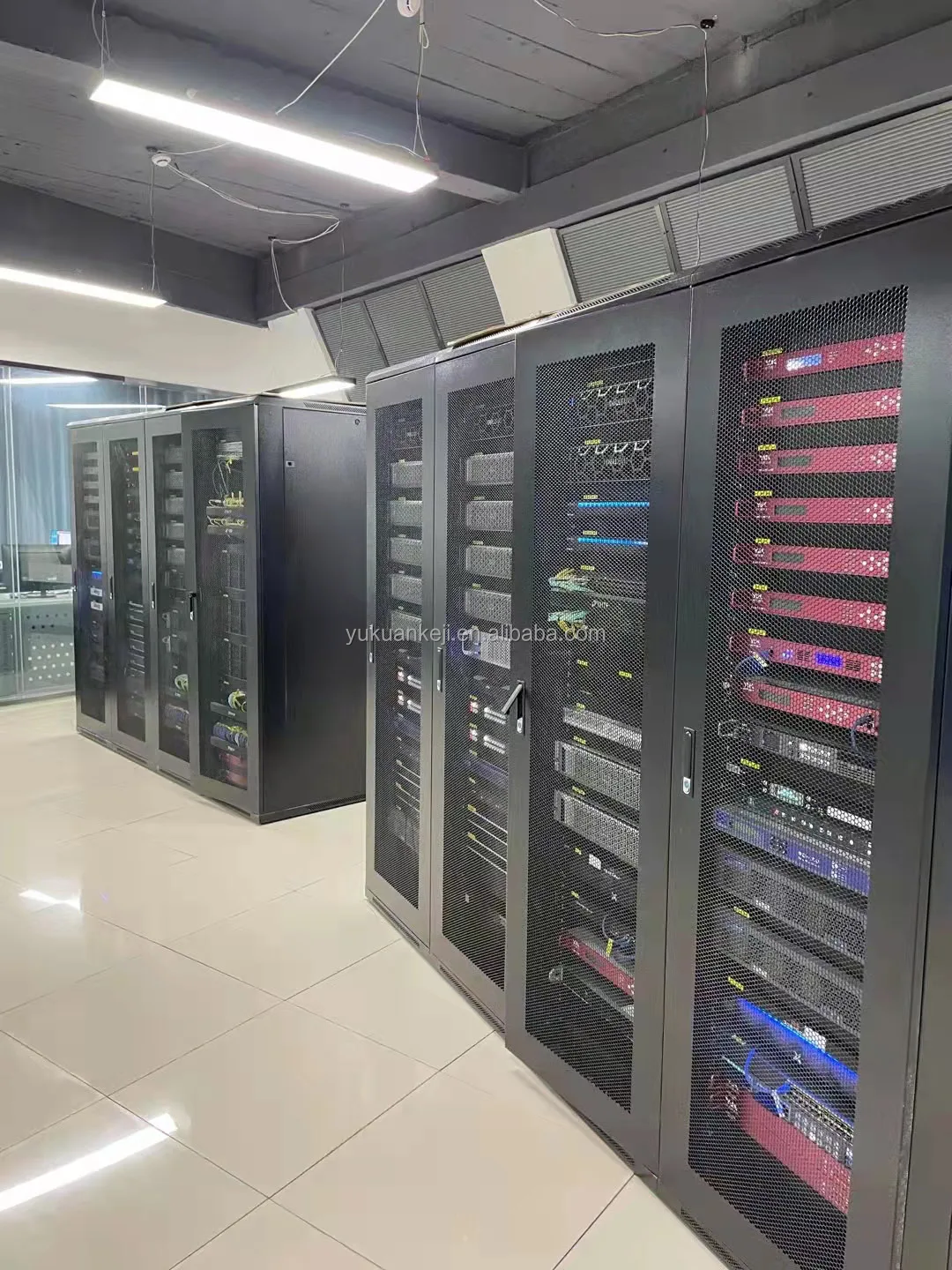

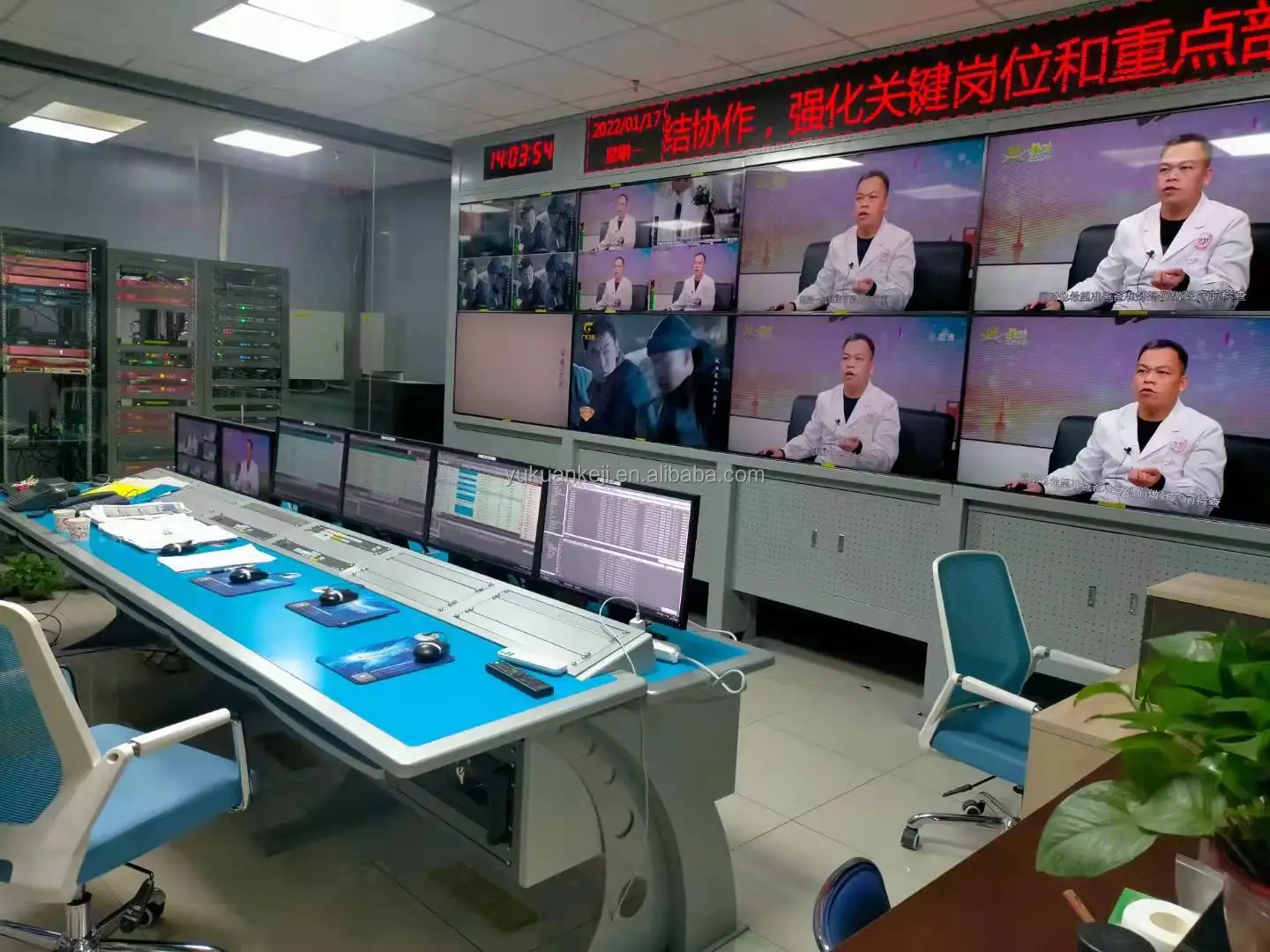

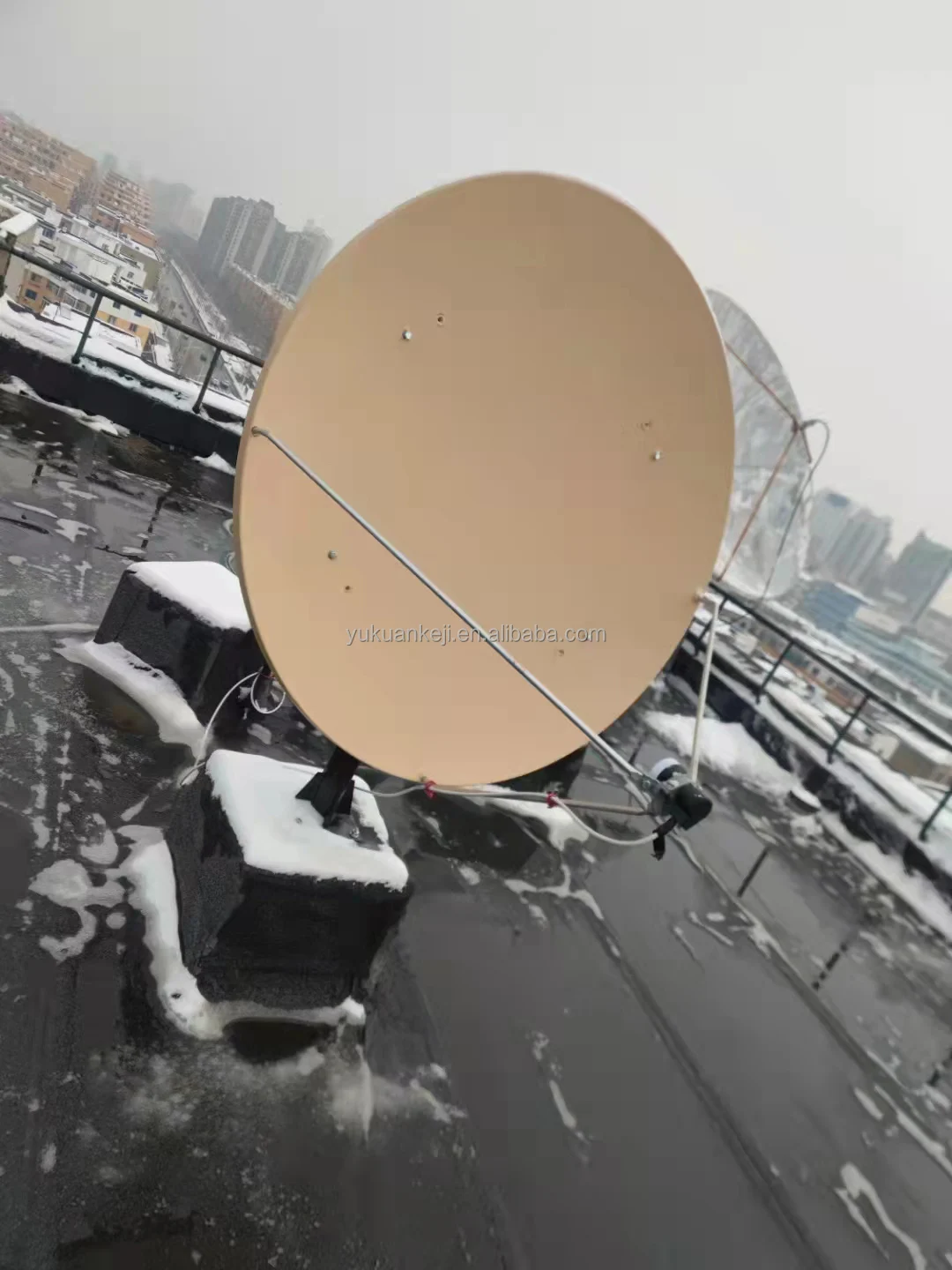

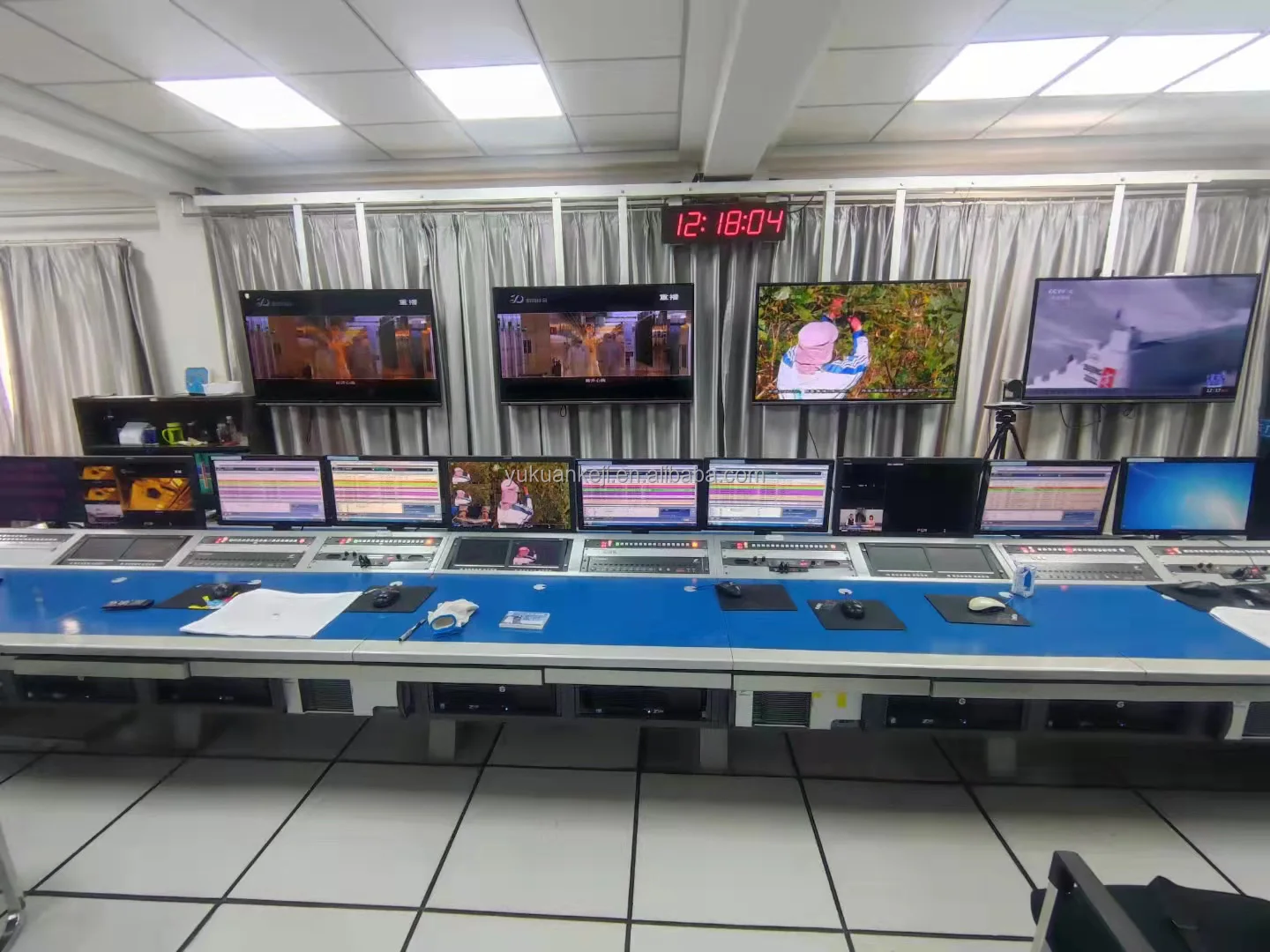

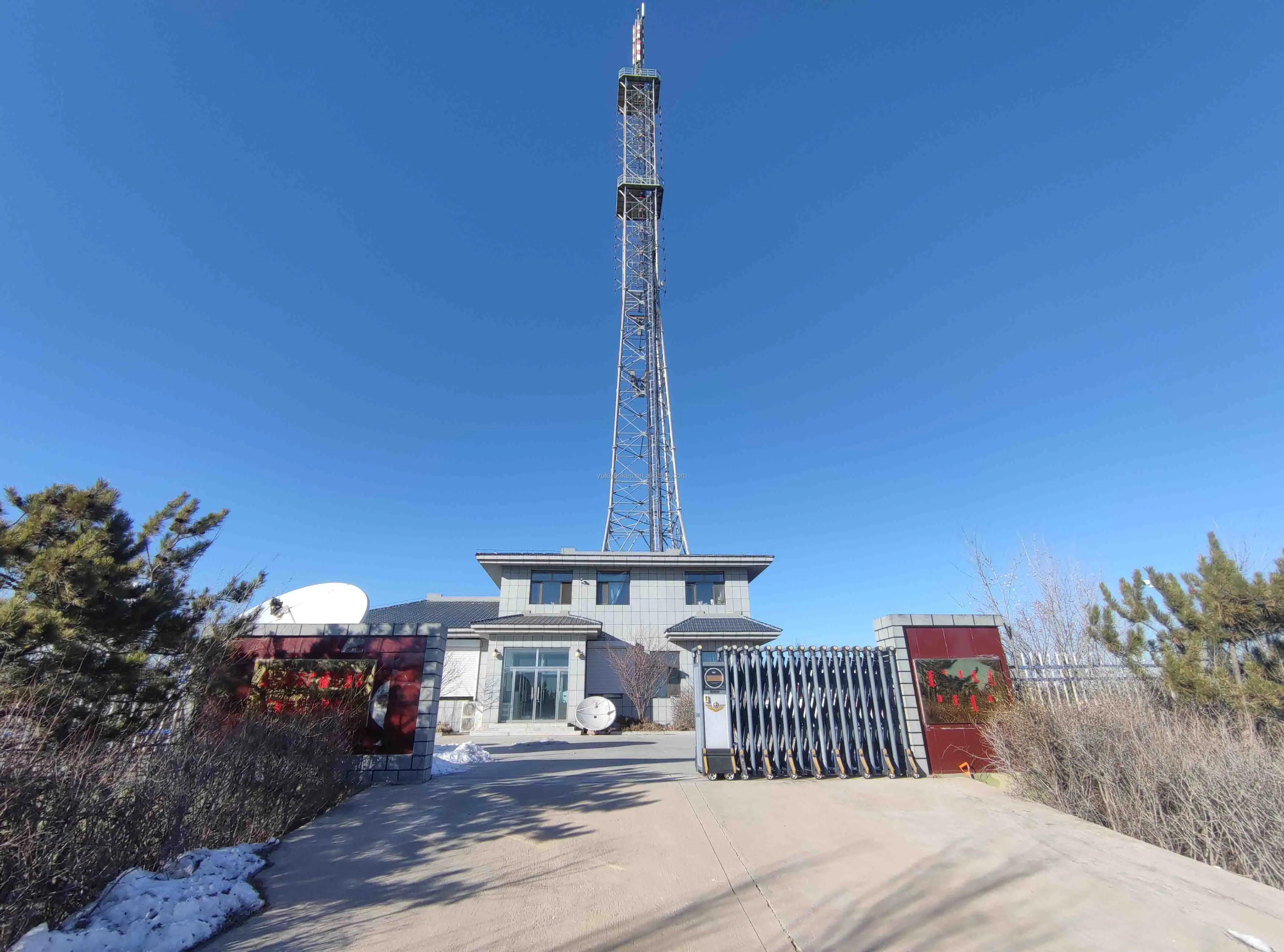

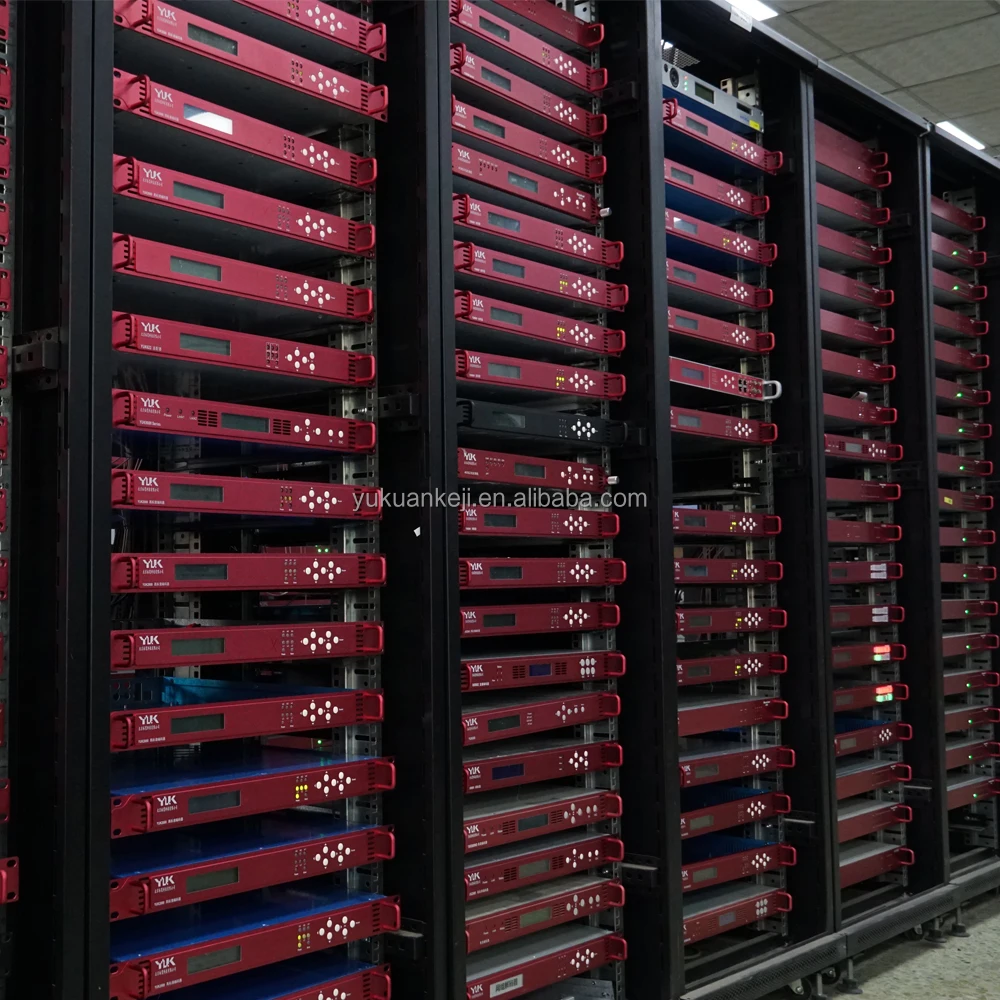

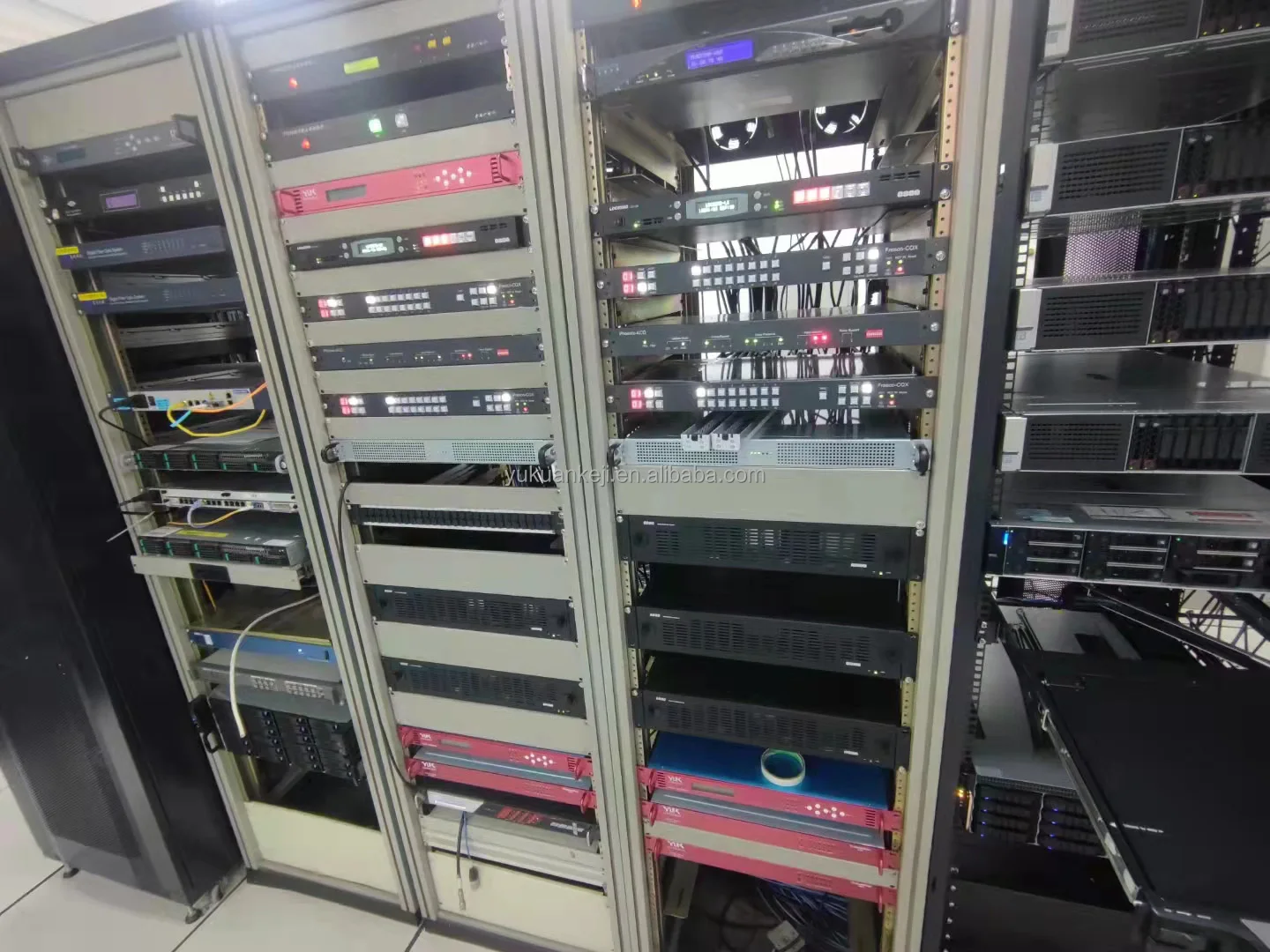

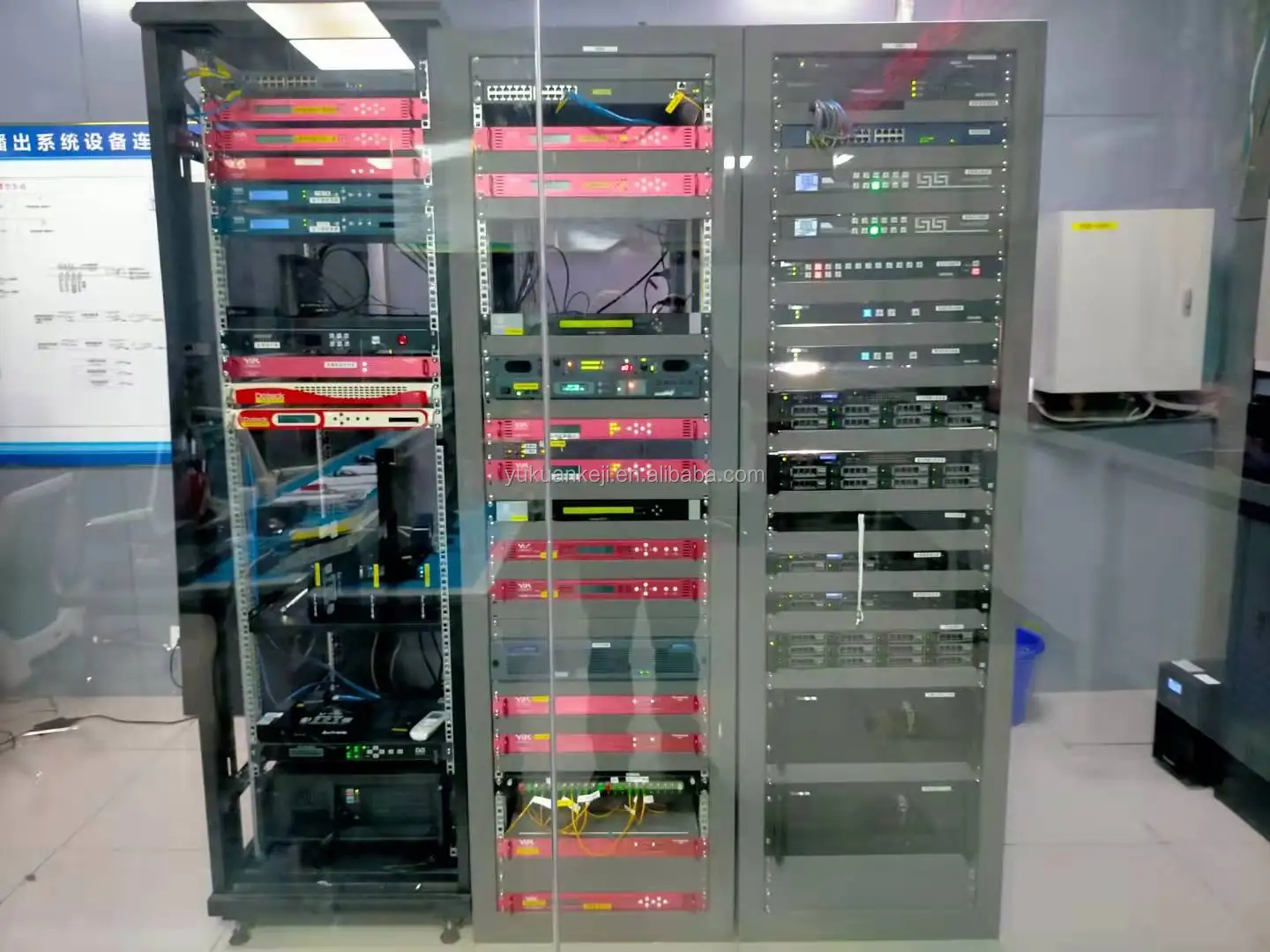

Project Case
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
