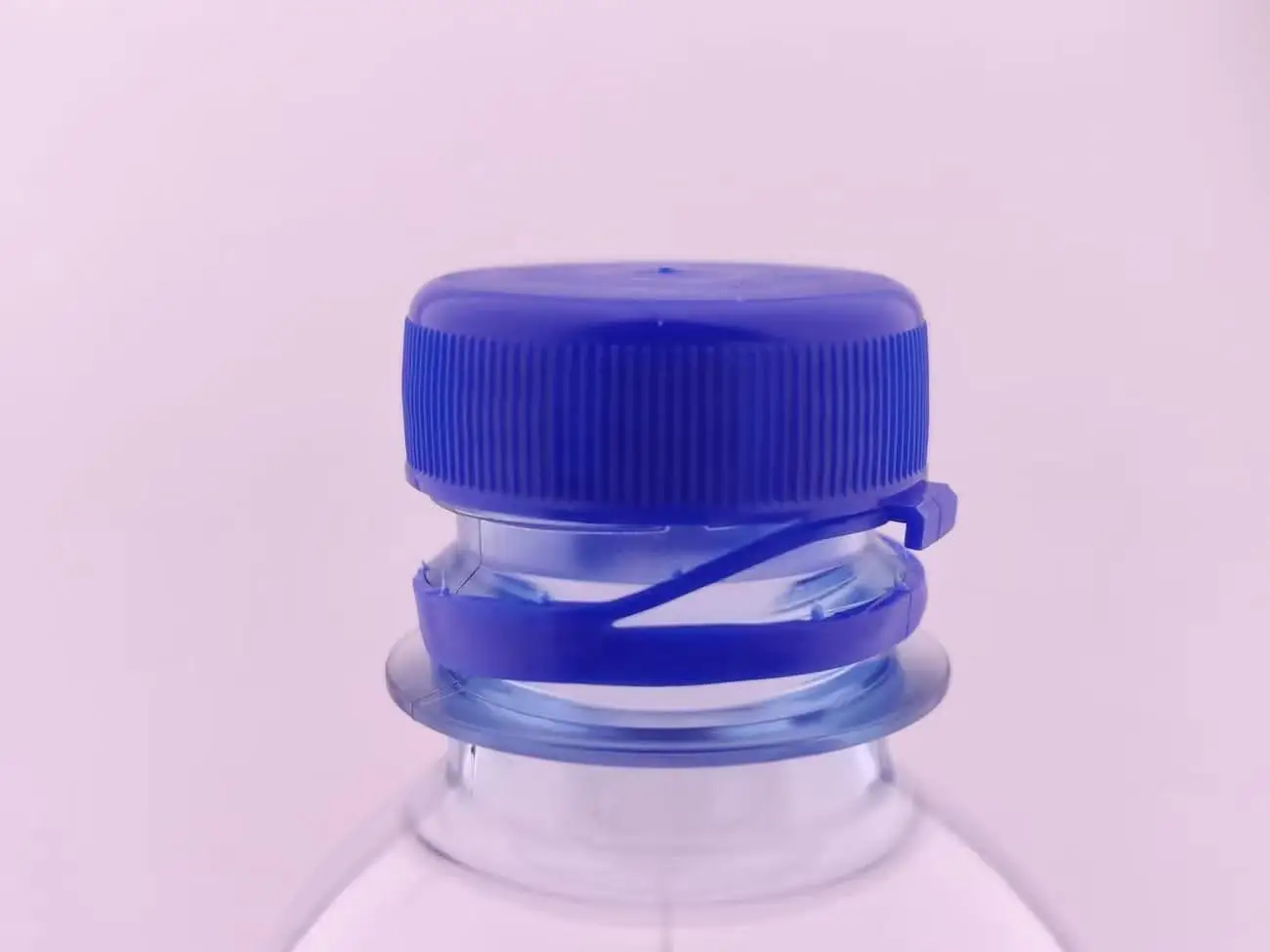

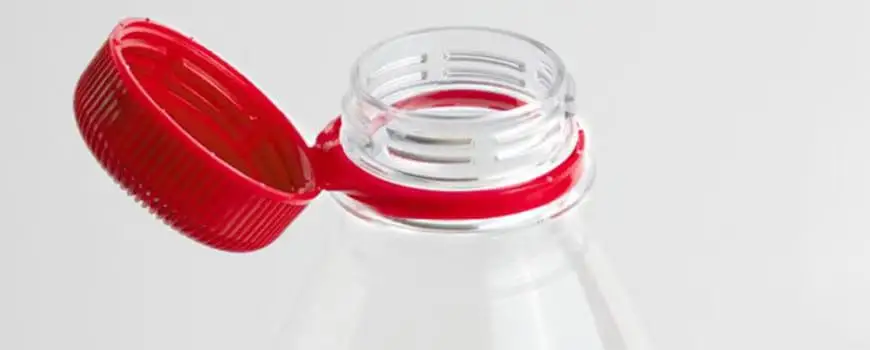

Plastic Bottle Customized New Technology Tethered Cap Injection Making Molding Machine
- Category: >>>
- Supplier: Zhangjiagang Shen Zhou Machinery Co. Ltd.
Share on (1600559170890):
Product Overview
Description
Product Description
Products Advantage

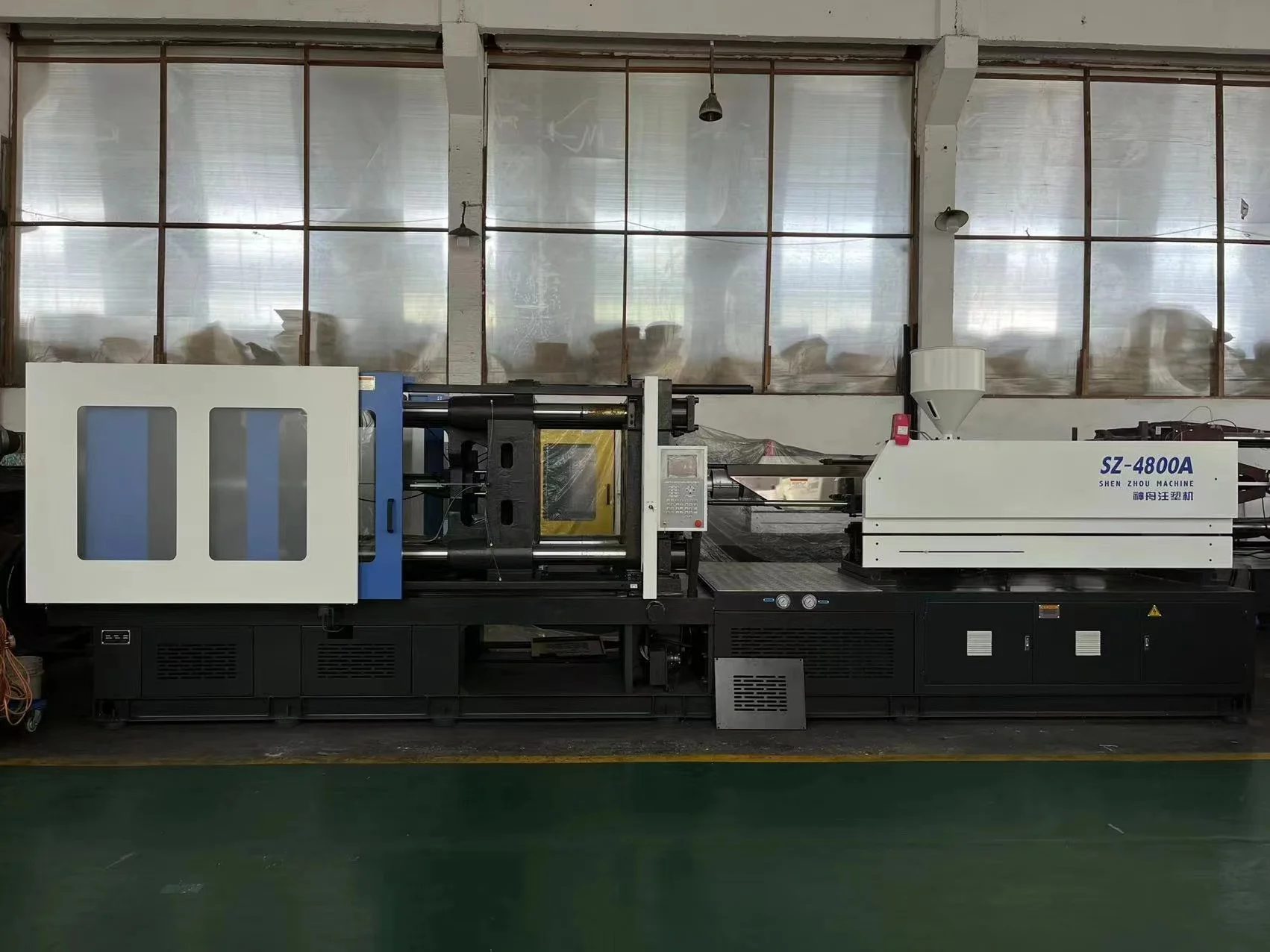

ITEM | UNIT | SZ—4800A | ||
INJECTION UNIT | ||||
SCREW DIAMETER | mm | 70 | 75 | 80 |
SCREW LID RATIO | L/D | 22.6 | 21 | 19.7 |
THEORETICAL SHOT VOLUME | CM3 | 1346 | 1545 | 1758 |
SHOT WEIGHT(PS) | g | 1225 | 1406 | 1600 |
INJECTION PRESSURE | Mpa | 201 | 175 | 154 |
THEORETICAL INJECTION RATE(PS) | g/s | 370 | 423 | 484 |
PLASTICISING CAPACITY | g/s | 60.4 | 71.4 | 83.7 |
SCREW TORQUE | N.m | 3490 | ||
MAX.SCREW ROTATE SPEED | r/min | 150 | ||
INJECTION STROKE | mm | 350 | ||
MAX.CLAMPING FORCE K | KN | 4800 | ||
MAX.OPENING STROKE | mm | 770 | ||
SPACE BETWEEN TIE BARS | mm | 760×760 | ||
MOULD HEIGHT | mm | 280-790 | ||
MAX.DAYLIGHT | mm | 1560 | ||
EJECTOR FORCE | KN | 113.4 | ||
EJECTOR STROKE | mm | 195 | ||
EJECTOR QUANTITY |
| 13 | ||
PUMP MOTOR POWER | KW | 45 | ||
PUMP PRESSURE | Mpa | 16 | ||
HEATING POWER | KW | 28 | ||
HEATING ZONE |
| 5 | ||
SIZE | m | 7.5×2.1×2.45 | ||
NET WEIGHT | t | 20 | ||
OIL TANK CAPACITY | L | 850 | ||
INTERNATIONAL DESIGNATION |
| 4800—2710 | ||
COMPANY INFORMATION
Exhibition
FAQ
1: Are you a trading company or a manufactory?
We are a manufactory, we supply the factory price with good
quality, welcome to visit !
2:Do you have QC or any safety standards for your plastic injection
molding machine?
yes,we have established a highly strict quality control department
to guanrantee good quality.
3:Why choose our plastic injection molding machine?
High quality with competitive price
4::How about quality control in your factory?
"Quality is first, Customers are friends".
5:Can you help us with the shipment of this machine ?
Yes , with honor ,we have our special shipment company which
already cooperate
Packaging & Shipping
