Retrofits Downlight High Quality Trimless Smart Wifi Modern Led Panel Retrofits Downlight
- Category: >>>
- Supplier: Shenzhen Kili-Led Lighting Co. Ltd.
Share on (1600559172001):
Product Overview
Description
Product Description
KILI DLD2 Series Dimmable Recessed LED Downlight are the perfect choice for new construction and retrofit opportunities when a sleek,integrated look is preferred. Excellent color consistency (CRI),smooth, uniform dimming from 100% - 0.5%, long Life of 35,000 hours, easy installation with pigtail and spring clips.Single color temperature or dial switch to select color temperature,2700K,3000K,3500K,4000K,5000K.
Support OEM&ODM customization
Product Features

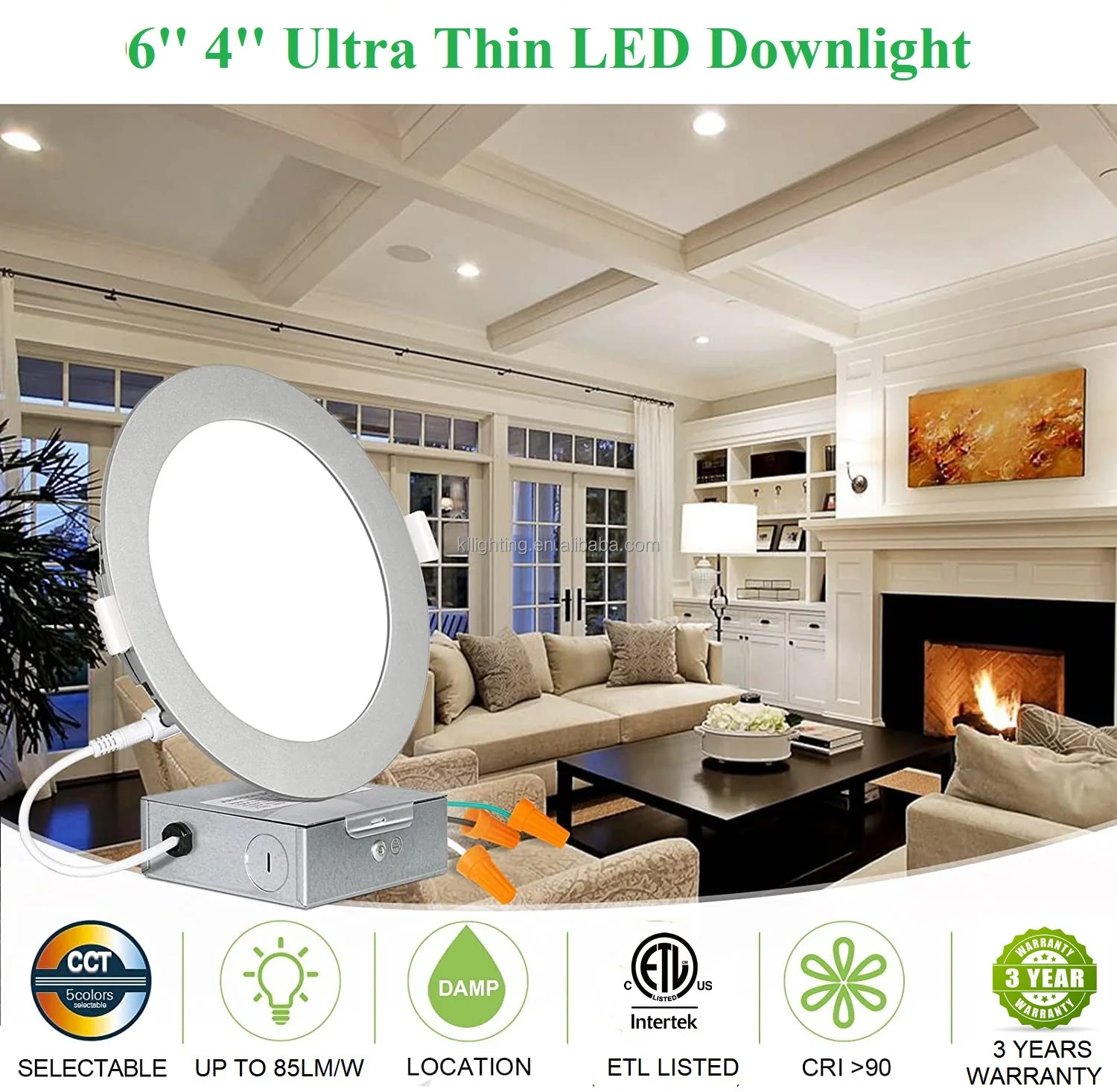

1. 4 and 6 inch Available.
2. Ultra Thin thick, fits in tight ceiling space.
3. Highly efficient LEDs and Driver;
4. Suitable for damp locations.
5. Fast & easy installation, can save labor cost.
6. No recessed fixture required.
2. Ultra Thin thick, fits in tight ceiling space.
3. Highly efficient LEDs and Driver;
4. Suitable for damp locations.
5. Fast & easy installation, can save labor cost.
6. No recessed fixture required.
7. Compatible Various Dimmer.
Details Images
Slim Body, Clean Back Side

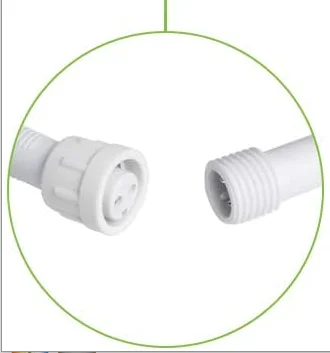

Easy Connection

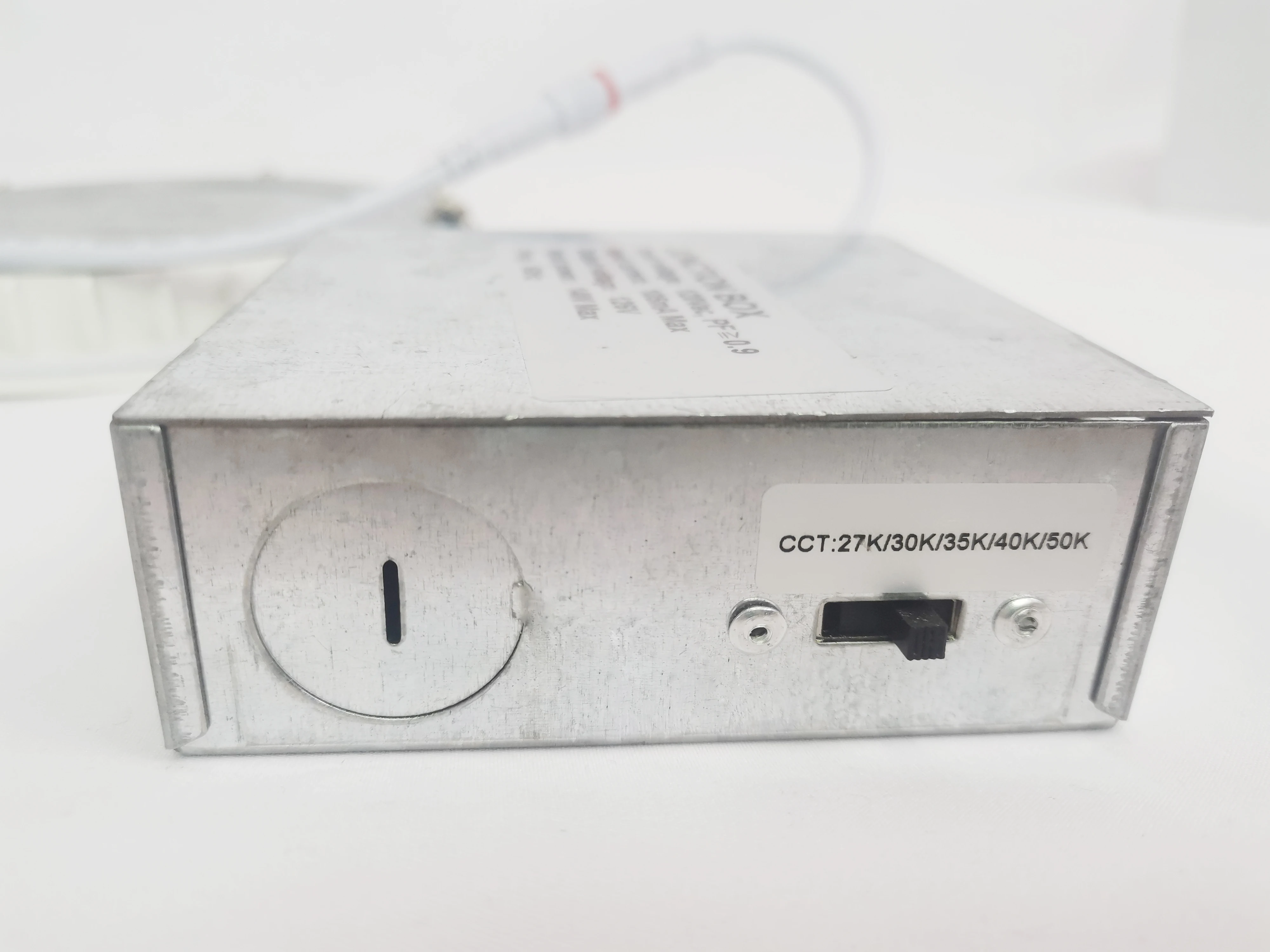

CCT Selectable
Product Paramenters
Luminous Efficacy: | Up to 85lm/W |
Operating Temperature | -30℃ up to 50℃(-22°F up to 122°F) |
Beam Angle | 120° |
CRI | 90 |
Input Voltage | 120VAC 50/60Hz |
Certification | ETL |
Warranty | 3 Years |
Code | Size | Watt | CCT | Efficiency | Votage | CRI | Beam Angle |
DLD2-06-14-XXX | 6" | 14W | 3000M4000K/ 5000K | 80Lm/W | AC 120V Triac Dim | >80 | 120° |
DLD2-06-14-5CT | 6" | 14W | 5CCT Selectable | 80Lm/W | AC 120V Triac Dim | >80 | 120° |
DLD2-06-14-6CT | 6" | 17W | 5CCT+Night Light | 80Lm/W | AC 120V Triac Dim | >80 | 120° |
DLD2-06-14-RGB | 6" | 14W | Smart +RGB | 80Lm/W | AC 120V Triac Dim | >80 | 120° |
DLD2-04-11-XXX | 4" | 11W | 3000K/4000K/ 5000K | 80Lm/W | AC 120V Triac Dim | >80 | 120° |
DLD2-04-11-5CT | 4" | 11W | 5CCT Selectable | 80Lm/W | AC 120V Triac Dim | >80 | 120° |
DLD2-04-11-6CT | 4 | 14W | 5CCT+Night Light | 80Lm/W | AC 120V Triac Dim | >80 | 120° |
COMPATIBLE DIMMER LIST
Leviton：6672/6631
Lutron： MSCL-OP153MH-WH，PD-6WCL-WH，MACL-153M，DVCL-153P，DV-600P，SCL-153PH-WH，MACL-153MR-WH，DVW-603PGH-WH
Lutron： MSCL-OP153MH-WH，PD-6WCL-WH，MACL-153M，DVCL-153P，DV-600P，SCL-153PH-WH，MACL-153MR-WH，DVW-603PGH-WH
Company introduction
Kili-LED Lighting.founded in 2006, is a state-level high-tech enterprise and TüV ISO 9001:2008 certified and registered company. Currently there are over 100 employees, including more than 10 r&d personneland ，a fabrication area of more than 10,000 square meters. Our company has advanced LED luminaire manufacturing and test facilities such as auto soldering and SMT machines, programmable constant temperature and humidity testing machine,high temperature aging oven,ultraviolet weather-proof machine,salt mist spraying testing machine,lighting surge simulator,IP68 waterproof test machine, electrical testing device such as integrating spheres and distribution photometer, AOI tester,RoHS scanner, and an independent EMI laboratory as well. We also have a professional trained QC team to ensure the quality of all the products. And all the products are CE certified as well as RoHS compliant,and some of the products are DLC and Energy Start compliant.
Quality Management
PCB testing
Aging testing
Power testing
Wires,Connectors,Accessories checking
Appearance checking
Labels checking
Inner boxes packing
Cartons Packing
Warehouse
Certifications
FAQ
Q1.Can we make customized light design?
A:Welcome !OEM/ODM order is aviailable.please contract us for further details.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than .
Q3. How to pay？
A:T/T；L/C；Western Union；Paypal；ETC.are acceptable.
Q4: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
A:Welcome !OEM/ODM order is aviailable.please contract us for further details.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than .
Q3. How to pay？
A:T/T；L/C；Western Union；Paypal；ETC.are acceptable.
Q4: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
