100mv/g 3 pins wired vibration sensors with top output
- Category: >>>
- Supplier: Anhui Ronds Science & Technology Incorporated Company
Share on (1600559174364):
Product Overview
Description
Technical Index
RH103T Vibration&Temperature Sensor Technical Specifications | |||||
Items | Specification | ||||
Basic Parameters | |||||
Sensitivity | 100mv/g（±10%） | ||||
Acceleration Rnage | ±80g peak | ||||
Amplitude Linearity | 1% | ||||
Frequency Response (±10%) | 0.7~10000Hz | ||||
Frequency Response (±3 dB) | 0.4~15000Hz | ||||
Resonance Frequency | About 30kHz | ||||
Transverse Sensitivity | ≤5% | ||||
Certificate | CE | ||||
Protection Grade | IP68 | ||||
Electrical Characters | |||||
Bias Voltage | 10.5-13.5VDC, typical 12VDC | ||||
Constant Current | 2-20mA, Typical 4mA | ||||
Excitation Voltage | 18-30VDC, Typical 24VDC | ||||
Settling time | ≤2S | ||||
Output Impedance | ＜100Ω | ||||
Electrical Noise Power Spectral Density | 10Hz 14μg/√Hz 100Hz 5μg/√Hz 1000Hz 3μg/√Hz | ||||
Grounding | Housing isolation, internal shielding | ||||
Structural Features | |||||
Maximum Shock Level | 5000g | ||||
Mounting Thread | M6×1 | ||||
Weight | 86g | ||||

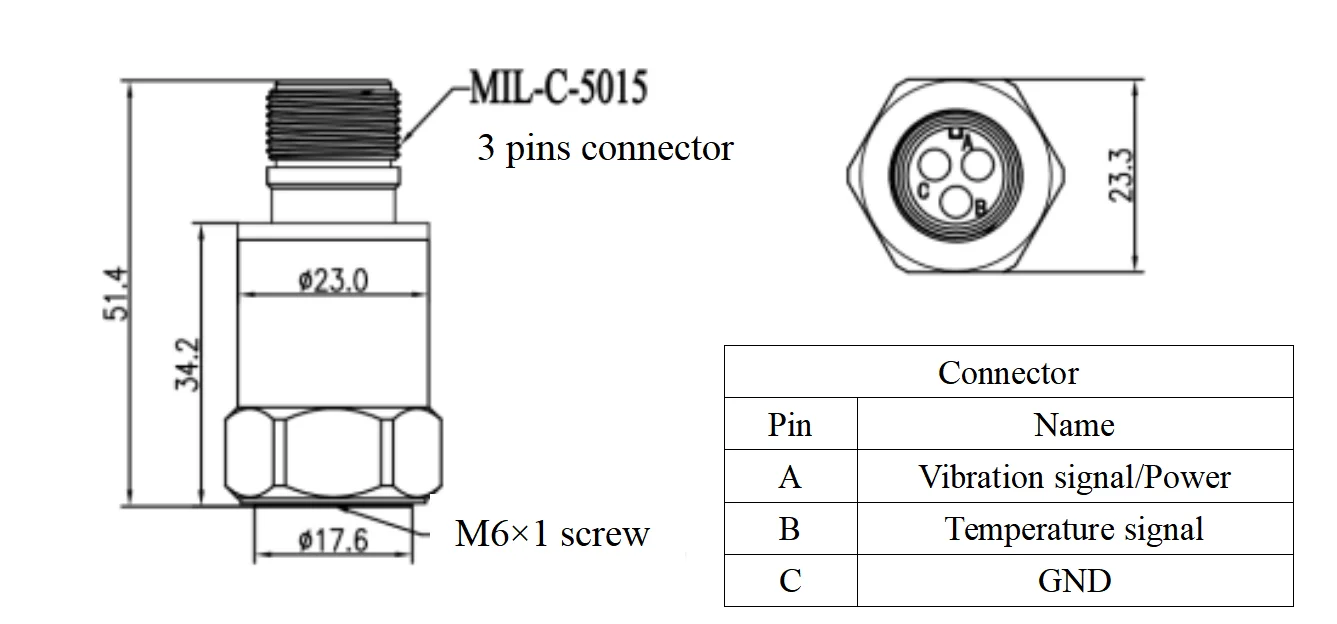

Dimension | Diameter × Height：23×51.4（mm） | ||||
Seal Method | Laser Welding | ||||
Protection Grade | IP68 | ||||
Casting Material | 316L Stainless Steel | ||||
Output | Top Output, 3pins Mil-C-5015 | ||||
Ambient Temperature | -55～+125℃ | ||||
Mount Torque | About 2.7～6.8N.m (M6 thread) | ||||
Temperature Measuring | |||||
Measuring Range | -40~120℃ | ||||
Sensitivity | 10mv/℃ | ||||
Temperature voltage output | 70mv (25℃) | ||||
Anti-explosion (Not standard, optional) | |||||
Explosion Proof Identification | ExiaIICT4 Ga | ||||
Main Features
○ Built-in IEPE circuit, isolation output, constant current power supply
○ Laser seal welded
○ IP68 design, outdoor using available
○ Using military connector,can be used for on-line monitoring in harsh industrial site
○ Top entry

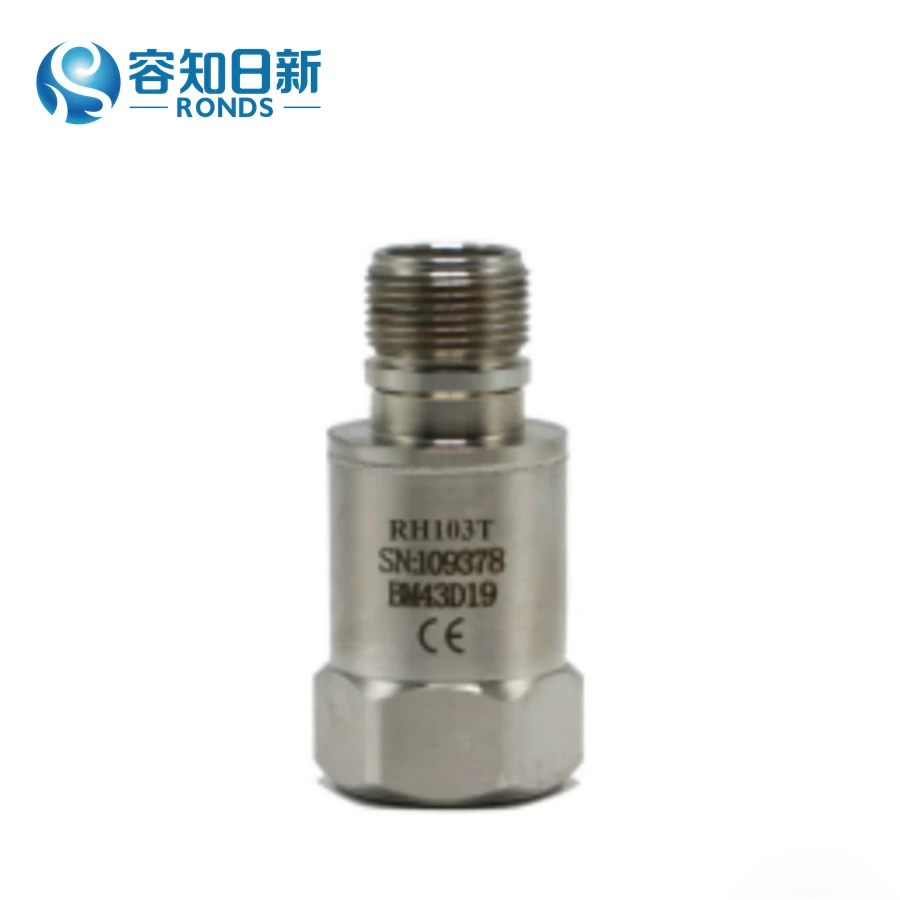

Product Picture
Packaging
Warranty
RONDS promise unconditional lifetime warranty
Company Profile
Anhui RONDS Science&Technology Incoporated Company
RONDS is a high-tech enterprise in the field of industrial Internet. Our company was formed in 2007, and our strength lies in intelligent operation&maintenance platform solution and equipment predictive maintenance products and services.
In 2021，RONDS successfully listed on the scientific innovation board of Shanghai Stock Exchange. Stock code：688768
Ronds Team
RONDS employees: 500+
Technical team employees: 200+ ; R&D expense ratio: 18%+
Software R&D Team: Has the level 3 certification of CMMI ( Capability Maturity Model Integration )
Hardware R&D Team: Possesses strong theoretical basis + Over 10 years practical experience
Intelligent Algorithm Team: Able to build a fully autonomous data platform
Ronds Factory
Wireless Monitoring Product Manufacturing Center
Wired Monitoring Product Manufacturing Center

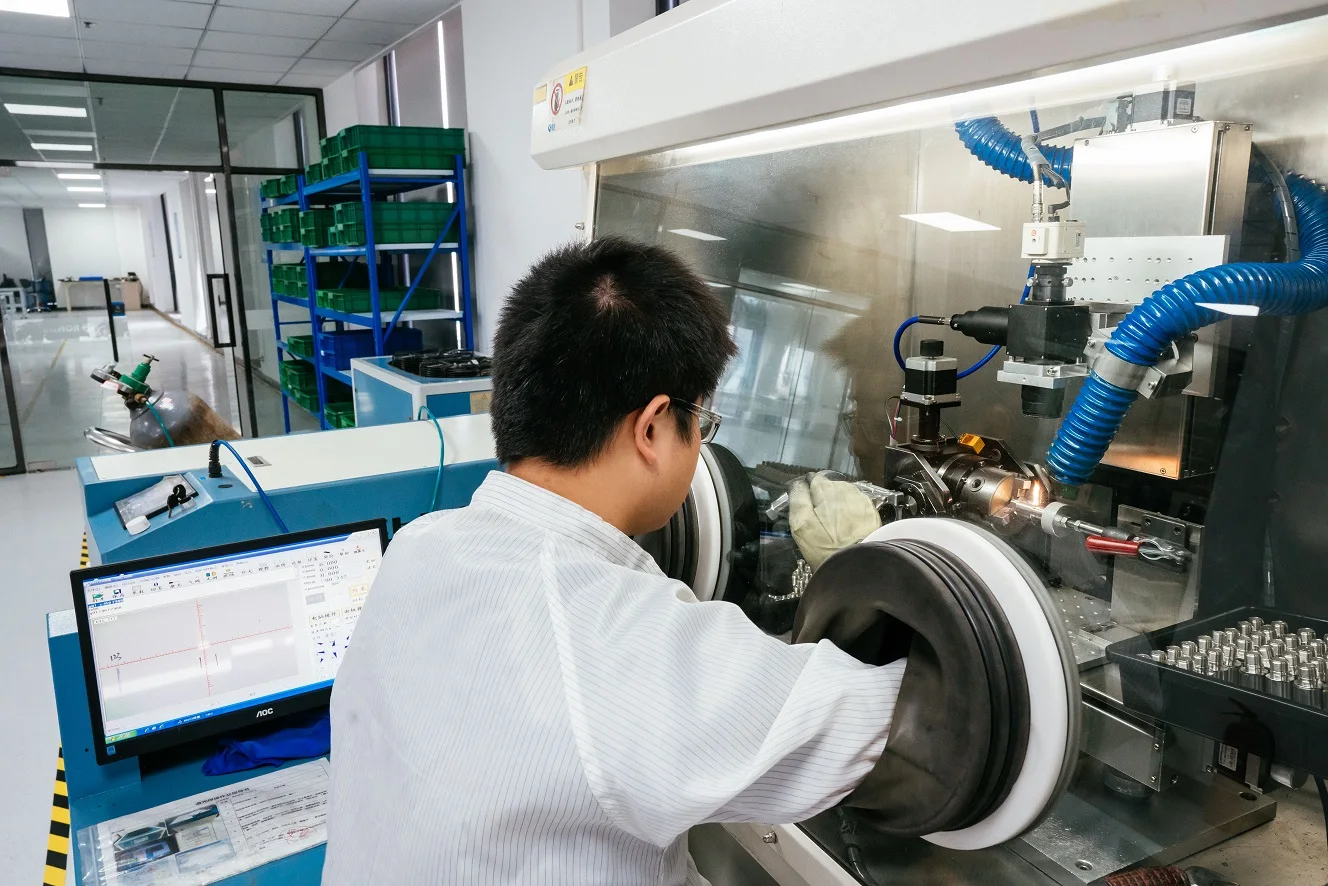

Sensor Manufacturing Center
