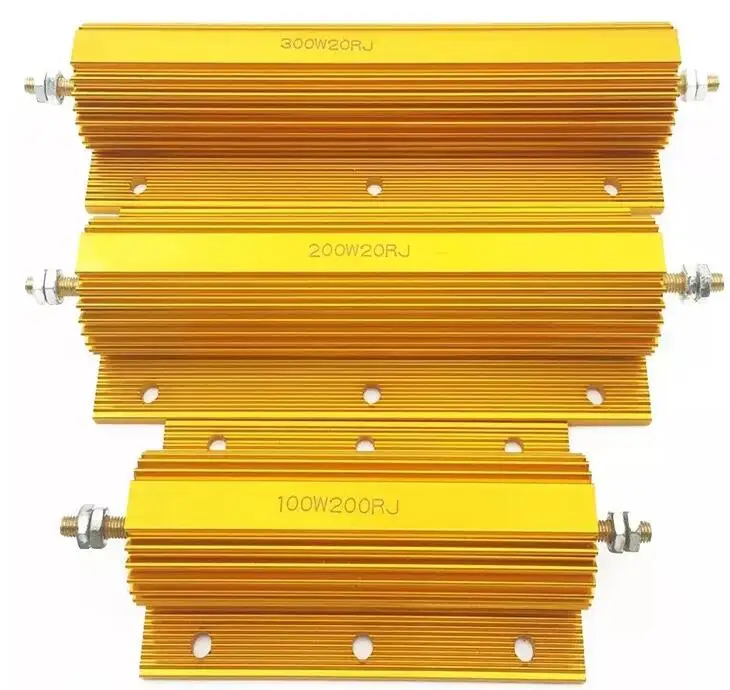

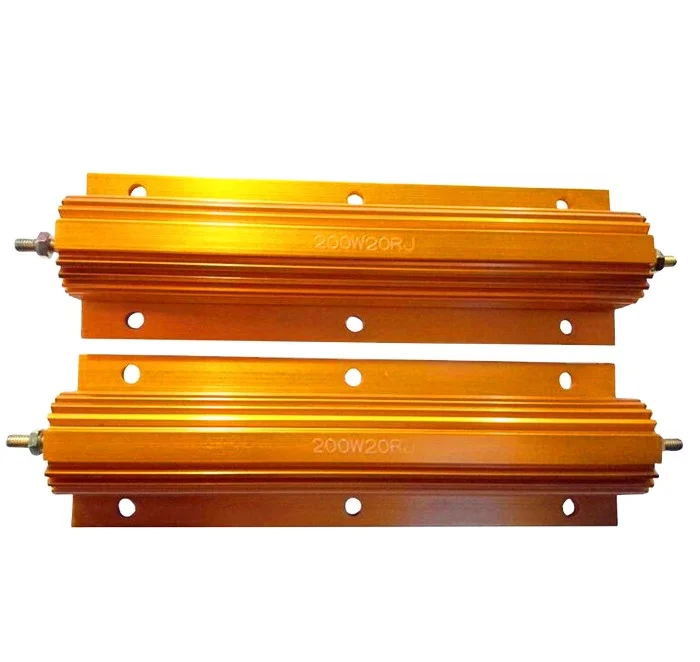

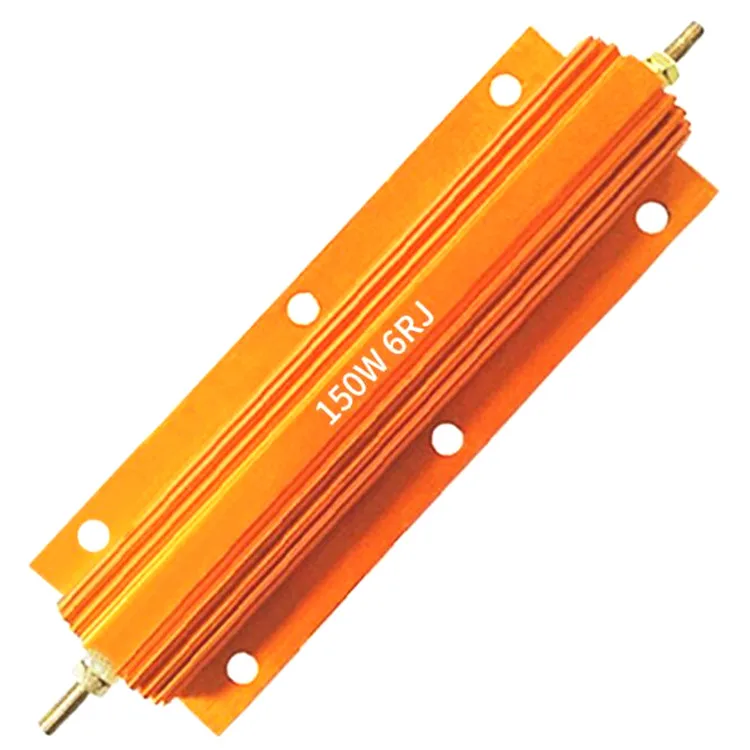

Aluminum Breaking Wirewound Resistor 0.1R 0.2R 100R 500R 1K 2K 200w Rx24
- Category: >>>
- Supplier: Sichuan Qixing Electronics Co. Ltd.
Share on (1600559184943):
Product Overview
Description
Product Description
Product Details
①. LED retrofit to remove the fault alarm!②. Magotan, BMW, Mercedes-Benz, etc., all cars with on-board computers are applicable!
③. Remove the fault light alarm generated after the modification of the LED turn signal!
④. Solve the problem of turning too fast!

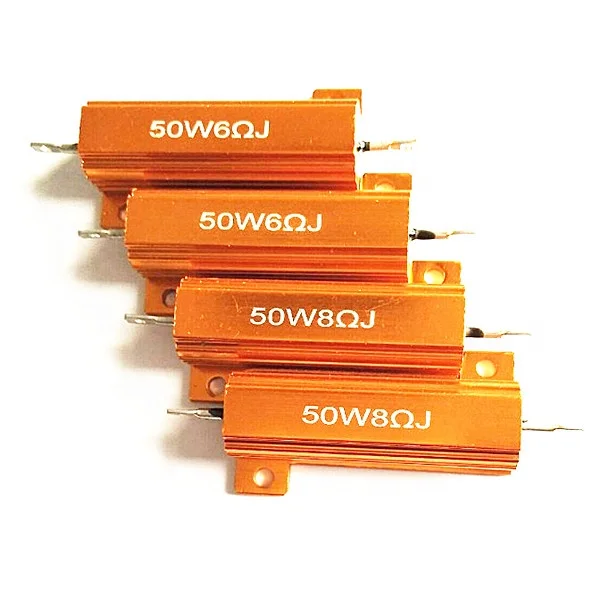

◆Installation: Special impedance matching resistor for automotive LED turn signal, 50W6Ω aluminum shell high-power resistor, both ends of the resistor are connected in parallel to the positive and negative poles of the LED turn signal power cord!
Feature description

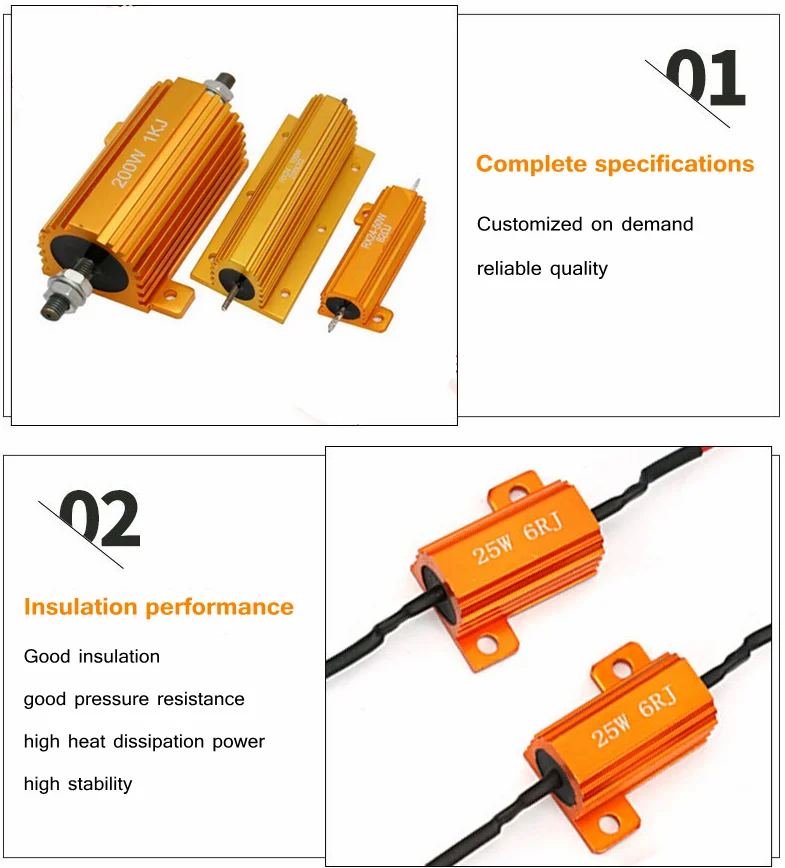

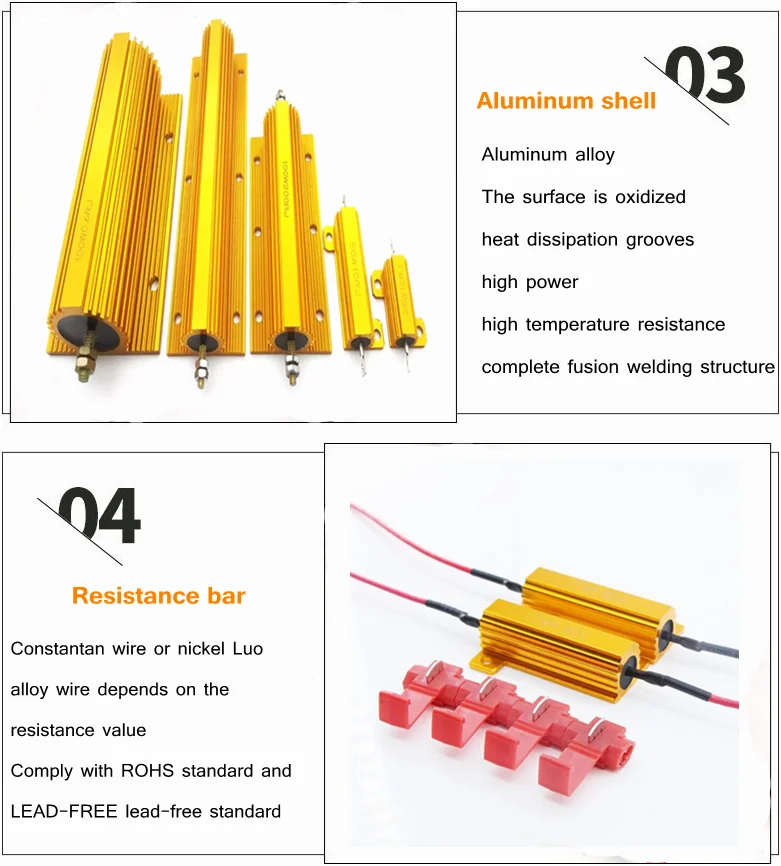

1. It has the characteristics of small size, high power and high precision. It adopts professional process for potting and sealing, which is better than similar foreign products.
2. Power: 5W-1000W, according to customer requirements, it can be produced in different colors such as golden yellow, red, silver, and non-sensing high-precision specifications.
3. Scope of application: test aging bench power supply, frequency converter, automation equipment, audio, frequency divider and high-demand harsh industrial control environment.
4. Comply with ROHS specification and LEAD-FREE lead-free standard.

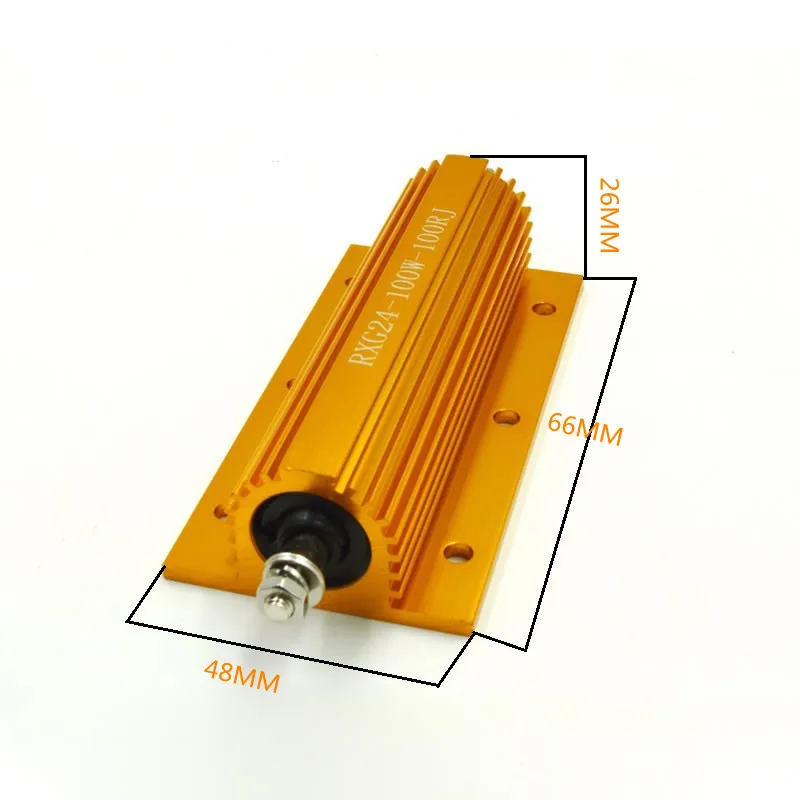

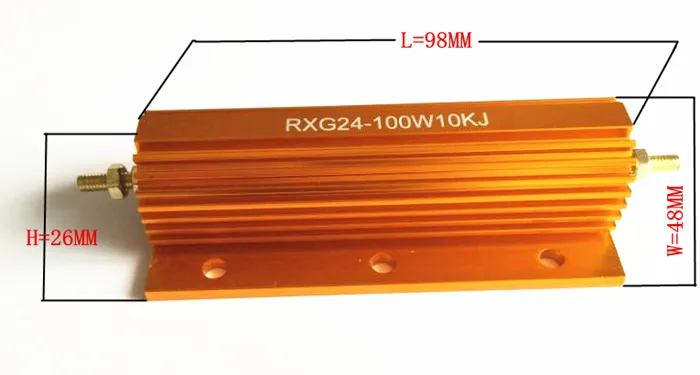

100W resistor also can make threaded type

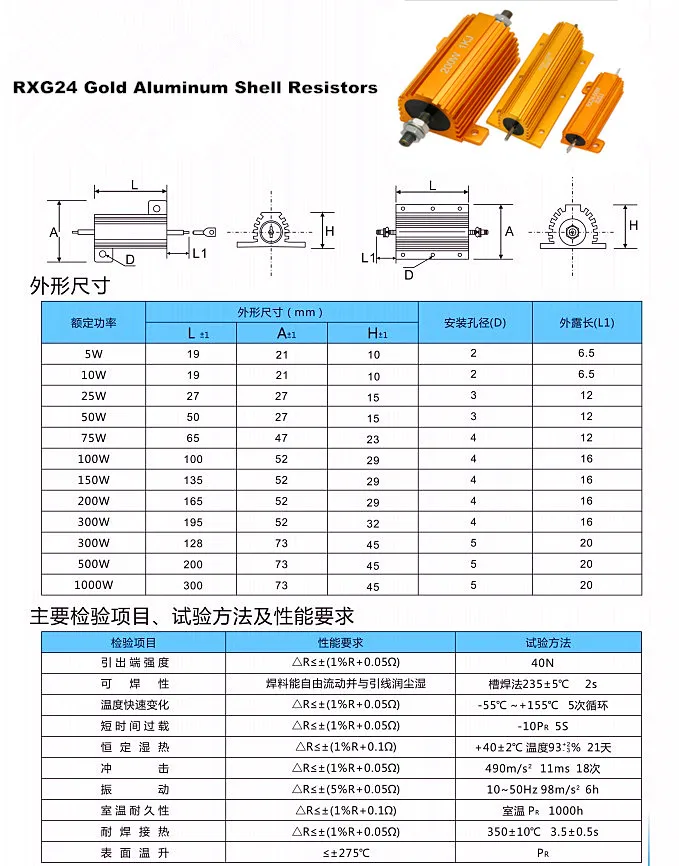

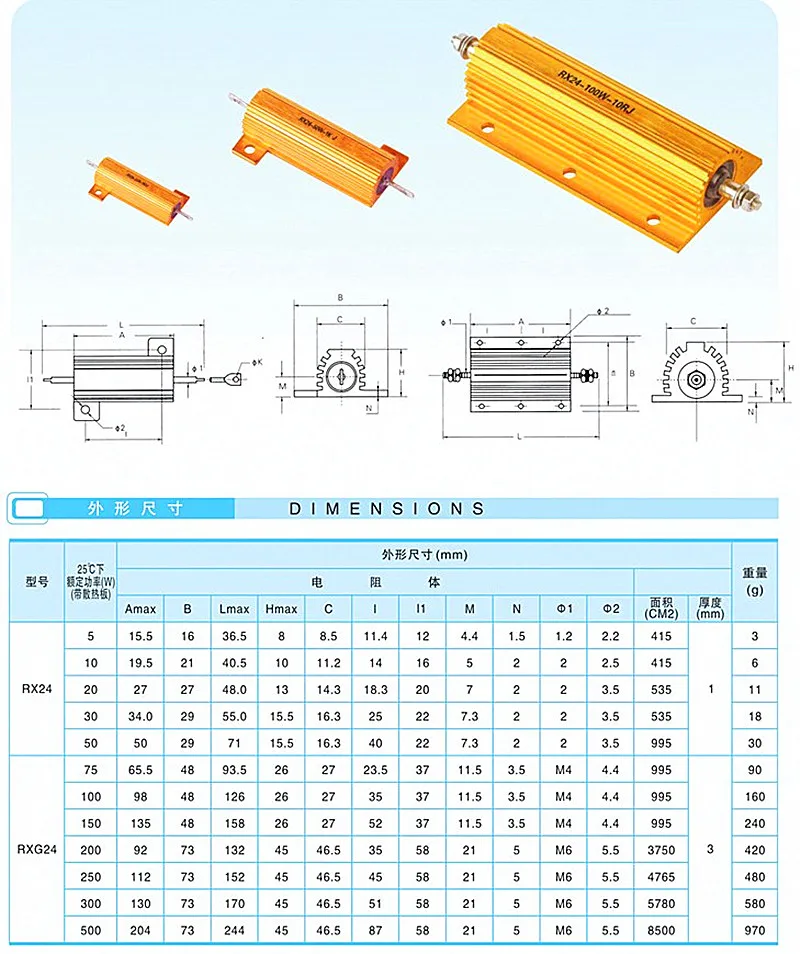

Shape Drawing
RoHs power disspation wirewound resistor 100w aluminium Size
Specification
RoHs power disspation wirewound resistor 100w aluminium Parameter
Test items | Standard | Test Methods |
Short time overload | ±5%,±2%,±1% | 2.5 times power/5 seconds |
Temperature coefficient | ±200PPM/°C | Test temperature:indoors temp.100°C |
Resistance to solder heat | ±1% | Solder temp:350±10°C time:3 seconds |
Dielectric withstanding voltage | No breakdown or flashover | 500V for 60 seconds |
Humidity Load Life | ±0.5% | 1.5hr ON,0.5hr OFF at 40±2°C，90-95&RH for 1000hrs |
Load Life | ±2.0% | Rated voltage 1.5hrON,0.5hr OFF at 25°C for 1000hrs |
Solderability | At least 95% coerage | 235±5°C for 2±0.5 seconds |

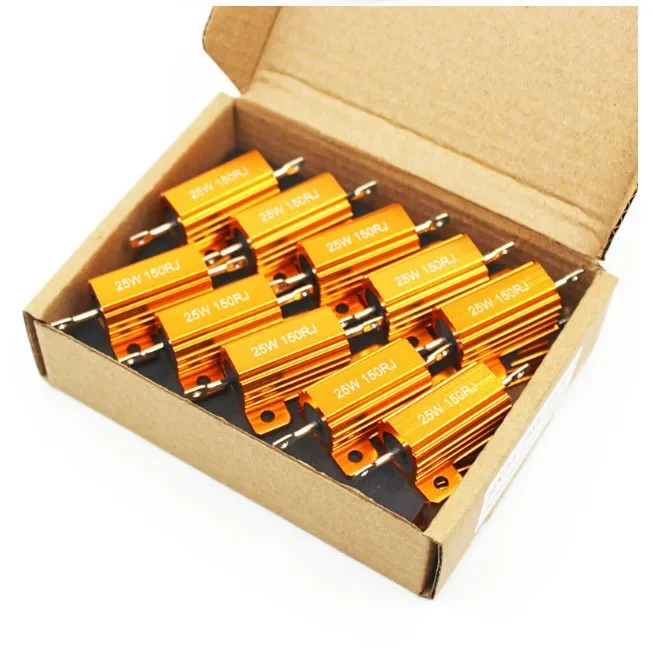

Packing & Delivery
Rated products

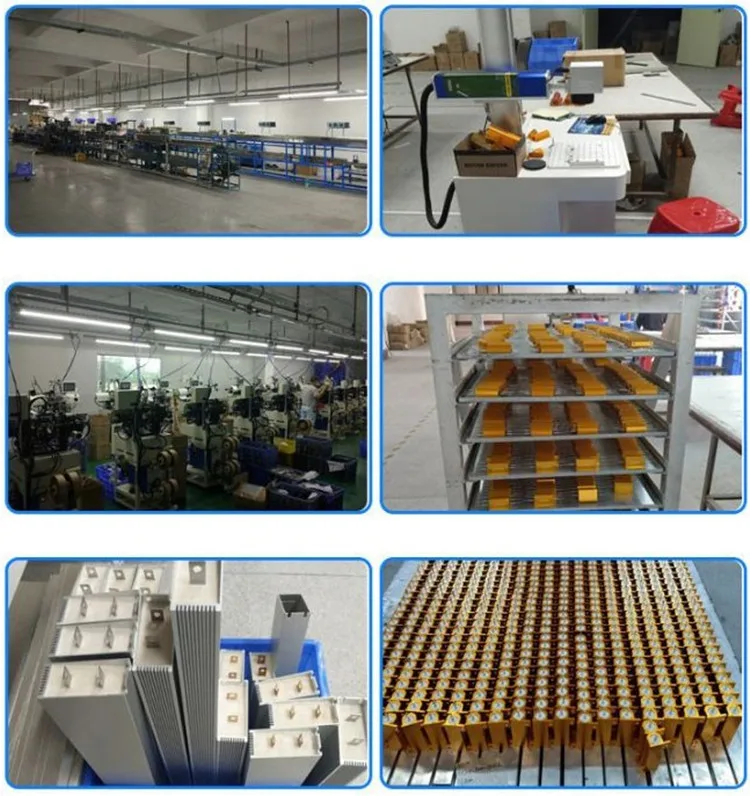

Company Profile
