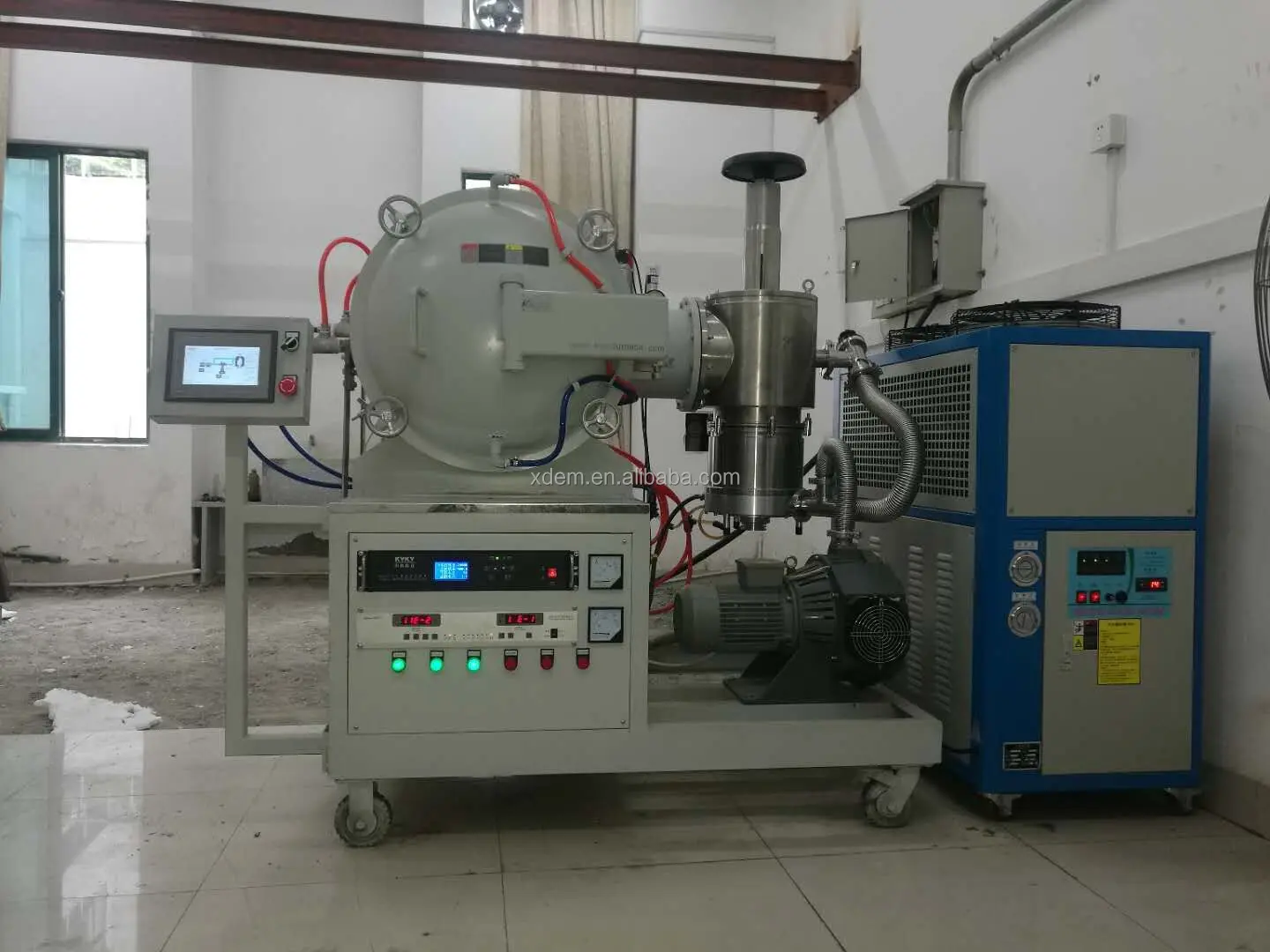

Water cooling system high temperature vacuum atmosphere heat treatment furnace

Xinda vacuum furnace is used for vacuum sintering of powder material such as,rare earth permanent magnet alloy, carbide, metal ceramics, etc. and vacuum brazing, such as high temperature alloy, cemented carbide alloy, ceramic, etc. it is also widely used for heat treament, or metal or special material in vacuum or controlled inert gas atmosphere condition. The furnace is equipped with a mechanical rotary vacuum pump to ensure a max. high vacuum degree of 6.67x10^-3Pa.

Features:

1.Double layer steel casting with water jacket to support water cooling  to keep case

temperature lower;

2.High purity fiber alumina board chamber for the best energy saving;

3.The temperature is controlled by precision SCR.

4.The furnace chamber is ceramic fiber brick with excellent thermal insulation.

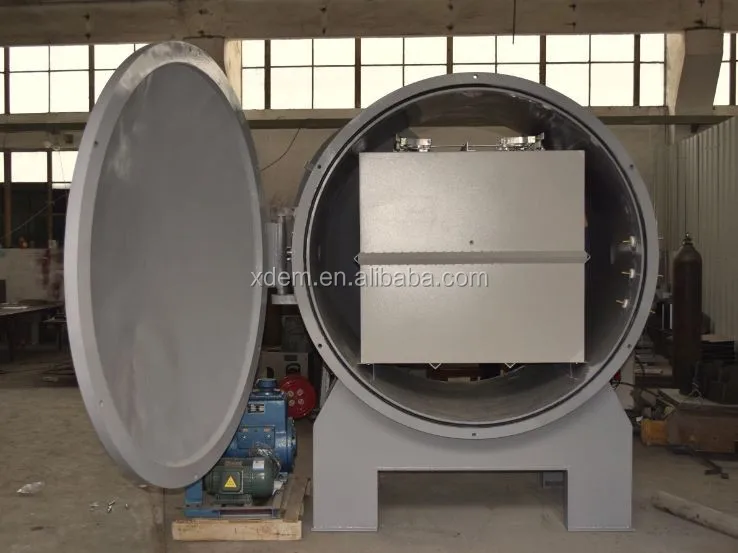

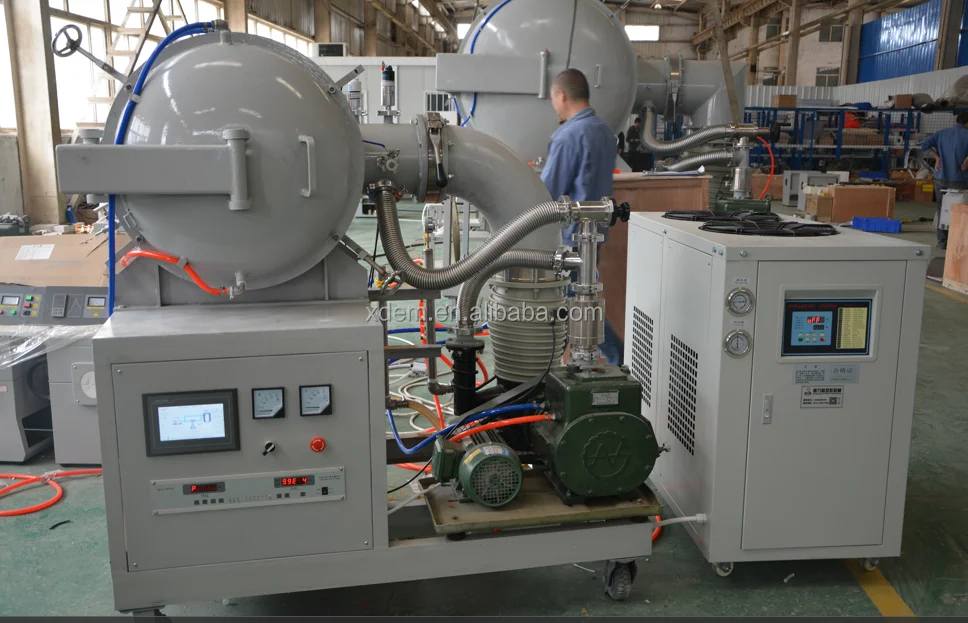

Product Display:

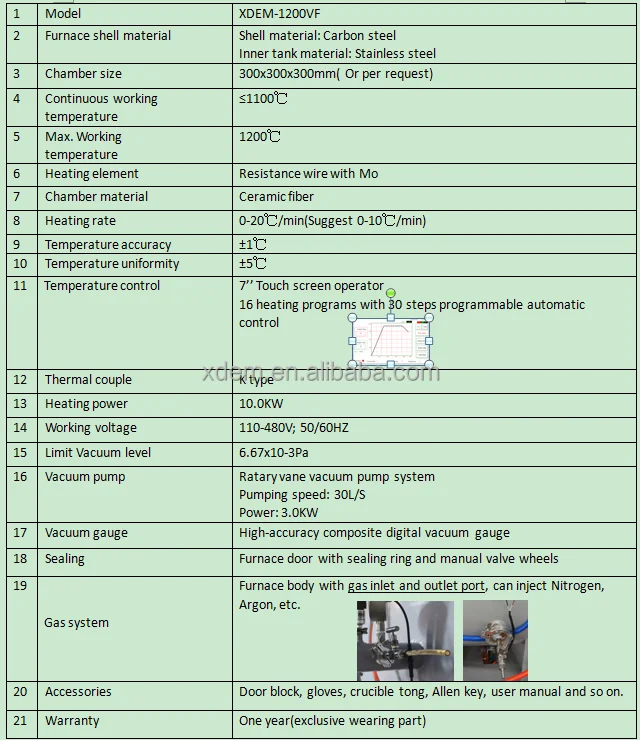

Below Specification as a sample:

 Wooden box packed filled with foam inside to avoid damage.

 Nanyang Xinda Company are a professional supplier for laboratory equipment like electric furnace, vacuum oven and components heating element MoSi2 and SiC, refractory fiber board and crucibles, etc. Our products are sold many countries in the world and are welcomed for the good quality and service.

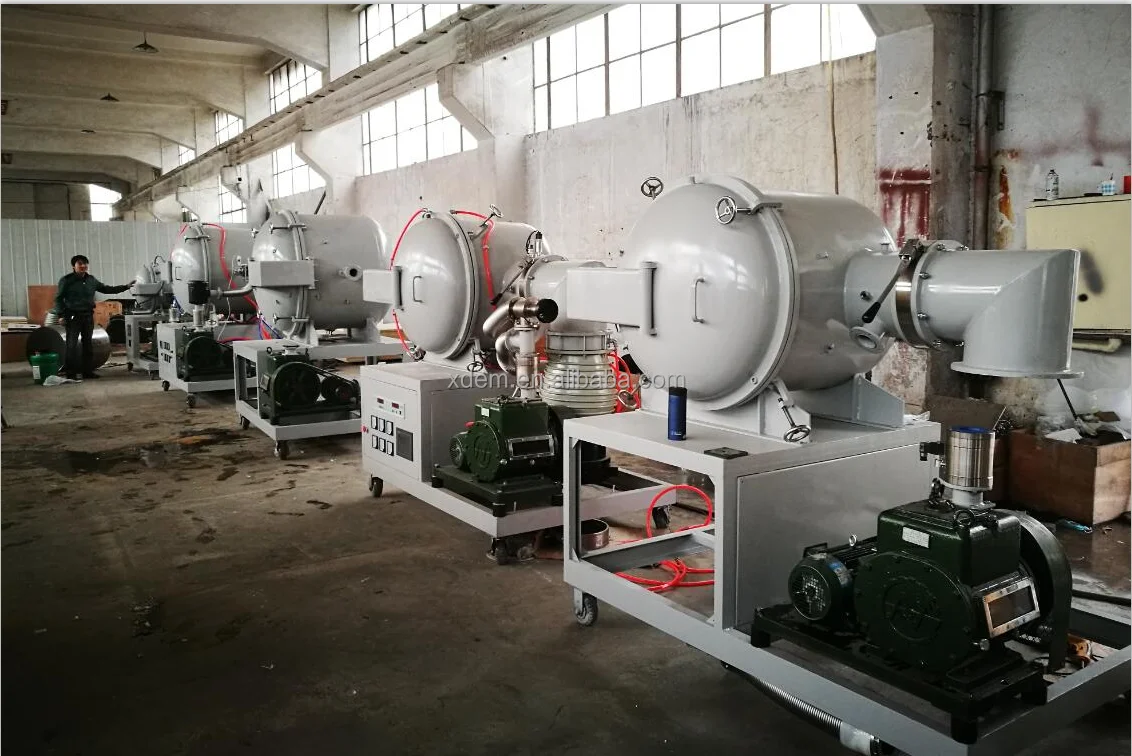

 Workshop:

Office:
