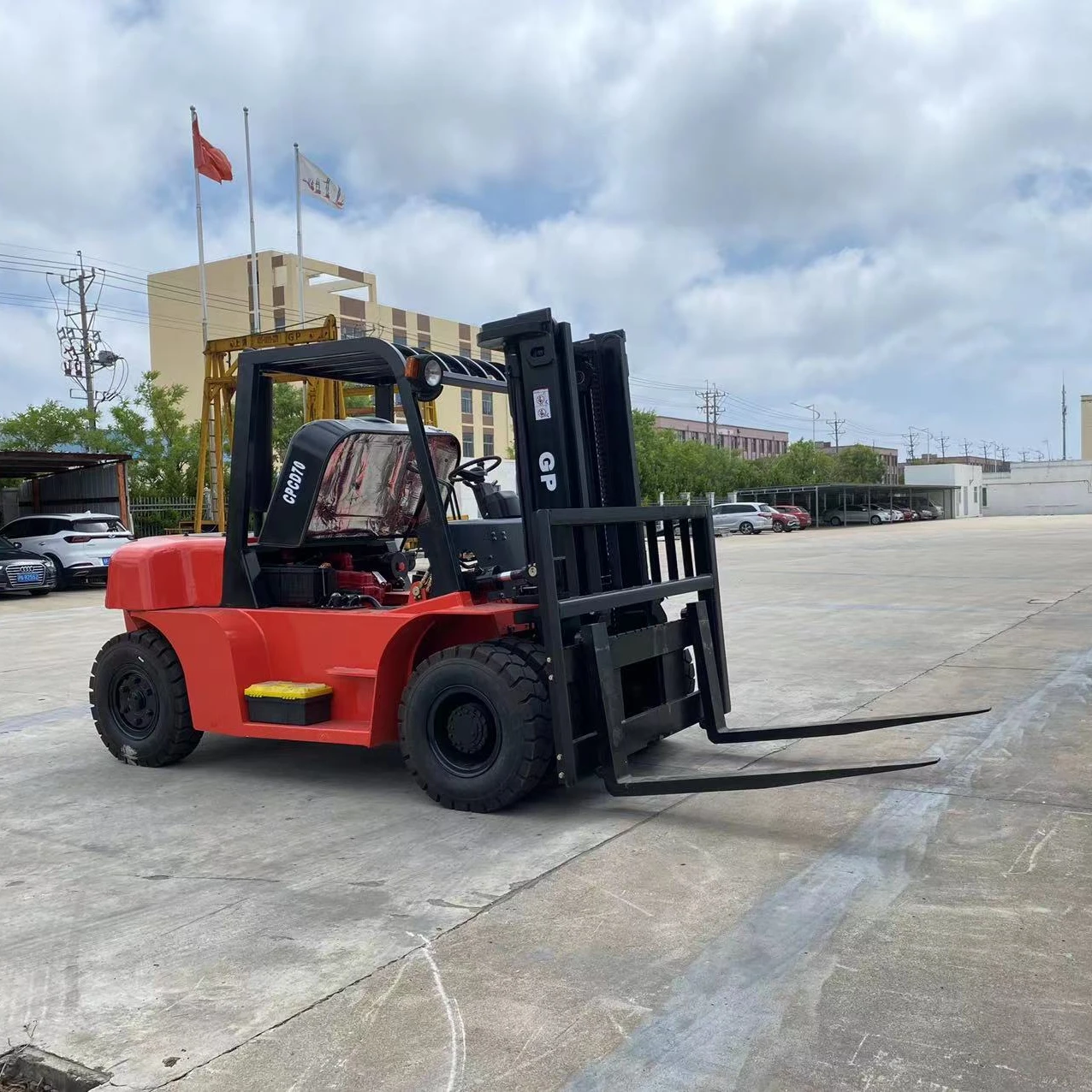

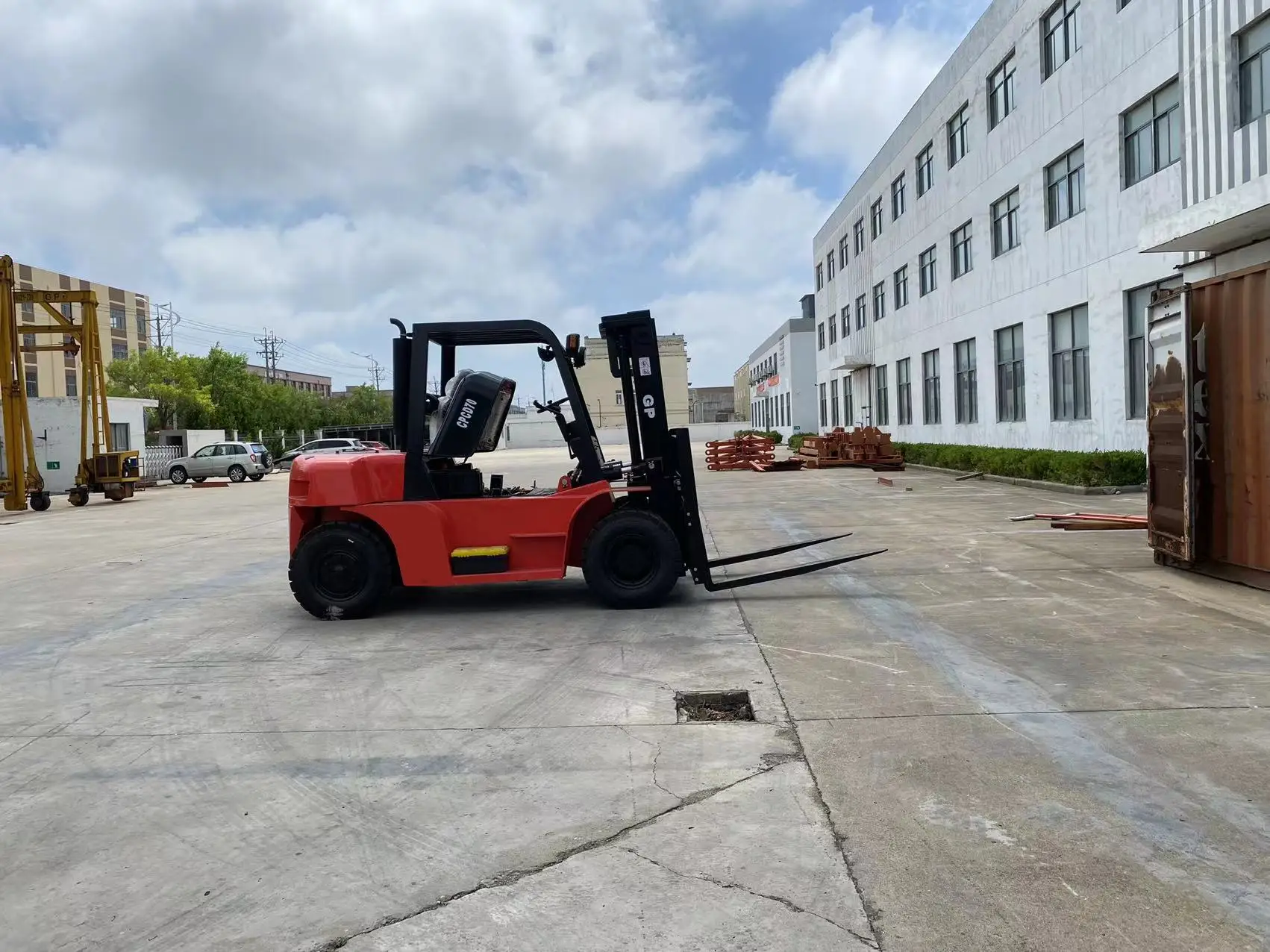

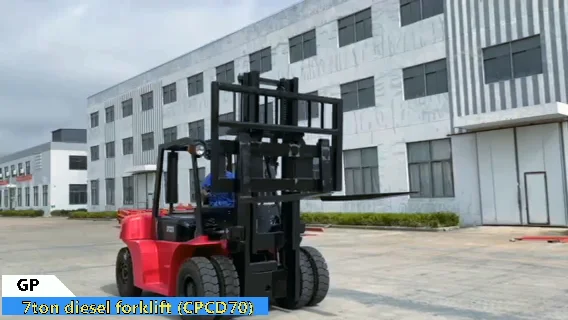

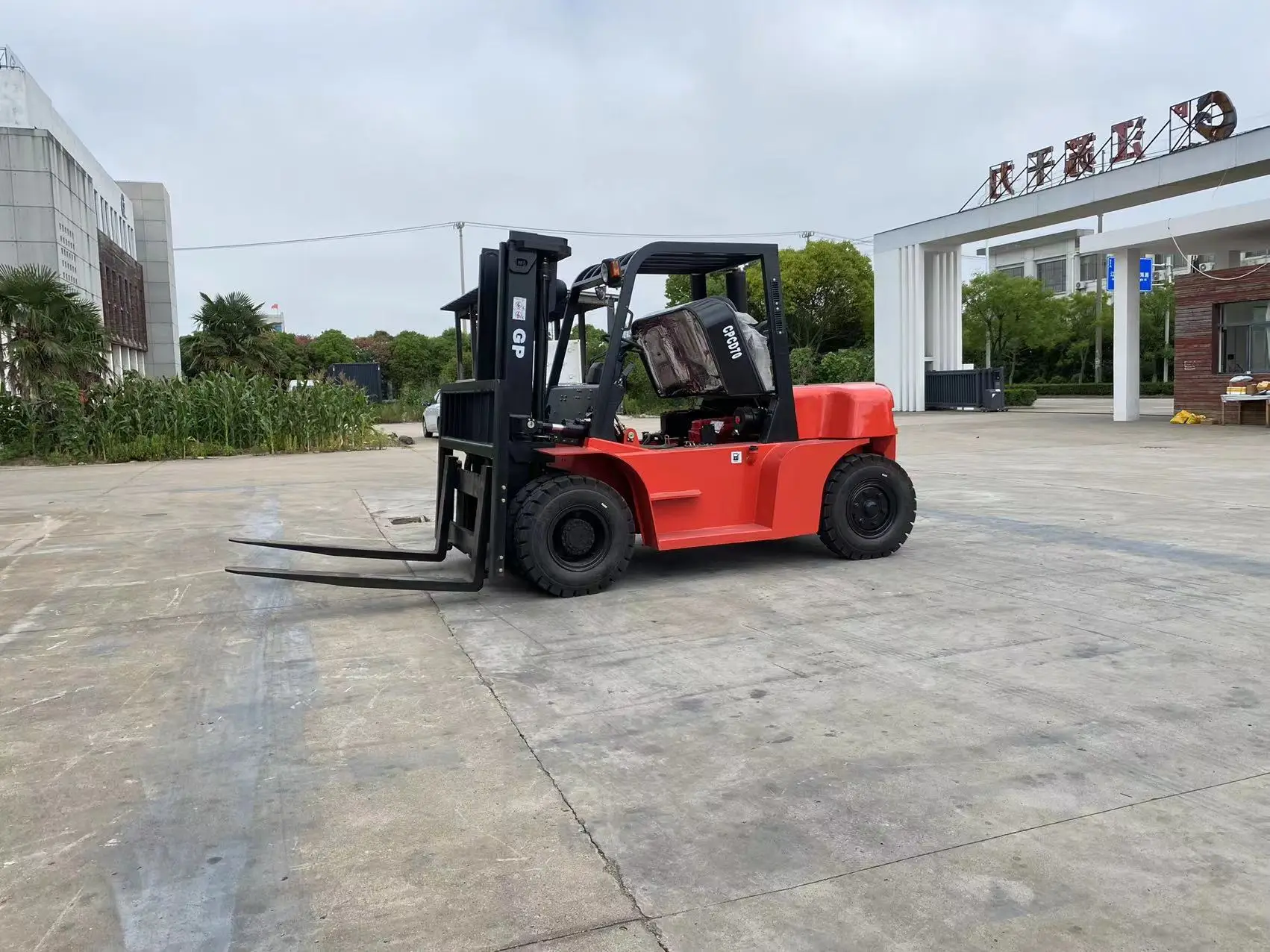

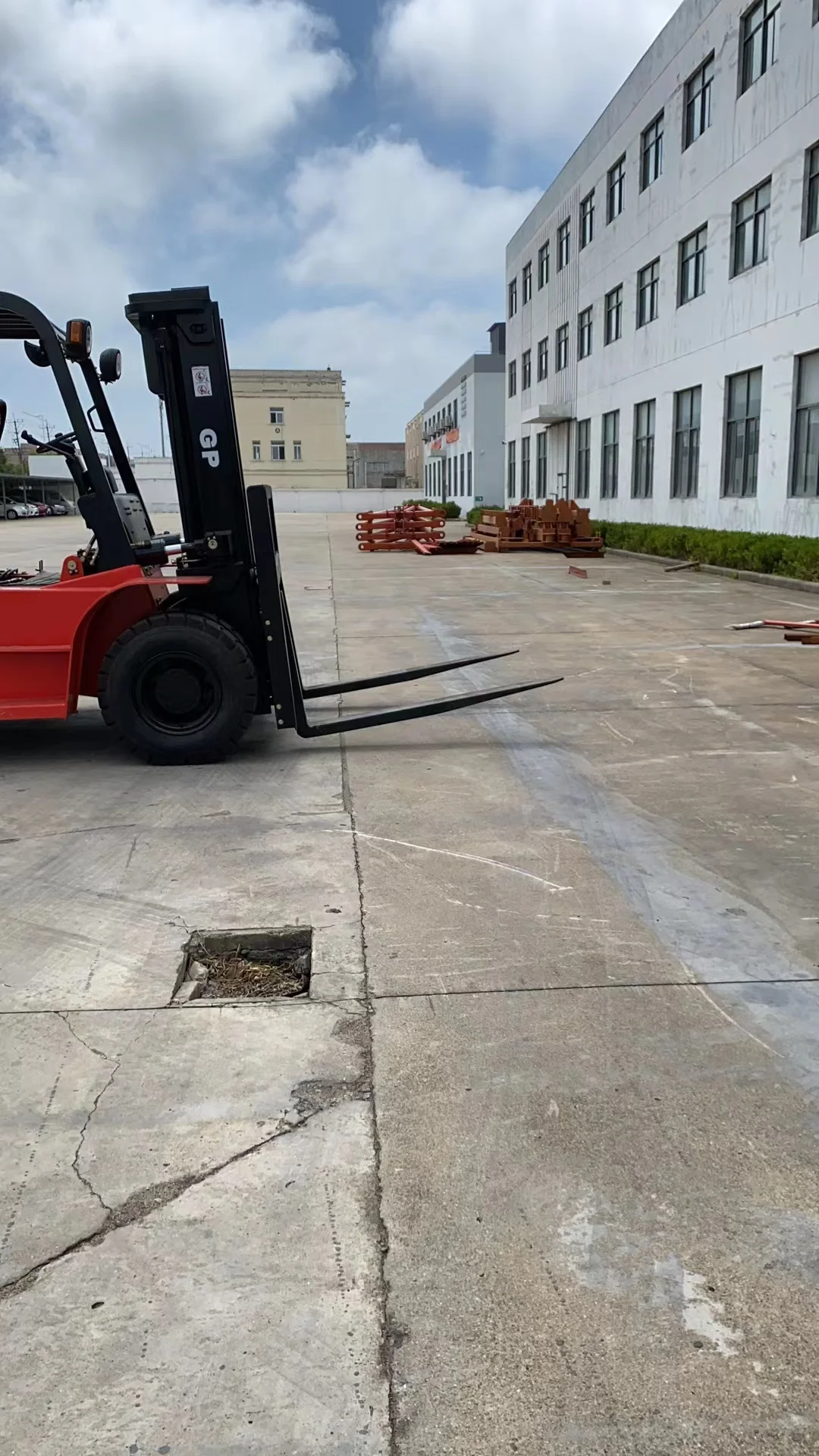

Diesel Safer Forklifts 6t 7t 8t 10t 12t Diesel Forklifts
- Category: >>>
- Supplier: Shanghai Gather Power Industry Co. Ltd.
Share on (1600559187971):
Product Overview
Description
Product Description

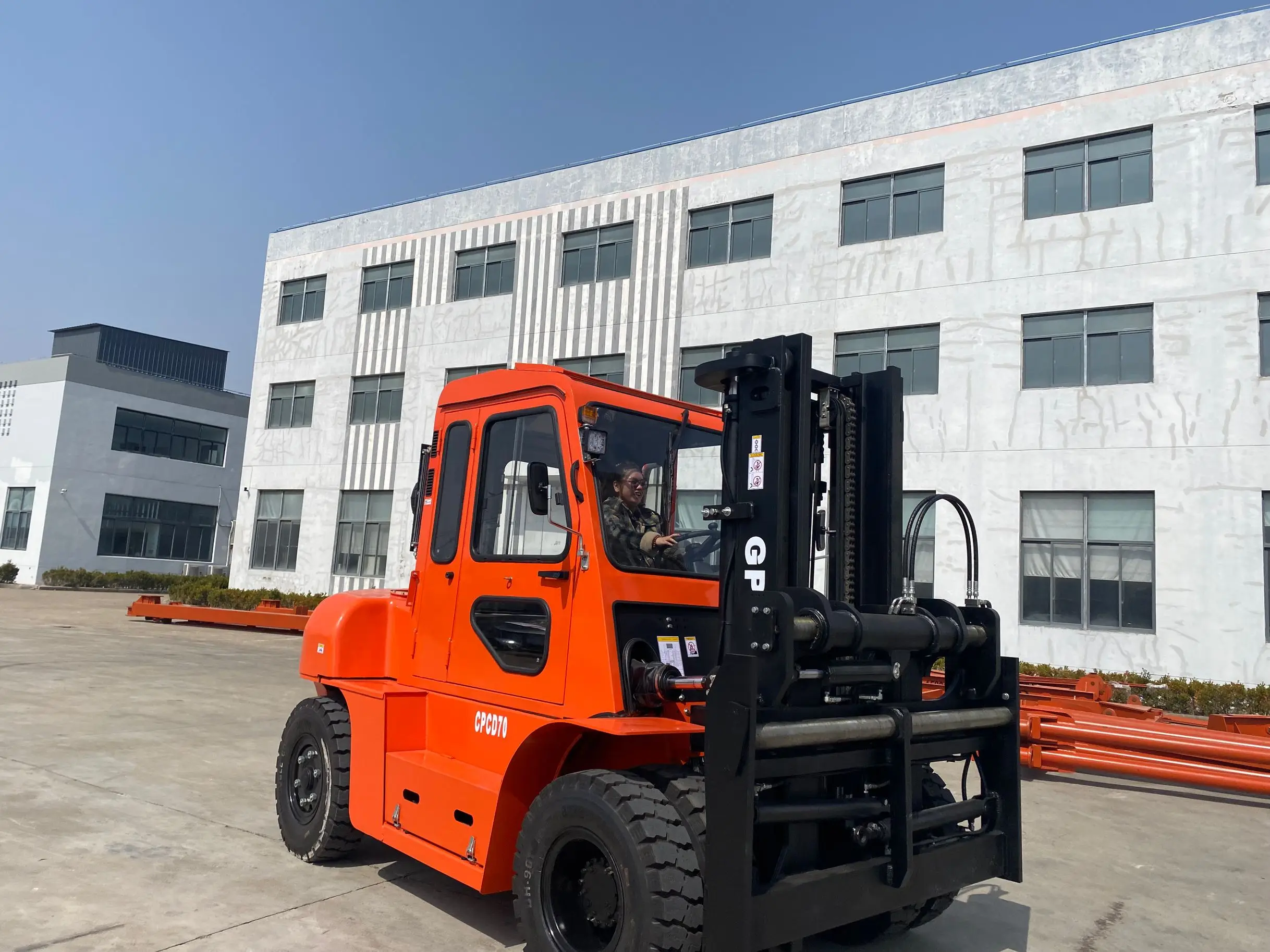

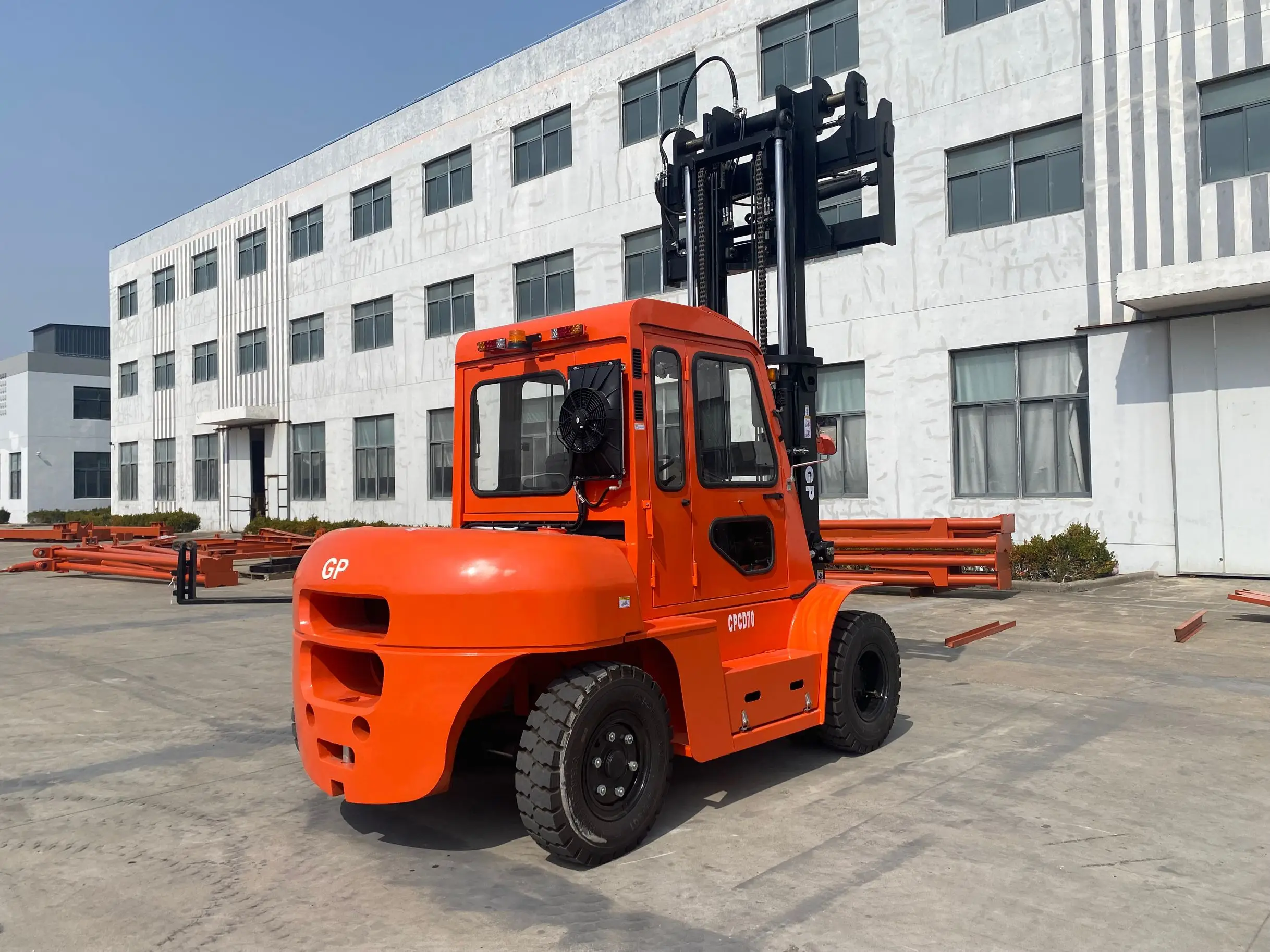

Forklift Truck Diesel 5 Ton 7 8 10 Tons Fork-lift Fork Lift Forklift

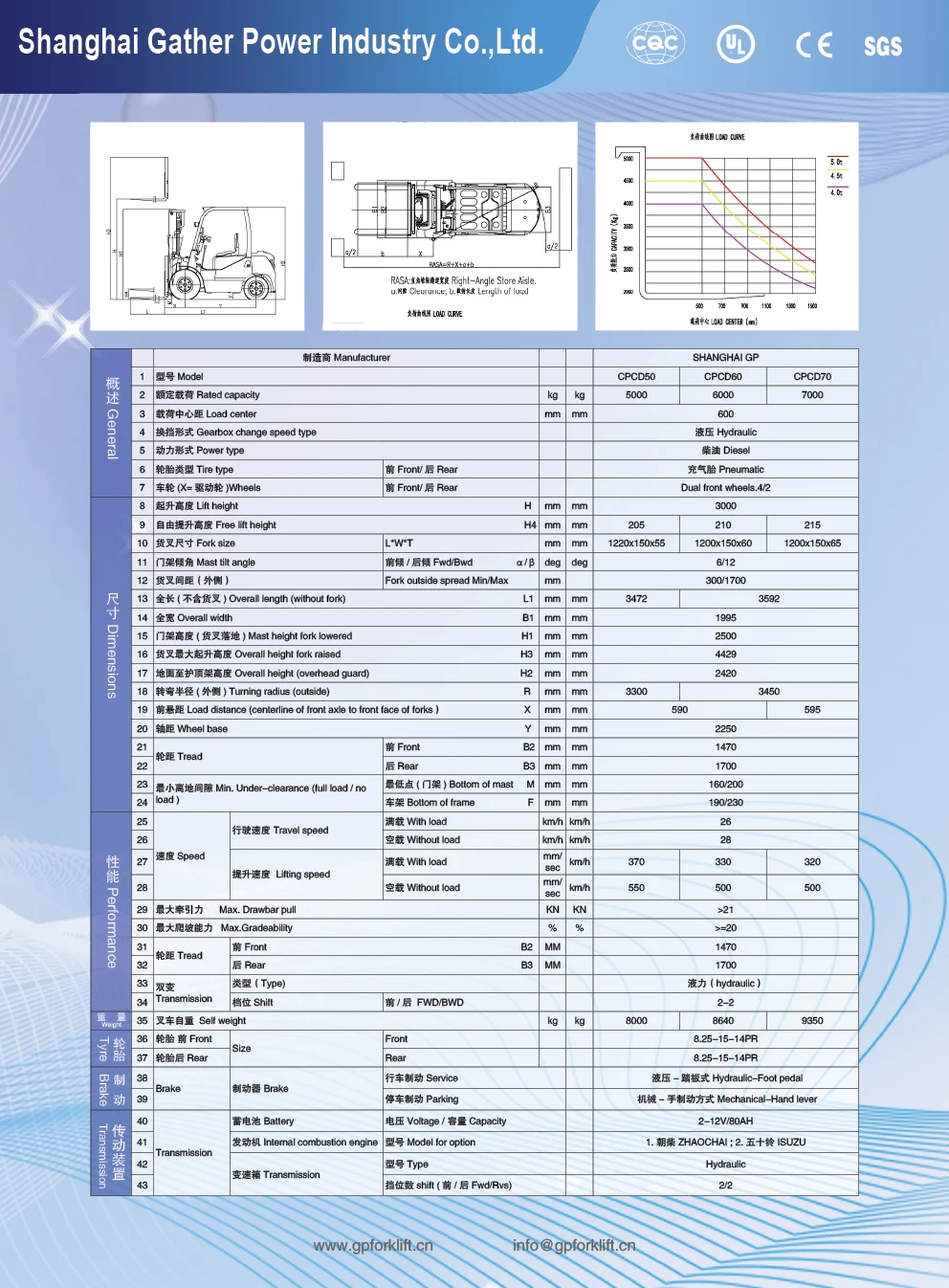

| Item | General | Basic Model | Unit | CPCD50 | CPCD60 | CPCD70 | ||
| 1 | Power type | Diesel | ||||||
| 2 | Rated capacity | kg | 5000 | 6000 | 7000 | |||
| 3 | Load centre | mm | 600 | |||||
| 4 | Characteristic&Dimension | Lift height | mm | 3000 | ||||
| 5 | Free lift height | mm | 195 | 200 | 205 | |||
| 6 | Fork size | LxWxT | mm | 1220x150x55 | 1220x150x60 | 1220x150x65 | ||
| 7 | Fork regulating range | Min./Max. | mm | 300/1845 | ||||
| 8 | Mast tilt angle | F/R | Deg | 6°/12° | ||||
| 9 | Front overhang | mm | 590 | |||||
| 10 | Rear overhang | mm | 600 | 675 | 740 | |||
| 11 | Min. ground clearance(Bottom of mast) | mm | 200 | |||||
| 12 | Overall dimensions | Length to face of fork (without fork) | mm | 3440 | 3515 | 3580 | ||
| 13 | Overall width | mm | 1995 | |||||
| 14 | Mast lowered height | mm | 2500 | 2500 | 2625 | |||
| 15 | Mast extended height (with backrest) | mm | 4420 | |||||
| 16 | Overhead guard height | mm | 2450 | |||||
| 17 | Turning radius(outside) | mm | 3250 | 3300 | 3370 | |||
| 18 | Min. right angle stacking aisle width (add load length and clearance) | mm | 2960 | 3000 | 3040 | |||
| 19 | Performance | Speed | Travel(Unladen) | km/h | 26/28 | 26/28 | 26/28 | |
| 20 | Lifting(Laden) | mm/s | 460/500 | 460/500 | 380/420 | |||
| 21 | Lowering(Laden) | mm/s | 500 | |||||
| 22 | Max. Drawbar pull(Laden/unladen) | KN | 53 | 53 | 52 | |||
| 23 | ||||||||
| Max. Gradeability(Laden) | % | 22 | 21 | 20 | ||||
| 24 | ||||||||
| Chassis | Tyre | Front | 8.25-15-14PR | |||||
| 25 | Rear | 8.25-15-14PR | ||||||
| 26 | Tread | Front | mm | 1470 | ||||
| 27 | Rear | mm | 1700 | |||||
| 28 | Wheelbase | mm | 2250 | |||||
| 29 | Weight | Self weight | kg | 8080 | 8740 | 9450 | ||
| 30 | Weight Distribution | Laden | Front Axle | kg | 11250 | 12680 | 14150 | |
| 31 | Rear Axle | kg | 1830 | 2060 | 2300 | |||
| 32 | Unladen | Front Axle | kg | 3640 | 3930 | 4250 | ||
| 33 | Rear Axle | kg | 4440 | 4810 | 5200 | |||
| 34 | Battery | Battery | Voltage/Capacity | V/Ah | 2x12/80 | |||
| 35 | Transmission | Transmission | Manufacture | China | ||||
| 36 | Type | Powershift | ||||||
| 37 | Stage | F/R | 2/2 | |||||
| 38 | Operating pressure(For attachments) | MPa | 19.5 | |||||
